Charging Systems: Generator: Components

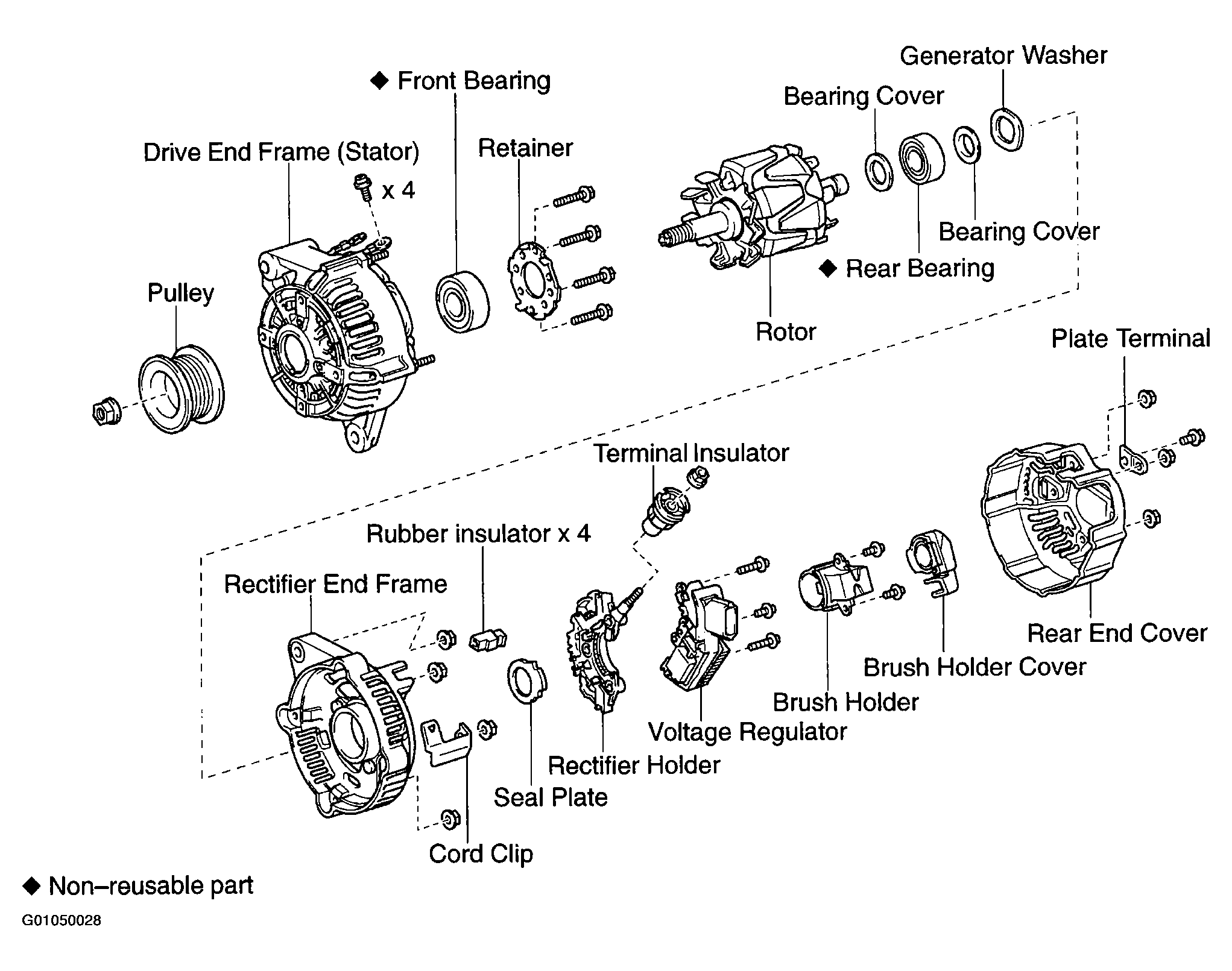

Fig 1: Identifying Generator Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

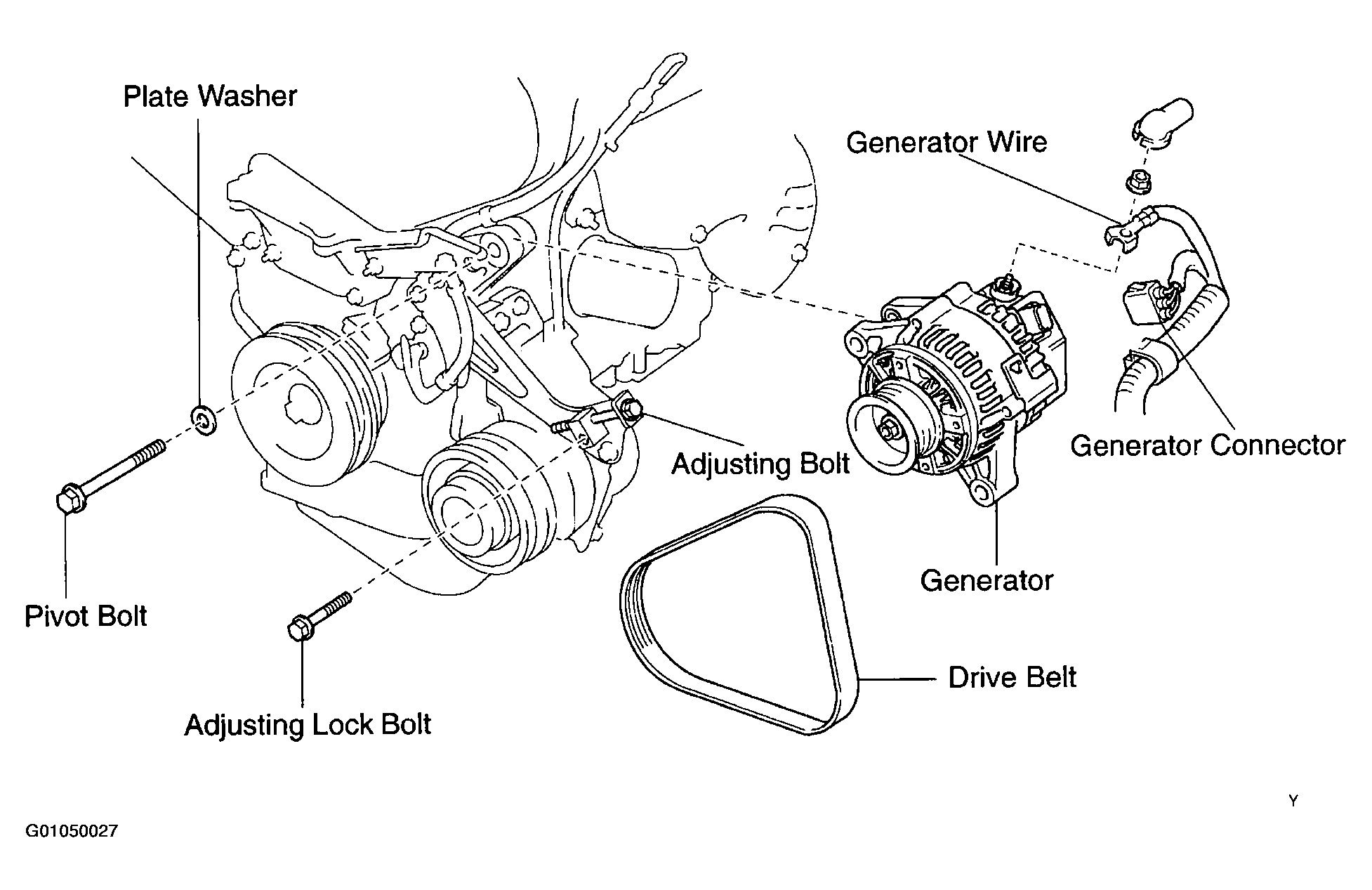

Fig 2: Identifying Generator Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
