Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|

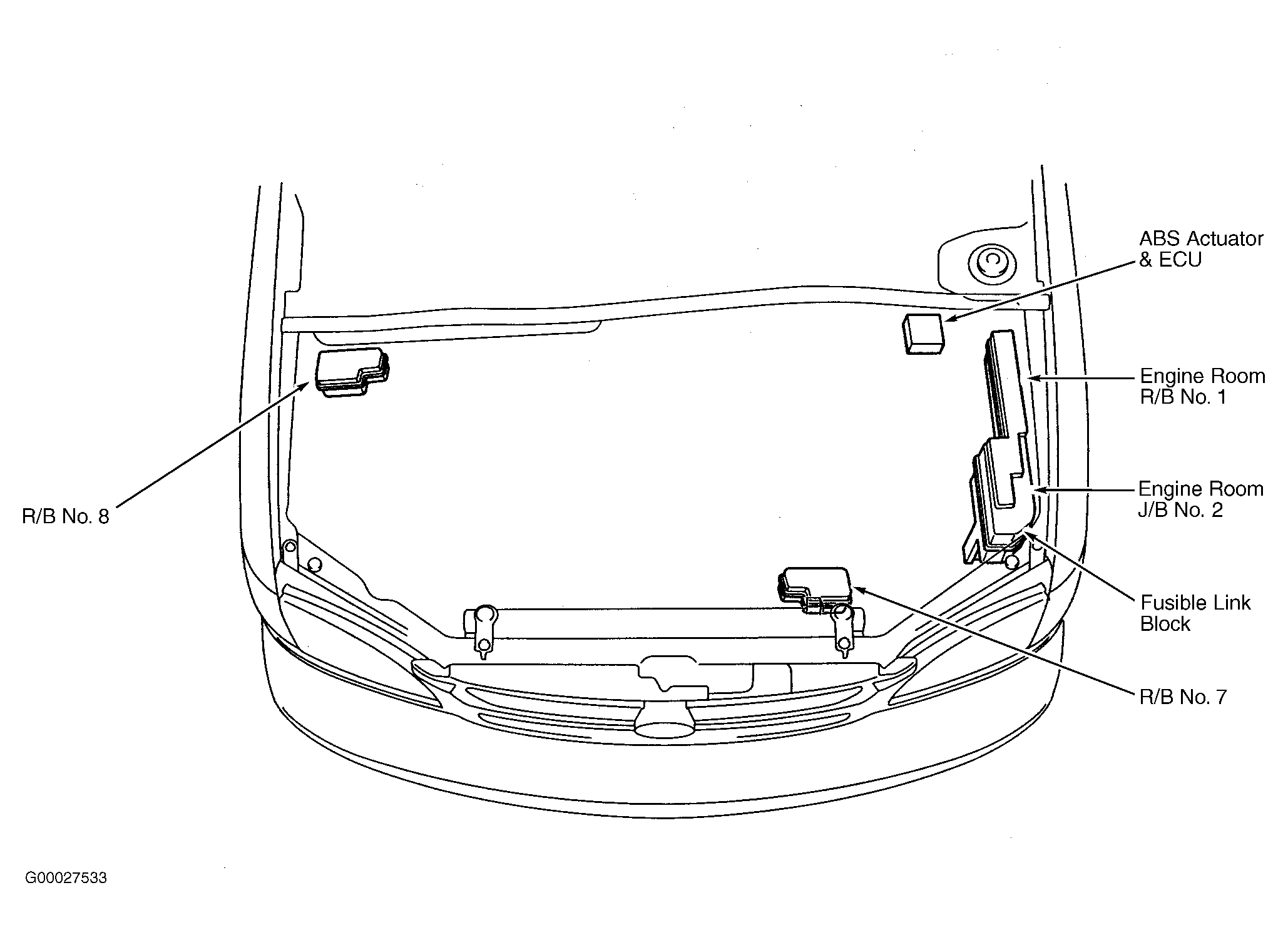

| ABS Actuator & ECU | On left rear of engine compartment. See Figure. |

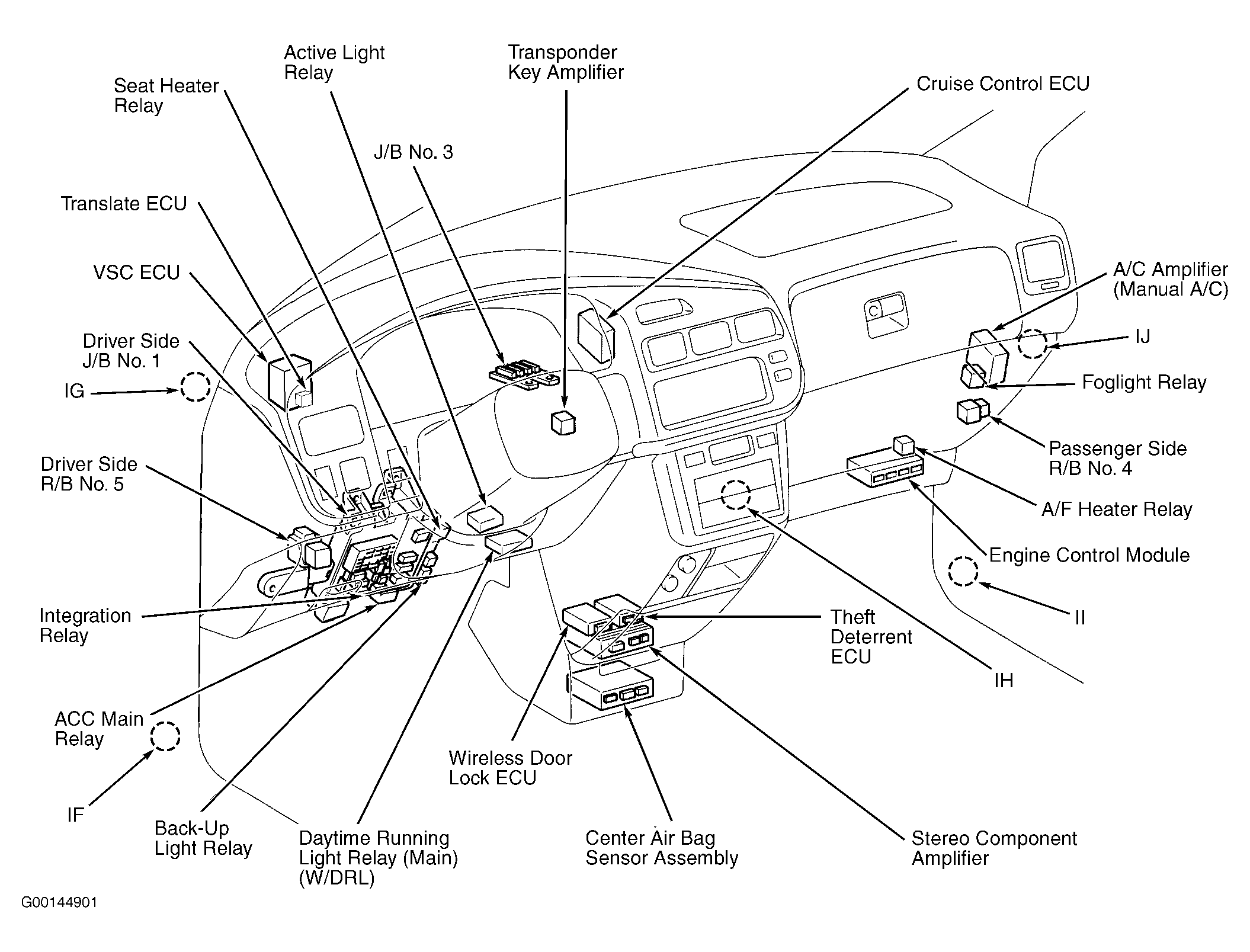

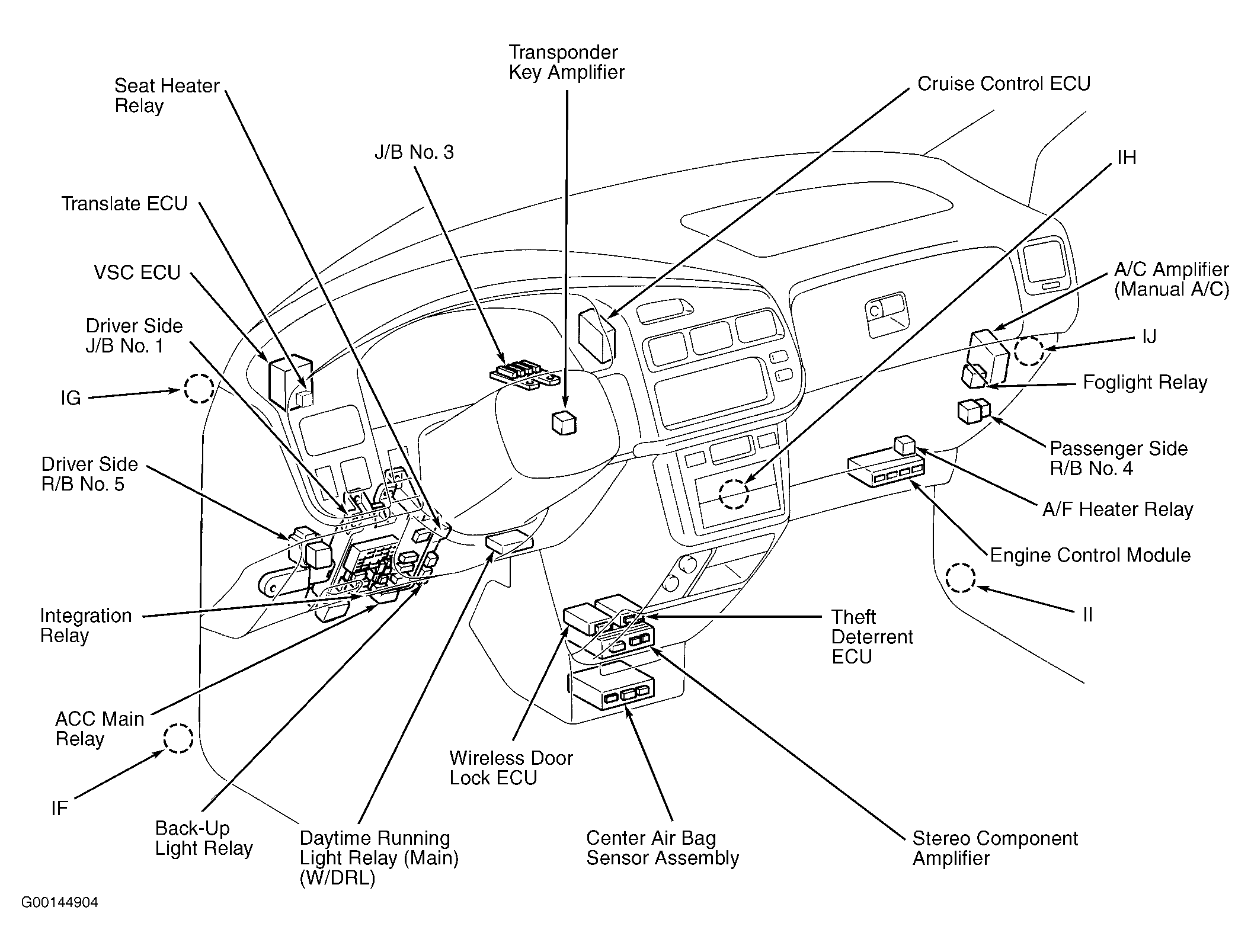

| A/C Amplifier (Manual A/C) | Behind right side of dash, above kick panel. See Figure. |
| Center Air Bag Sensor Assembly | Below center of dash. See Figure. |
| Cruise Control ECU | Behind upper left center of dash. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |

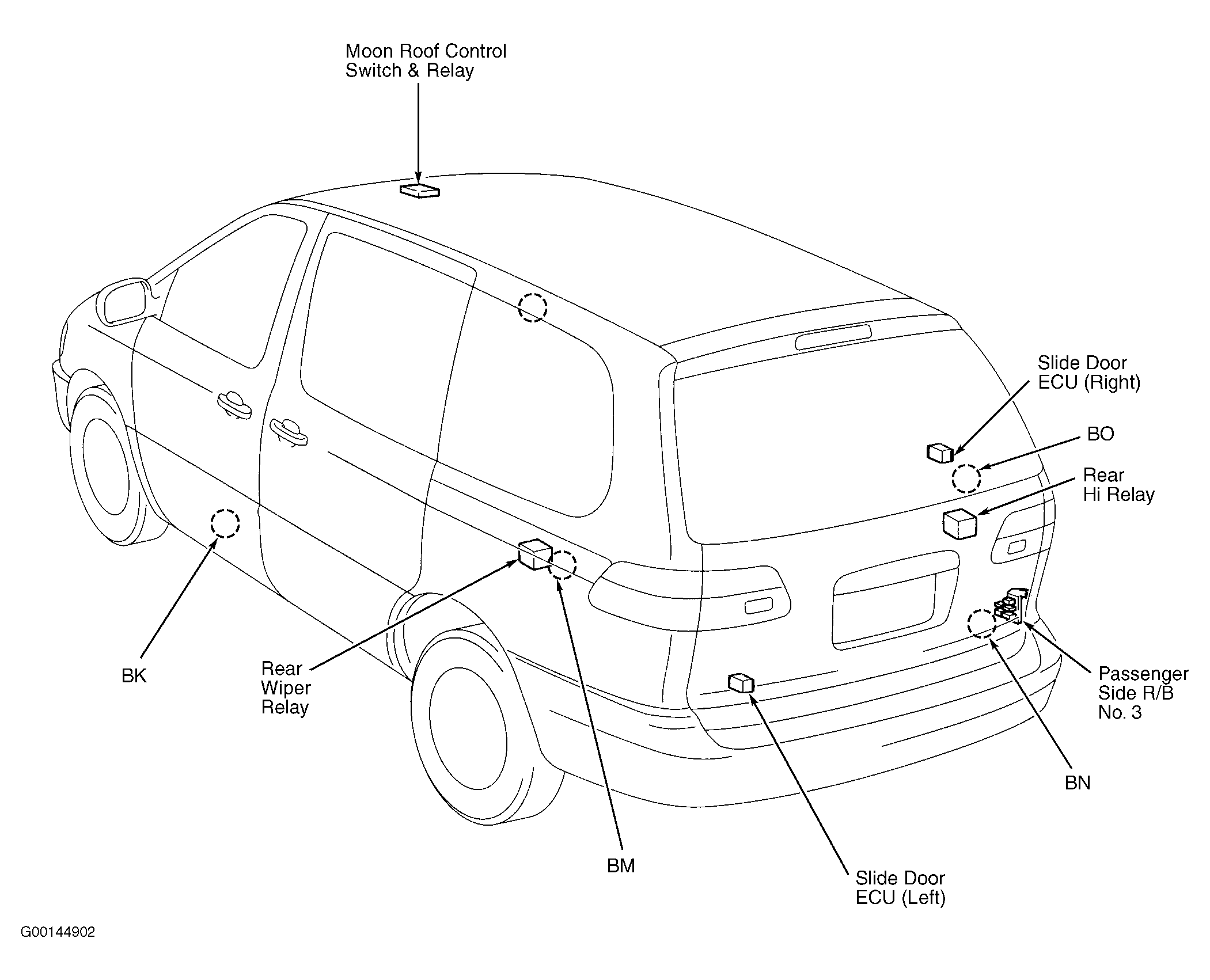

| Slide Door ECU (Left) | Below left taillight. See Figure. |
| Slide Door ECU (Right) | On right "C" pillar, near base of rear side window. See Figure. |
| Stereo Component Amplifier | Behind center of dash. See Figure. |
| Theft Deterrent ECU | Behind center of dash. See Figure. |
| Translate ECU | Behind upper left end of dash. See Figure. |
| Transponder Key Amplifier | Behind left side of dash. See Figure. |
| VSC ECU | Behind upper left end of dash. See Figure. |
| Wireless Door Lock ECU | Behind center of dash. See Figure. |
