Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|

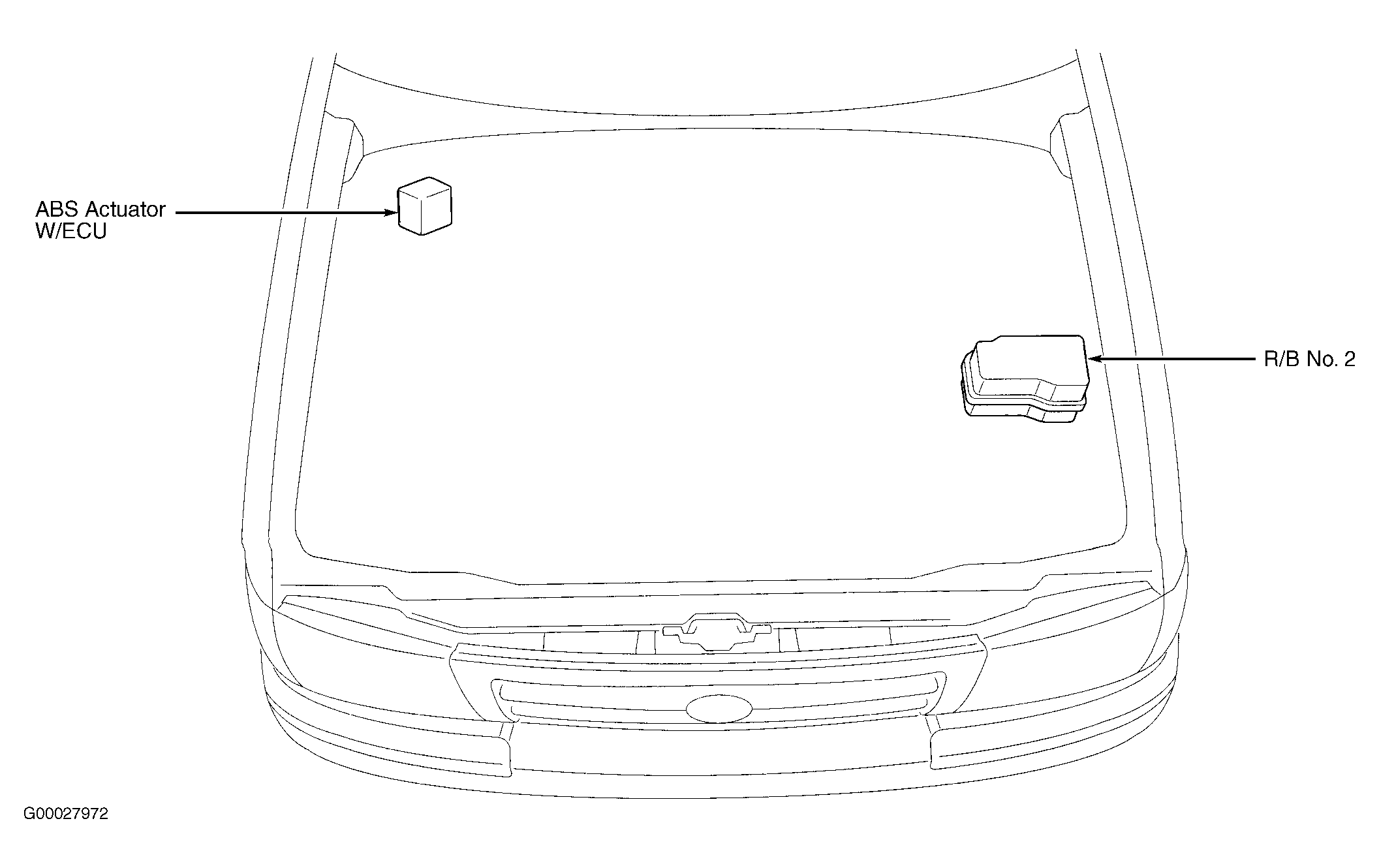

| ABS Actuator W/ ECU | On right rear of engine compartment. See Figure. |

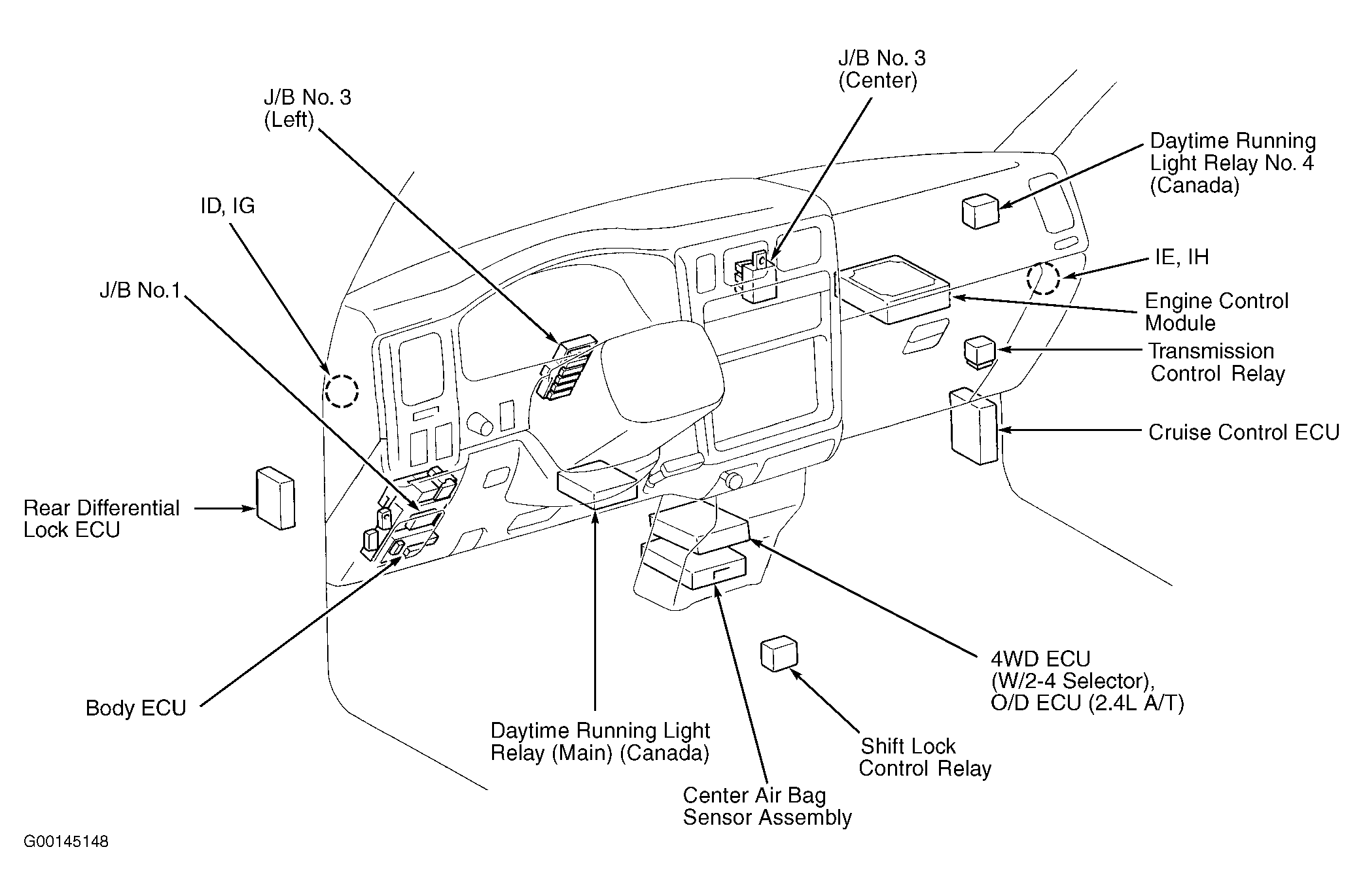

| Body ECU | On J/B No. 1. See Figure. |
| Center Air Bag Sensor Assembly | Below center of dash. See Figure. |
| Cruise Control ECU | On right kick panel. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |
| O/D ECU (2.4L A/T) | Below center of dash. See Figure. |
| Rear Differential Lock ECU | On upper left kick panel. See Figure. |
| 4WD ECU (W/ 2-4 Selector) | Below center of dash. See Figure. |
