Diagnostic Tests: Notes

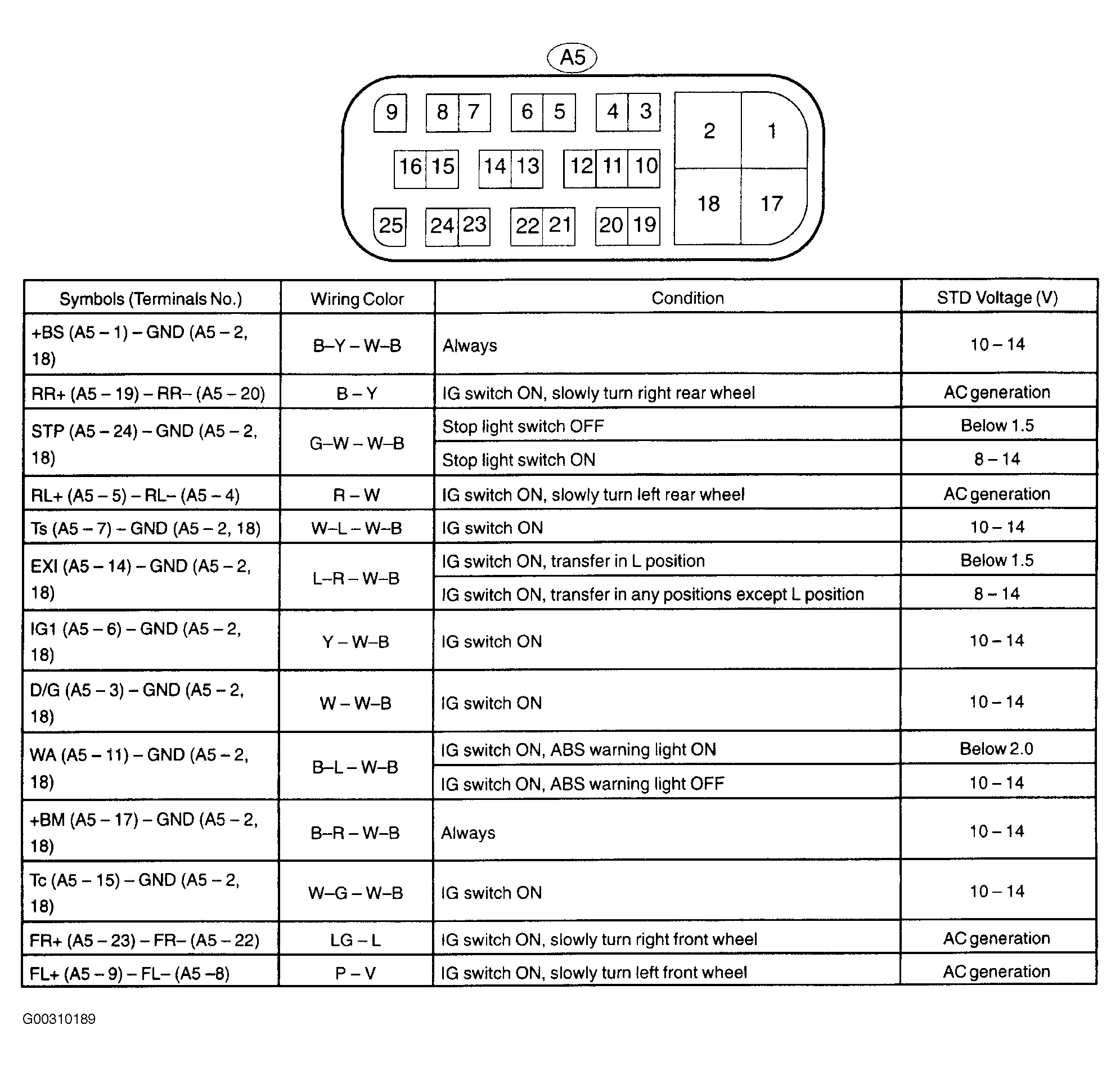

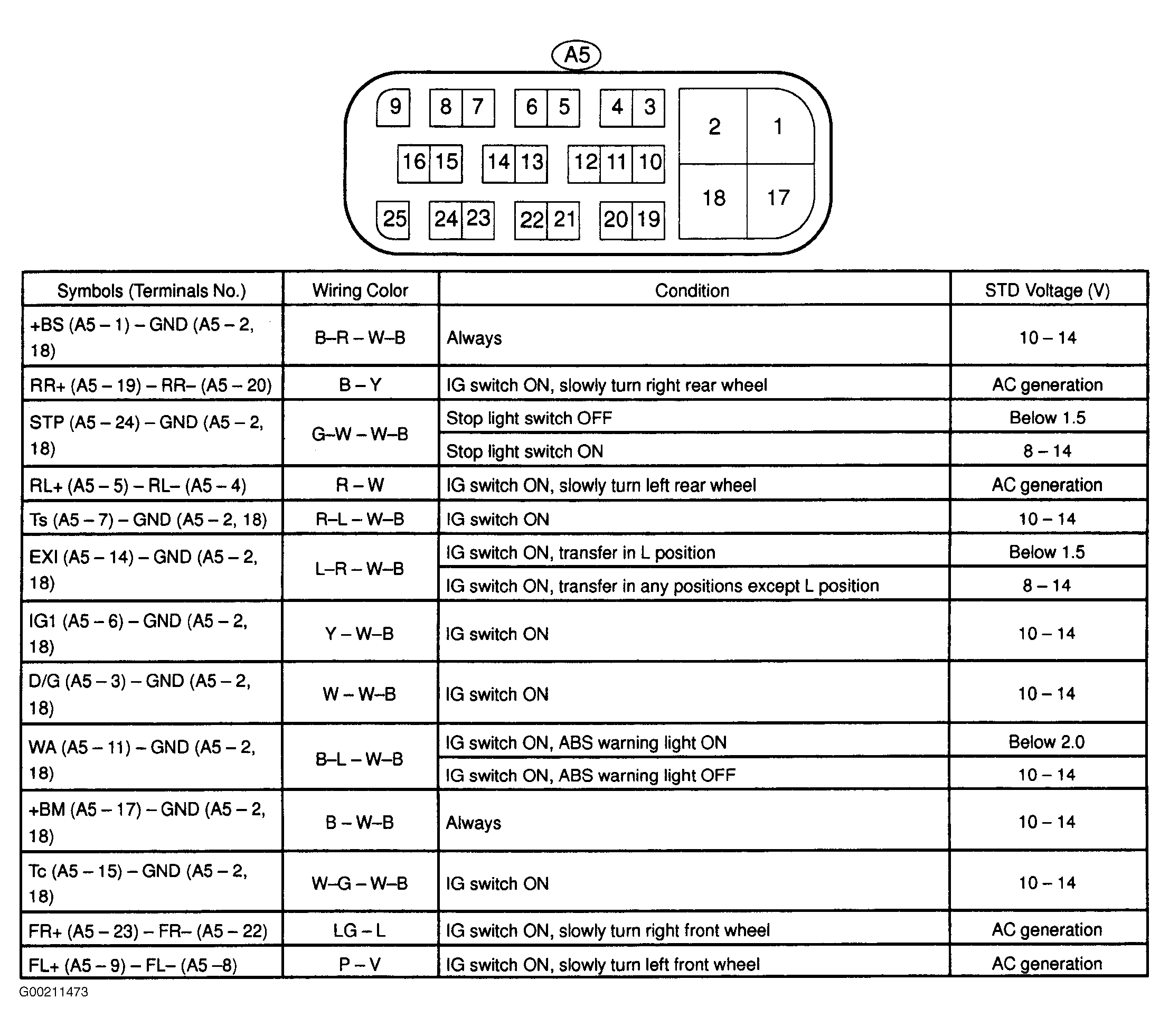

NOTE: For identification of ABS ECU terminals and circuits, see Figure-Figure . Also see WIRING DIAGRAMS .

NOTE: There are no procedures for deceleration sensor diagnosis available from manufacturer.
