Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

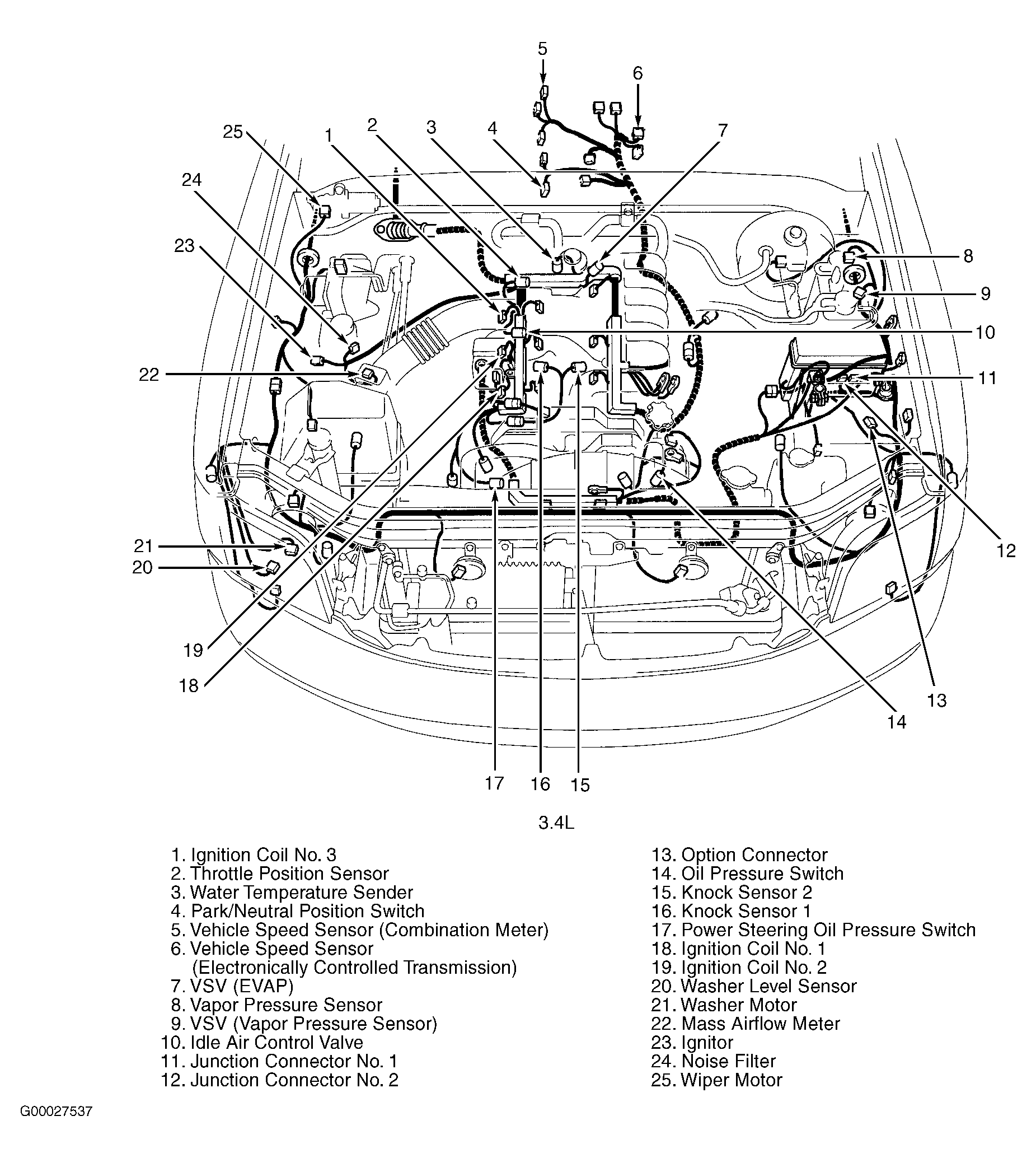

Fig 1: Engine Compartment (3.4L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Engine Compartment (3.4L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

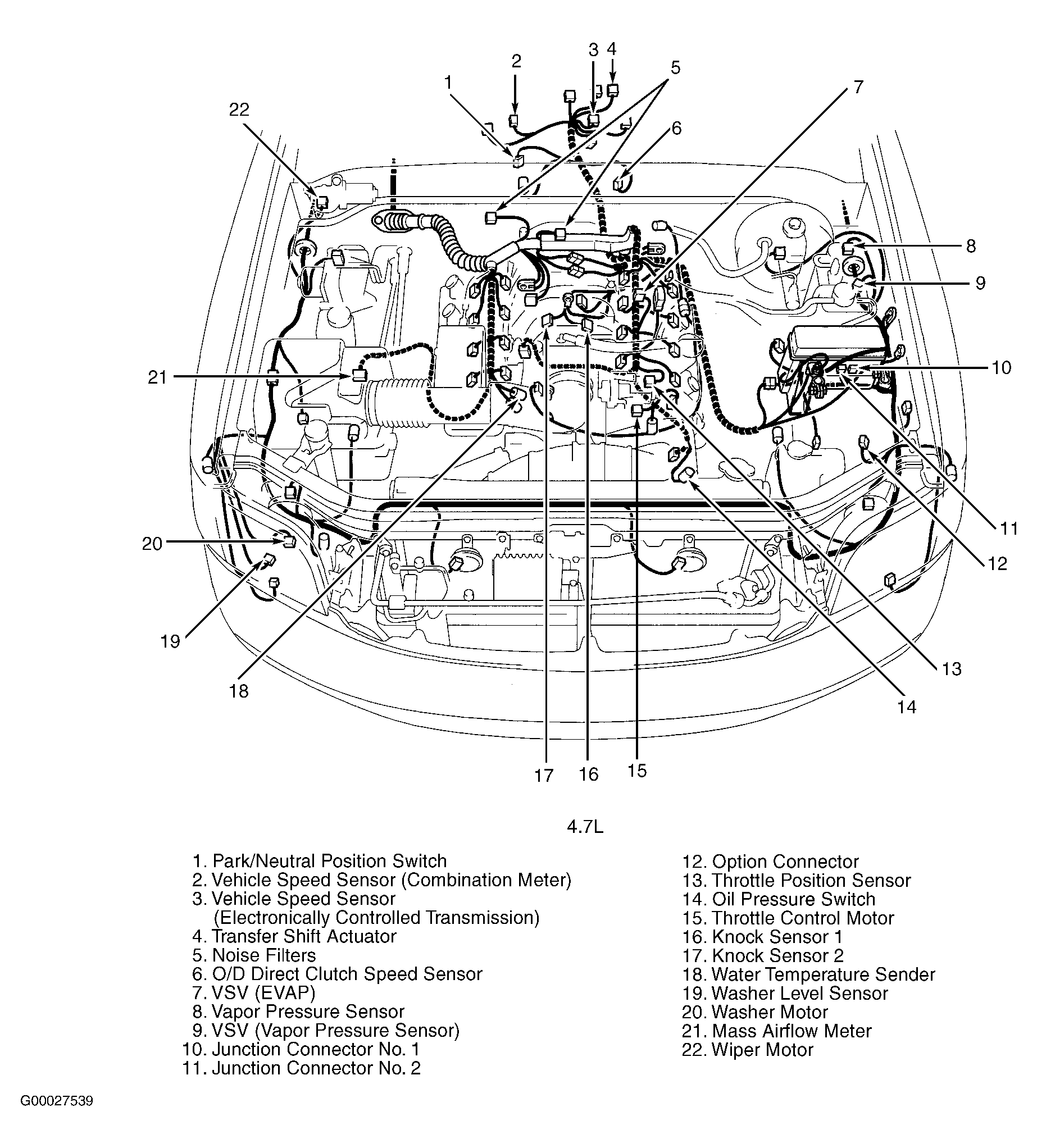

Fig 3: Engine Compartment (4.7L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Engine Compartment (4.7L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Dash Relays And Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
21.	Back-Up Light Relay (A/T)

Fig 6: Dash Relays And Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY DESCRIPTION
Integration Relay
Power Relay
Daytime Running Light Relay (Main)
4WD Control ECU (4.7L) Transmission Control Relay (3.4L)

Fig 7: Engine Compartment (3.4L)

Fig 8: Engine Compartment (4.7L)

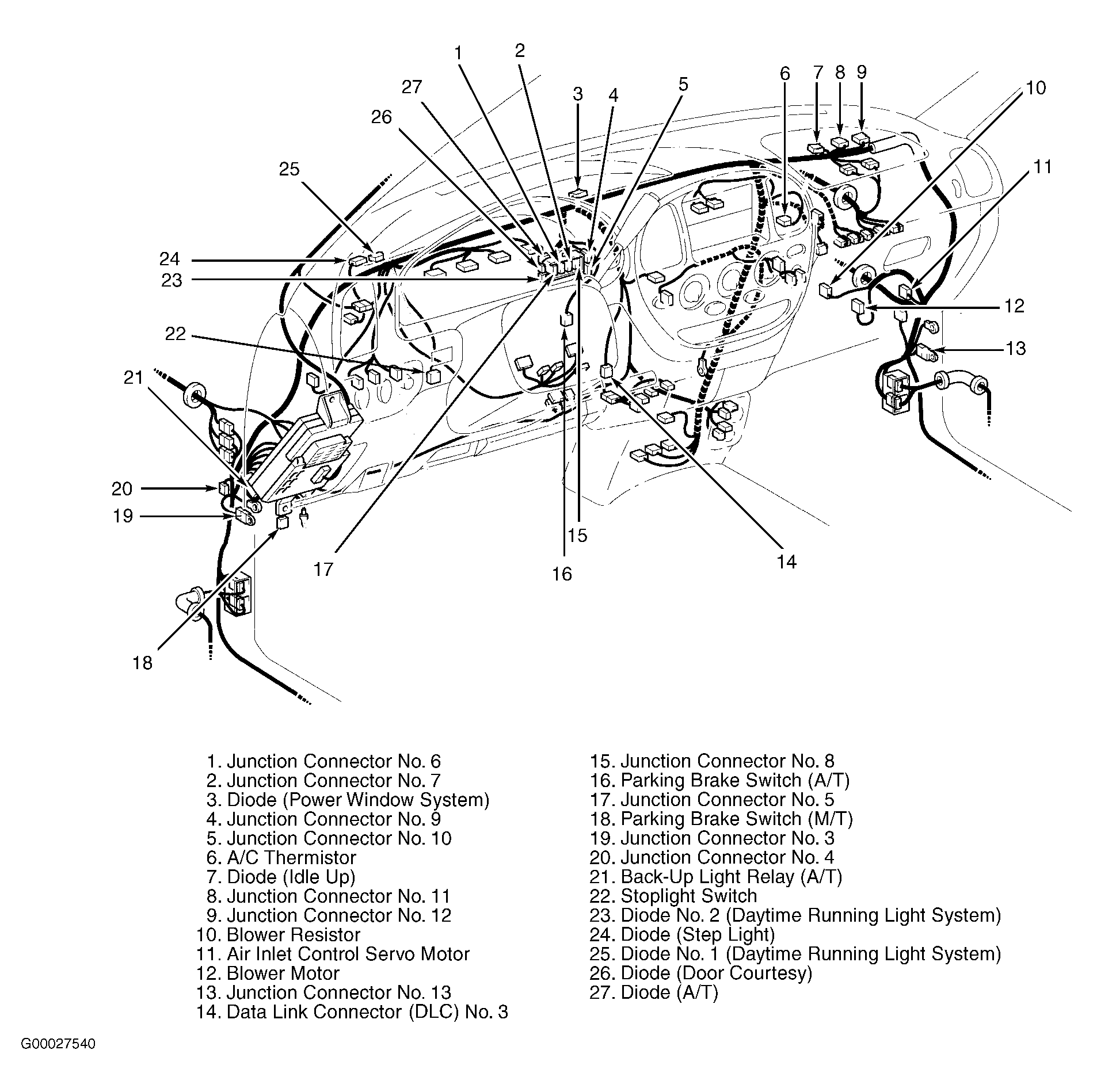

Fig 9: Dash
