Steering Column: Components

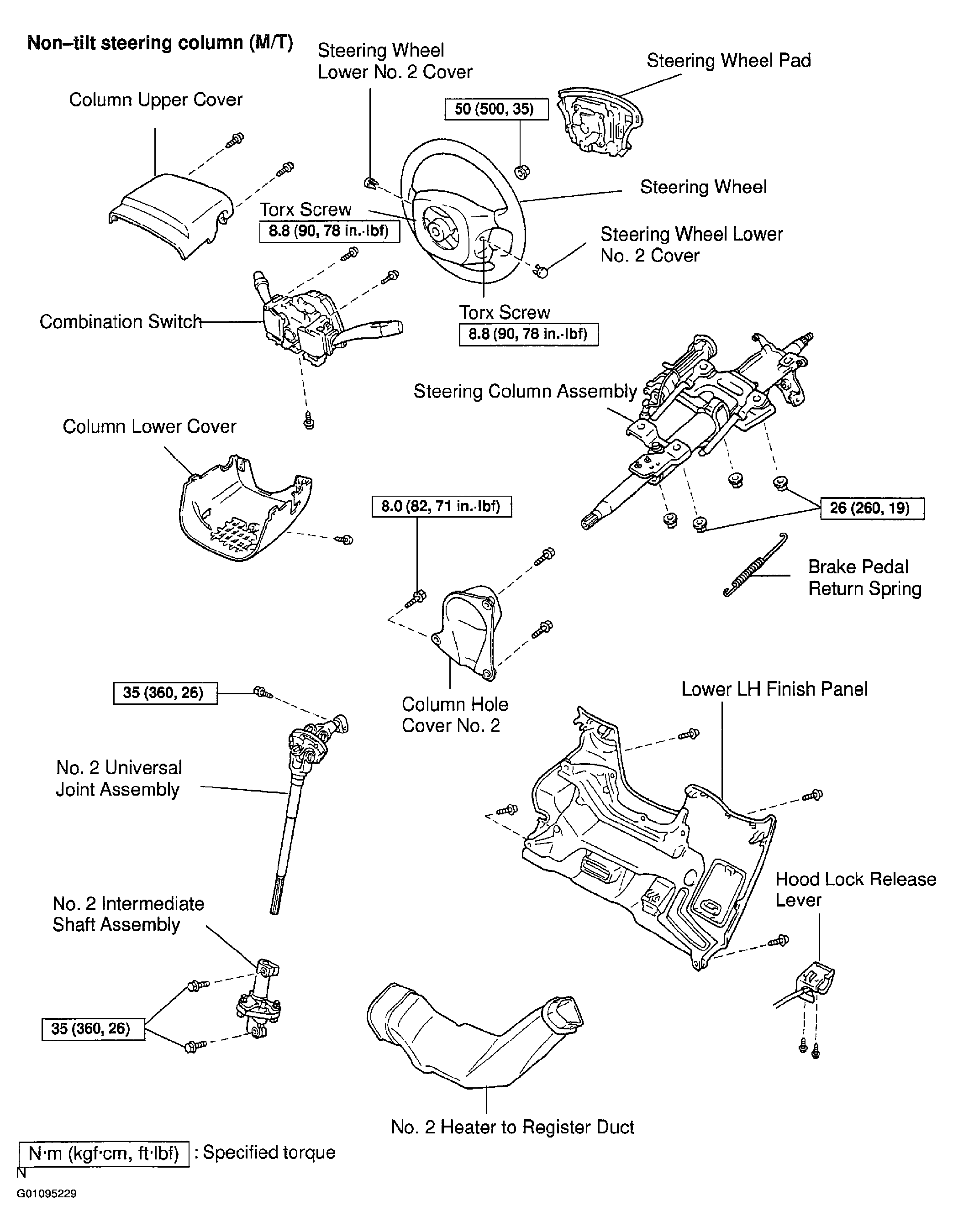

Fig 1: Identifying Non-Tilt Steering Column Related Components (M/T)
G01095229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

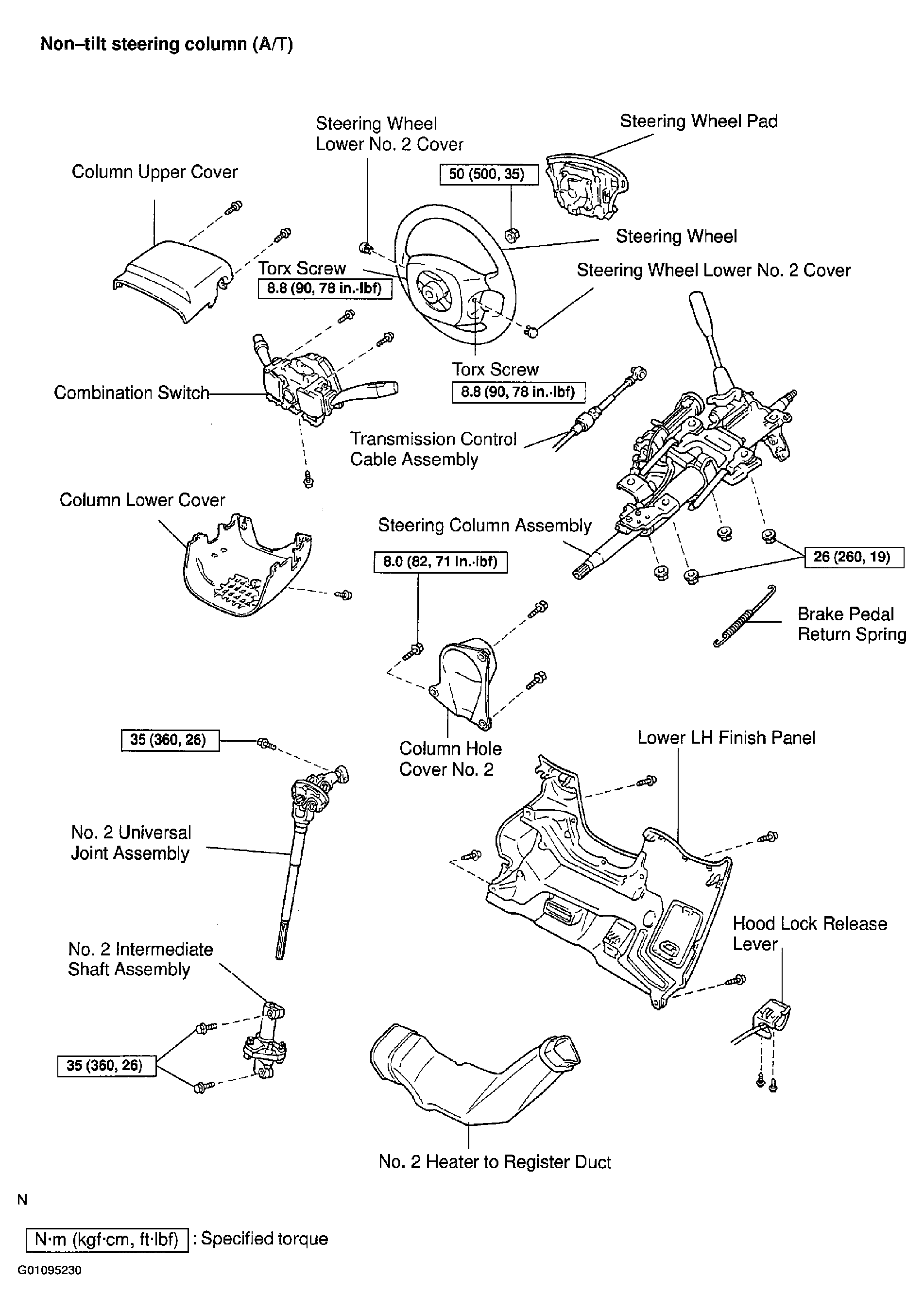

Fig 2: Identifying Non-Tilt Steering Column Related Components (A/T)
G01095230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

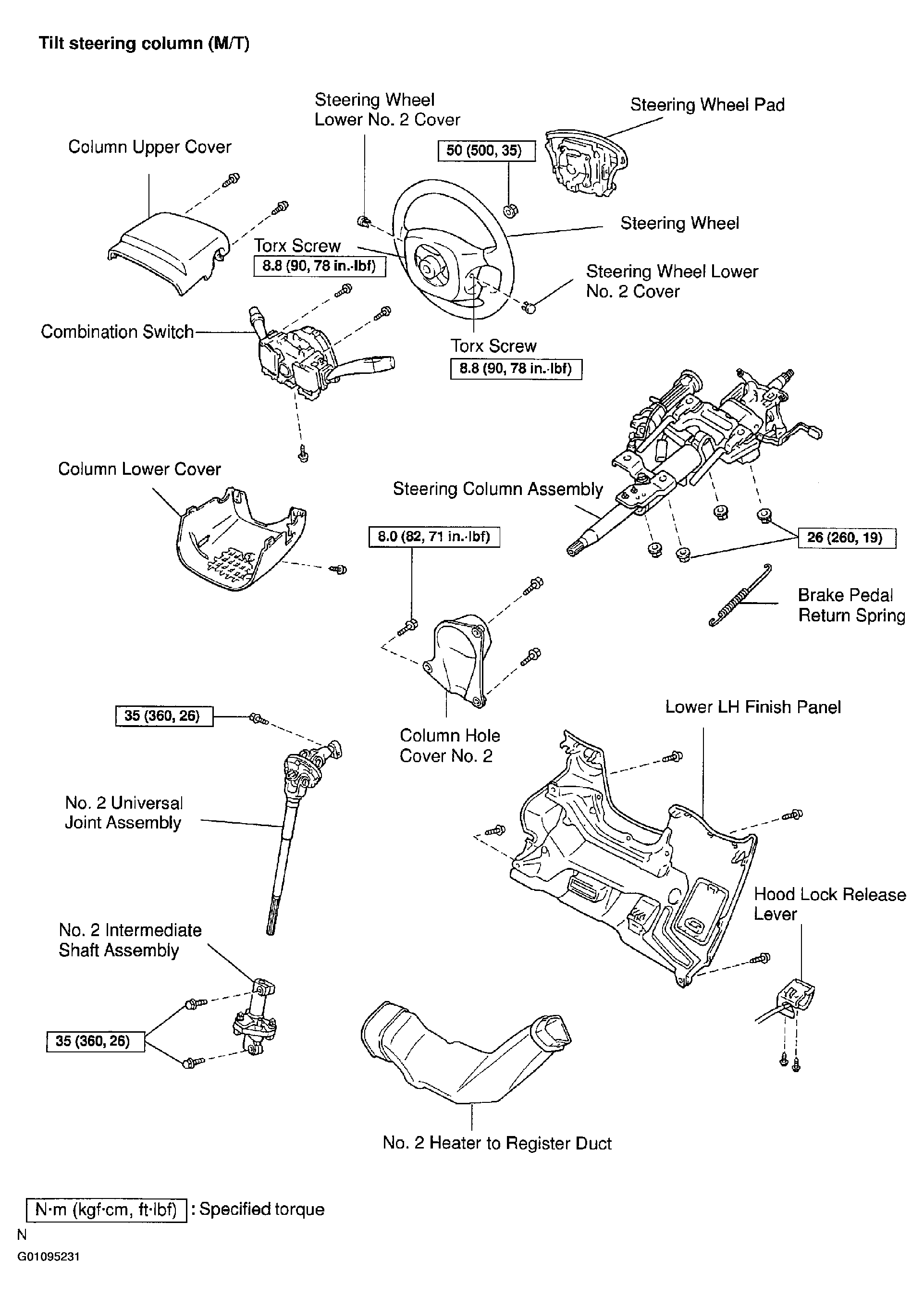

Fig 3: Identifying Tilt Steering Column Related Components (M/T)
G01095231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

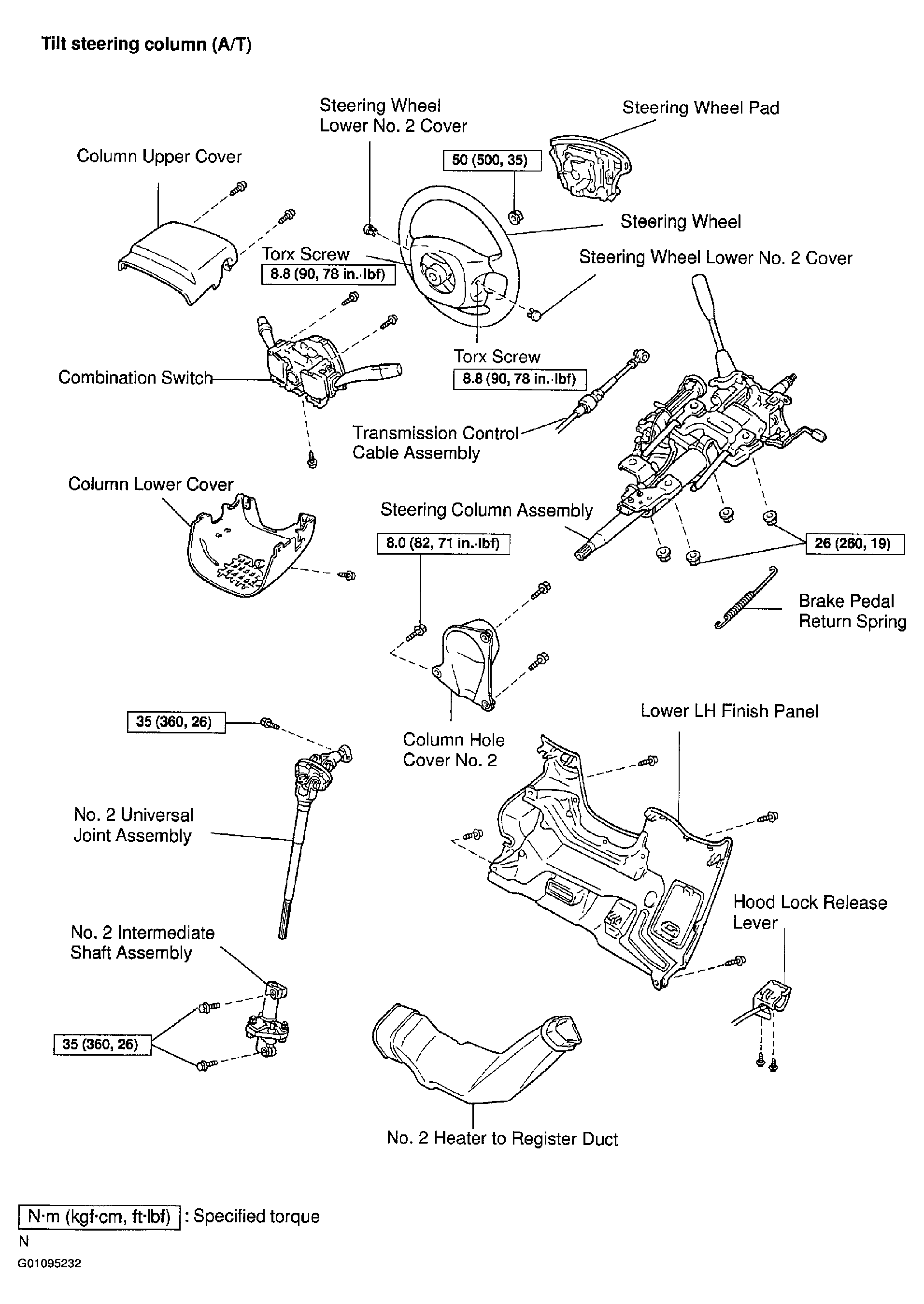

Fig 4: Identifying Tilt Steering Column Related Components (A/T)
G01095232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

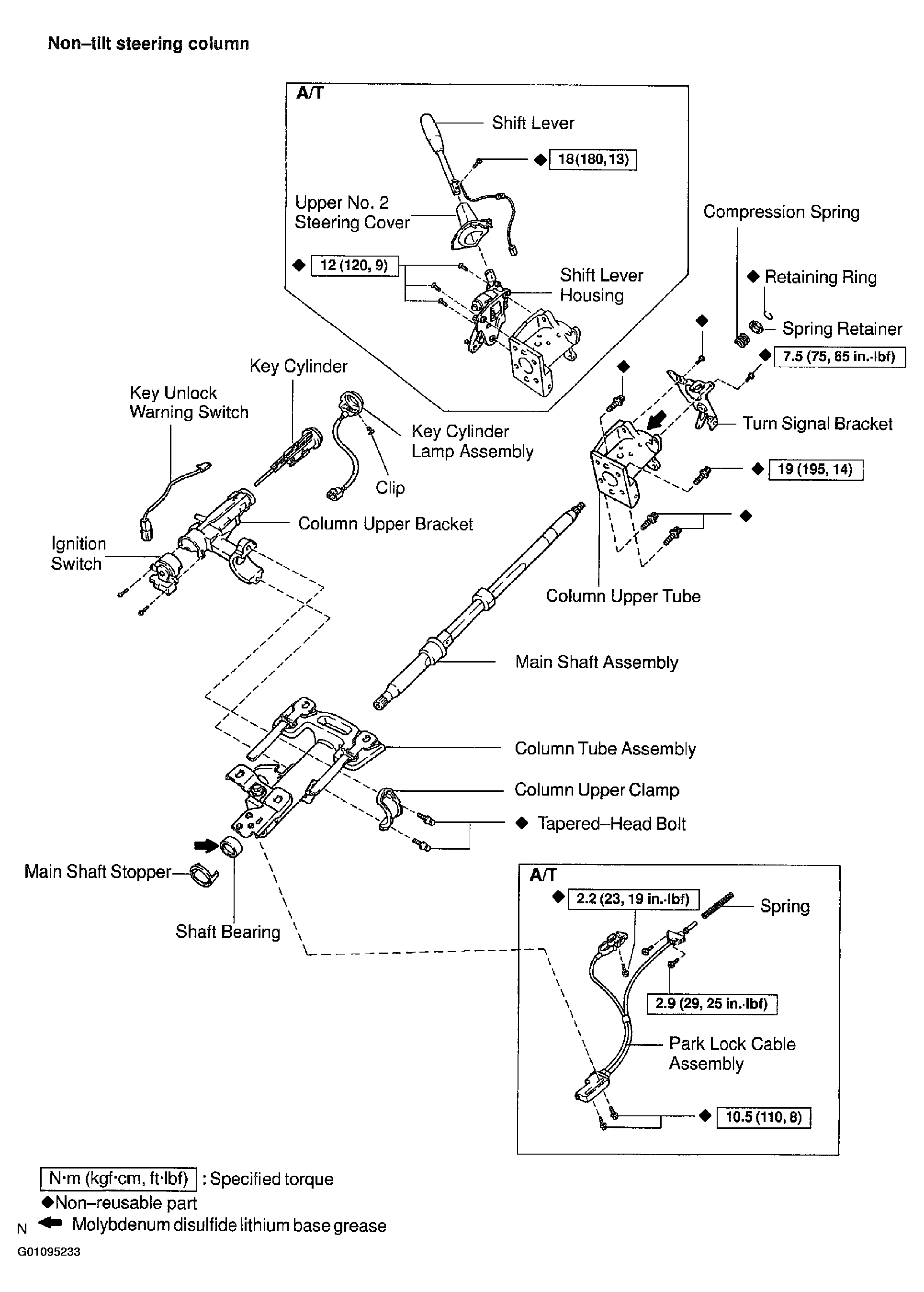

Fig 5: Exploded View Non-Tilt Steering Column
G01095233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

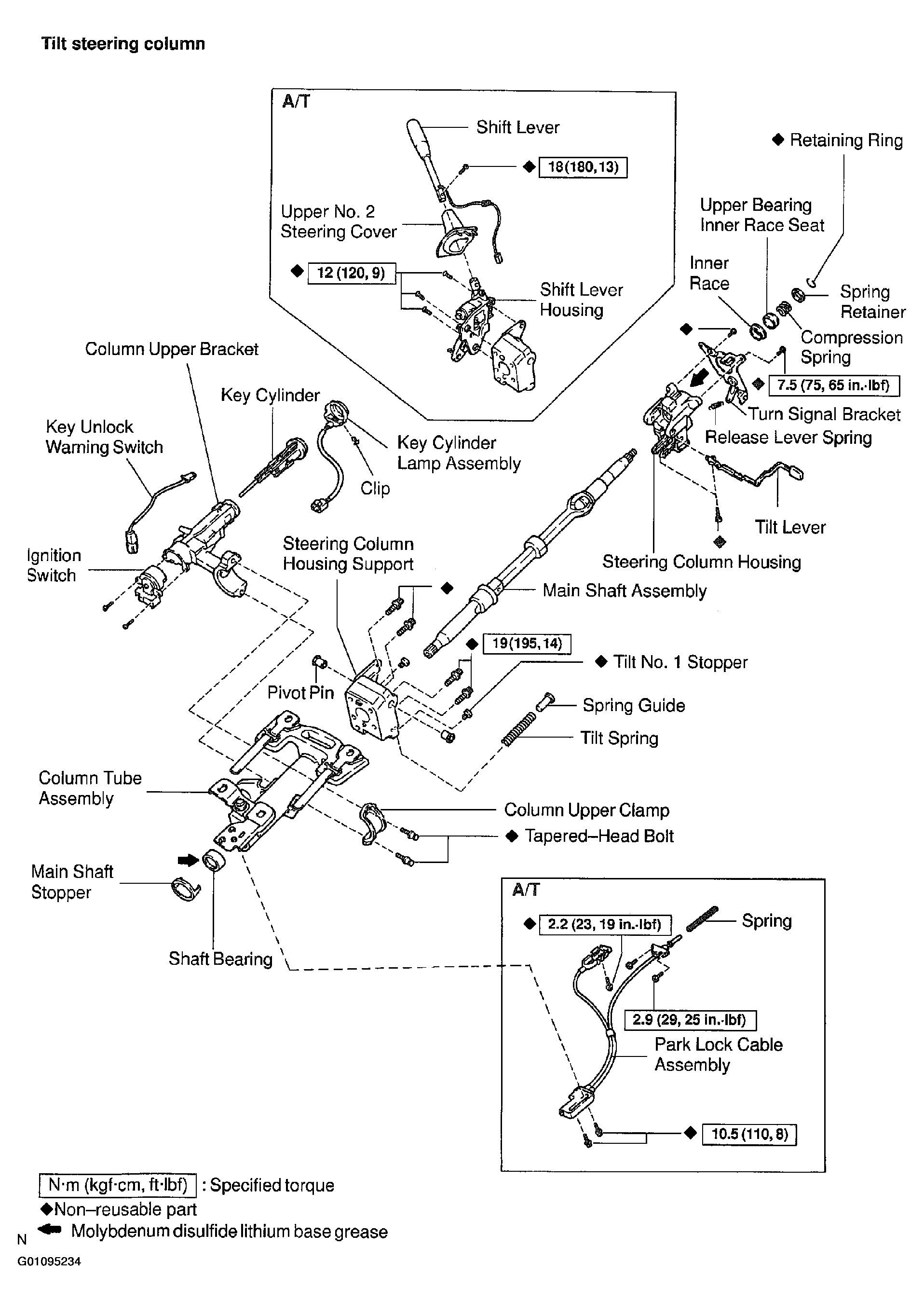

Fig 6: Exploded View Tilt Steering Column
G01095234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
