Front Brake Speed Sensor: Removal

  1. DISCONNECT SPEED SENSOR CONNECTOR
    1. Remove the fender liner.
    2. Disconnect the speed sensor connector.

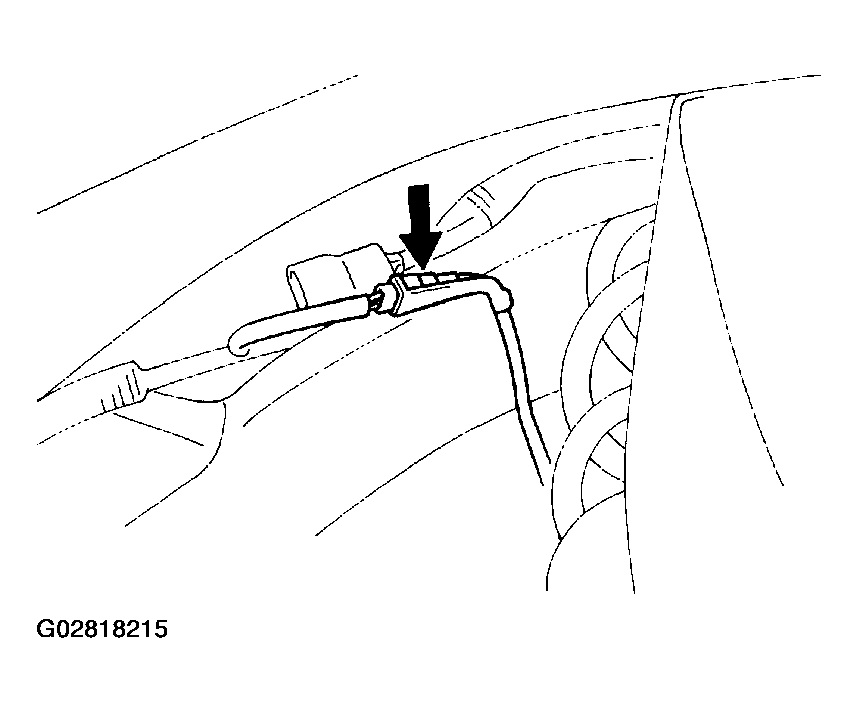

    Fig 1: Disconnecting Speed Sensor Connector
    G02818215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SPEED SENSOR
    1. Remove the 2 clamp bolts holding the sensor harness to the body and shock absorber.

      Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)

    2. Remove the bolt and speed sensor from the steering knuckle.
      Fig 2: Removing Speed Sensor & Bolts
      G02818216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
