Combination Meter: Disassembly

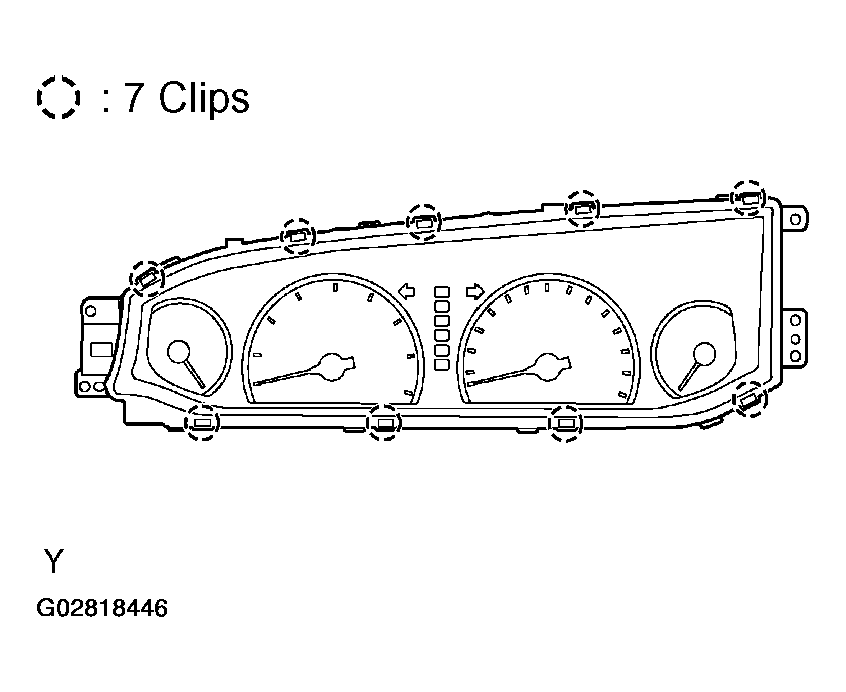

REMOVE COMBINATION METER COVER
Remove combination meter glass and meter plate.

Fig 1: Removing Combination Meter Glass & Meter Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MULTI INFORMATION DISPLAY (W/O NAVIGATION SYSTEM)

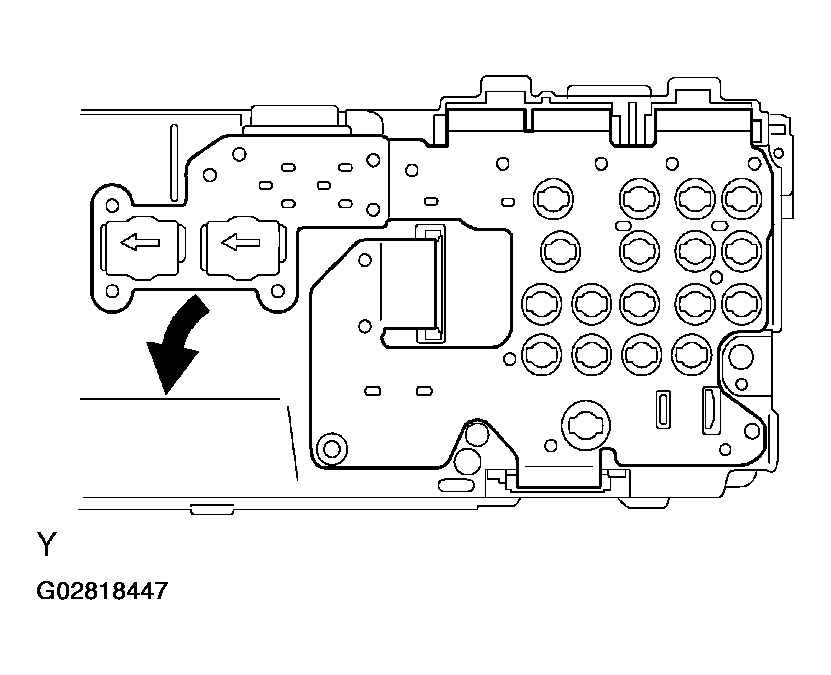

1. Remove the circuit plate.
2. Disconnect the connector.

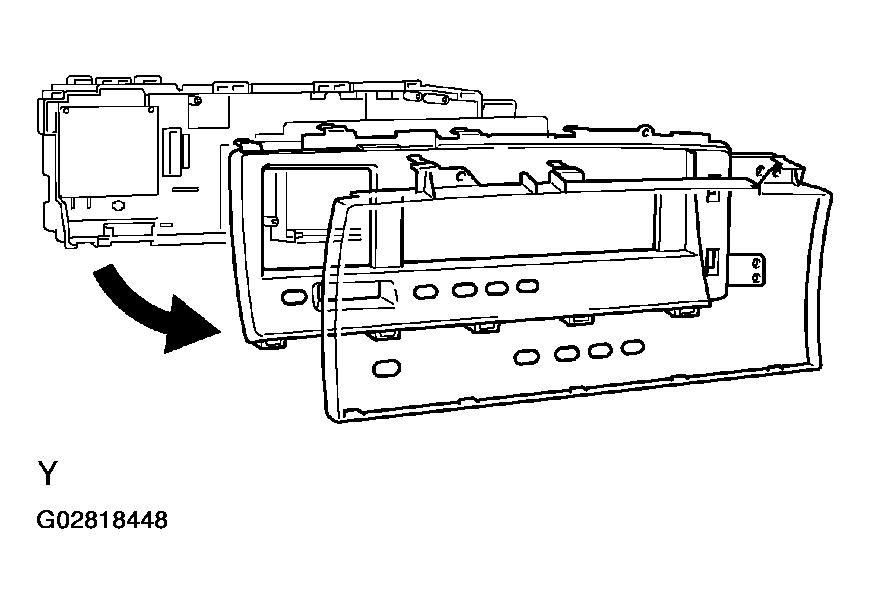

3. Remove the multi information display glass and plate.

  Fig 3: Removing Multi Information Display Glass & Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

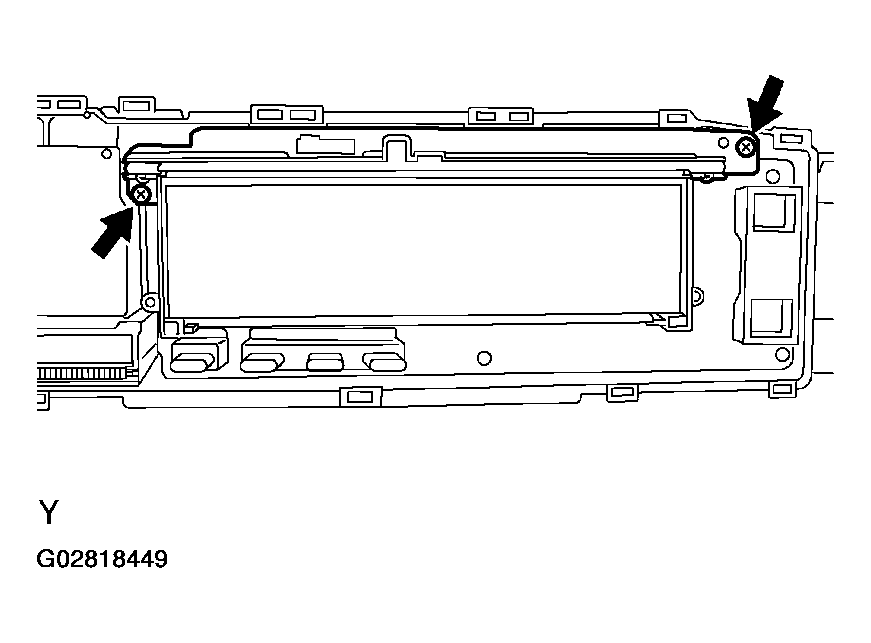

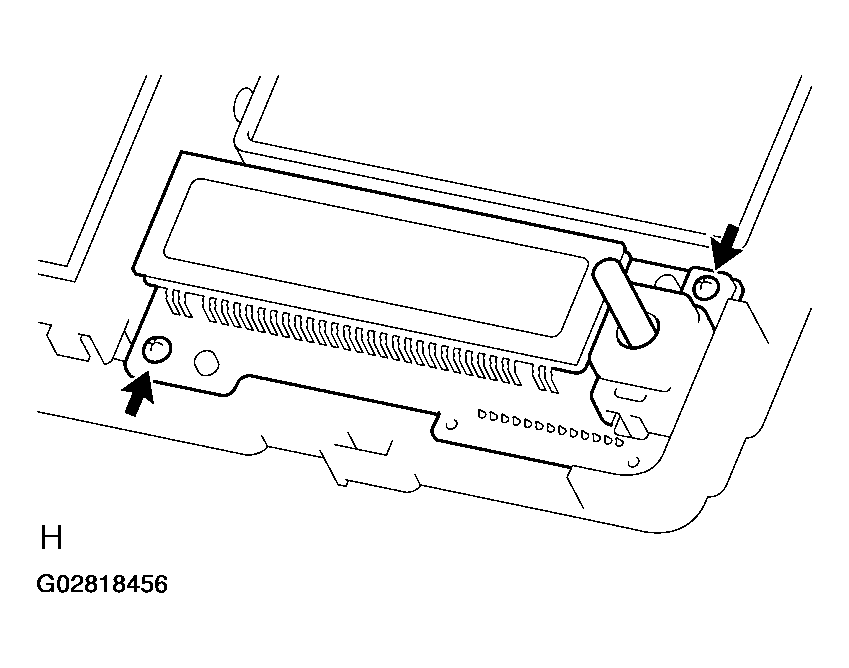

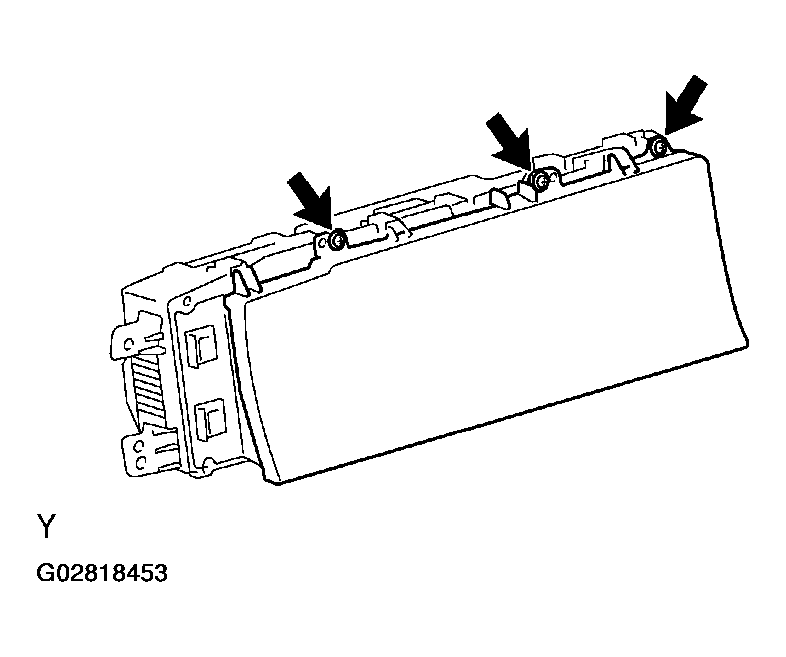

4. Remove the 2 screws.
5. Disconnect the cold cathode tube with plate.

  Fig 4: Disconnecting Cold Cathode Tube With Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

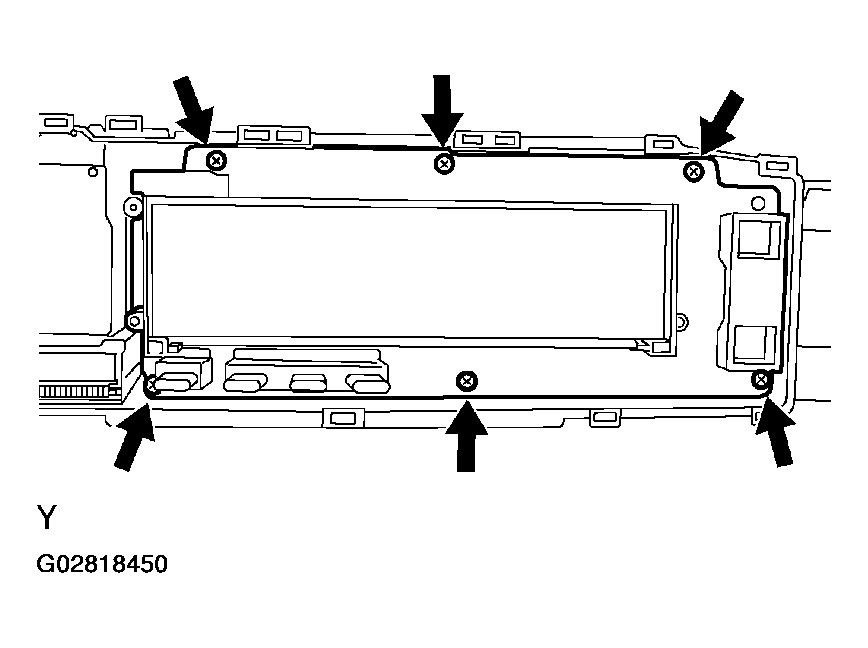

6. Remove the 6 screws.
7. Remove the multi information display.

  Fig 5: Removing Multi Information Display
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

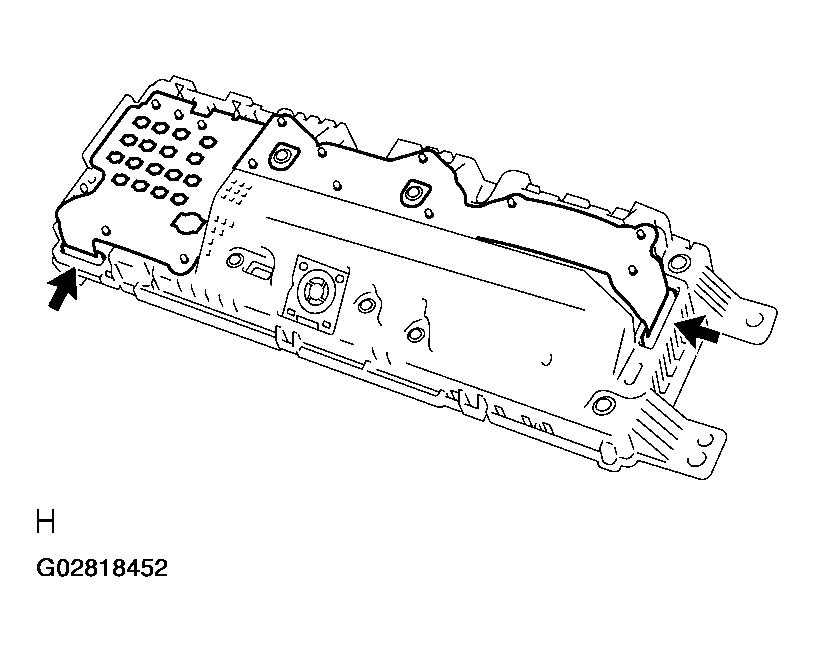

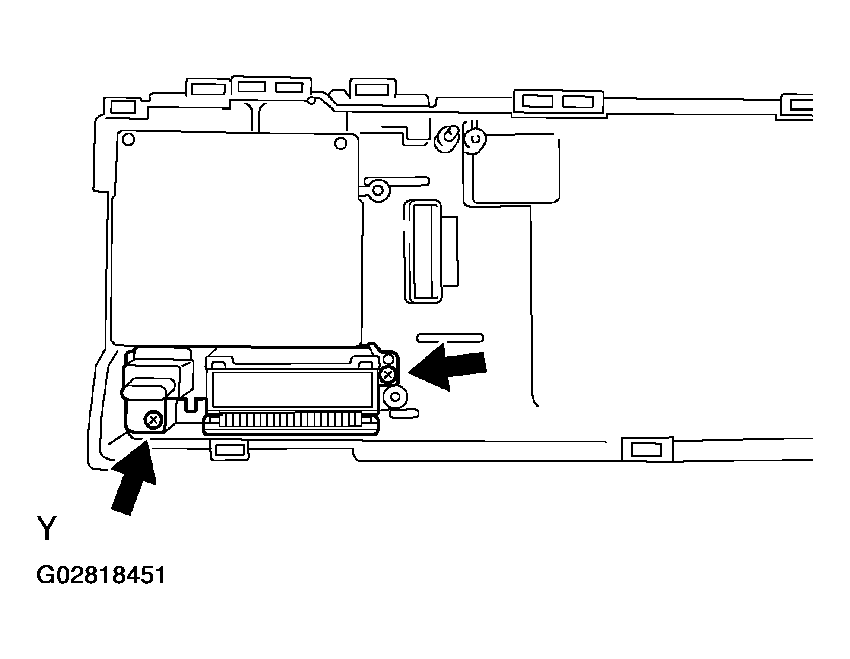

8. Remove the 2 screws.
9. Remove the No. 2 multi information display.
Fig 6: Removing No. 2 Multi Information Display
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MULTI INFORMATION DISPLAY (W/ NAVIGATION SYSTEM)
1. Remove the circuit plate.
2. Disconnect the connector.

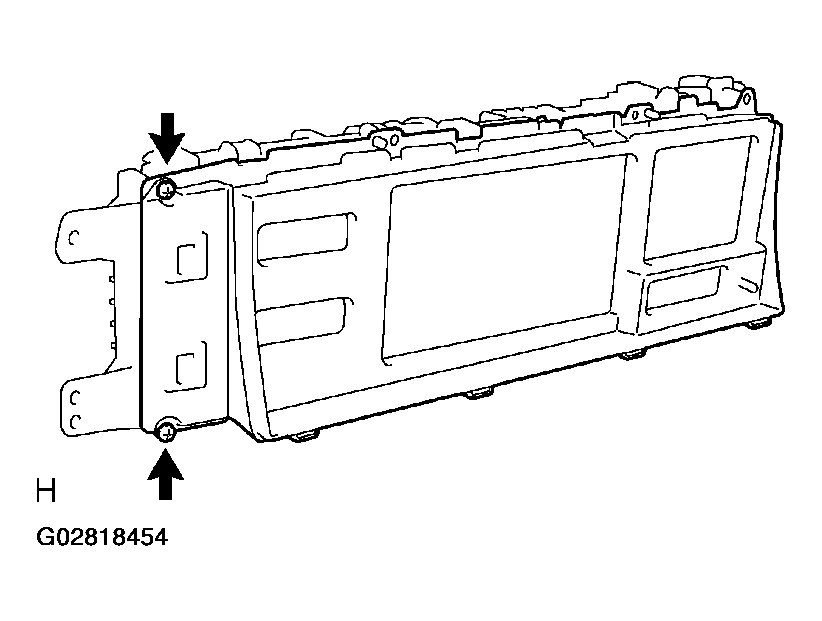

3. Remove the 2 screws.
4. Remove the multi information display glass.

  Fig 8: Removing Multi Information Display Glass
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 2 screws.
6. Remove the multi information display plate.

  Fig 9: Removing Multi Information Display Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

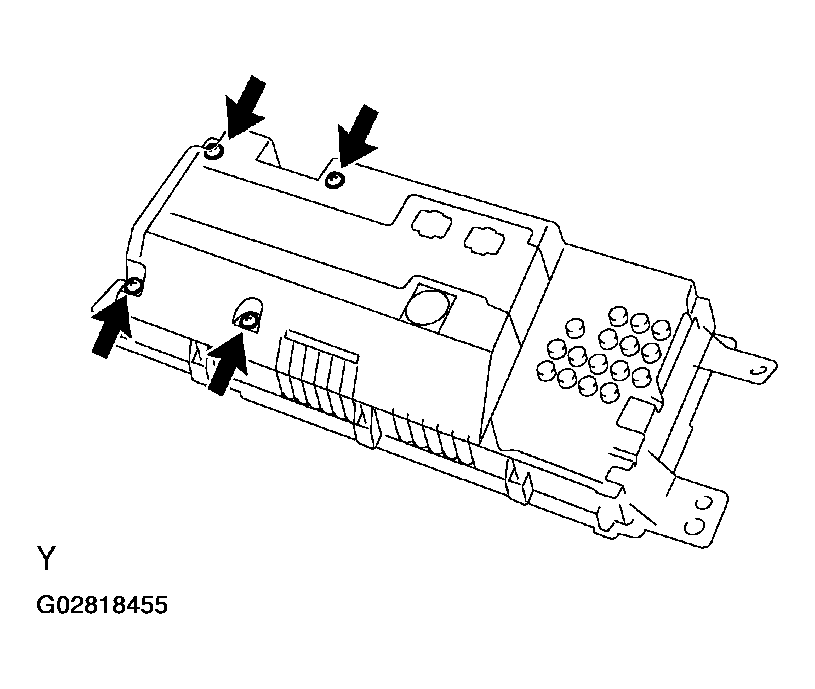

7. Remove the 8 screws.

  Fig 10: Removing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

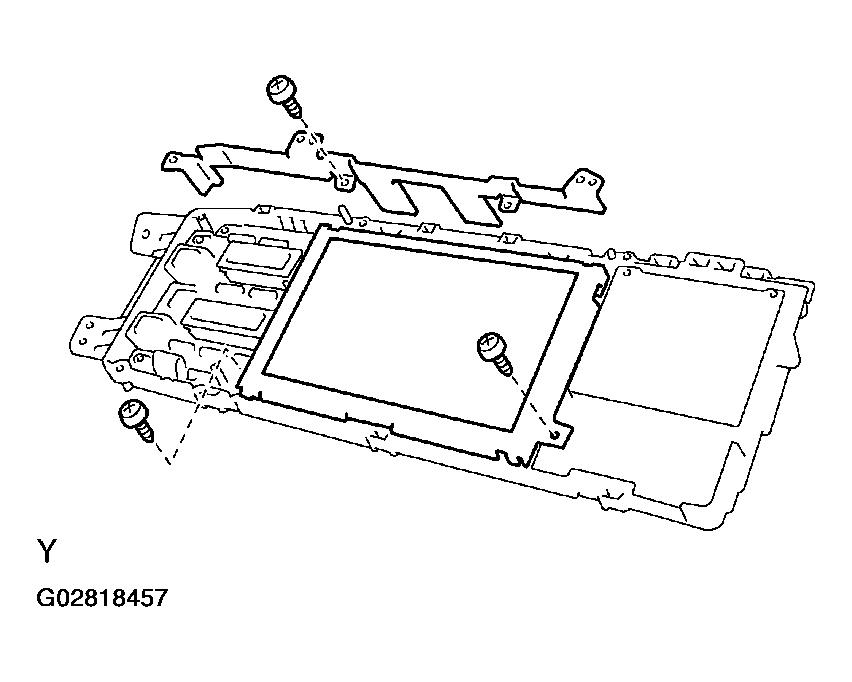

8. Remove the 2 screws and center display computer No. 2.

  Fig 11: Removing Center Display Computer No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Remove the 3 screws and the plate.
10. Remove the connector and multi information display.
11. Remove the 2 screws and multi information computer.
12. Remove the accessary meter cover.
Fig 12: Removing Accessary Meter Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
