Instrument Panel: Components

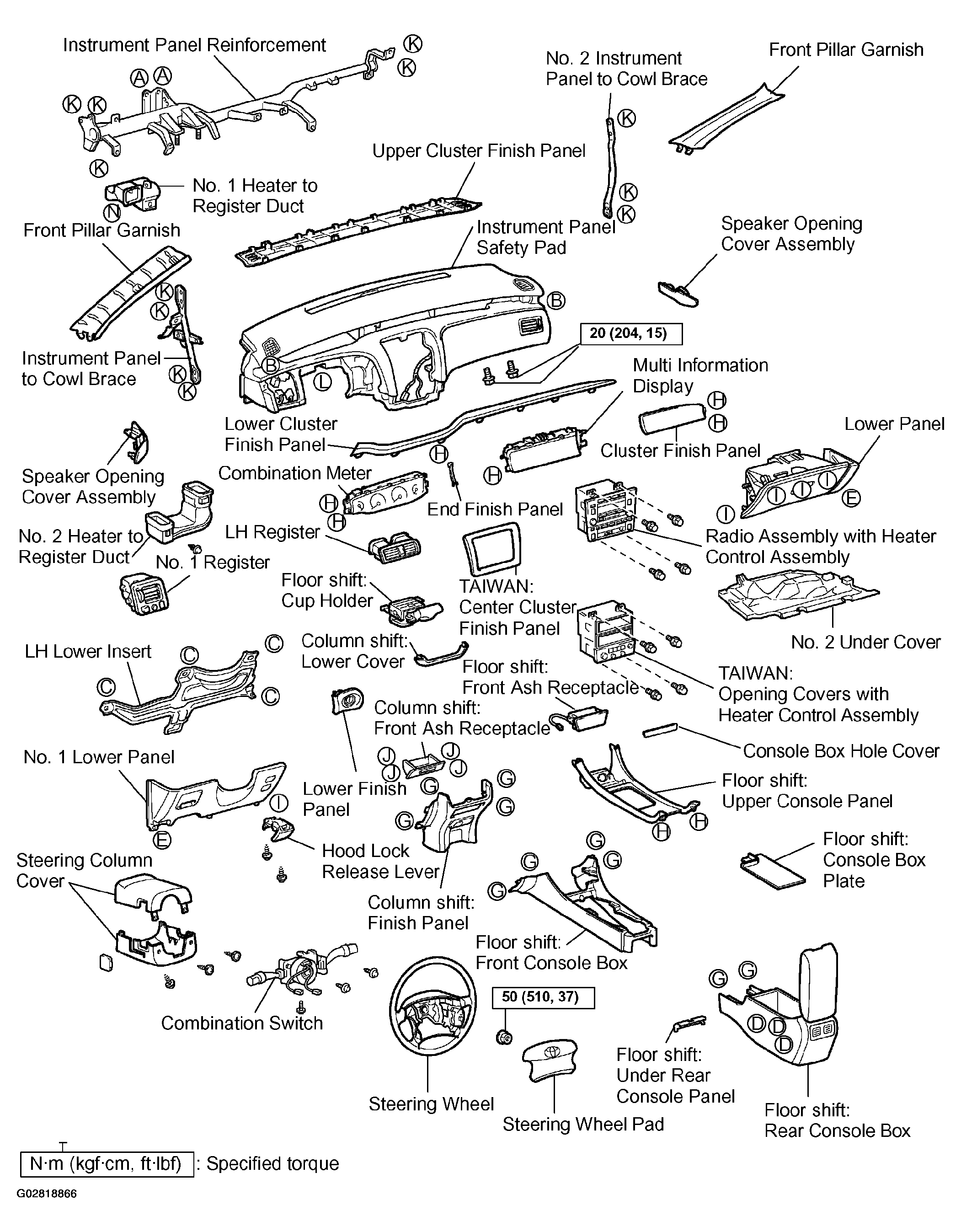

Fig 1: Identifying Instrument Panel Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

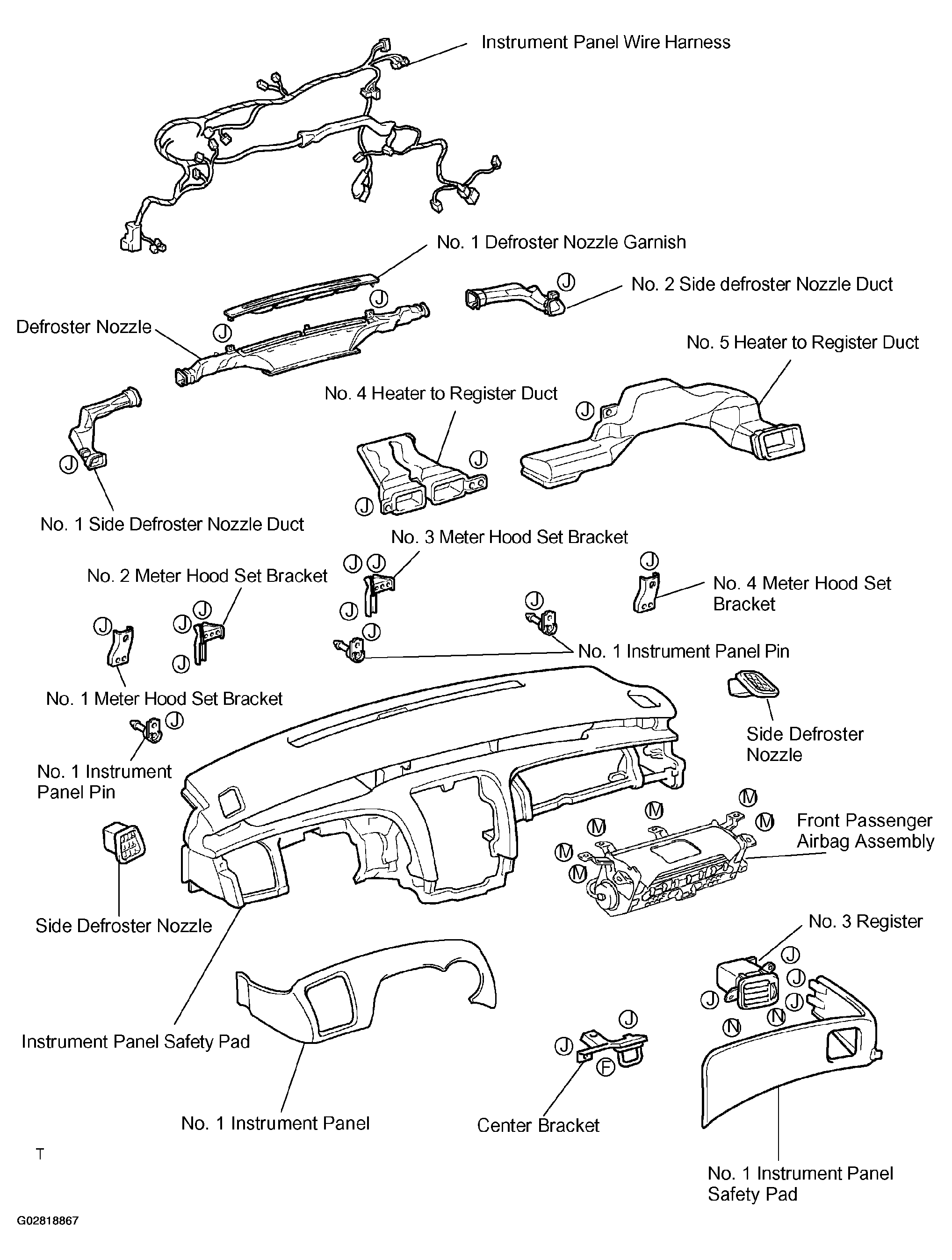

Fig 2: Identifying Instrument Panel Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Screw shapes and sizes are indicated in the table below. The codes ("A" - "N") correspond to those indicated on the previous page.

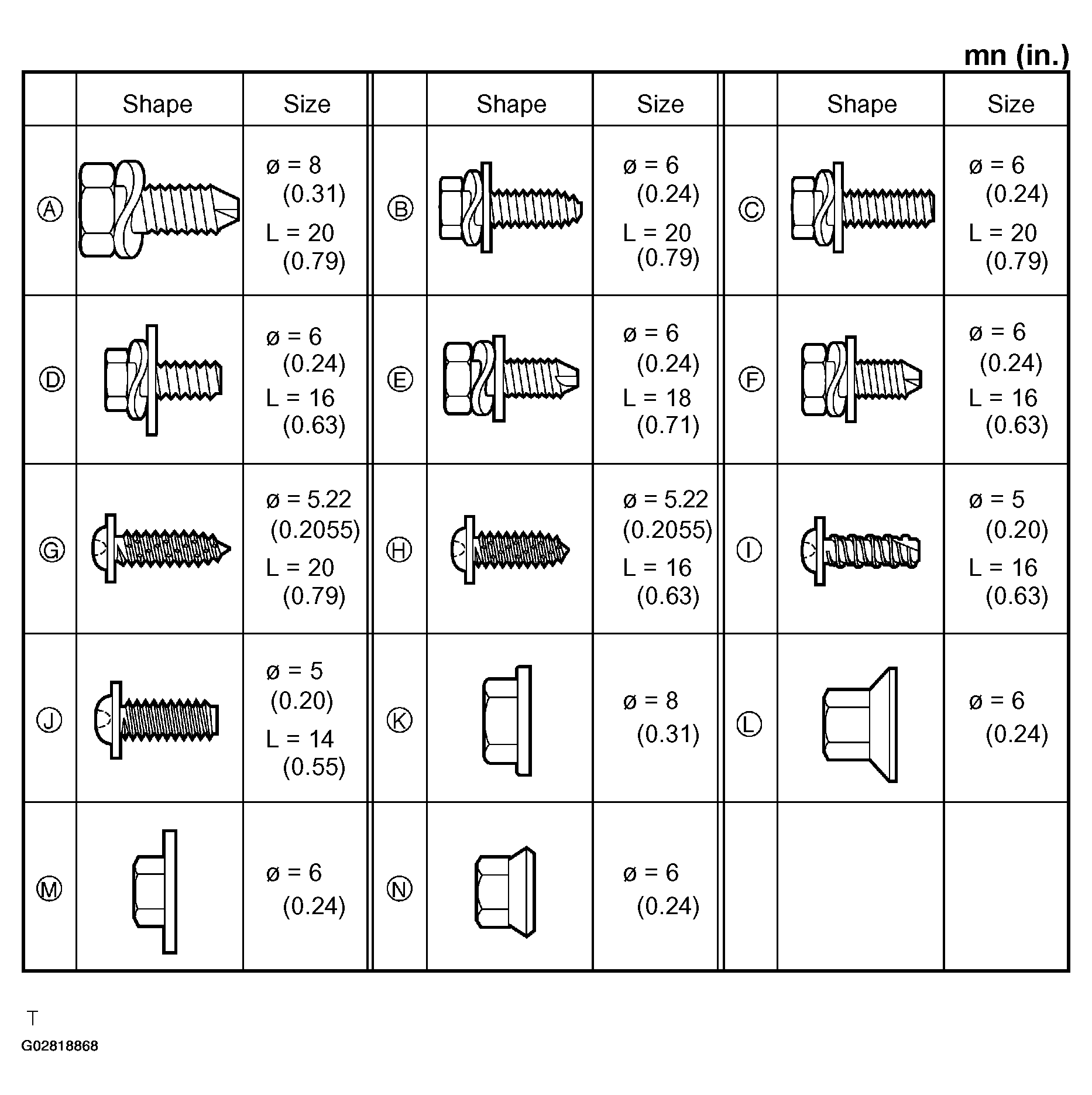

Fig 3: Screw Shapes & Sizes Description Table
