Instrument Panel: Disassembly

  1. REMOVE NO. 1 INSTRUMENT PANEL
    1. Remove the 3 screws.
    2. Using a screwdriver, remove the No.1 instrument panel.

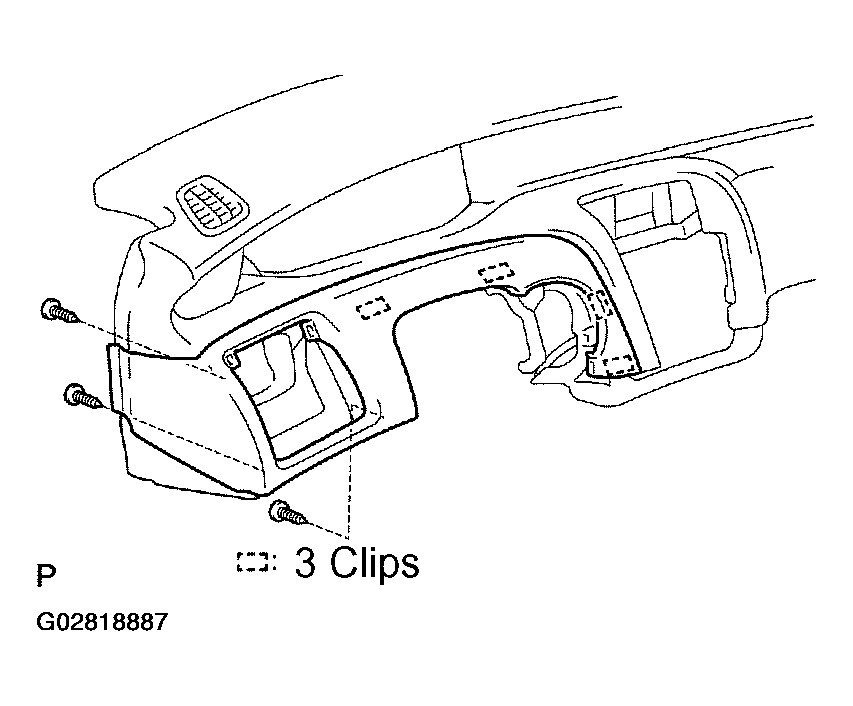

      3. Fig 1: Removing No.1 Instrument Panel
      G02818887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: Tape the screwdriver tip before use.
  2. REMOVE SIDE DEFROSTER NOZZLES
  3. REMOVE NO. 1 DEFROSTER NOZZLE GARNISH
  4. REMOVE NO. 1 INSTRUMENT PANEL PINS
  5. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT
  6. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT
  7. REMOVE DEFROSTER NOZZLE
  8. REMOVE NO. 5 HEATER TO REGISTER DUCT
  9. REMOVE NO. 4 HEATER TO REGISTER DUCT
  10. REMOVE METER HOOD SET BRACKETS
  11. REMOVE CENTER BRACKET
  12. REMOVE INSTRUMENT PANEL WIRE HARNESS
  13. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY

    Remove the 6 nuts and front passenger airbag assembly as shown in the illustration.

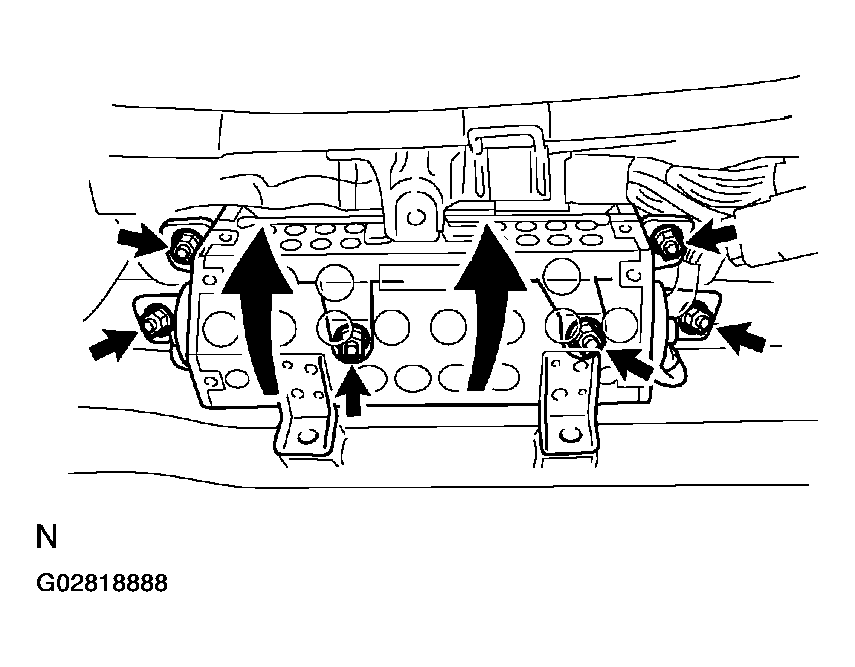

    Fig 2: Removing Front Passenger Airbag Assembly
    G02818888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAUTION:
    • Do not store the front passenger airbag assembly with the airbag deployment side facing down.
    • Never disassemble the front passenger airbag assembly.
    NOTE: When removing the front passenger airbag assembly, take care not to damage the wire harness.
  14. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD
  15. REMOVE NO. 3 REGISTER
