Fail-Safe Chart

If any of the following codes is recorded, the engine control module (ECM) enters the fail-safe mode. See Fig 1.

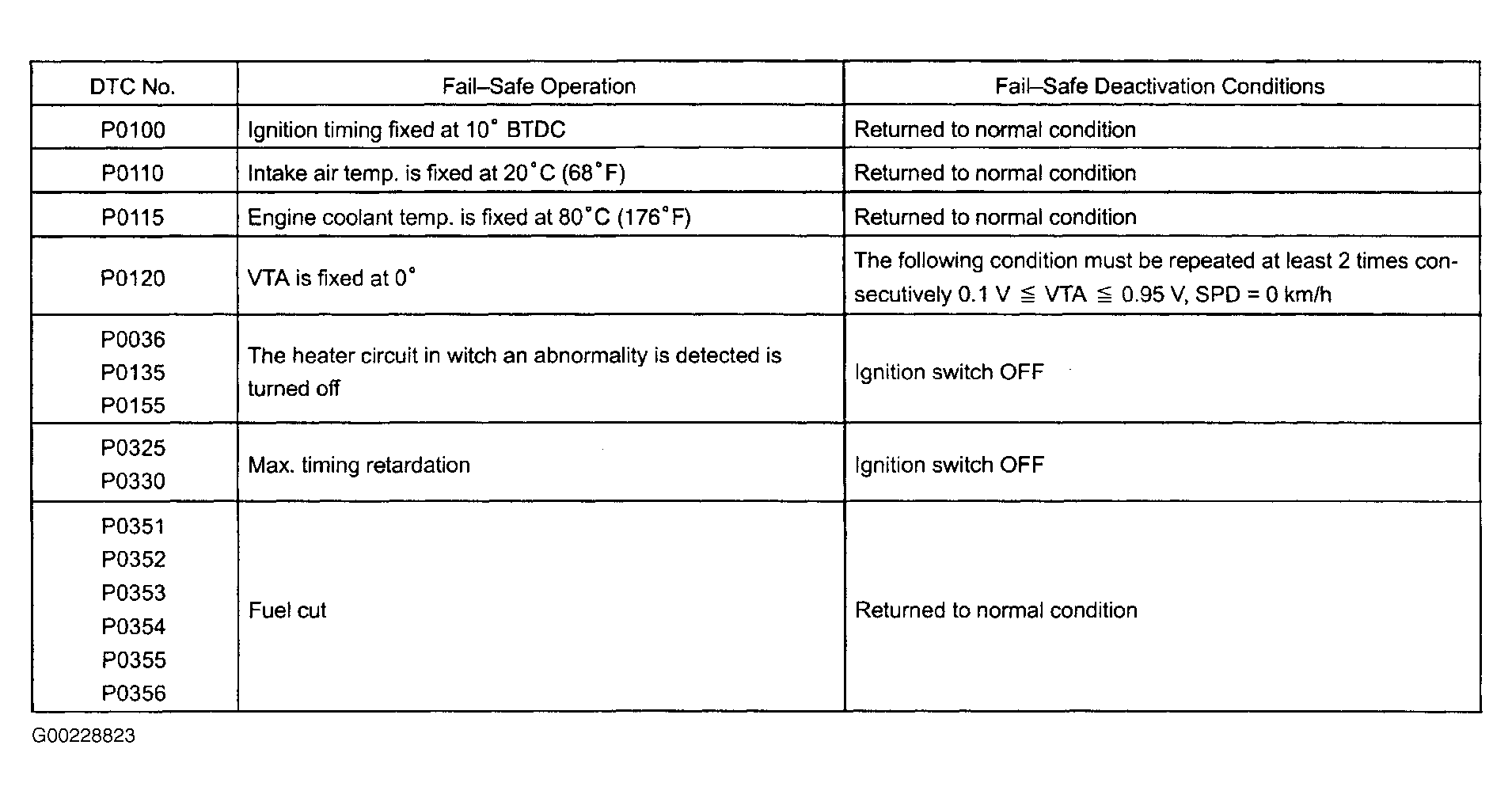

Fig 1: Identifying Fail-Safe Mode Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
