Home >> Toyota >> 2003 >> Avalon XLS >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Components

Seat Belt: Components

Fig 1: Identifying Seat Belt Components (1 Of 2)
G02818928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

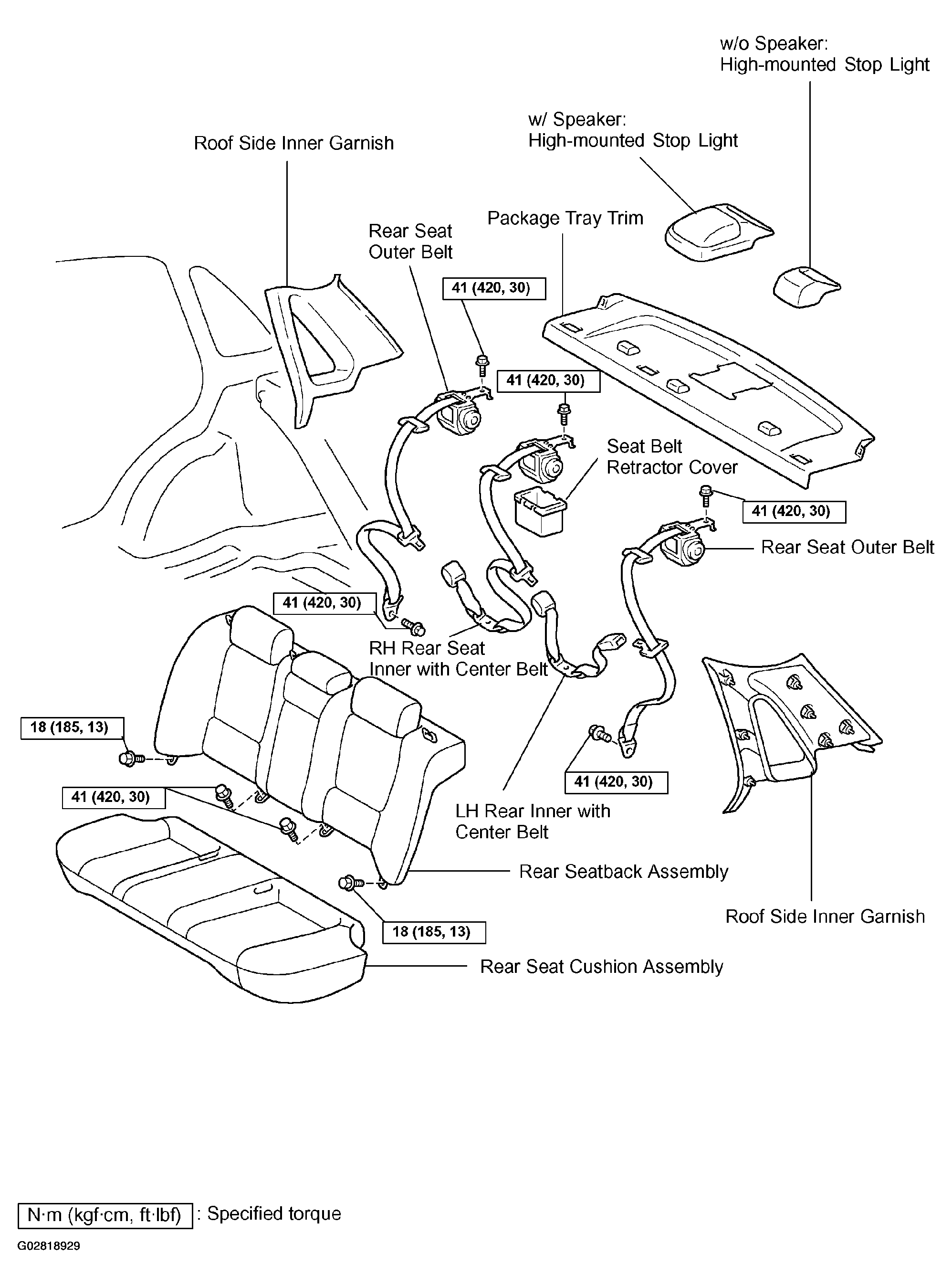

Fig 2: Identifying Seat Belt Components (2 Of 2)
G02818929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
