Tilt Steering Column: Components

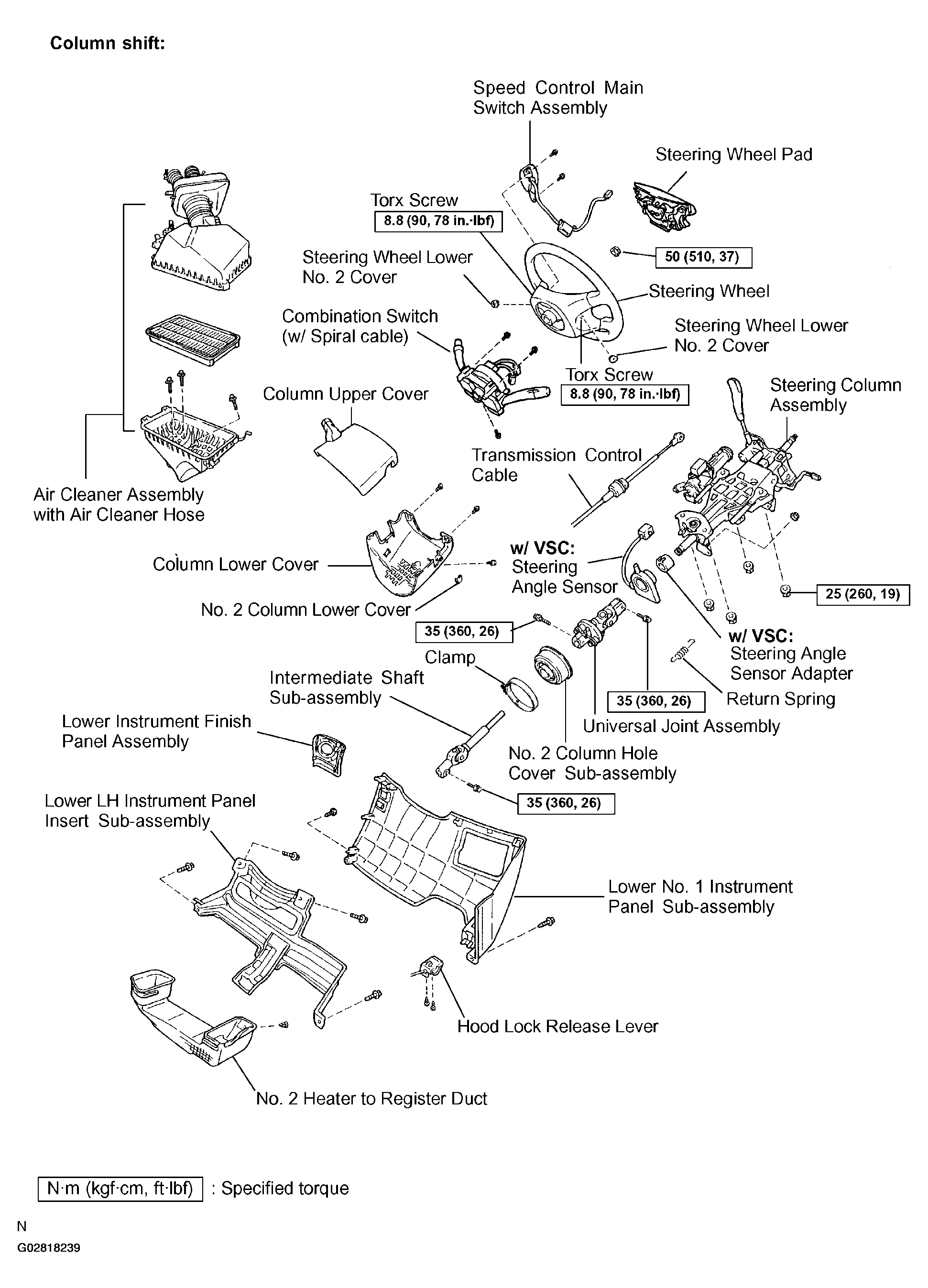

Fig 1: Identifying Tilt Steering Column Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

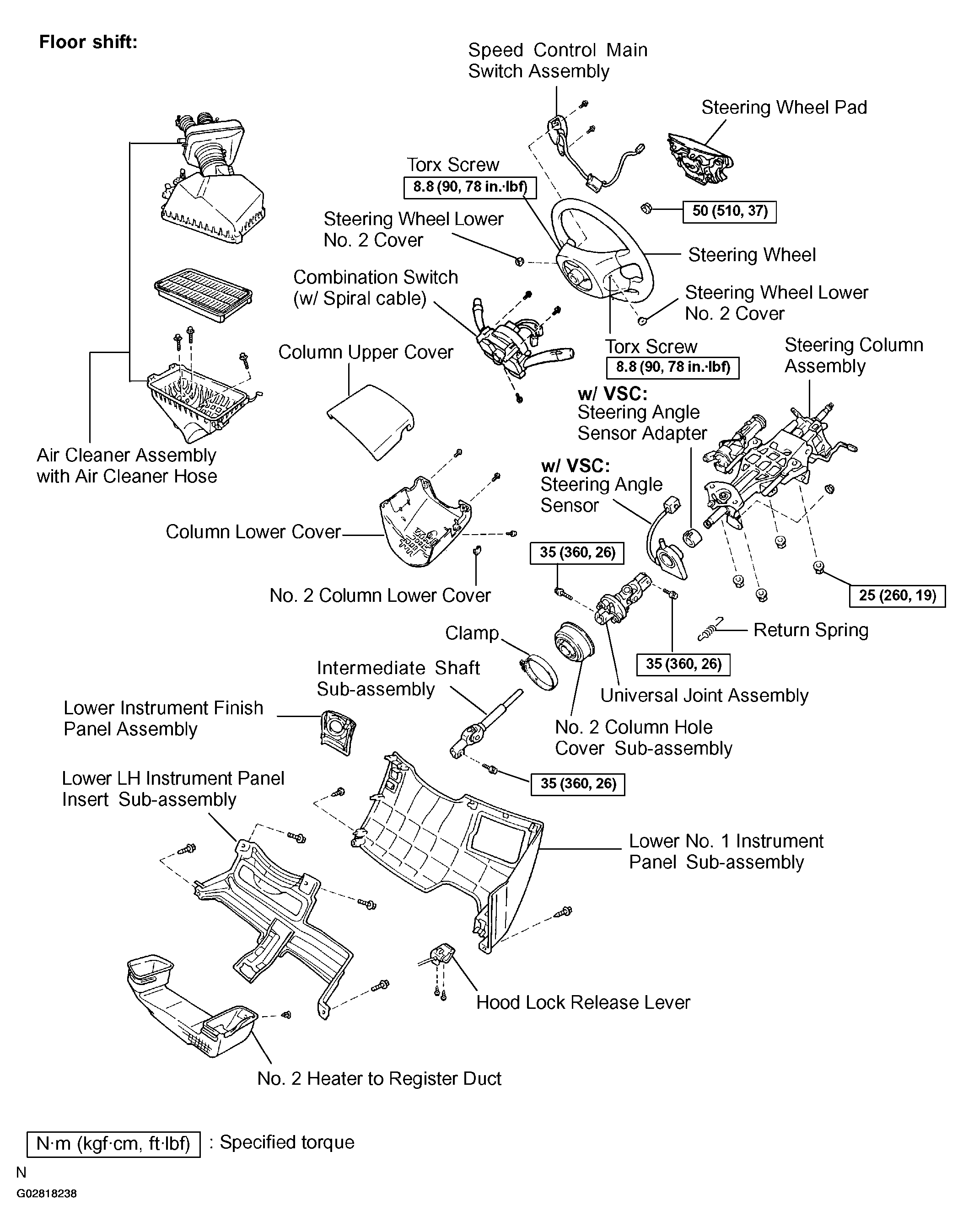

Fig 2: Exploded View Of Tilt Steering Column (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

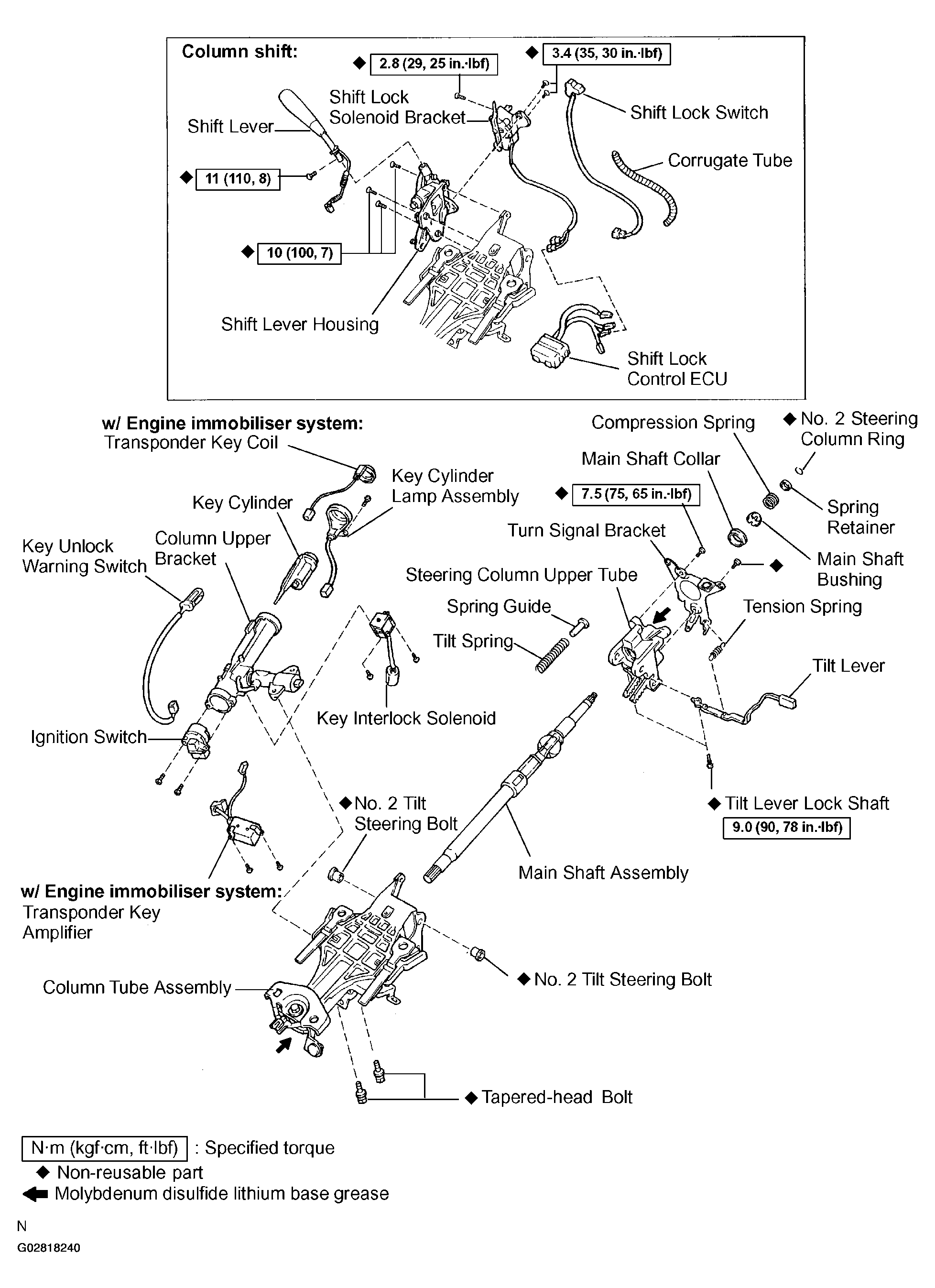

Fig 3: Exploded View Of Tilt Steering Column (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
