Rear Wheel Alignment: Inspection

  1. MEASURE VEHICLE HEIGHT (See  INSPECTION  )
  2. INSTALL CAMBER-CASTER-KINGPIN GAUGE OR POSITION VEHICLE ON WHEEL ALIGNMENT TESTER

    Follow the specific instructions of the equipment manufacturer.

  3. INSPECT CAMBER

    Camber:

    CAMBER SPECIFICATION

    Camber Right-Left Error -0°43' +/- 45' (-0.72° +/- 0.75°) 45' (0.75°) or less

    If the measured value is not within the specified value, inspect the suspension parts for damage and/or wear and replace them if necessary because camber is not adjustable.

  4. INSPECT TOE-IN

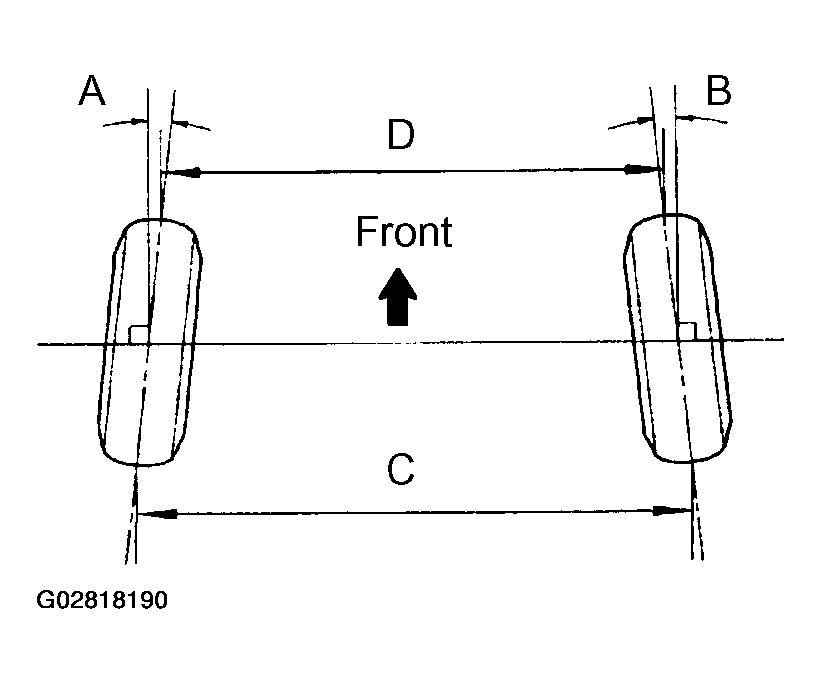

    Fig 1: Inspecting Toe-In
    G02818190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Toe-in:

    TOE-IN SPECIFICATION

    Toe-In (Total) A + B: 0°24' +/- 12' (0.4° +/- 0.2°) C - D: 4 +/- 2 mm (0.16 +/- 0.08 in.)

    If the toe-in is not within the specified value, adjust it at the No. 2 lower suspension arm.

  5. ADJUST TOE-IN
    1. Measure the lengths of the right and left No. 2 lower suspension arms.

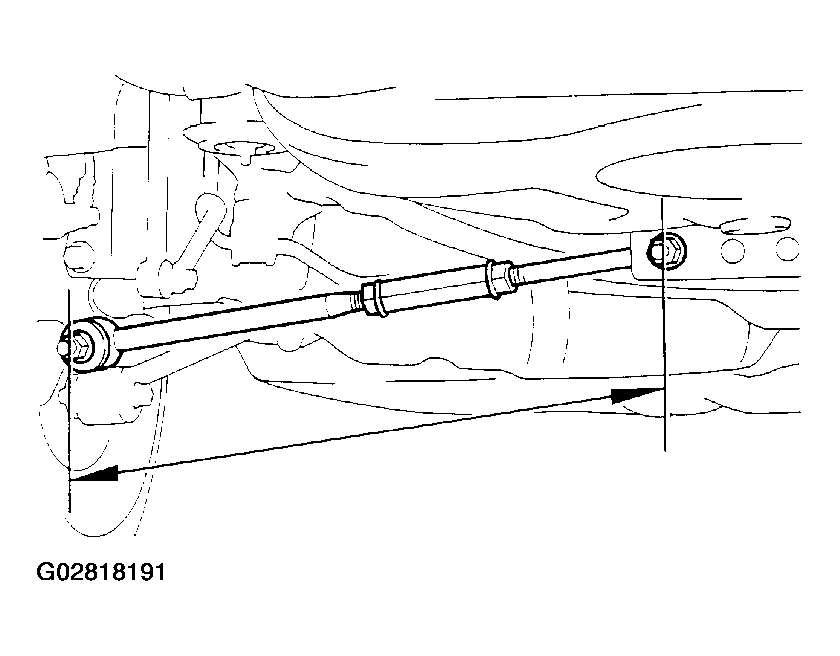

      Fig 2: Measuring Lengths Of Right & Left Lower Suspension Arms
      G02818191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      No. 2 lower suspension arm length difference:

      1 mm (0.04 in.) or less

      If the right-left difference is greater than the specified value, adjust the length.

    2. Loosen the lock nuts.
    3. Turn the right and left adjusting tube by an equal amount to adjust toe-in.

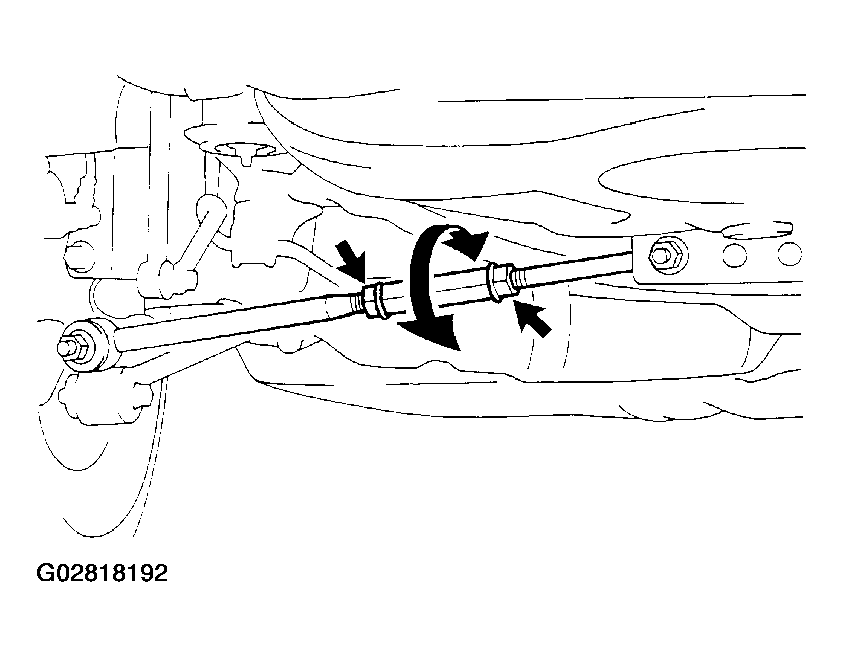

      Fig 3: Adjusting Toe-In
      G02818192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Try to adjust the toe-in to the center value.
      • One turn of the each adjusting tube will adjust the toe-in by about 36' (0.6°, 6.7 mm, 0.264 in.).
    4. Torque the lock nuts.

      Torque: 56 N.m (570 kgf.cm, 41 ft.lbf)
