Automatic Transmission - Specifications
>>
Torque Specifications
Torque Specifications

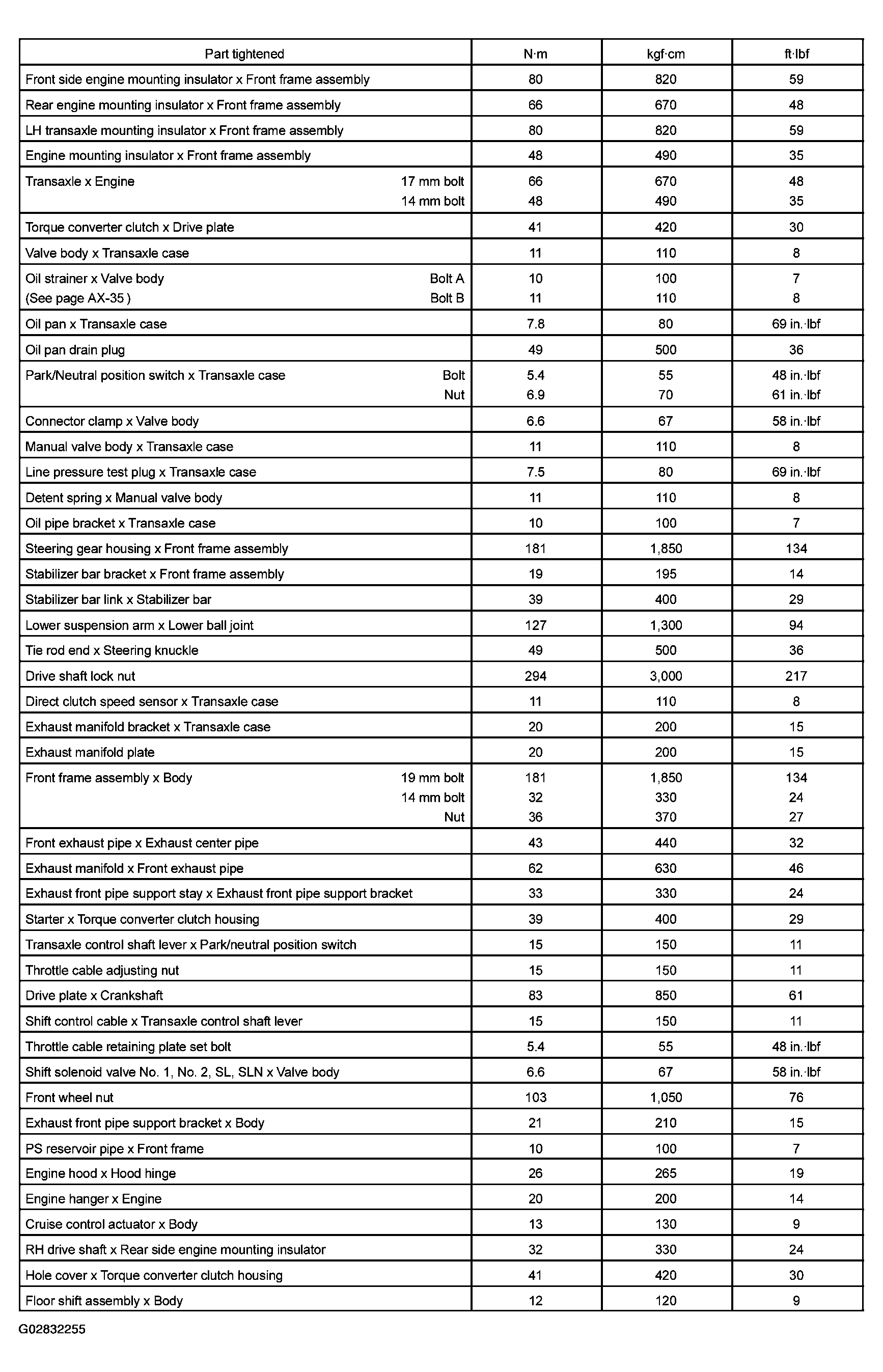

Fig 1: Automatic Transaxle Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
