Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Engine Compartment
G00150824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

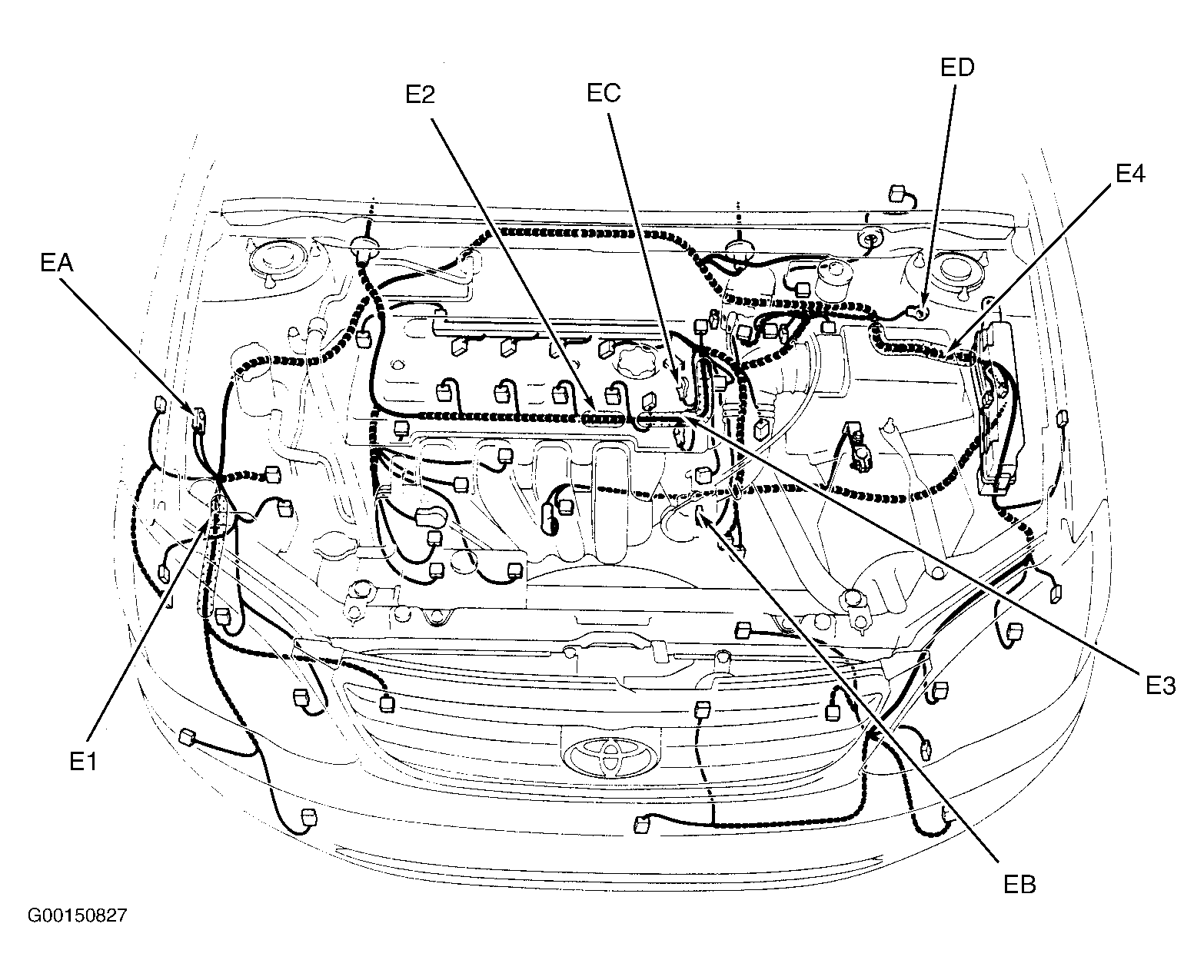

Fig 2: Engine Compartment
G00150827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Dash
G00150826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Dash
G00150828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

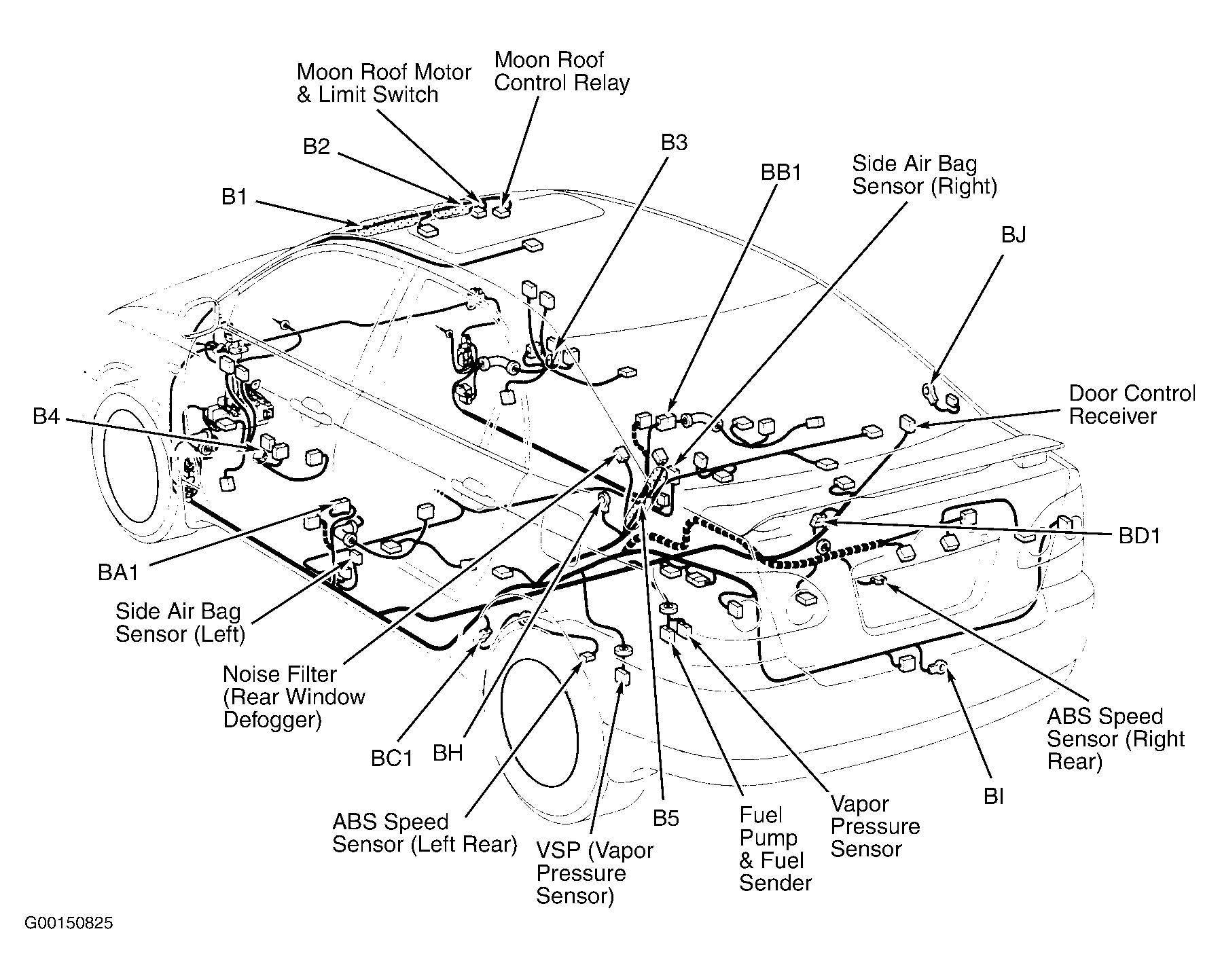

Fig 5: Left Side Of Vehicle
G00150825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
