Cigarette Lighter Assembly: Replacement

HINT:

COMPONENTS: See COMPONENTS

1. REMOVE FLOOR SHIFT LEVER KNOB SUB-ASSY (M/T TRANSAXLE) (See  INSTRUMENT PANEL/METER  )
2. REMOVE CONSOLE PANEL UPPER (See  INSTRUMENT PANEL/METER  )
3. REMOVE CIGARETTE LIGHTER COVER
   1. Disengage the 2 claws and remove the cigarette lighter cover.

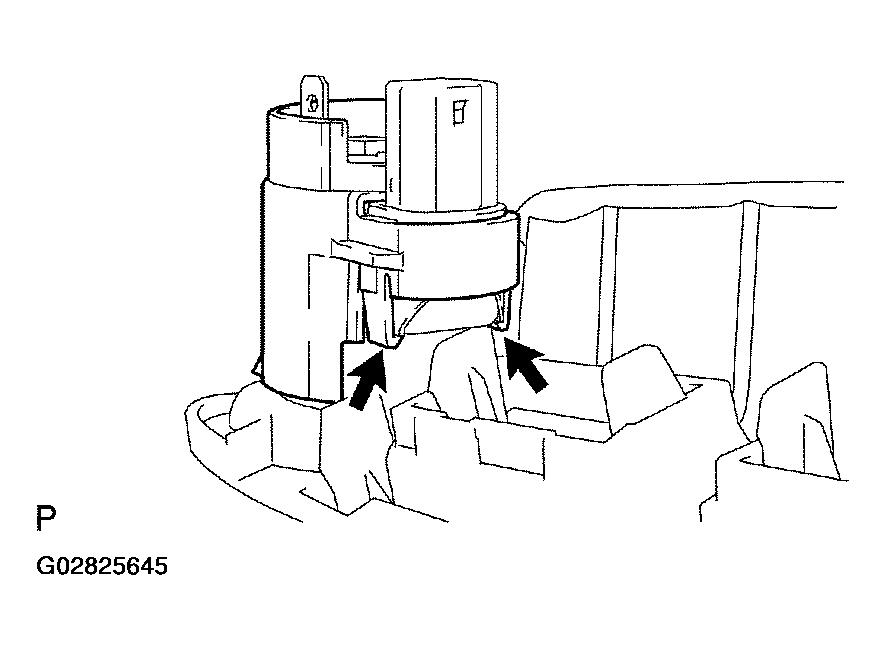

   Fig 1: Removing Cigarette Lighter Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE CIGARETTE LIGHTER ASSY
   1. Turn the socket in the circumference direction as shown in the illustration, disengage the claw between the socket and the cigarette lighter bezel stay, and push out the socket to the room side.
   2. Align the socket with the notch on the cigarette lighter bezel stay, remove the cigarette lighter assembly to the room side.

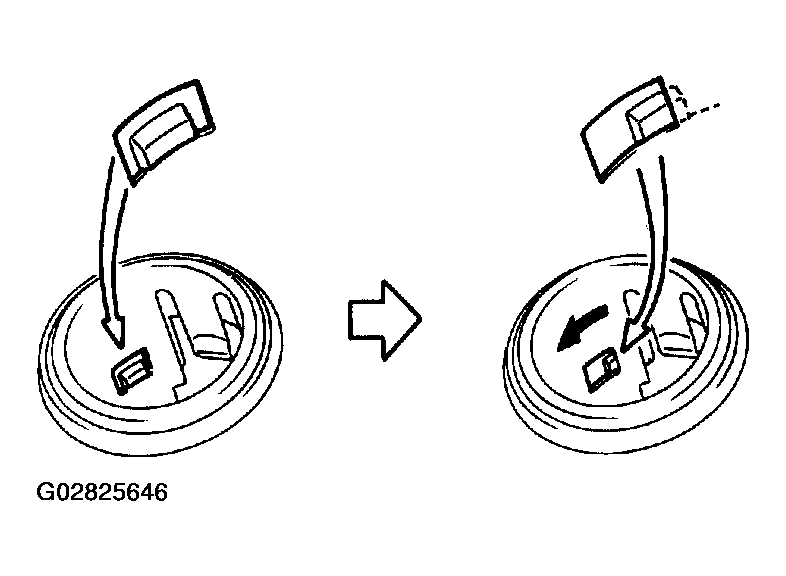

   Fig 2: Removing Cigarette Lighter Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL CIGARETTE LIGHTER ASSY
   1. Align the socket with the notch on the cigarette lighter bezel stay, push the cigarette lighter assembly into as hard as possible and install it.
