Power Point Socket Assembly: Replacement

HINT:

COMPONENTS: See COMPONENTS

1. REMOVE FLOOR SHIFT LEVER KNOB SUB-ASSY (M/T TRANSAXLE) (See  INSTRUMENT PANEL/METER  )
2. REMOVE CONSOLE PANEL UPPER (See  INSTRUMENT PANEL/METER  )
3. REMOVE POWER POINT SOCKET ASSY
   1. Turn the socket in the circumference direction as shown the illustration, disengage the claw between the socket and the power point socket cover, and push out the socket to the room side.

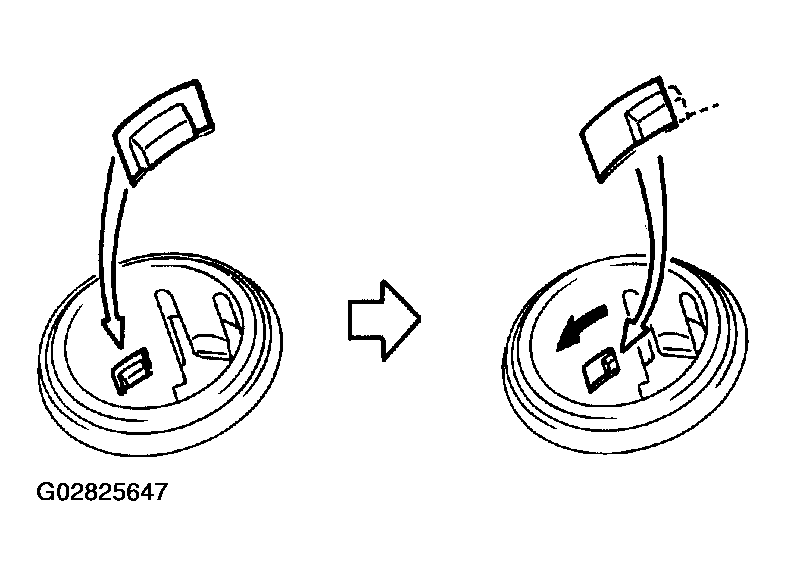

      Fig 1: Removing Power Point Socket Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Align the socket with the notch on the power point socket cover, remove the power point socket assembly to the room side.
4. INSTALL POWER POINT SOCKET ASSY
   1. Align the socket with the notch on the power point socket cover, push the power point socket assembly in as hard as possible and install it.
