Power Window Control System
>>
Problem Symptoms Table
Problem Symptoms Table

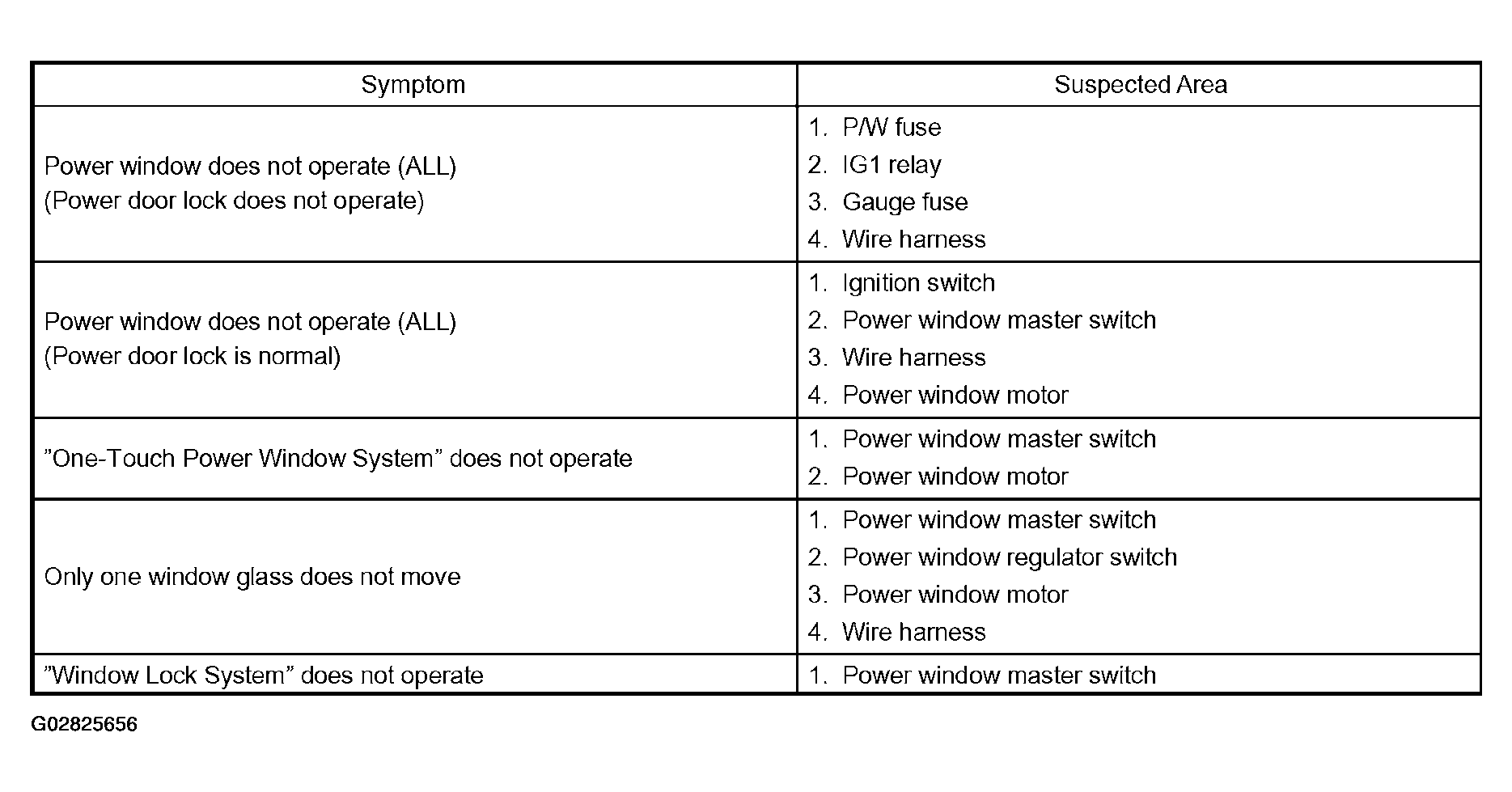

Fig 1: Power Window Control System Problem Symptoms Table
