Vehicle Identification And Engine Serial Number

  1. VEHICLE IDENTIFICATION NUMBER

    The vehicle identification number is stamped on the vehicle identification number plate and the certification label, as shown in Fig 1.

    1. Vehicle Identification Number Plate
    2. Certification Label

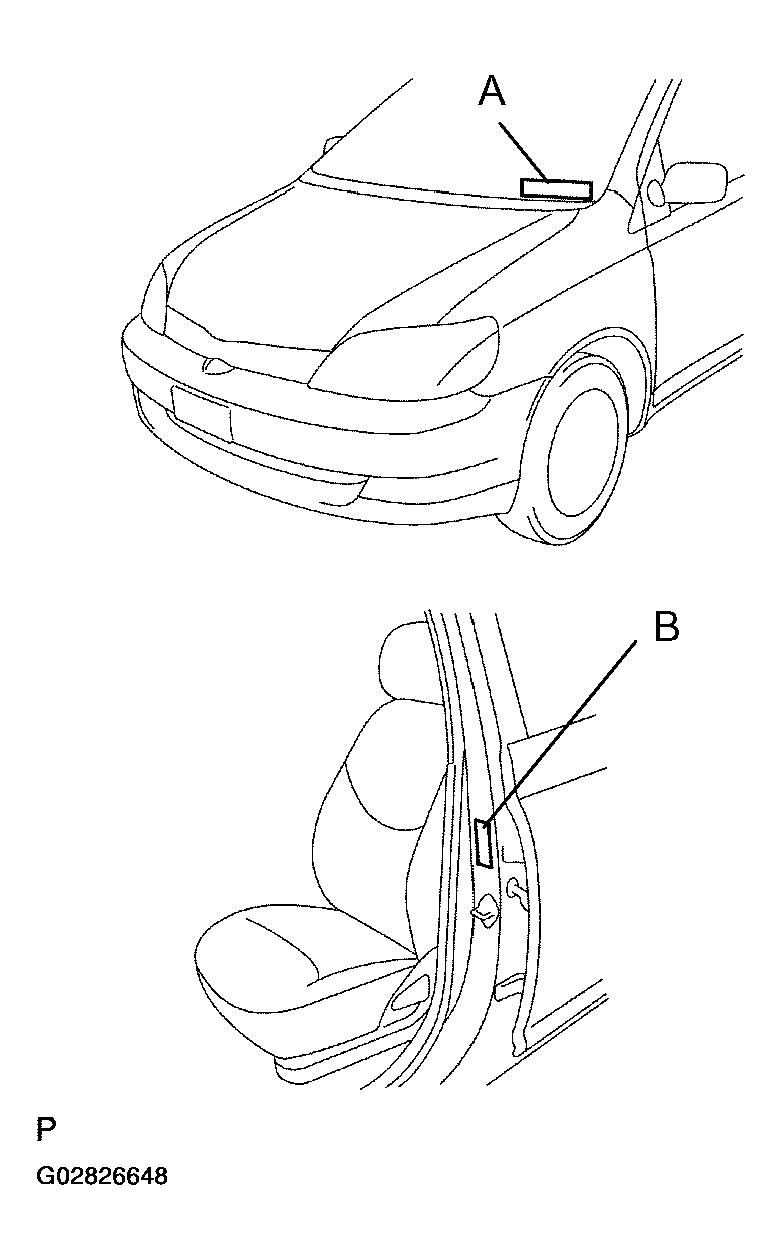

    Fig 1: Locating Vehicle Identification Number Plate
    G02826648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ENGINE SERIAL NUMBER

    The engine serial number is stamped on the engine block, as shown in Fig 2.

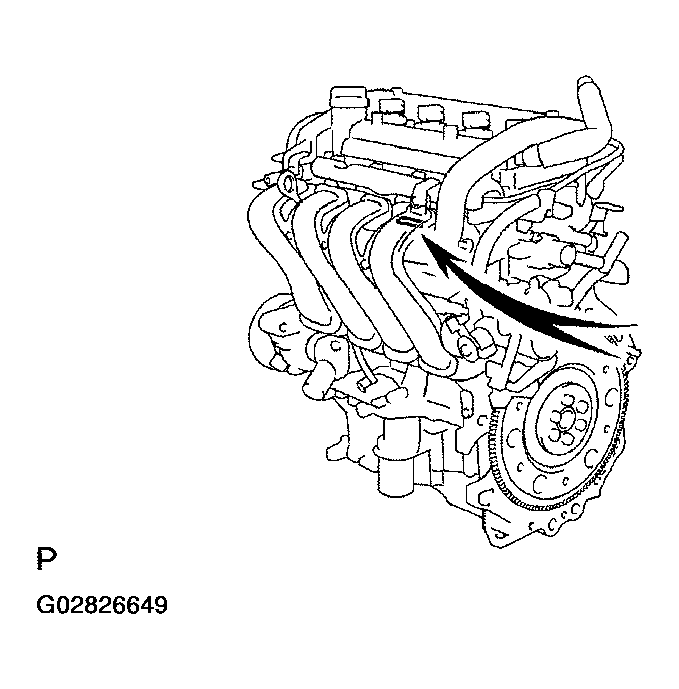

    Fig 2: Locating Engine Serial Number
    G02826649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
