Power Mirror Control System: Inspection

INSPECT OUTER MIRROR SWITCH ASSY
1. Inspect the mirror switch continuity.

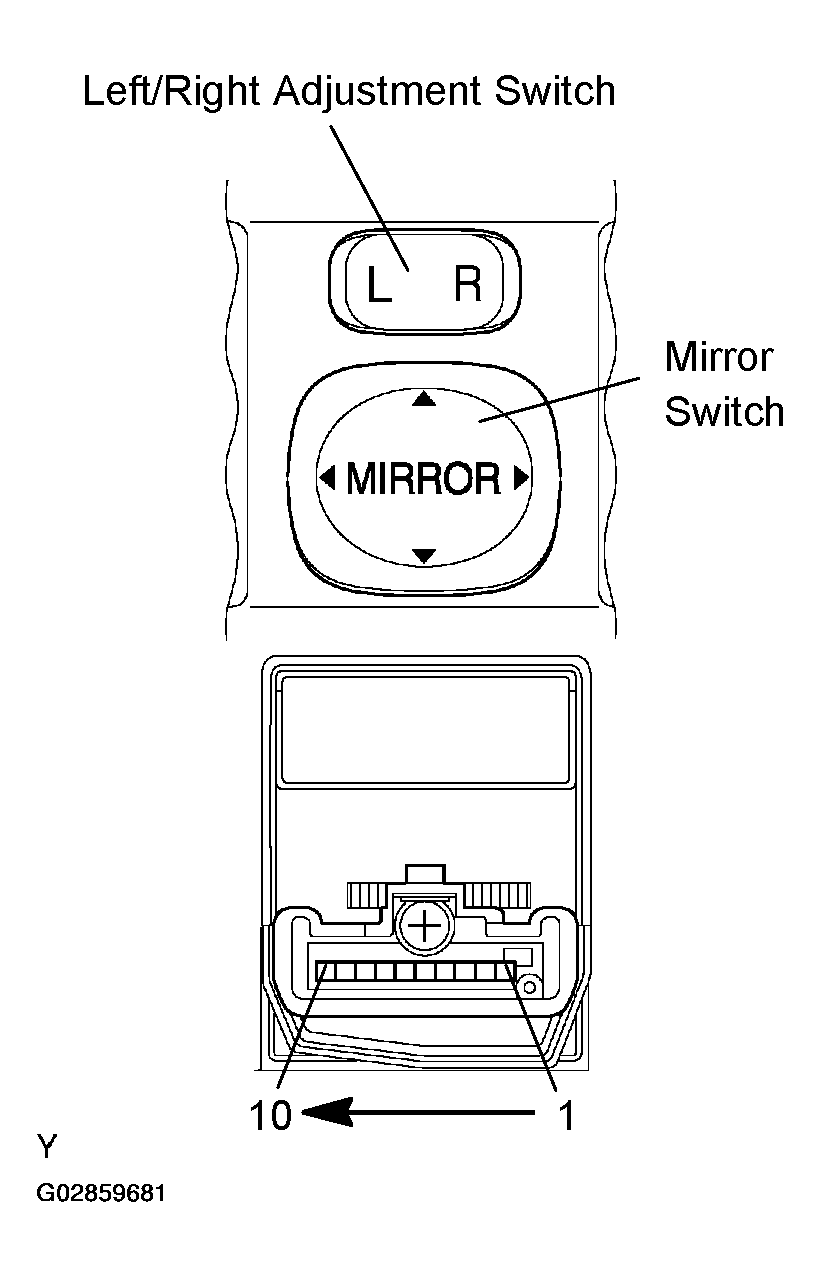

  Fig 1: Identifying Right/Left And Mirror Switch Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Turn the left/right adjustment switch to the L position.
    Inspect the left side mirror switch continuity.

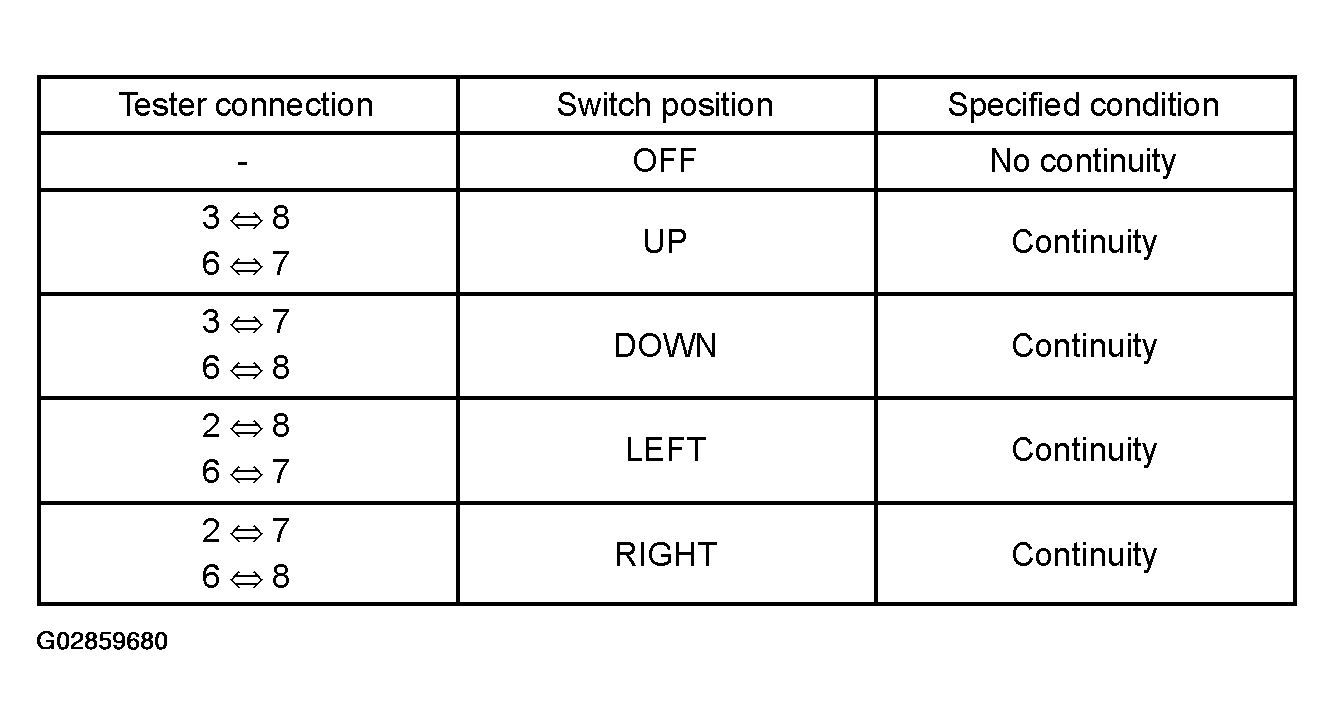

    Fig 2: Left Side Mirror Switch Specifications
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the continuity is not as specified, replace the switch.
  2. Turn to the left/right adjustment switch to the R position.
  Inspect the right side mirror switch continuity.

  Fig 3: Right Side Mirror Switch Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the continuity is not as specified, replace the switch.
INSPECT OUTER REAR VIEW MIRROR ASSY RH
1. Inspect operation of the mirror motor.

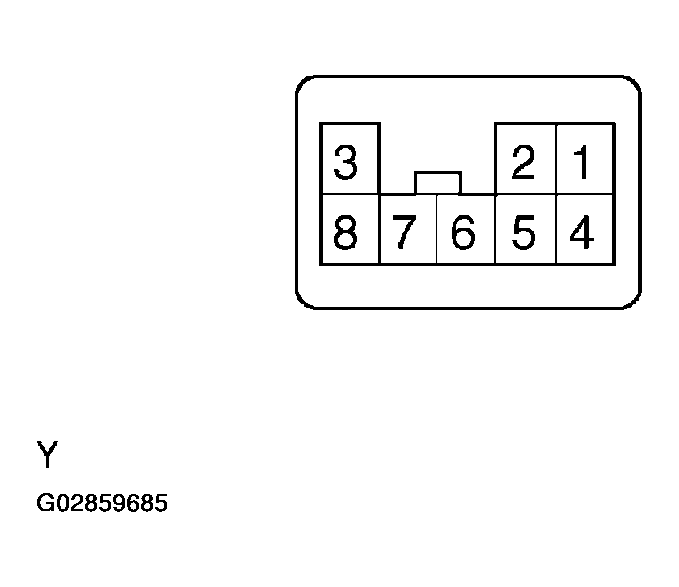

  Fig 4: Identifying Outer Rear View Mirror Assembly (RH) Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

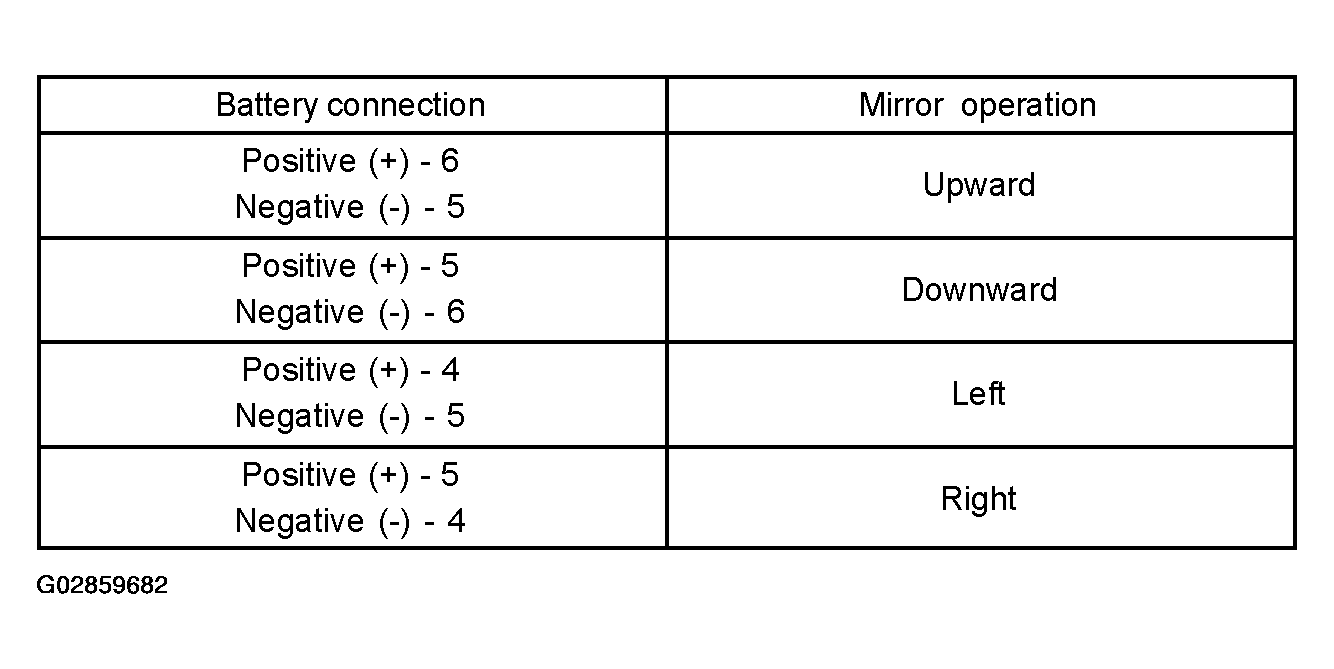

  Fig 5: Mirror Operation Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check operation of the mirror heater.
  1. Check the mirror between terminals 7 and 8 of the connector.
    Standard: continuity
  2. Check that the mirror is warmed up when connecting the battery positive (+) to terminal 7 and the battery negative (-) to terminal 8 of the connector.
INSPECT OUTER REAR VIEW MIRROR ASSY LH
1. Inspect operation of the mirror motor.

  Fig 6: Identifying Outer Rear View Mirror Assembly (LH) Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

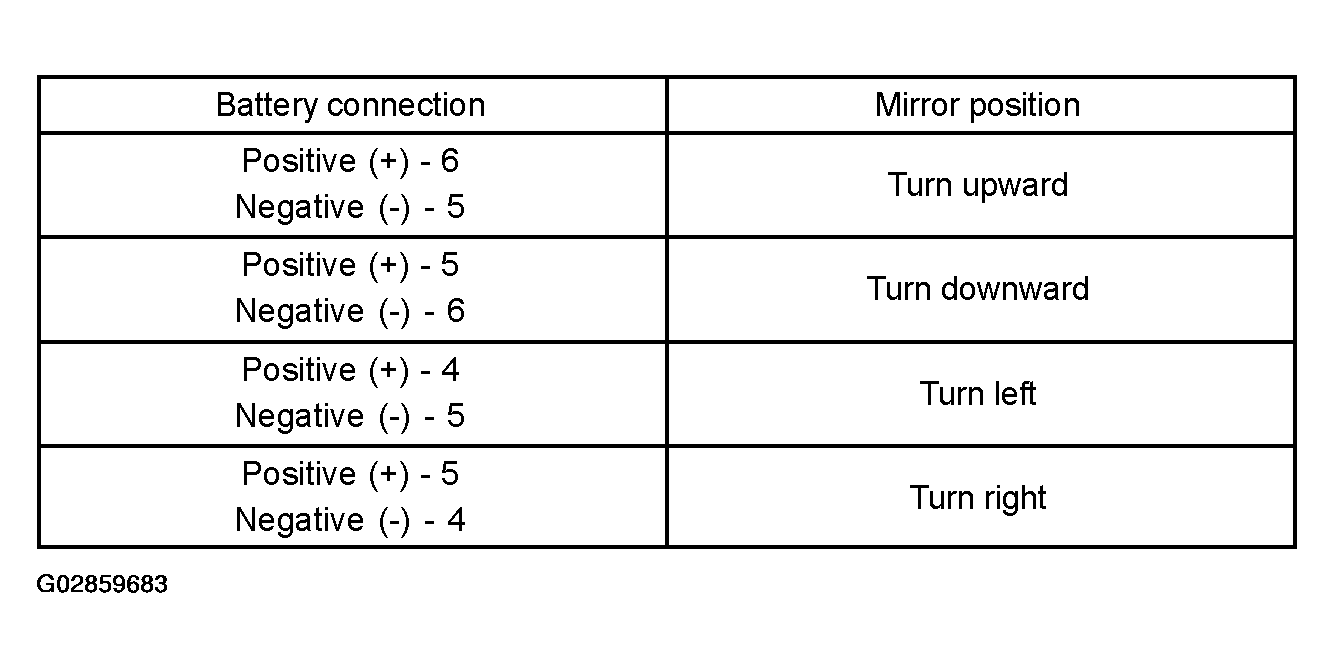

  Fig 7: Mirror Operation Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check operation of the mirror heater.
  1. Check the mirror between terminals 7 and 8 of the connector.
    Standard: continuity
  2. Check that the mirror is warmed up when connecting the battery positive (+) to terminal 7 and the battery negative (-) to terminal 8 of the connector.
