Home >> Toyota >> 2003 >> Highlander Limited, FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System - Diagnostics >> Testing >> Driver Power Window Does Not Operate >> Wiring Diagram

Driver Power Window Does Not Operate: Wiring Diagram

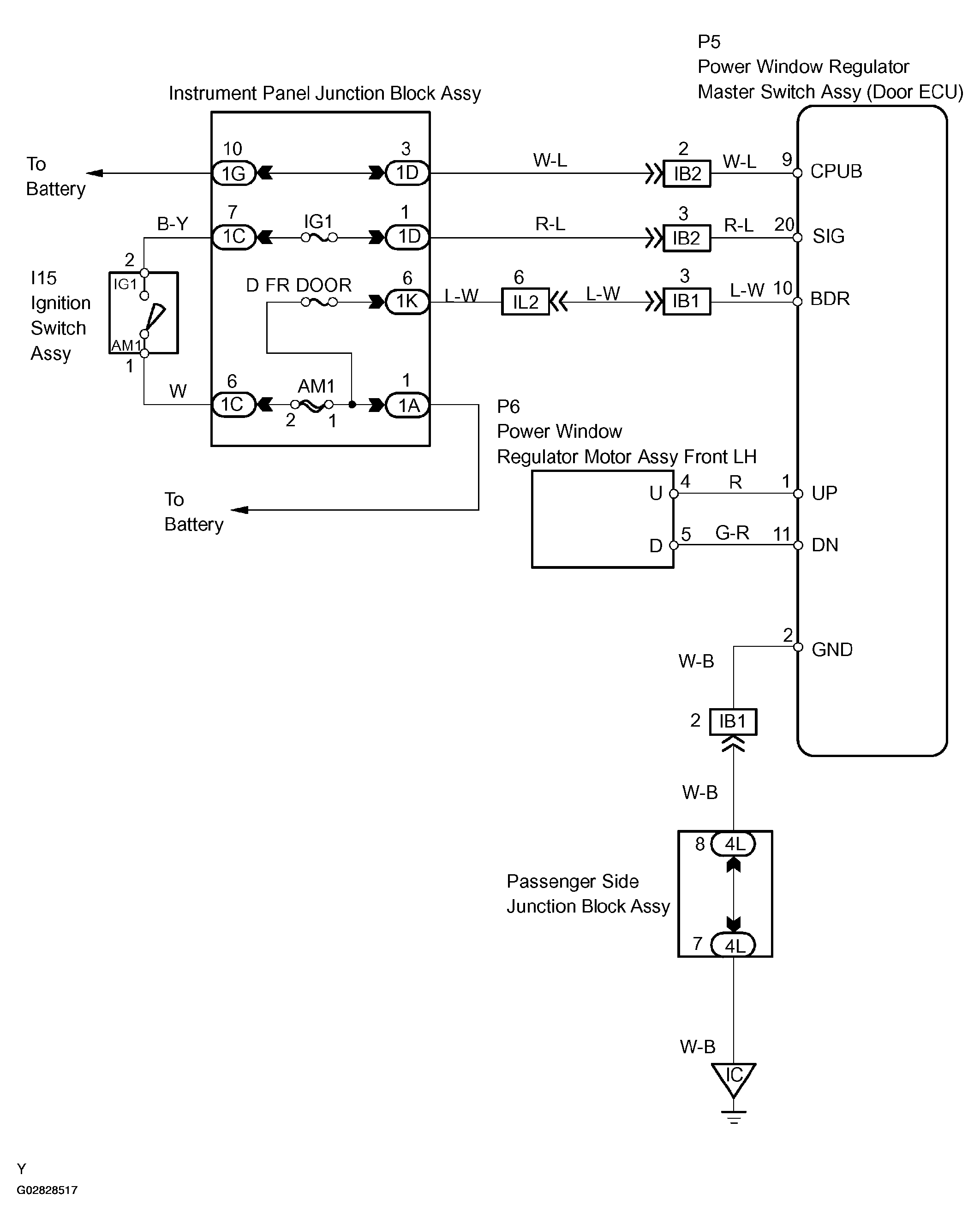

Fig 1: Driver Power Window - Wiring Diagram

G02828517

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
