Abs Speed Sensor Front LH: Replacement

NOTE: Replace the RH side by the same procedures with LH side.

REMOVE FRONT WHEEL
REMOVE FRONT FENDER LINER LH
REMOVE SPEED SENSOR FRONT LH
1. Disconnect the speed sensor connector.

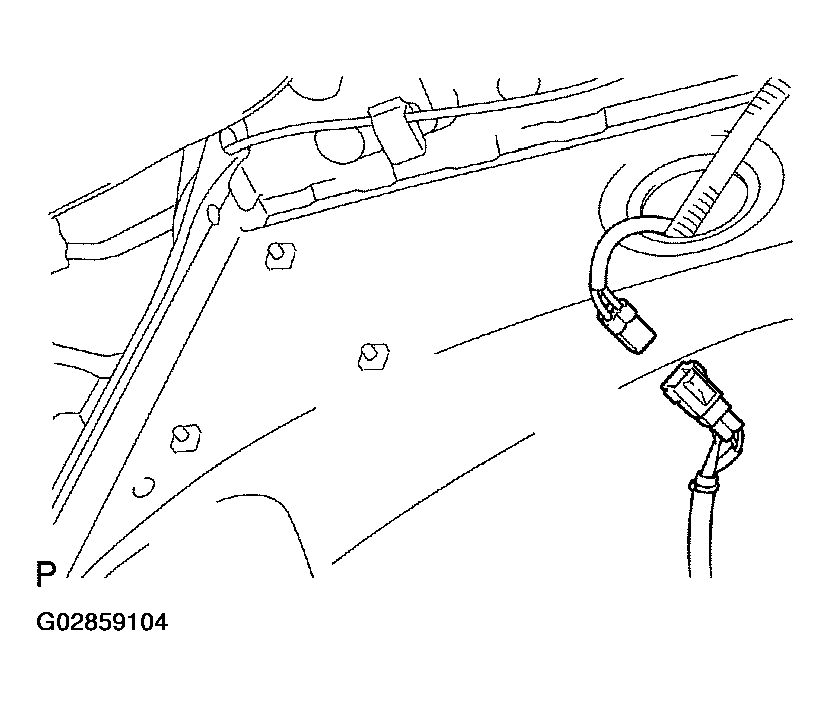

  Fig 1: Disconnecting Speed Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 clamp bolts holding the sensor harness and clamp from the body and shock absorber.

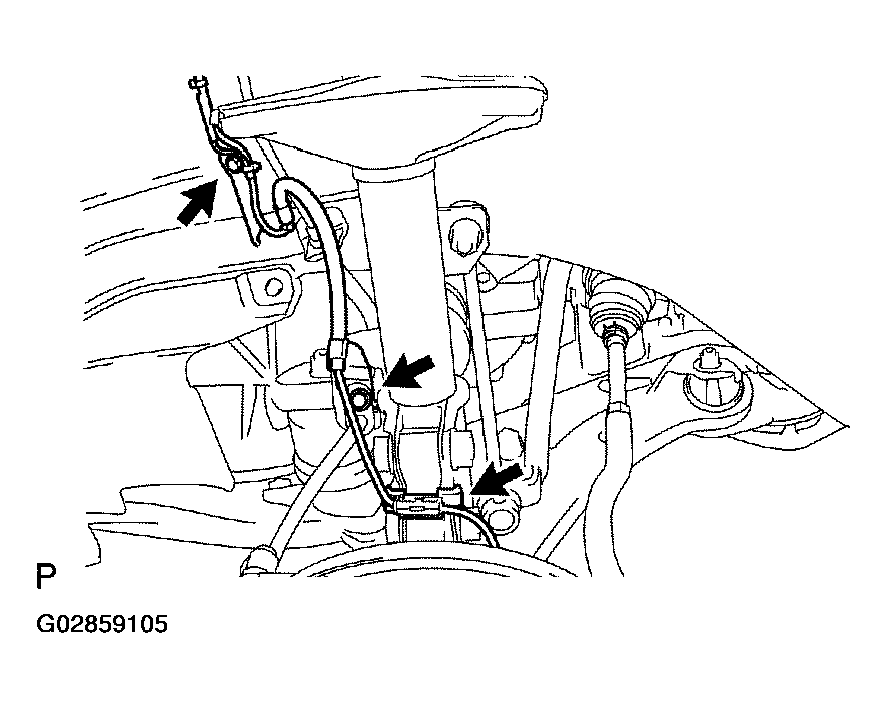

  Fig 2: Removing Sensor Harness Clamp From Body And Shock Absorber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the bolt and speed sensor FR LH.

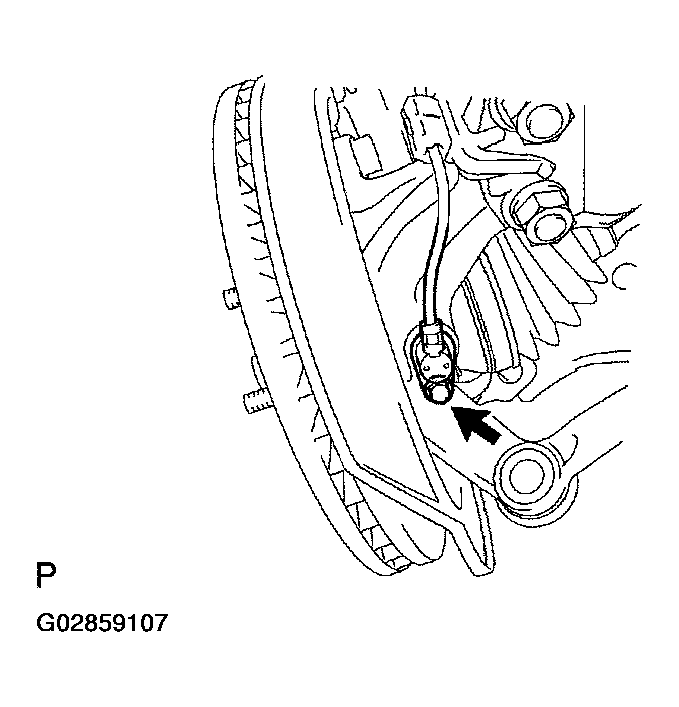

  Fig 3: Removing Speed Sensor FR LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Do not stick and foreign matter on the sensor tip.
INSTALL SPEED SENSOR FRONT LH
1. Install the speed sensor FR LH with the bolt.

  Fig 4: Installing Speed Sensor FR LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

  NOTE: Do not stick and foreign matter on the sensor tip.
2. Install the sensor harness clamps with the 2 bolts A and B to the body and shock absorber.

  Fig 5: Installing Sensor Harness Clamps To Body And Shock Absorber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque:

  Bolt A: 5.0 N.m (51 kgf.cm, 44 in.lbf)

  Bolt B: 29 N.m (296 kgf.cm, 21 ft.lbf)
3. Connect the clamp to the knuckle.
4. Connect the speed sensor connector.

  Fig 6: Connecting Speed Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FENDER LINER LH
INSTALL FRONT WHEEL
Torque: 103 N.m (1, 050 kgf.cm, 76 ft.lbf)
CHECK ABS SPEED SENSOR SIGNAL
(See PRE-CHECK (ABS With BA & EBD System) or PRE-CHECK ABS With EBD & BA & TRAC & VSC System)) .
