Deceleration Sensor: Replacement

  1. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER
  2. REMOVE GLOVE COMPARTMENT DOOR ASSY
  3. REMOVE FLOOR CARPET COVER CENTER LH
  4. REMOVE FLOOR CARPET COVER CENTER RH
  5. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER
  6. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
  7. REMOVE DECELERATION SENSOR
    1. Disconnect the deceleration sensor connector.
    2. Remove the 2 bolts or 2 nuts and deceleration sensor.

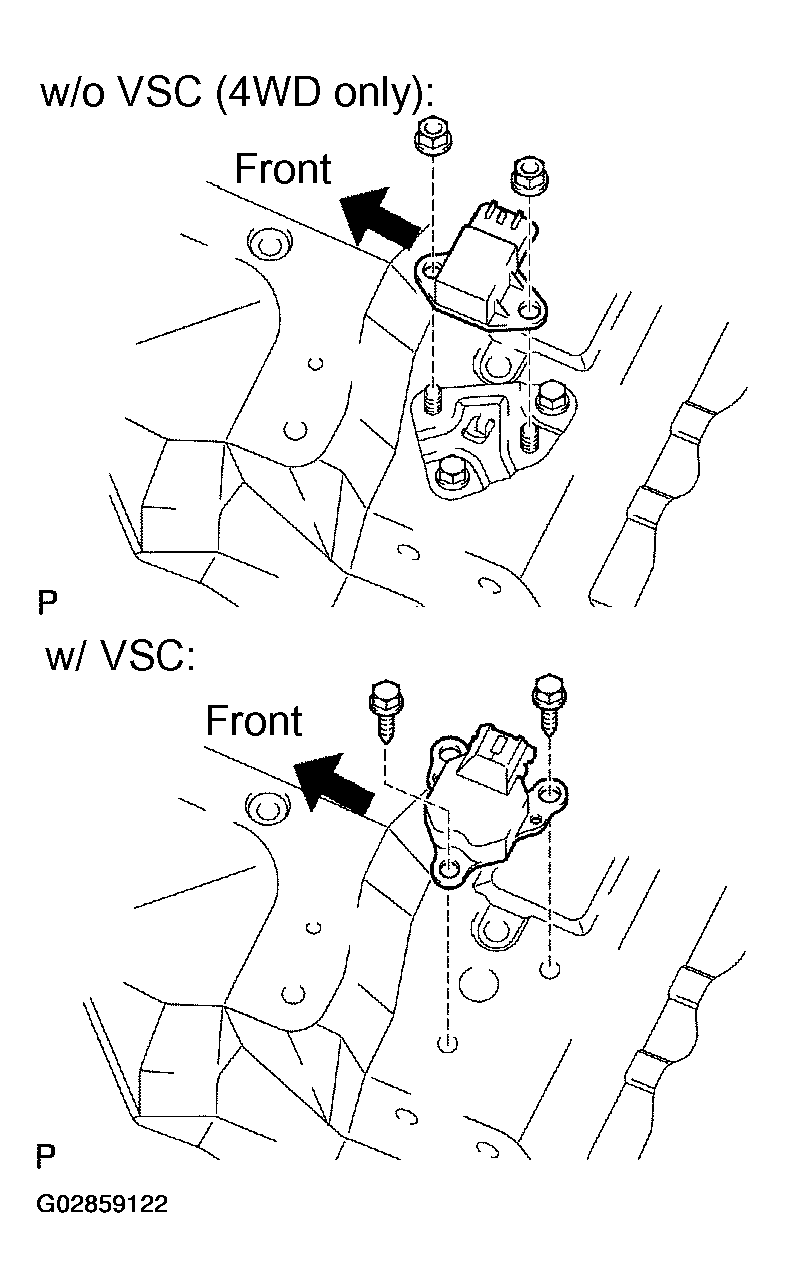

      Fig 1: Removing Deceleration Sensor
      G02859122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL DECELERATION SENSOR
    1. Install the deceleration sensor with the 2 bolts or 2 nuts.
      Fig 2: Installing Deceleration Sensor
      G02859123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

    2. Connect the deceleration sensor connector.
  9. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER
  10. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER
  11. INSTALL FLOOR CARPET COVER CENTER LH
  12. INSTALL FLOOR CARPET COVER CENTER RH
  13. INSTALL GLOVE COMPARTMENT DOOR ASSY
  14. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER
  15. PERFORM DECELERATION SENSOR ZERO POINT CALIBRATION (W/ VSC) (See  PRE-CHECK  )
  16. CHECK DECELERATION SENSOR SIGNAL (See  PRE-CHECK  (ABS With BA & EBD System) or  PRE-CHECK  (ABS With EBD & BA & TRAC & VSC System))  .
