Power Point Socket Assembly: Replacement

REMOVE POWER POINT SOCKET ASSY RR

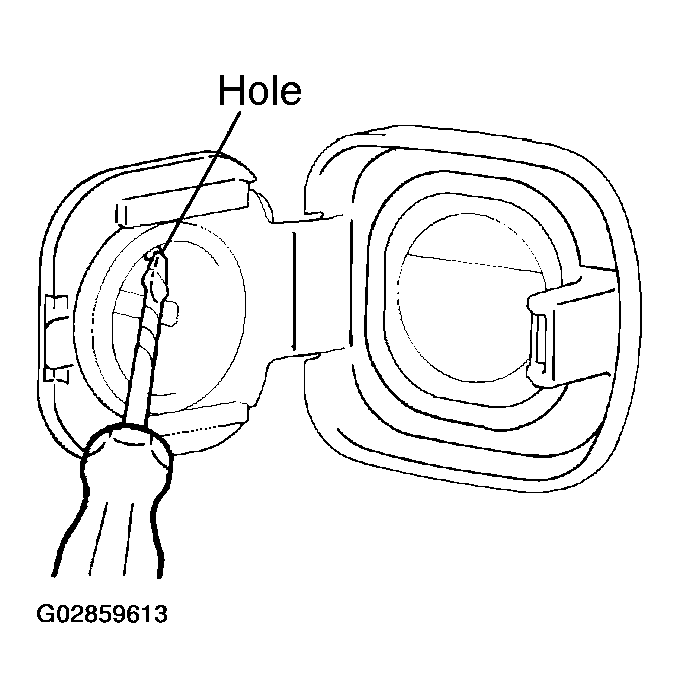

1. Using a screwdriver, disengage the claw on the power point socket cover from the hole in the power point socket, then pull out the power point socket approx. 10 mm (0.39 in.).

  Fig 1: Identifying Hole In Power Point Socket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Tape the screwdriver tip before use.

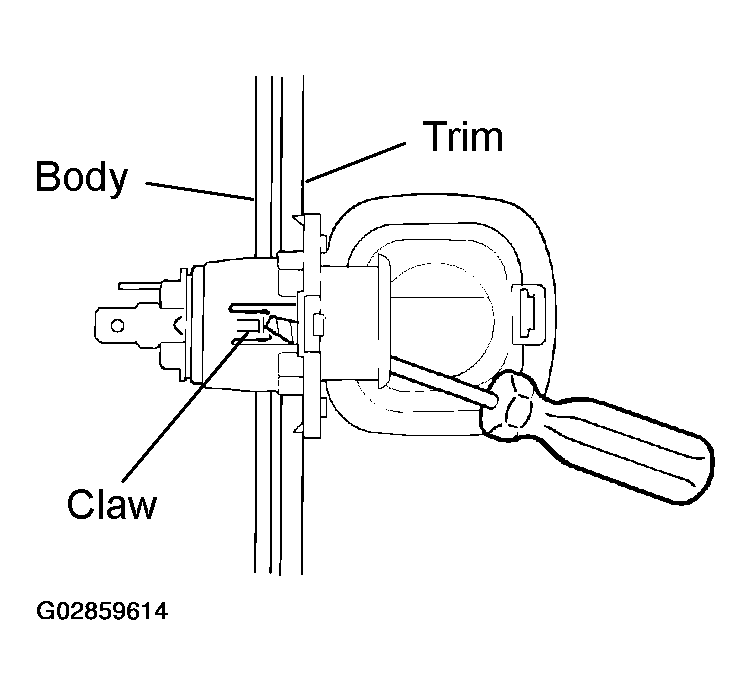

2. Using a screwdriver, disengage the claw on the power point socket cover from the body and remove the power point socket and cover as a unit.

  Fig 2: Disengaging Claw Of Power Point Socket Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Tape the screwdriver tip before use.
3. Disconnect the connector.
4. Disassemble the power point socket from the socket cover.
INSTALL POWER POINT SOCKET ASSY RR
1. Assemble the power point socket to the power point socket cover at the position 10 mm (0.39 in.) away from full lock position and ensure that they are temporarily locked.
2. Align the cut-out on the body with the claw on the power point socket cover and install the power point socket and cover to the body.
3. After installing them, push in the power point socket approx. 10 mm (0.39 in.) to lock it.
