Automatic Transmission Floor Shift Control Cable Assembly: Replacement

REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER (See REPLACEMENT )
REMOVE FLOOR CARPET COVER CENTER RH (See REPLACEMENT )
REMOVE FLOOR CARPET COVER CENTER LH (See REPLACEMENT )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See REPLACEMENT )
REMOVE BATTERY
REMOVE AIR CLEANER ASSY
REMOVE AIR CLEANER HOSE NO. 1
REMOVE FLOOR SHIFT TRANSMISSION CONTROL CABLE ASSY

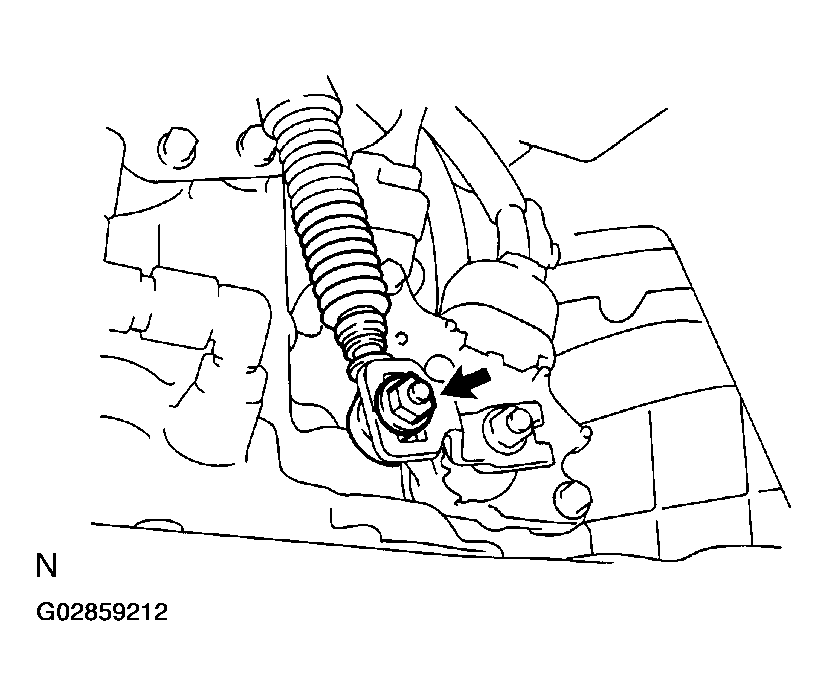

1. Remove the nut from the control shaft lever.

  Fig 1: Removing Nut From Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the control cable from the control shaft lever.

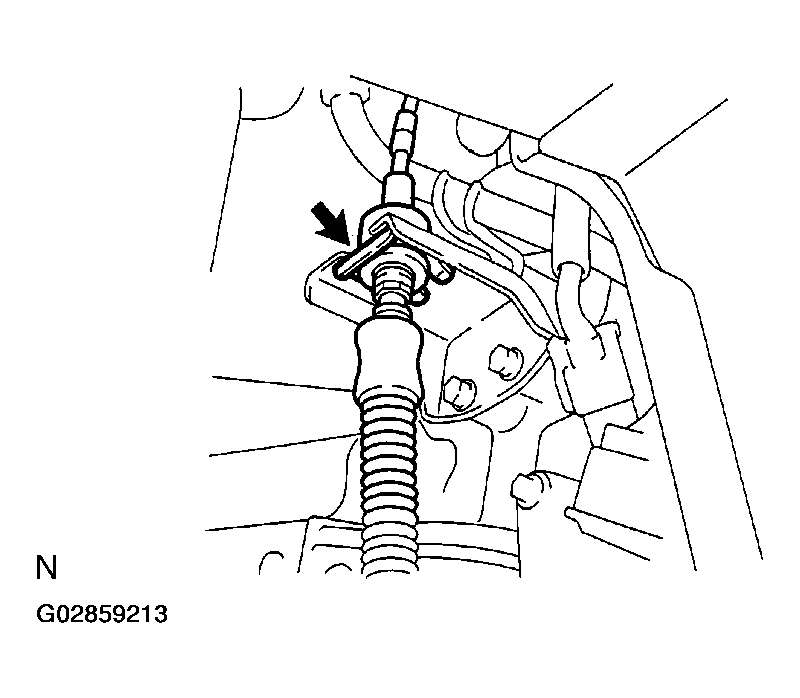

3. Remove the clip and disconnect the control cable from the control cable bracket.

  Fig 2: Removing Clip And Disconnecting Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

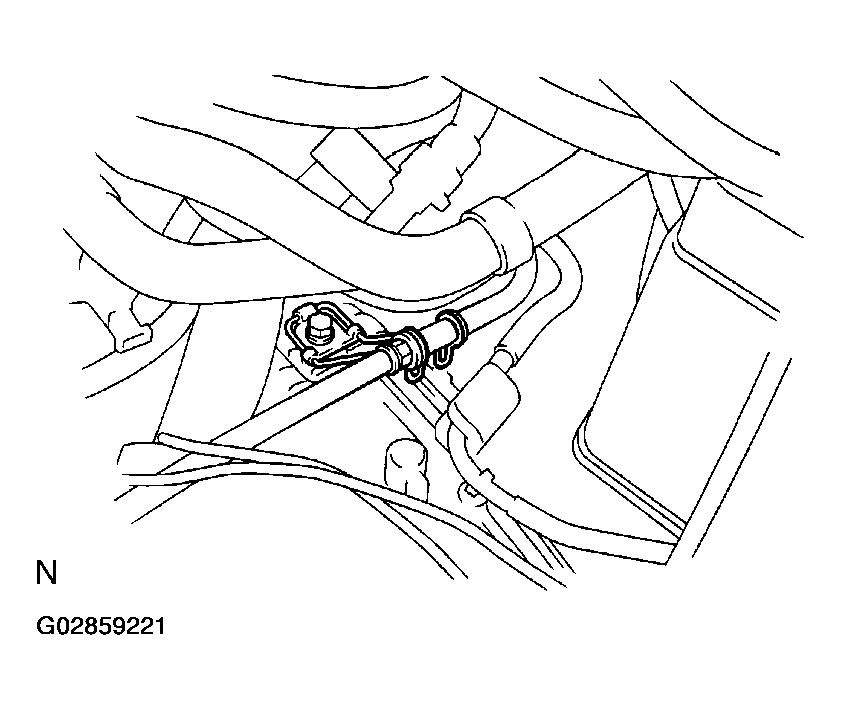

4. Disconnect the control cable from the control cable clamp.

  Fig 3: Disconnecting Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Disconnect the cable end from the rod of the floor shift assy.

  Fig 4: Removing Cable End
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

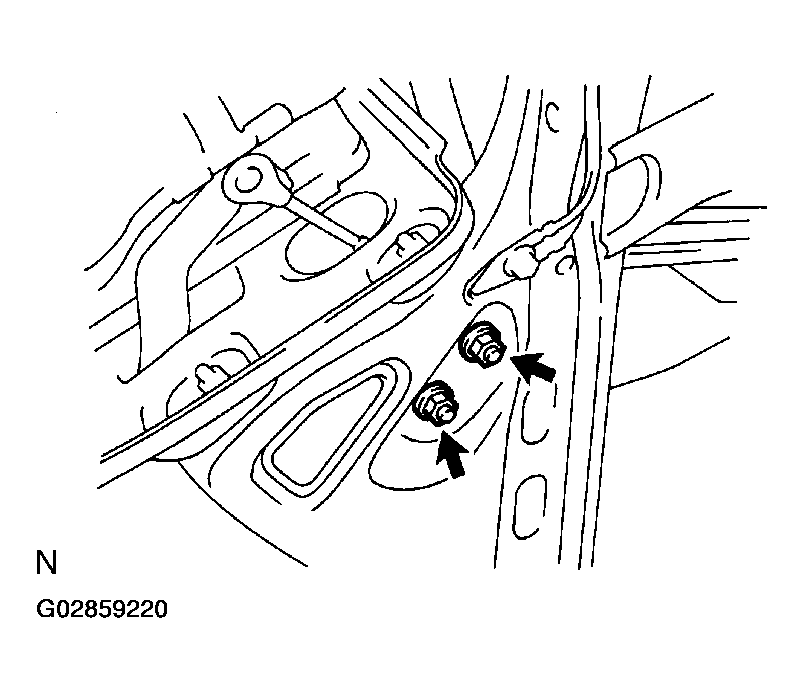

6. Remove the 2 nuts.

  Fig 5: Removing Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Remove the 3 bolts.
8. Pull out the control cable from the body.

  Fig 6: Removing Control Cable From Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FLOOR SHIFT TRANSMISSION CONTROL CABLE ASSY

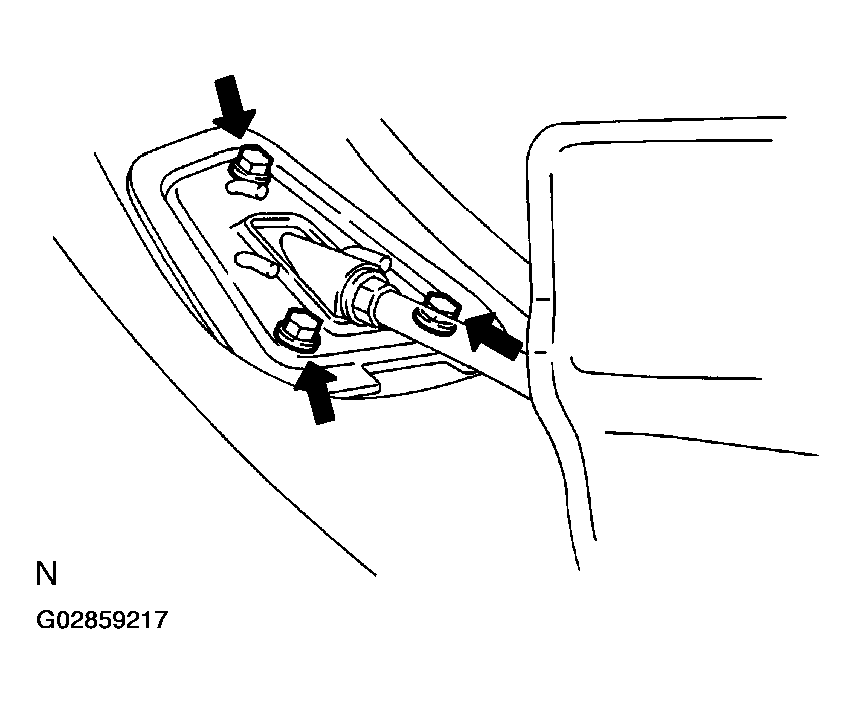

1. Pull in the control cable to the body.
2. Install the 3 bolts.
  Torque: 4.9 N.m (50 kgf.cm, 43 in.lbf)

  Fig 7: Installing Control Cable To Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

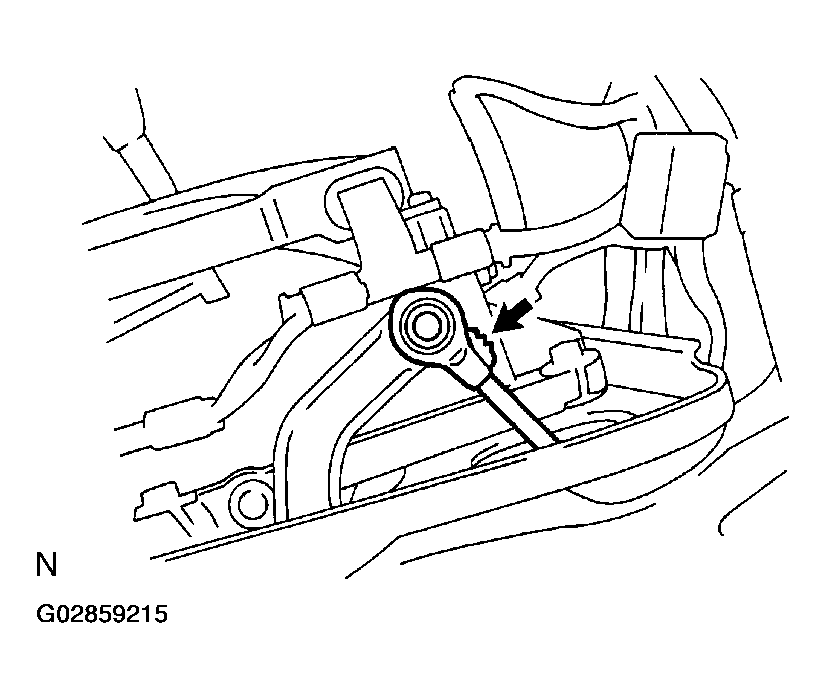

3. Install the cable end, as shown in Fig 8.

  Fig 8: Installing Cable End
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Install it with the uneven surface facing up.
4. Install the control cable and 2 nuts.

  Fig 9: Installing Control Cable Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 11.8 N.m (122 kgf.cm, 9 ft.lbf)
5. Connect the control cable to the control cable clamp.

  Fig 10: Connecting Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Temporarily install the control cable to the control shaft lever with nuts.

  Fig 11: Installing Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

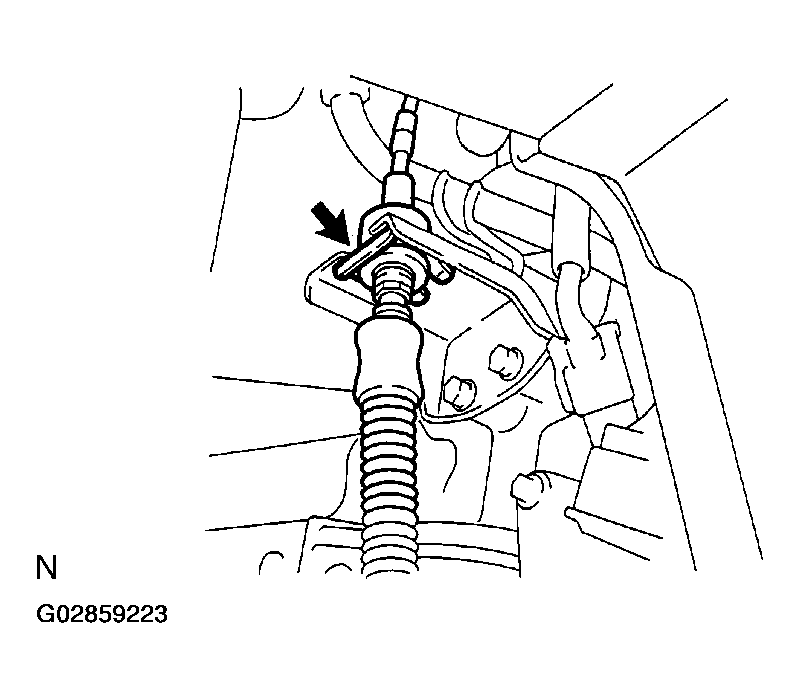

7. Install the control cable and clip to the bracket.

  Fig 12: Installing Control Cable And Clip To Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER ASSY
ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
INSPECT SHIFT LEVER POSITION (See ADJUSTMENT )
