Overhead Junction Block: Components

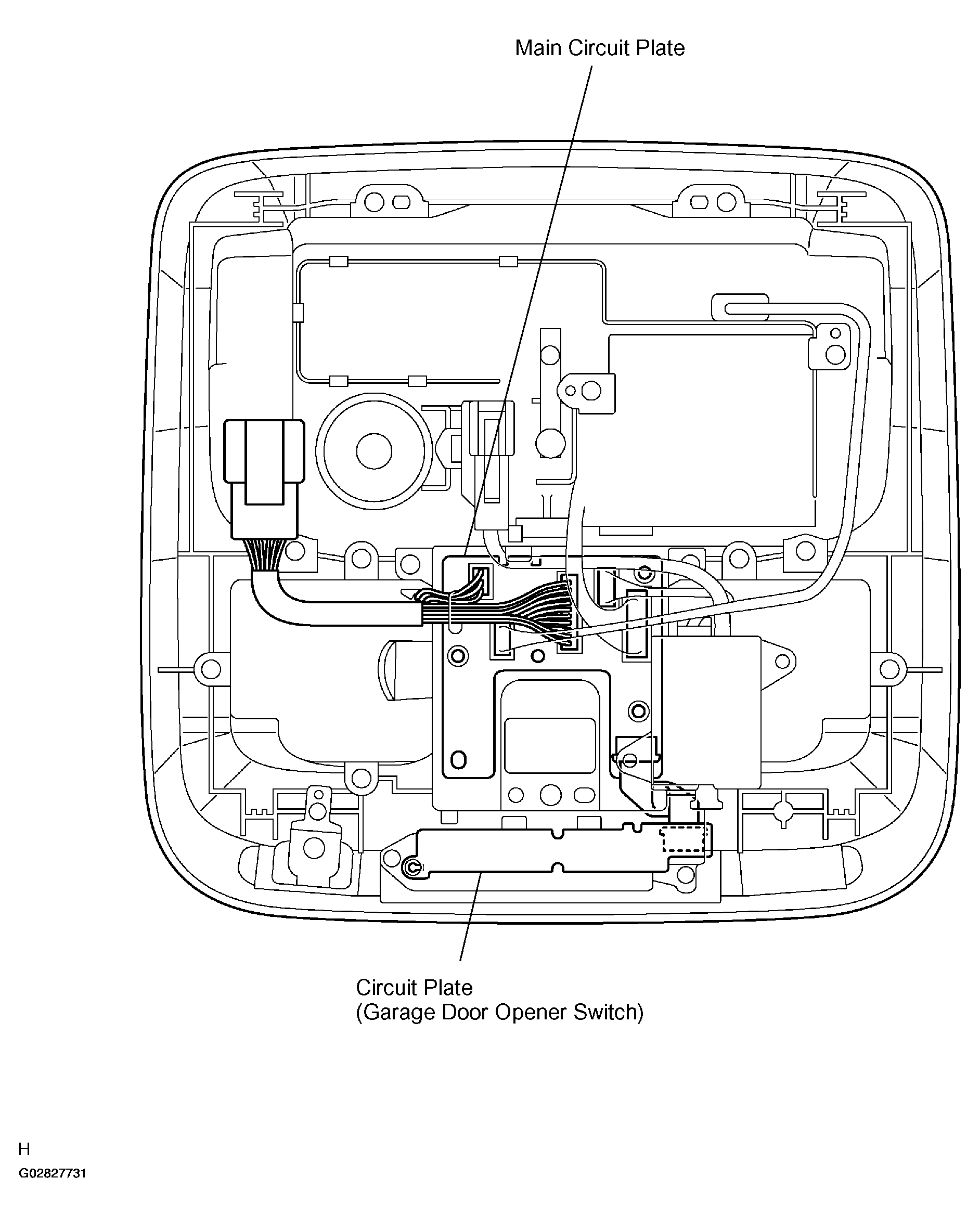

Fig 1: Locating Overhead J/B Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

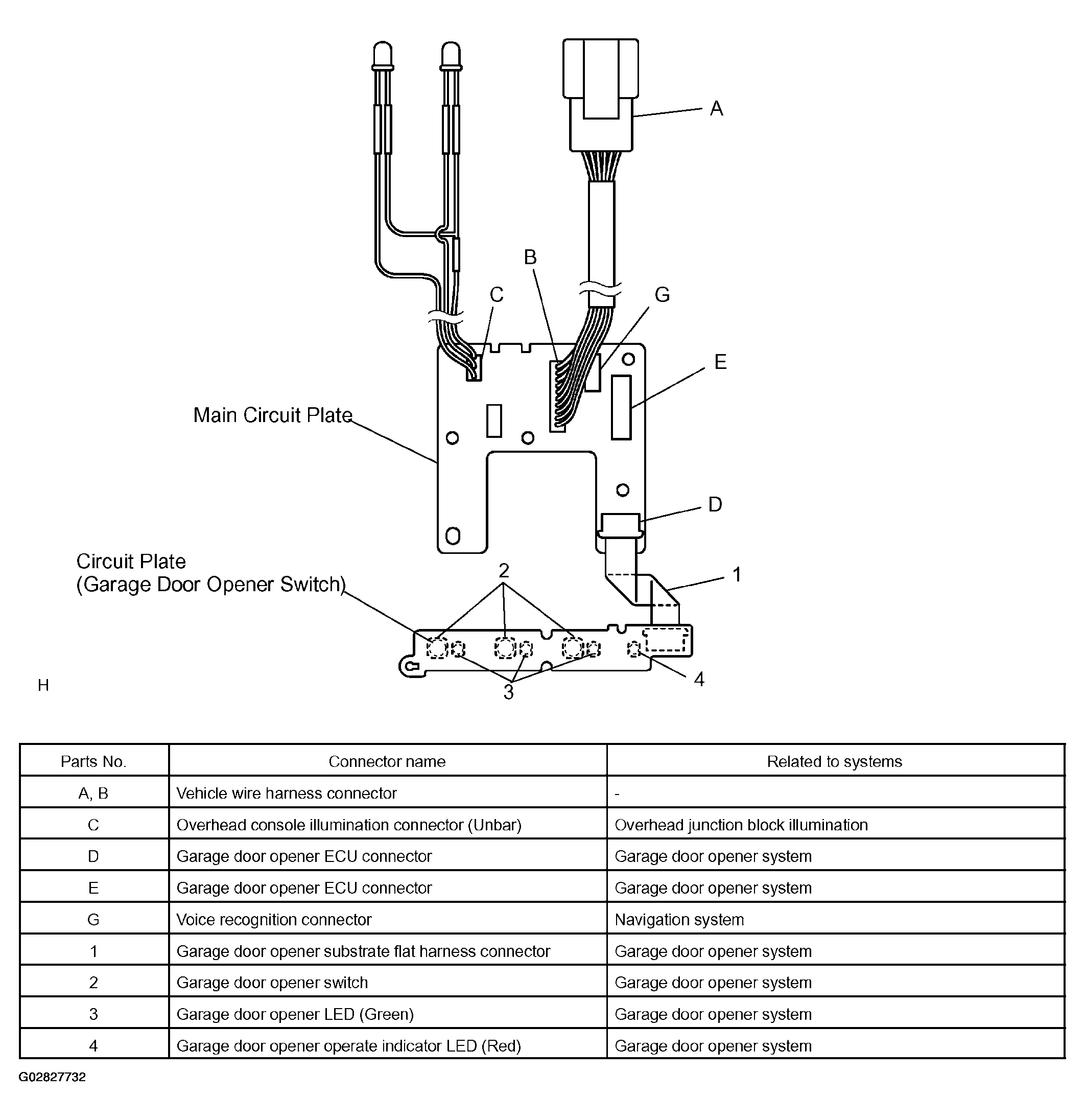

Fig 2: Identifying Main Circuit Plate

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
