Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

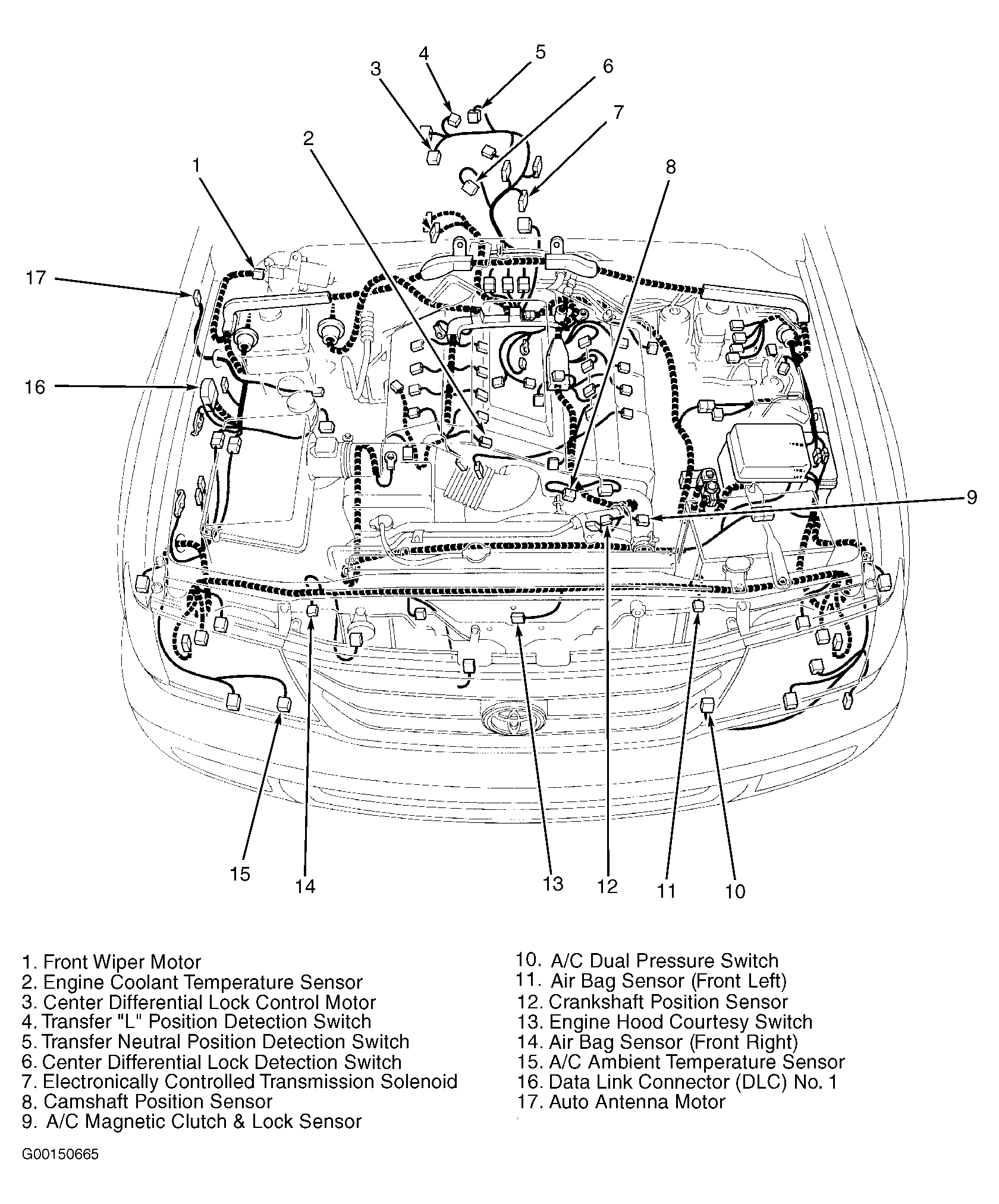

Fig 1: Engine Compartment
G00150665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

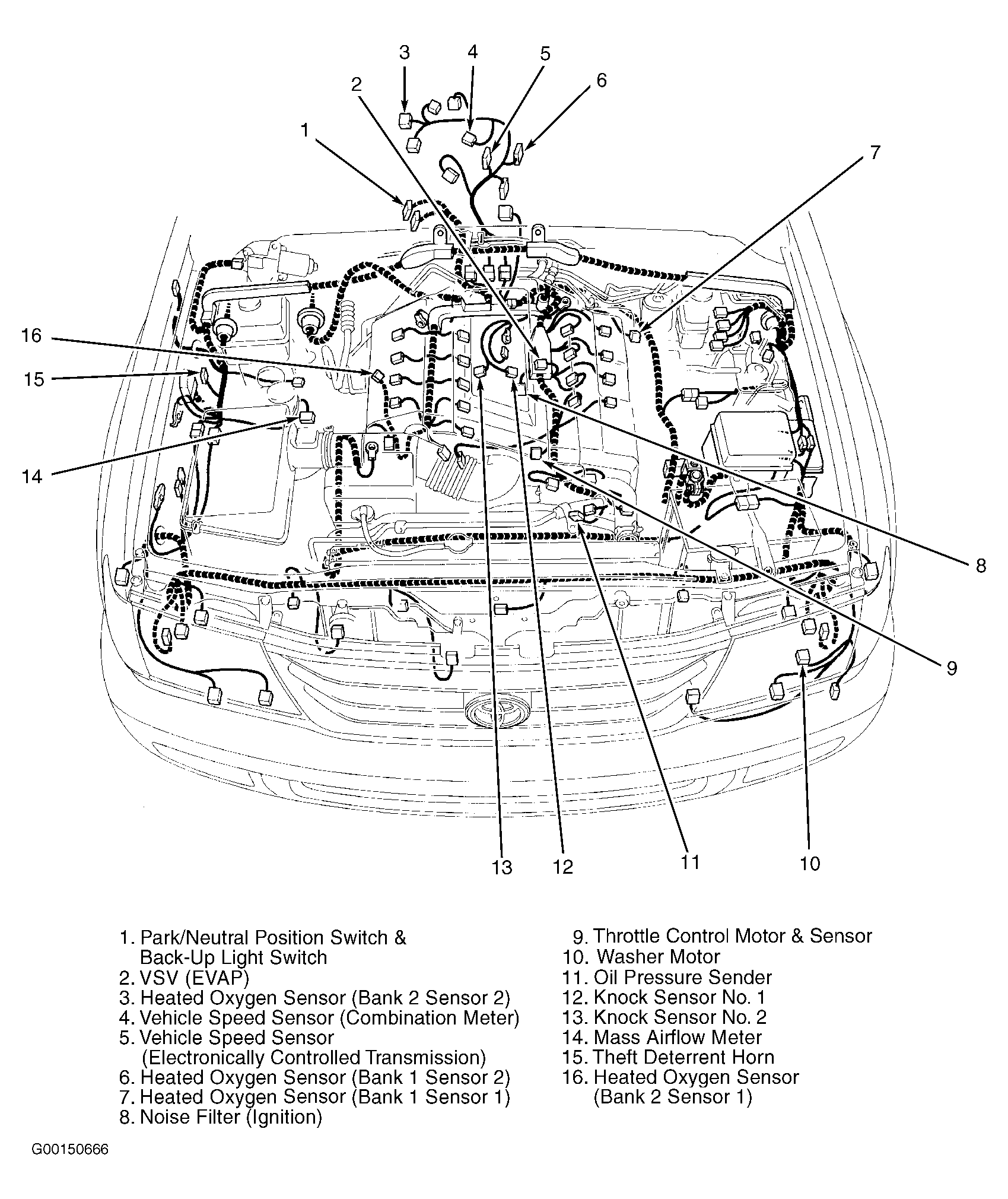

Fig 2: Engine Compartment
G00150666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

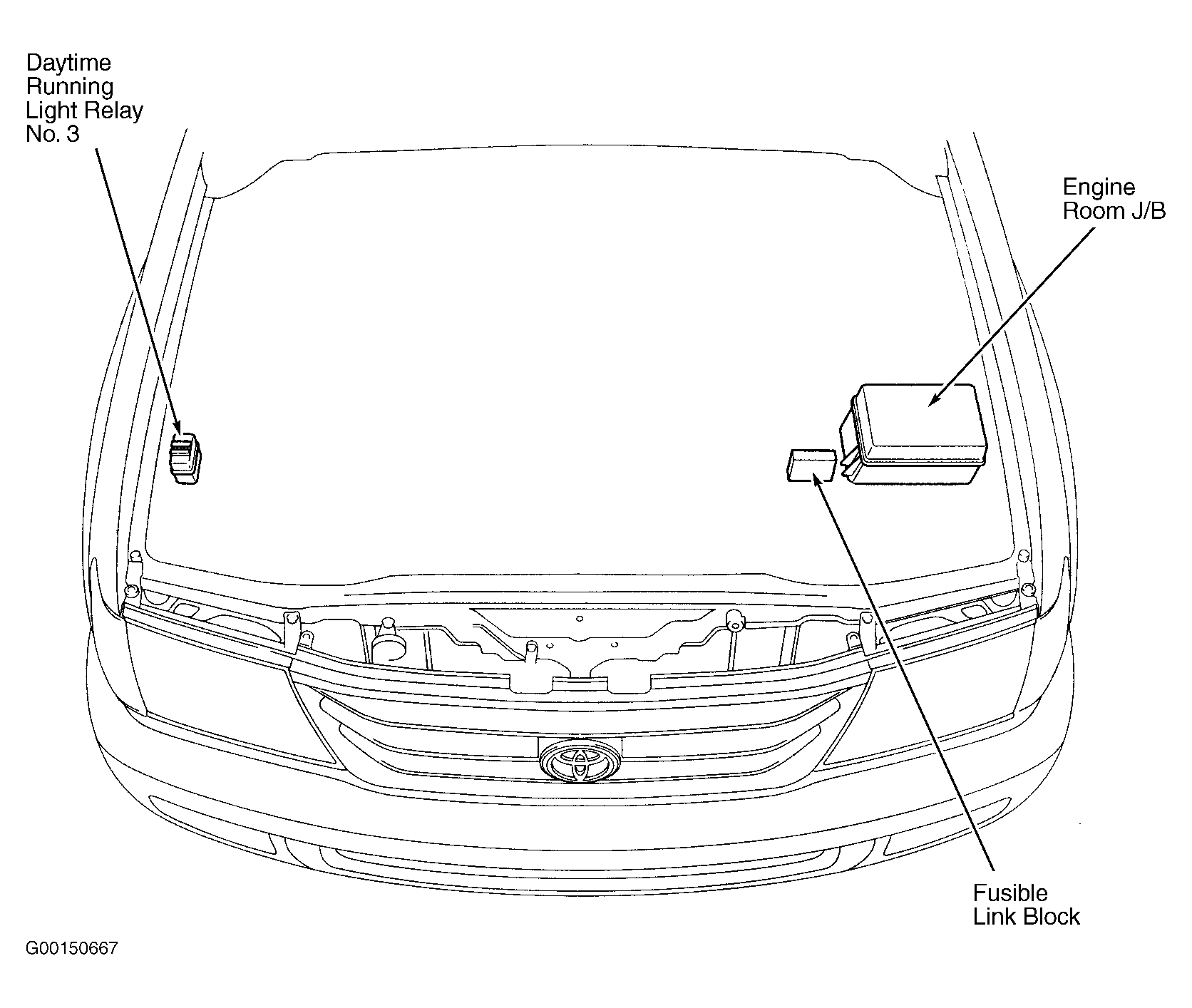

Fig 3: Engine Compartment
G00150667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Dash
G00150668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Left Side Of Vehicle
G00150669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

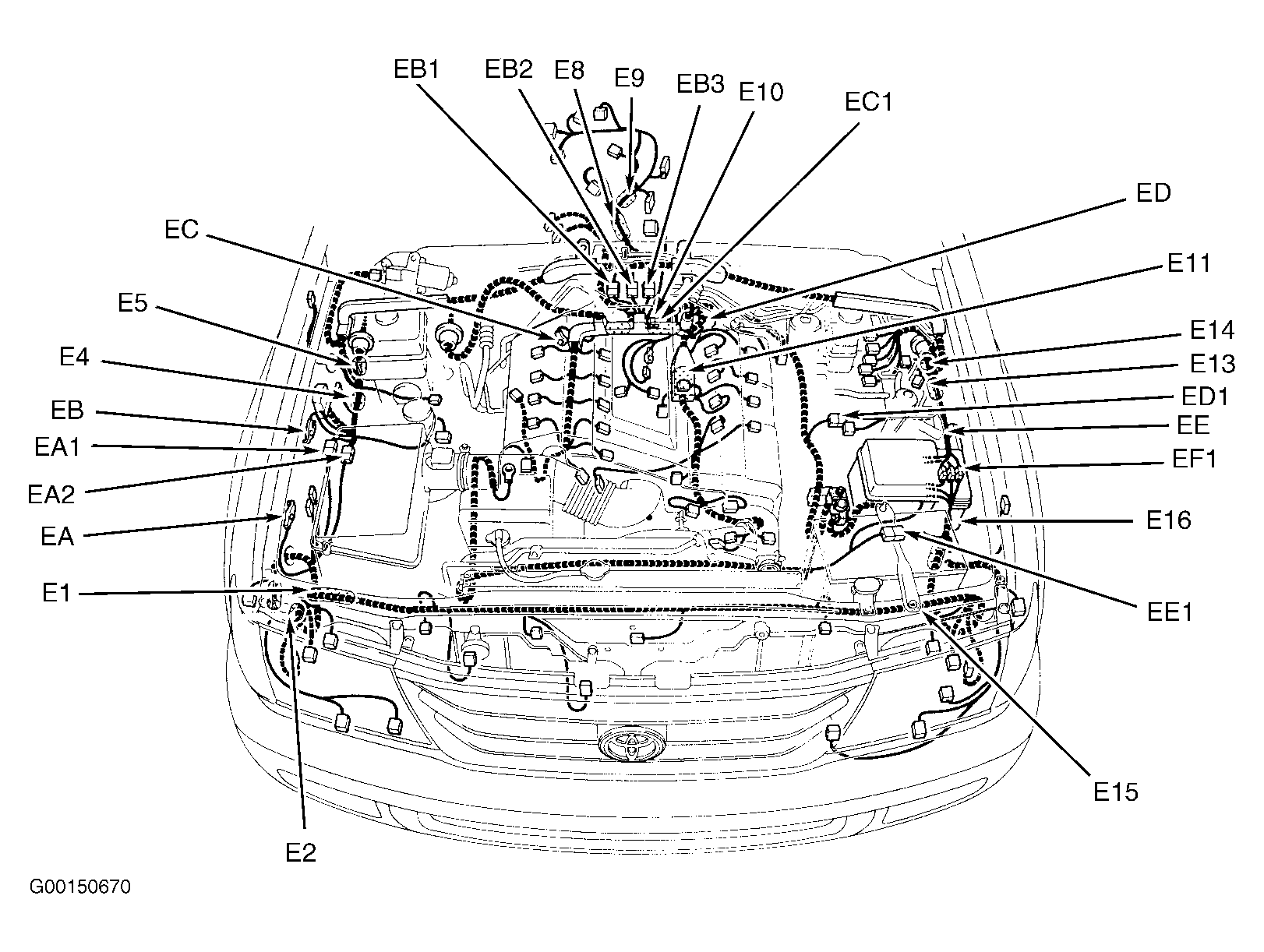

Fig 6: Engine Compartment
G00150670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
