Instrument Panel: Installation

  1. INSTALL REINFORCEMENT
  2. INSTALL NO. 1 BRACE
  3. INSTALL FLOOR BRACE
  4. INSTALL GLOVE COMPARTMENT DOOR DAMPER
  5. INSTALL NO. 4 HEATER TO REGISTER DUCT
  6. INSTALL NO. 3 HEATER TO REGISTER DUCT
  7. INSTALL ECM (See  REMOVAL & INSTALLATION - V6 & V8  article in ENGINE PERFORMANCE)
  8. INSTALL INSTRUMENT PANEL

    HINT:

    • Install the airbag connector between the No. 5 heater to register duct and the center bracket temporarily, then install the instrument panel.
    • Remove the airbag connector before installing the lower No. 2 panel.

    1. Install the 6 bolts, the 2 nuts and the instrument panel, then connect the connectors.
    2. Install the 2 bolts to the front passenger airbag assembly.

      Torque:  20 N.m (204 kgf.cm, 15 ft.lbf)

    3. Connect the junction connectors.

    HINT:  The connectors can be connected by tightening the bolts.

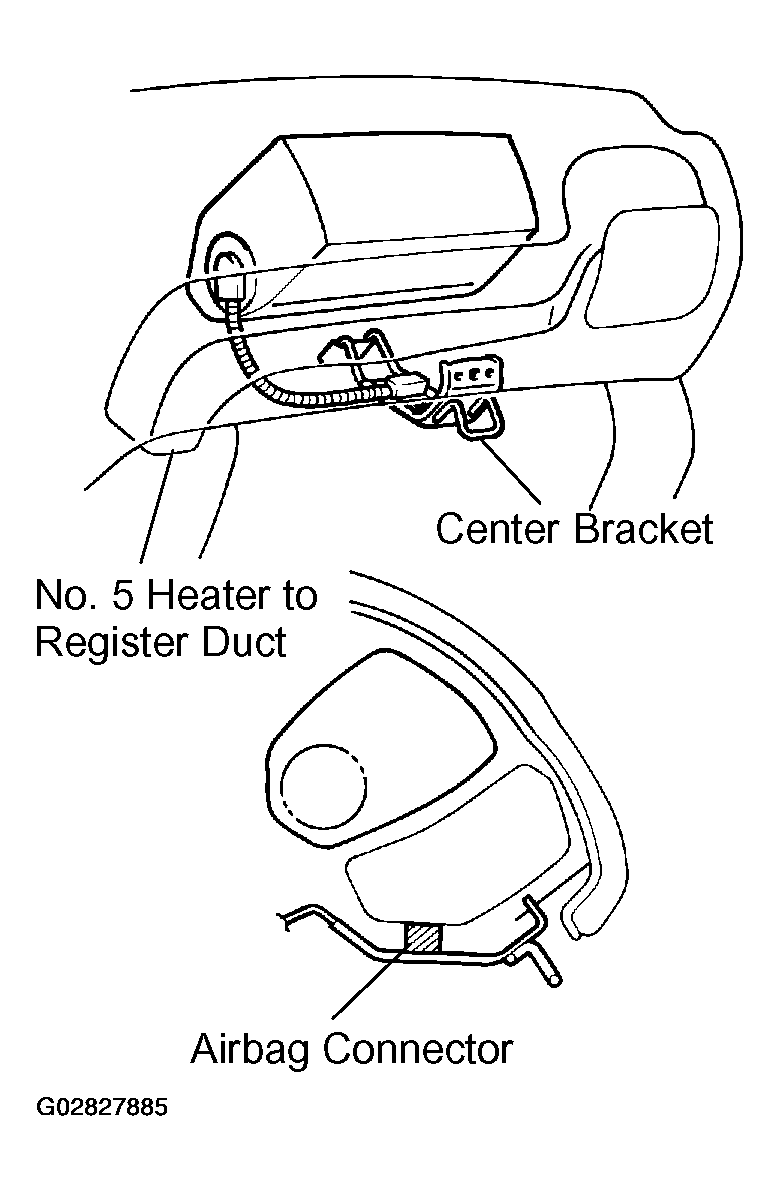

    Fig 1: Installing Front Passenger Airbag Connector
    G02827885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL FRONT CONSOLE BOX AND FRONT CONSOLE BOX BRACKET

    Install the front console box and the front console box bracket with the 2 bolts.

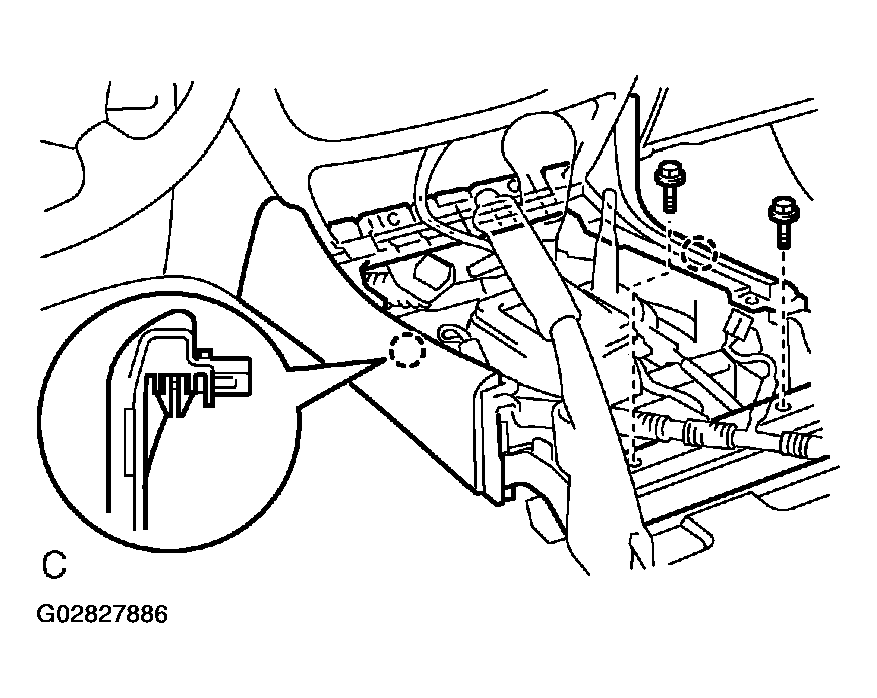

    Fig 2: Installing Front Console Box & Front Console Box Bracket
    G02827886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL CENTER LOWER CLUSTER FINISH PANEL

    Connect the connector, then install the center lower cluster finish panel.

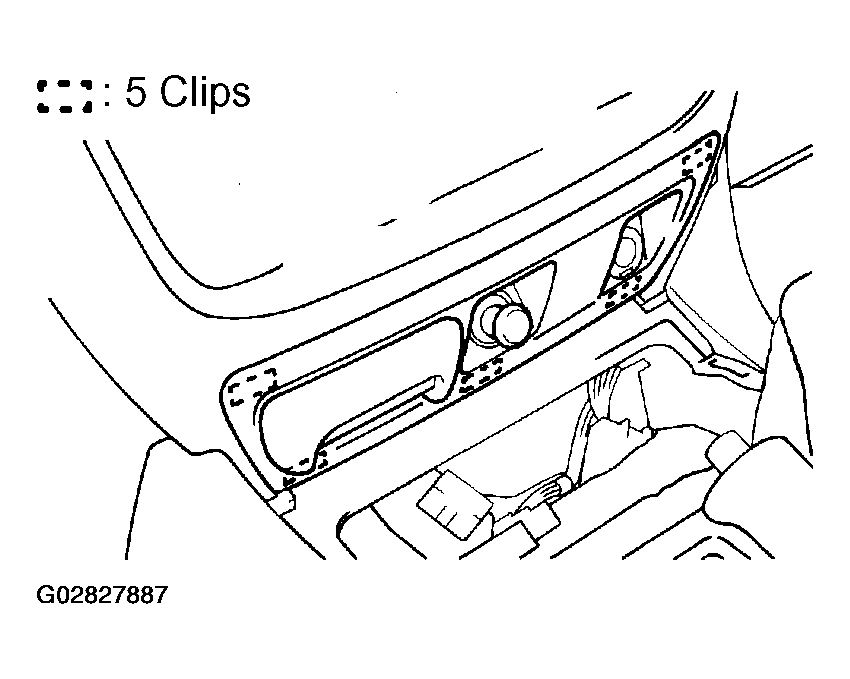

    Fig 3: Installing Center Lower Cluster Finish Panel
    G02827887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL REAR CONSOLE BOX
    1. w/o Disc player changer:

      Install the rear console box with the 6 bolts and the 8 screws.

    2. w/Disc player changer:

      Install the rear console box with the 4 bolts and the 8 screws.

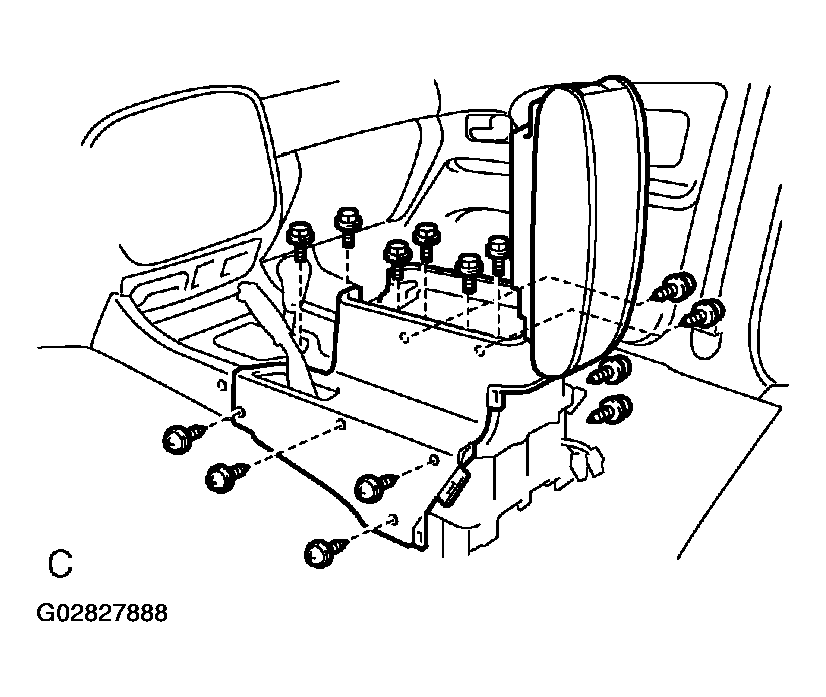

      3. Fig 4: Installing Rear Console Box (W/O Disc Player Changer)
      G02827888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

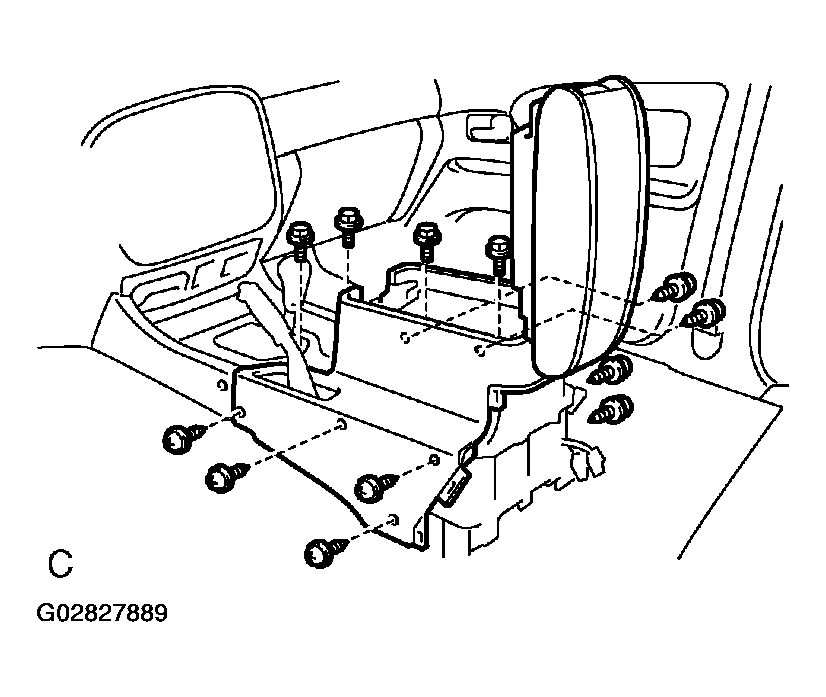

      Fig 5: Installing Rear Console Box (W/Disc Player Changer)
      G02827889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL REAR RADIO CONTROL PANEL

    Install the rear radio control panel with the 3 screws, then connect the connector.

  13. INSTALL CONSOLE REAR END PANEL
    1. Install the console rear end panel with the 2 screws.
    2. Install the rear console cup holder box.

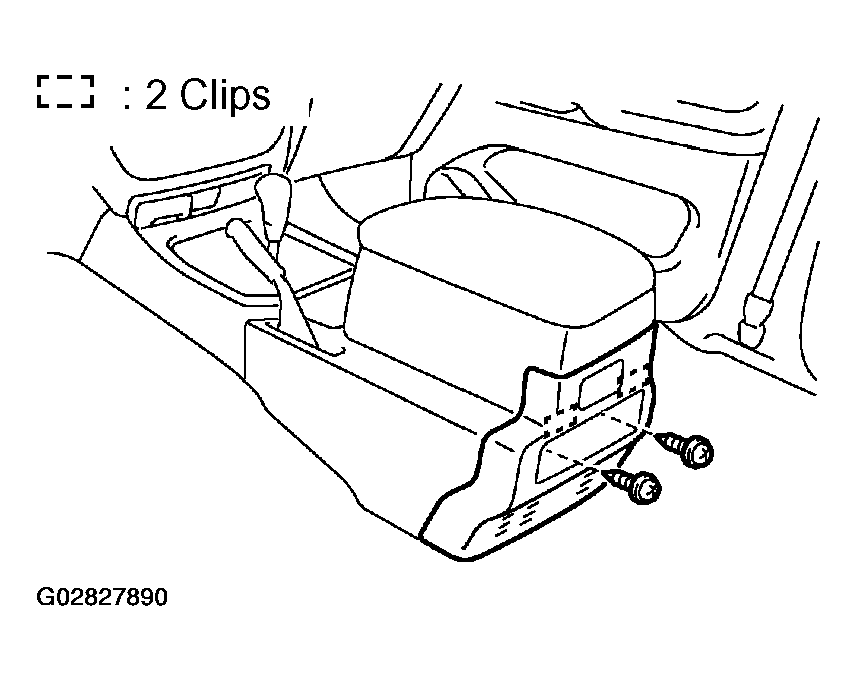

      3. Fig 6: Installing Console Rear End Panel
      G02827890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL FRONT CONSOLE PANEL

    Install the front console panel, then install the transfer shift lever knob.

  15. INSTALL RADIO WITH A/C CONTROL ASSEMBLY

    HINT:  w/Navigation System: When removing/installing or replacing EMV, or when disconnecting/connecting the battery terminal, turn the IG ON and OFF twice for initial display setting.

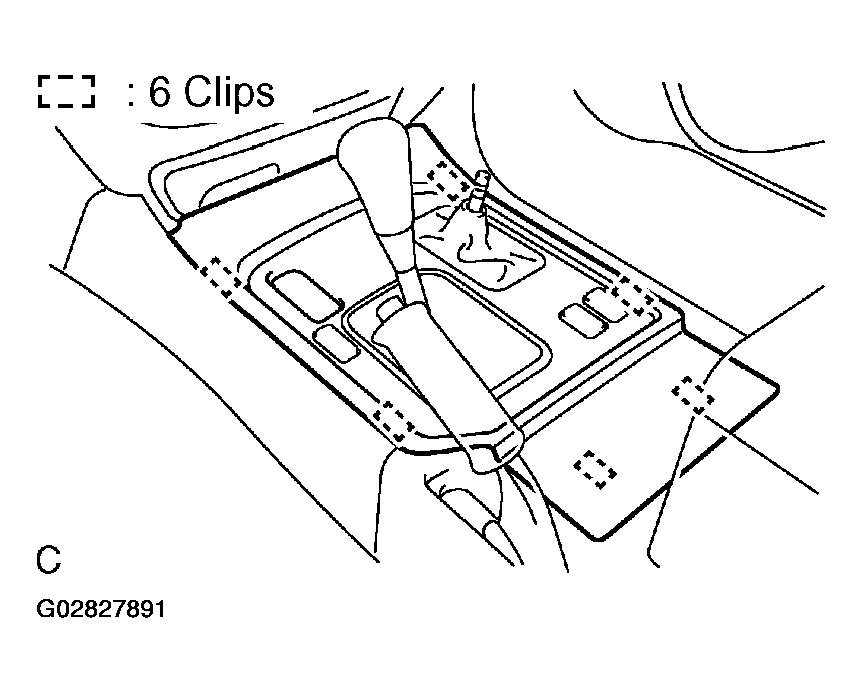

    Fig 7: Installing Front Console Panel
    G02827891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL CENTER REGISTERS

    Connect the connectors, then install the center registers.

  17. INSTALL LOWER NO. 2 PANEL

    Install the lower No. 2 panel with the 3 screws.

  18. CONNECT AIRBAG CONNECTOR (See  TOYOTA - AIR BAG RESTRAINT SYSTEMS  article in RESTRAINTS)
  19. INSTALL GLOVE COMPARTMENT DOOR
    1. Connect the glove compartment door damper clip, then install the glove compartment door.
    2. Install the 2 screws.

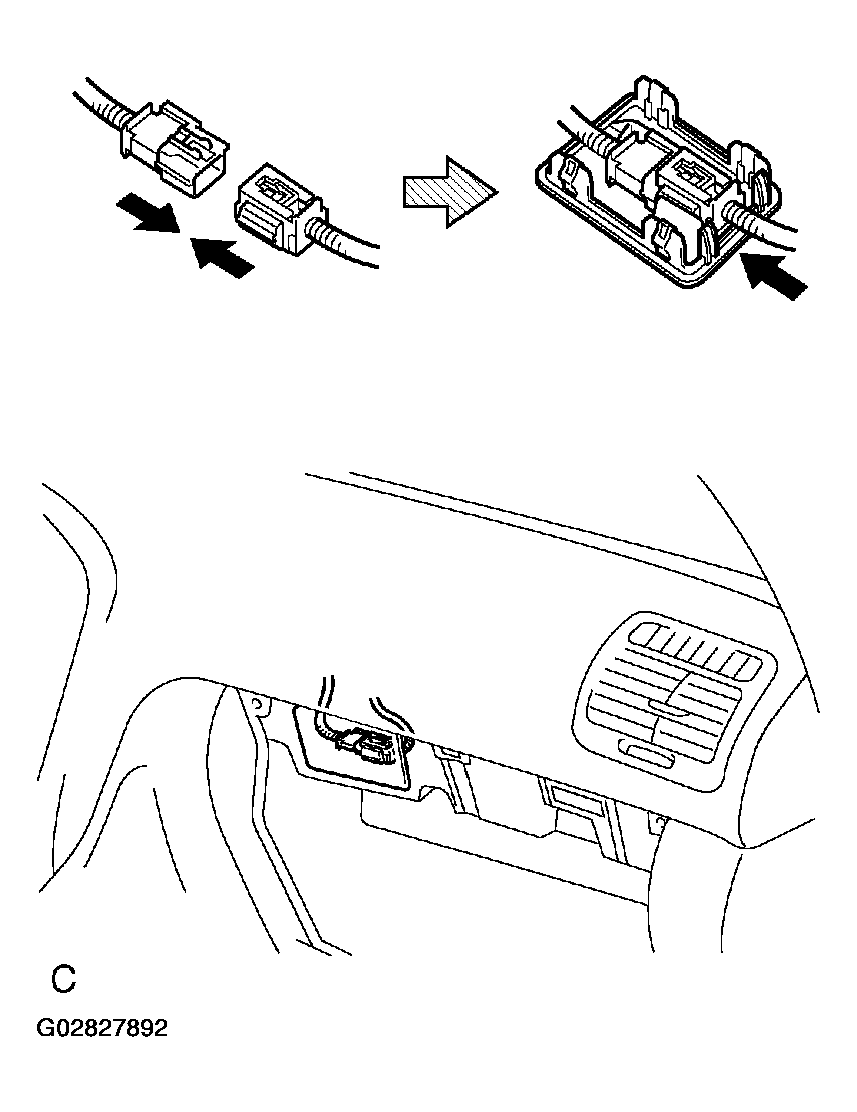

      3. Fig 8: Installing Airbag Connector Clips
      G02827892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL COMBINATION METER
    1. Check that the set-in connectors are connected securely in the installation holes on the instrument panel.
    2. Place the combination meter on the instrument panel.
    3. Install the combination meter by tightening the screws, "A", "B" and "C" in order.

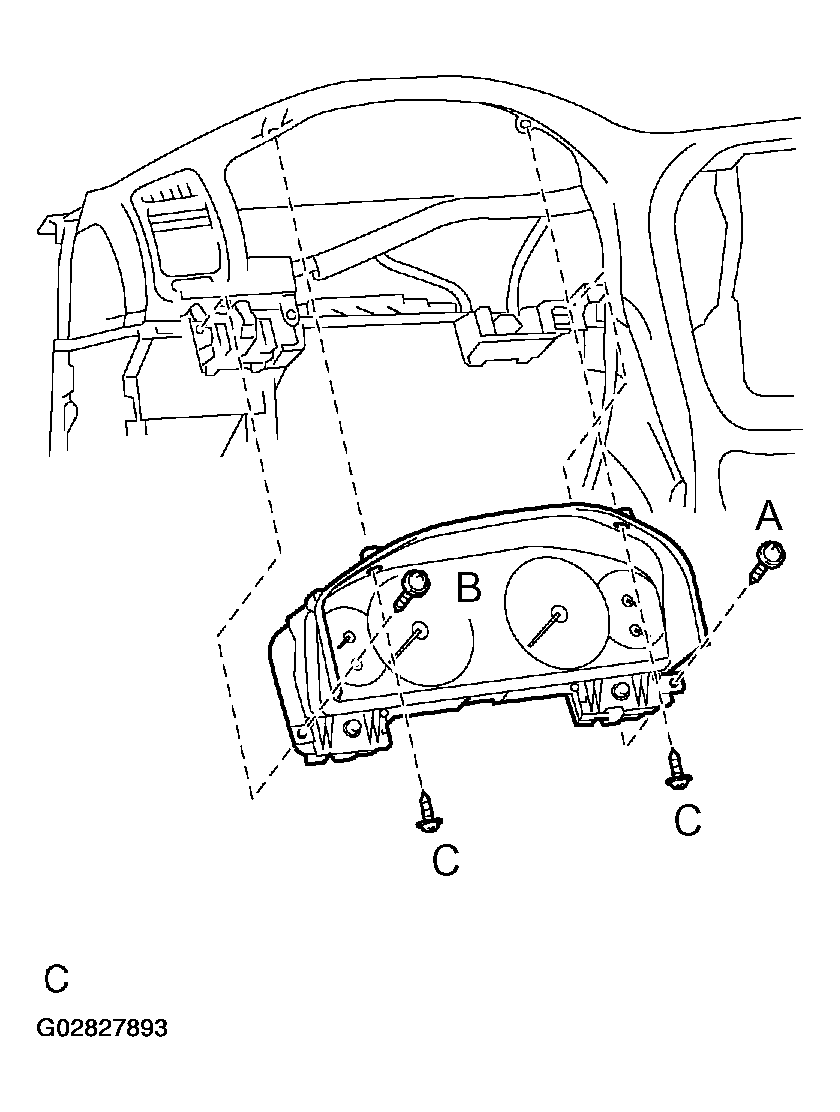

      Fig 9: Installing Combination Meter
      G02827893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Tighten the connection bolts.

    HINT:

    • When connection completes, the bolts turns idly, causing turning noise.
    • Check that the connection check pins protrude from the lower side of the connection bolts.

    NOTE: Follow the procedures in the order of (c) and (d). Otherwise, set-in connectors on the wire harness side and connectors on the meter side might not be connected properly.
  21. INSTALL STEERING COLUMN (See  TILT STEERING COLUMN - LAND CRUISER  article or  POWER TILT & POWER TELESCOPIC STEERING COLUMN - LAND CRUISER  article in STEERING)

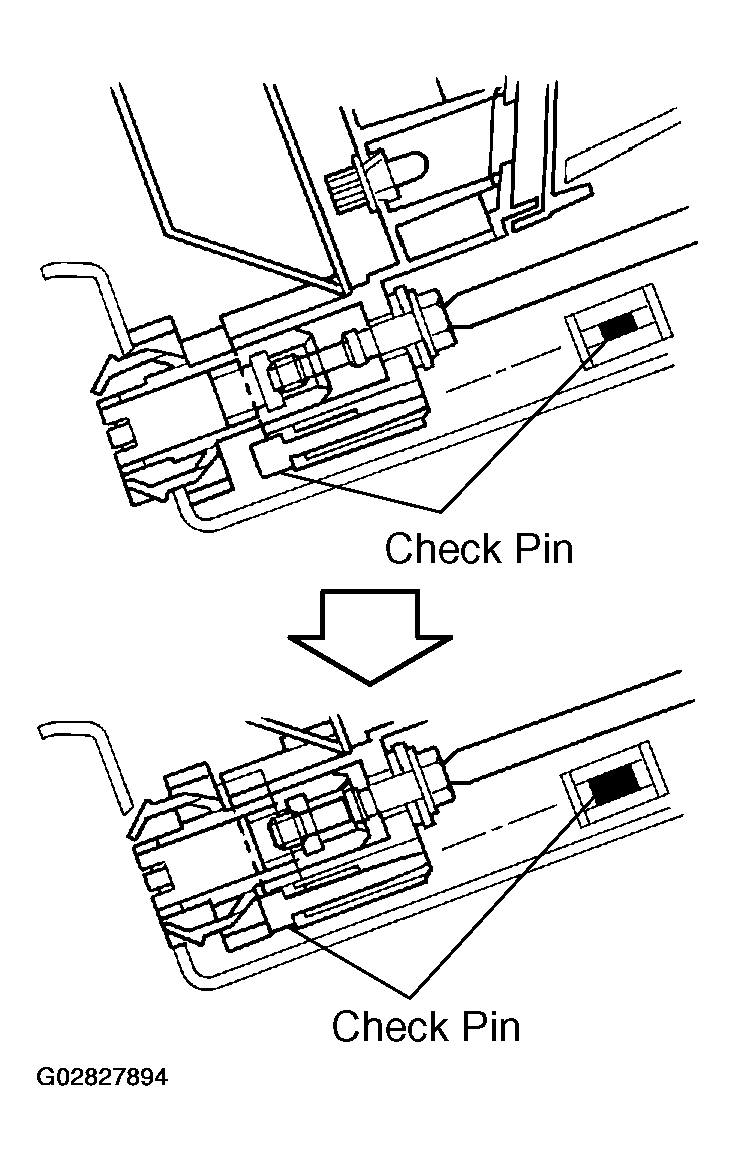

    Fig 10: Locating Connection Check Pins
    G02827894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL NO. 2 HEATER TO REGISTER DUCT

    Install the No. 2 heater to register duct with the screw.

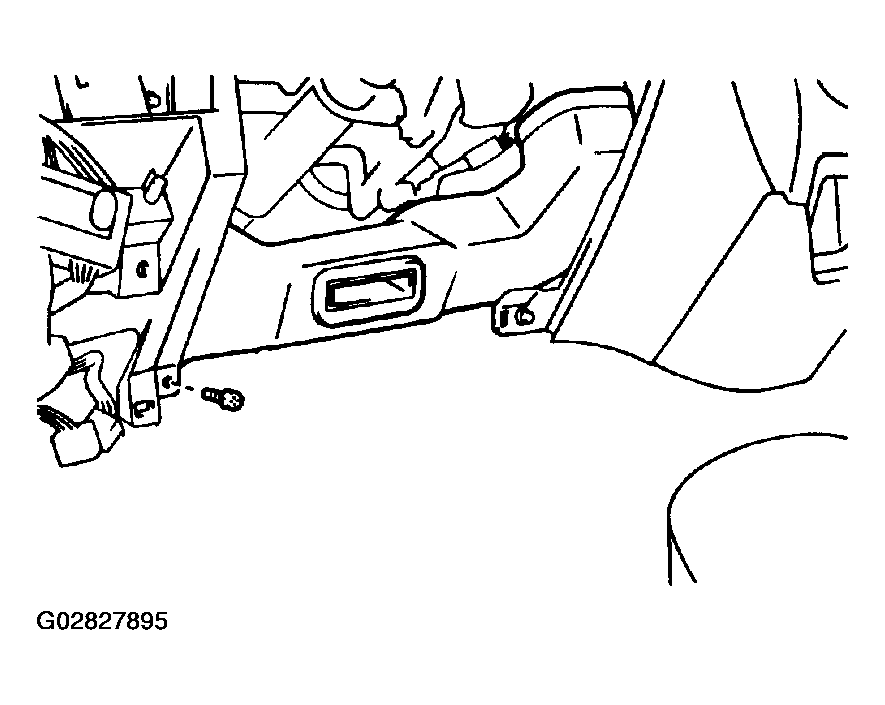

    Fig 11: Installing No. 2 Heater To Register Duct
    G02827895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL COMBINATION SWITCH
    1. Install the combination switch with the 4 screws.
    2. Install the clamp, then connect the connectors.
  24. INSTALL COLUMN COVERS

    Install the column covers with the 3 screws.

  25. INSTALL LH LOWER PANEL

    Install the LH lower panel with the 3 bolts.

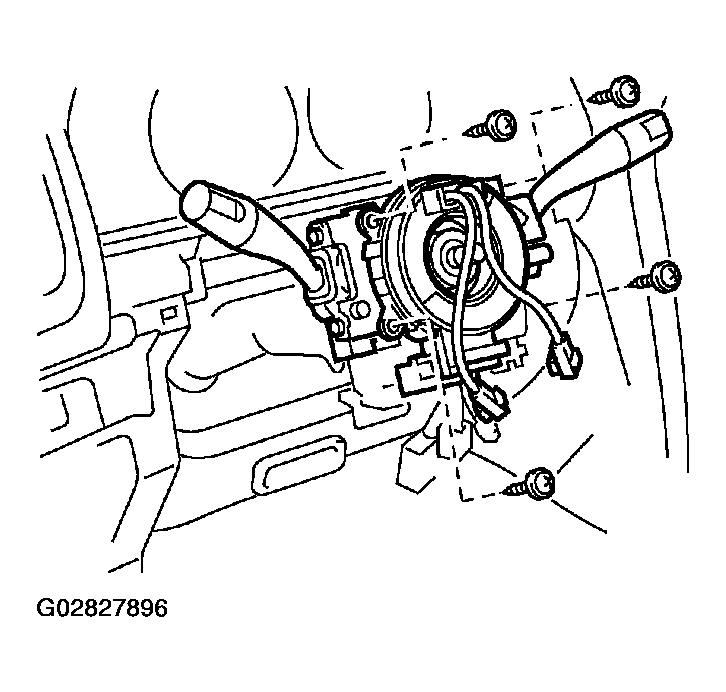

    Fig 12: Installing Combination Switch
    G02827896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL LOWER NO. 1 PANEL

    Connect the connector, then install the lower No. 1 panel with the screw.

  27. INSTALL HOOD LOCK CONTROL CABLE LEVER AND FUEL LID CONTROL CABLE LEVER
    1. Install the fuel lid control cable lever with the 2 screws.
    2. Install the hood lock control cable lever with the 2 screws.

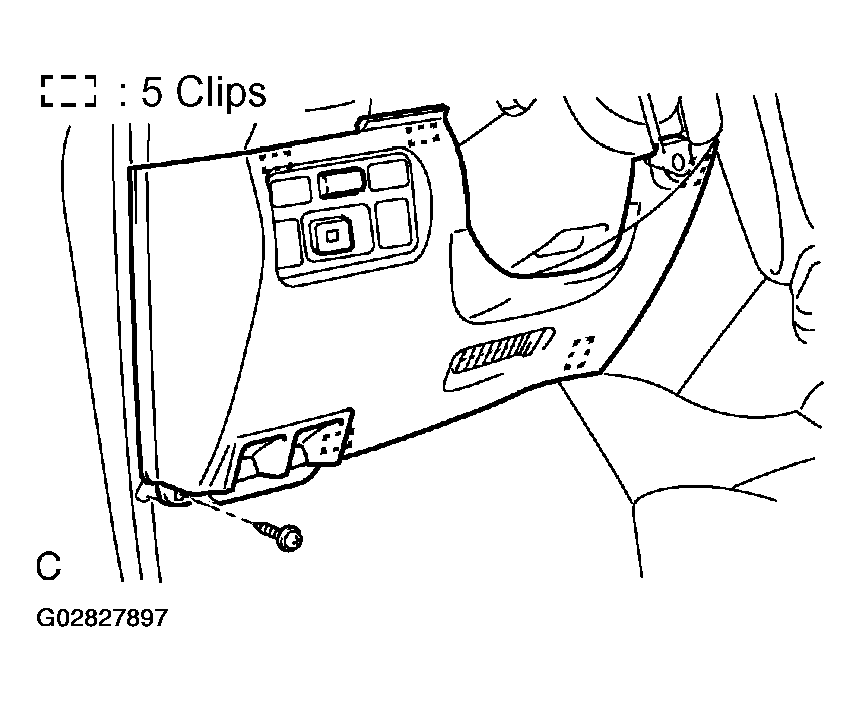

      3. Fig 13: Installing Lower No. 1 Panel
      G02827897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL CLUSTER FINISH PANEL

    Connect the connector, then install the cluster finish panel.

  29. INSTALL STEERING WHEEL (See  TILT STEERING COLUMN - LAND CRUISER  article or  POWER TILT & POWER TELESCOPIC STEERING COLUMN - LAND CRUISER  article in STEERING)

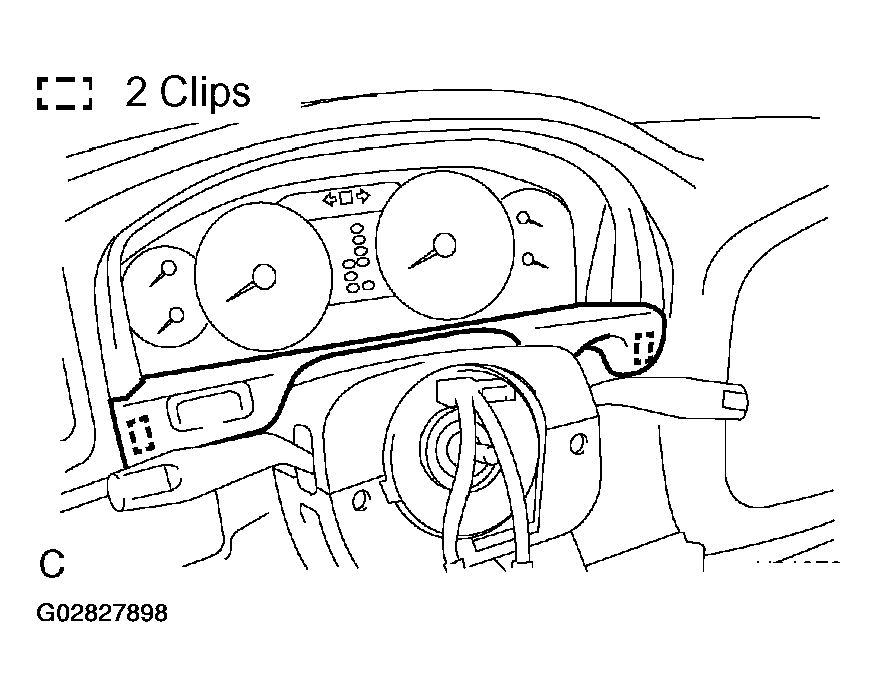

    Fig 14: Installing Cluster Finish Panel
    G02827898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL FRONT PILLAR GARNISH
    1. Install the front pillar garnish.
    2. Use the same manner described above to the other side.
  31. INSTALL FRONT ASSIST GRIP
    1. Install the assist grip with the 2 screws, then install the 2 assist grip plugs.
    2. Use the same manner described above to the other side.

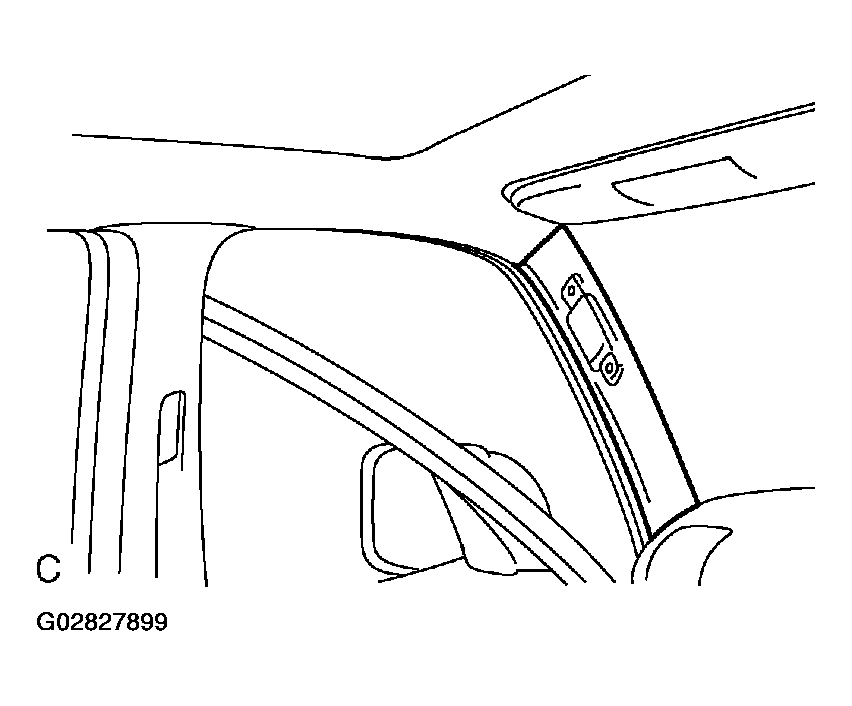

      3. Fig 15: Installing Front Pillar Garnish
      G02827899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL FRONT DOOR OPENING TRIMS
  33. INSTALL COWL SIDE TRIMS
  34. INSTALL FRONT DOOR SCUFF PLATES
