Home >> Toyota >> 2003 >> Land Cruiser >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Engine Lubrication System >> Oil Cooler >> Components

Oil Cooler: Components

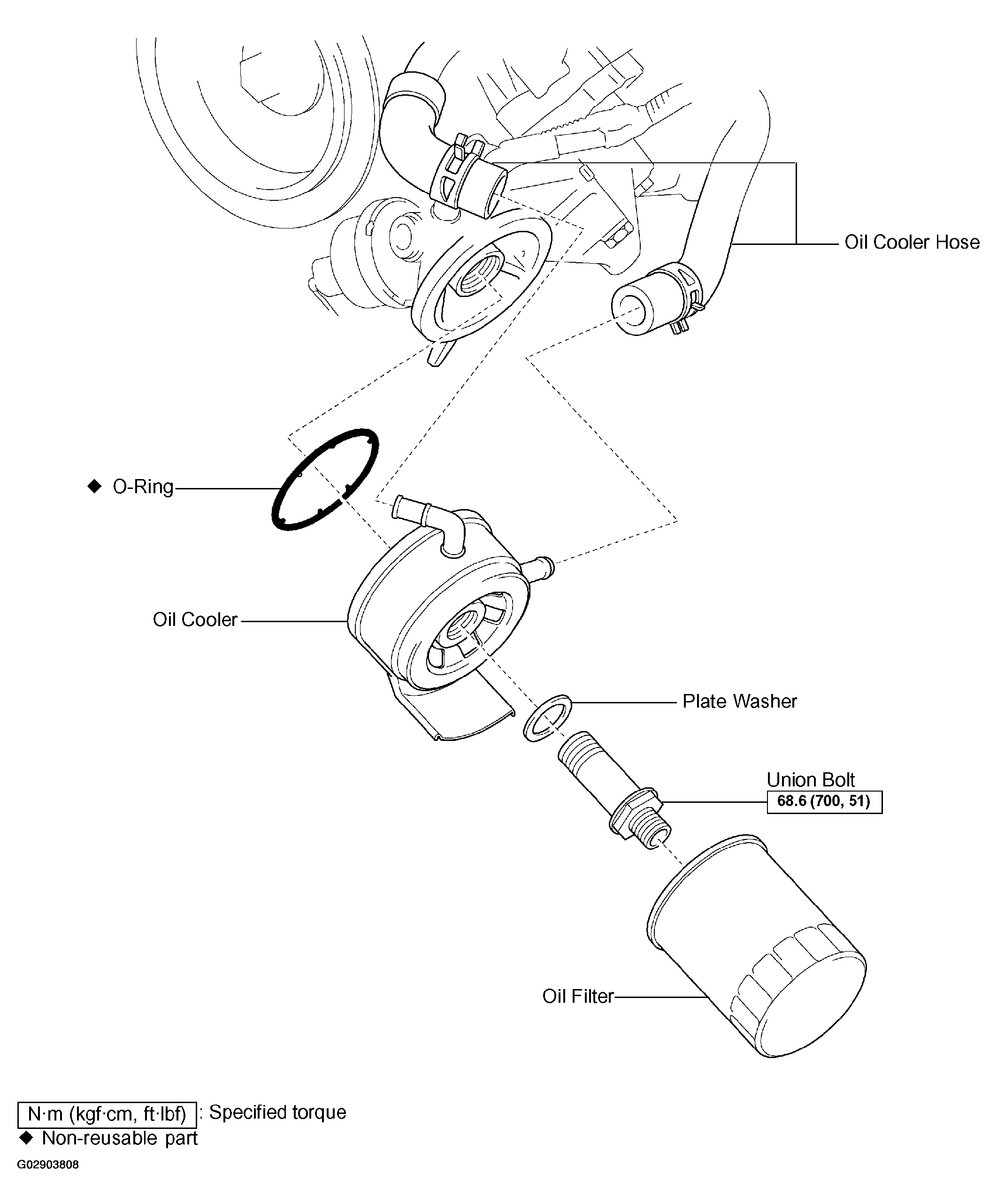

Fig 1: Exploded View Of Oil Cooler Components
G02903808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
