Tilt Steering Column: Disassembly
NOTE:
When using a vise, do not overtighten it.
- REMOVE NO. 2 LOWER COVER
Remove the 2 nuts and lower side No. 2 lower cover.
- REMOVE INTERMEDIATE SHAFT ASSEMBLY

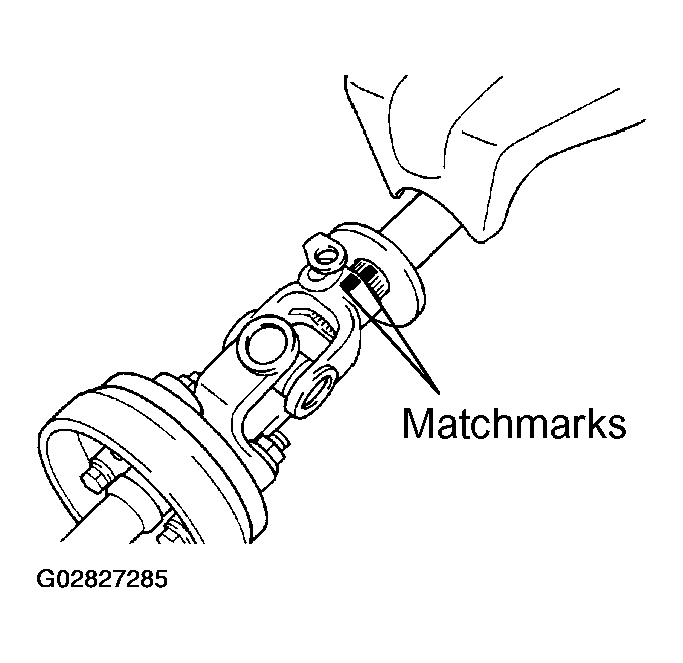

- Place matchmarks on the intermediate shaft assembly and main shaft assembly.
- Remove the bolt and intermediate shaft assembly with the upper side No. 2 lower cover.
- Remove the thrust stopper from the main shaft assembly.
- REMOVE TRANSPONDER KEY AMPLIFIER

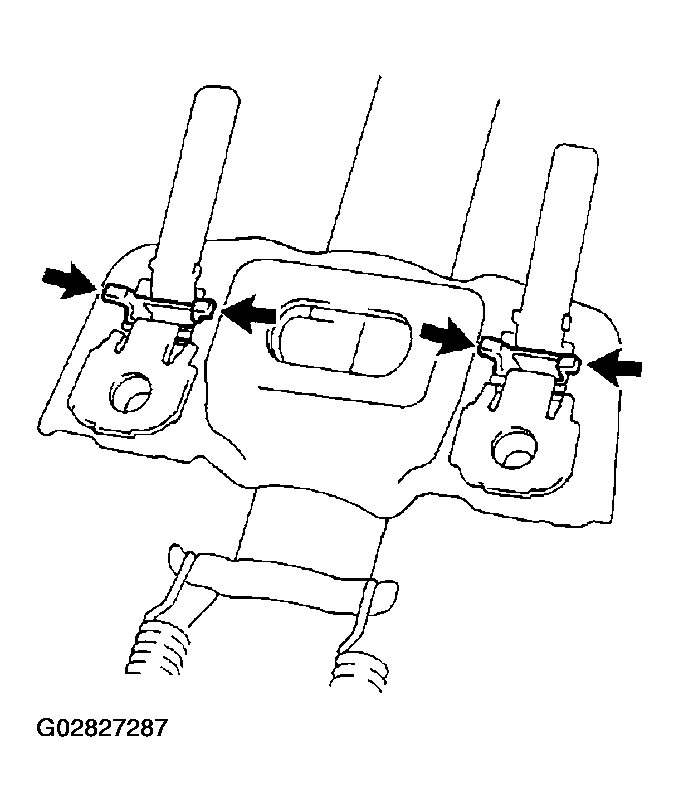

- Widen the claw humg on the upper bracket by approx. 1.0 mm (0.039 in.) using a screwdriver.
- Pull the transponder key amplifier toward the rear of the vehicle with the claw open.
NOTE: Take care not to use excessive force to prevent the case from being damage. - REMOVE COLUMN UPPER BRACKET AND COLUMN UPPER CLAMP

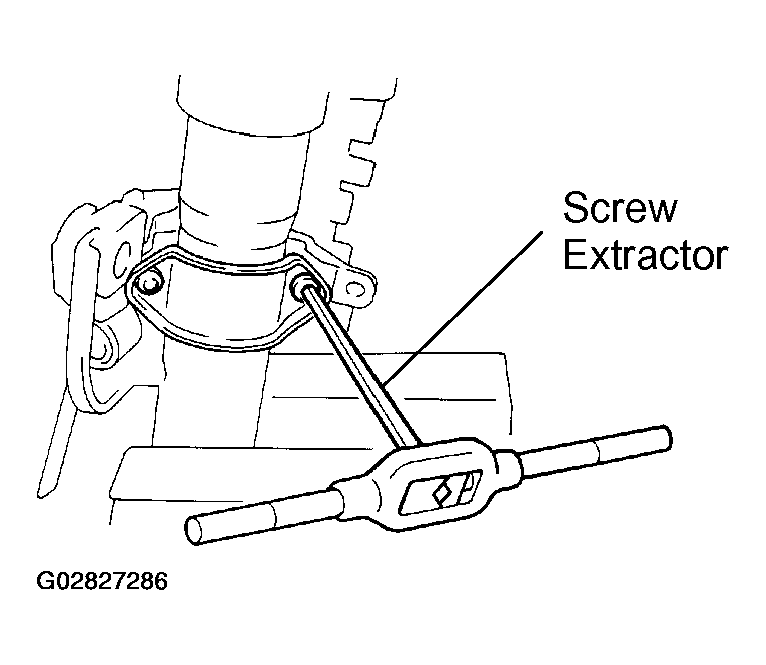

- Using a centering punch, mark the center of the 2 tapered-head bolts.
- Using a 3-4 mm (0.12-0.16 in.) drill, drill into the 2 bolts.
- Using a screw extractor, remove the 2 bolts, column upper bracket and column upper clamp.
- REMOVE COLUMN TUBE SUPPORT
- Remove the bolt.
- Remove the column tube support with tube attachment.
- Remove the tube attachment from the column tube support.
- REMOVE 2 ENERGY ABSORBING PLATES
- Using pliers, remove the 2 energy absorbing clips.
- Remove the 2 energy absorbing plates and 2 energy absorbing guides.
- REMOVE 4 TENSION SPRINGS
HINT:
Remove the springs with the tilt function at maximum tilt up.
- REMOVE TILT LEVER

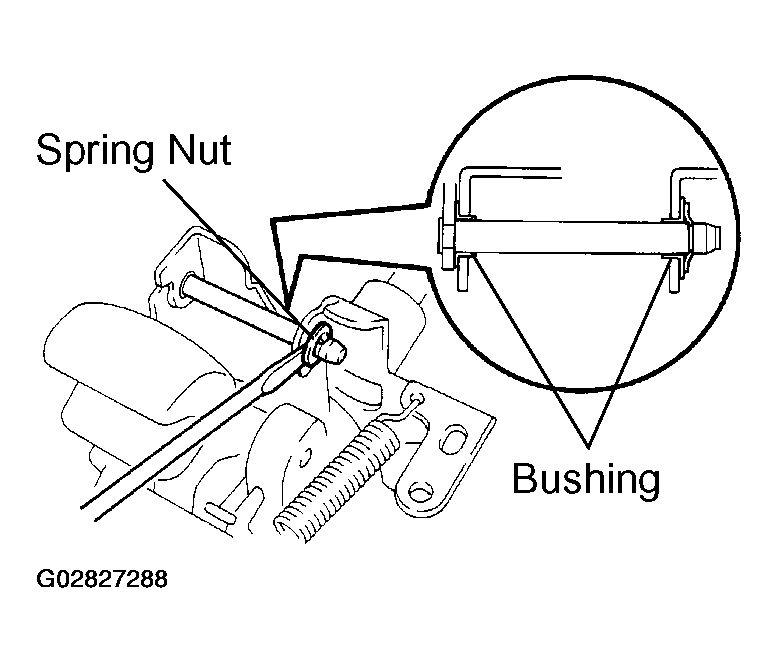

- Using a screwdriver, remove the spring nut.
- Remove the tilt lever.
- Remove the 2 bushings from the column upper tube.
- REMOVE TILT LEVER LINK
- REMOVE COLUMN UPPER TUBE WITH MAIN SHAFT ASSEMBLY
- Using a hexagon wrench, remove the 2 tilt steering bolts.
- Remove the upper tube with the main shaft assembly from the column tube.
- REMOVE TILT LEVER RETAINER
- REMOVE MAIN SHAFT ASSEMBLY

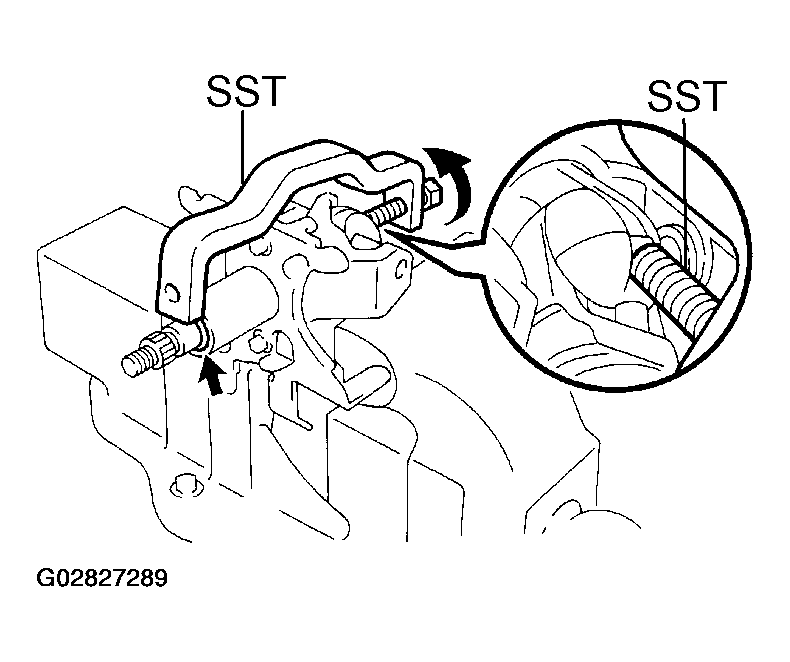

- Using SST, compress the compression spring.
SST 09950-4001 1 (09958-04011)
NOTE: Do not bend the universal joint of the shaft more than 20°. - Using a snap ring expander, remove the snap ring from the shaft.
- Remove the shaft assembly from the column upper tube.
- Remove the compression spring and bearing thrust collar from the shaft.
- Using SST, compress the compression spring.
- REMOVE TURN SIGNAL BRACKET
Remove the 2 bolts and turn signal bracket.
- REMOVE TILT STEERING PAWL

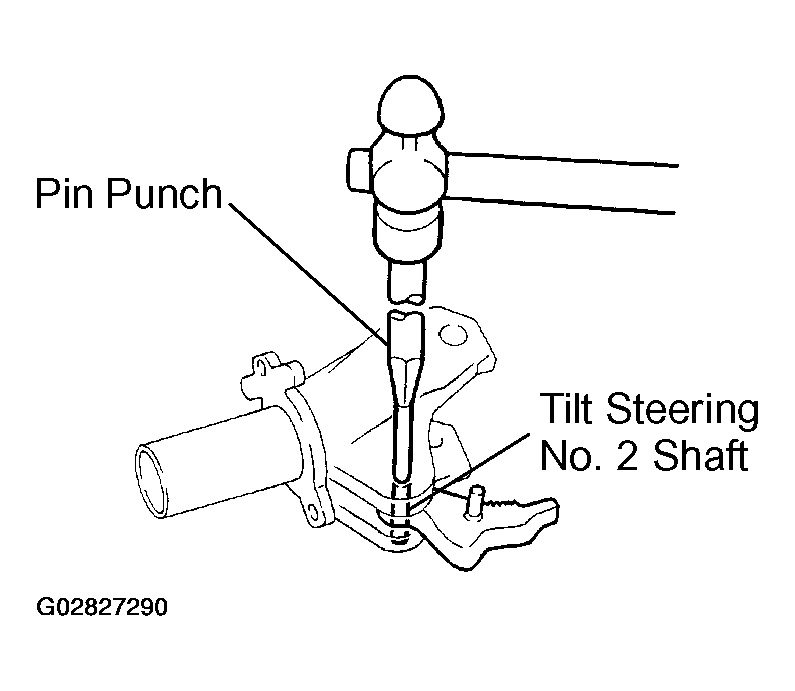

- Using a pin punch and hammer, tap out the tilt steering No. 2 shaft.
- Remove the pawl from the column upper tube.
- Remove the pin from the pawl.

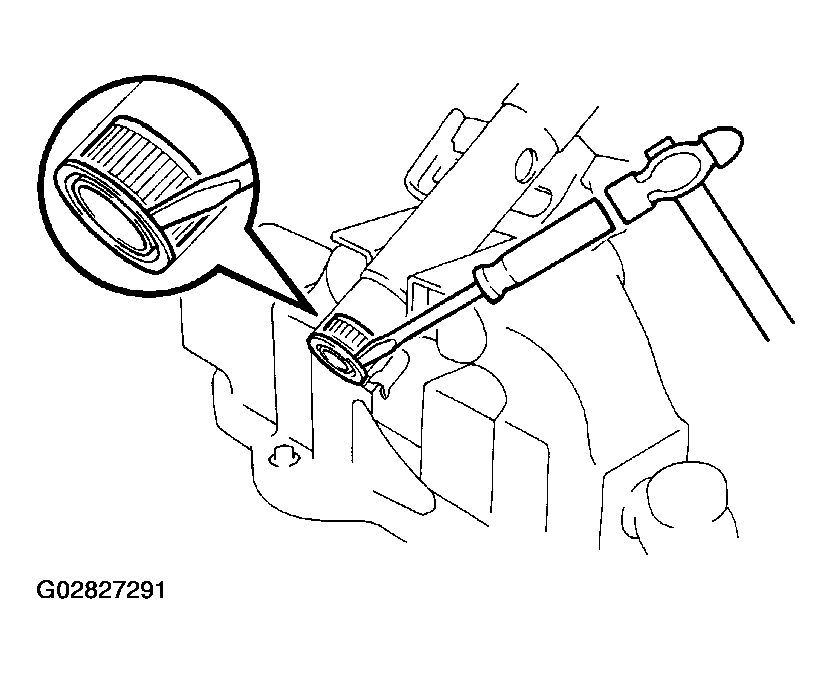

- REMOVE BUSHING
Using a screwdriver, tap out the bushing.
