Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|
| Engine Room R/B | In left side of engine compartment, on firewall. |
| Fusible Link Block | In left front side of engine compartment. |
| J/B No. 3 | Behind left side of dash. |
| J/B No. 4 | In front compartment, on left front fenderwell. |

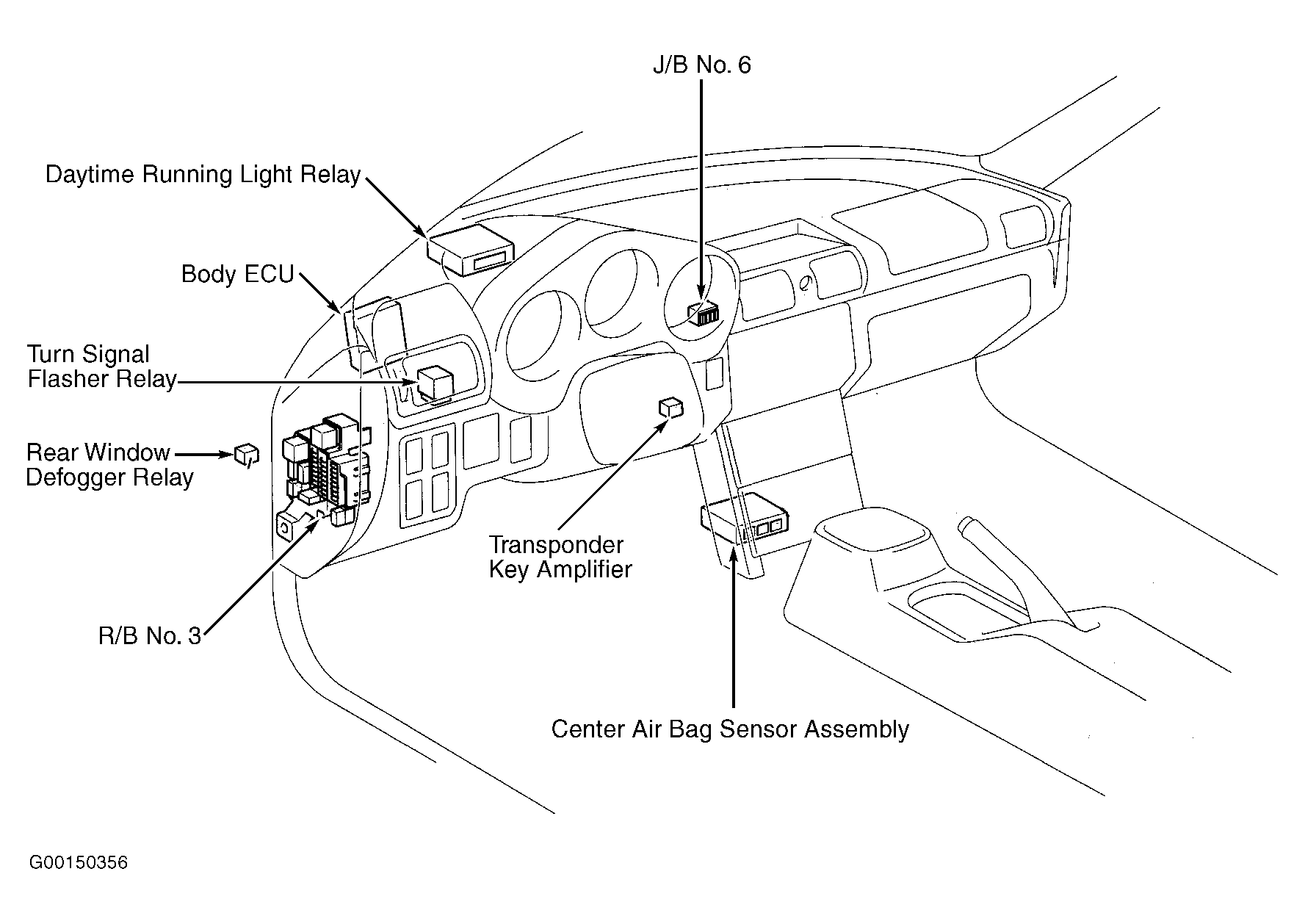

| J/B No. 6 | Behind center of dash. See Figure. |
| R/B No. 3 | Behind left corner of dash. See Figure. |
| R/B No. 4 | In front compartment, on left front fenderwell. See Figure. |
| R/B No. 5 | In front compartment, on right front fenderwell. See Figure. |
