Home >> Toyota >> 2003 >> MR2 C65M >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Components

Seat Belt: Components

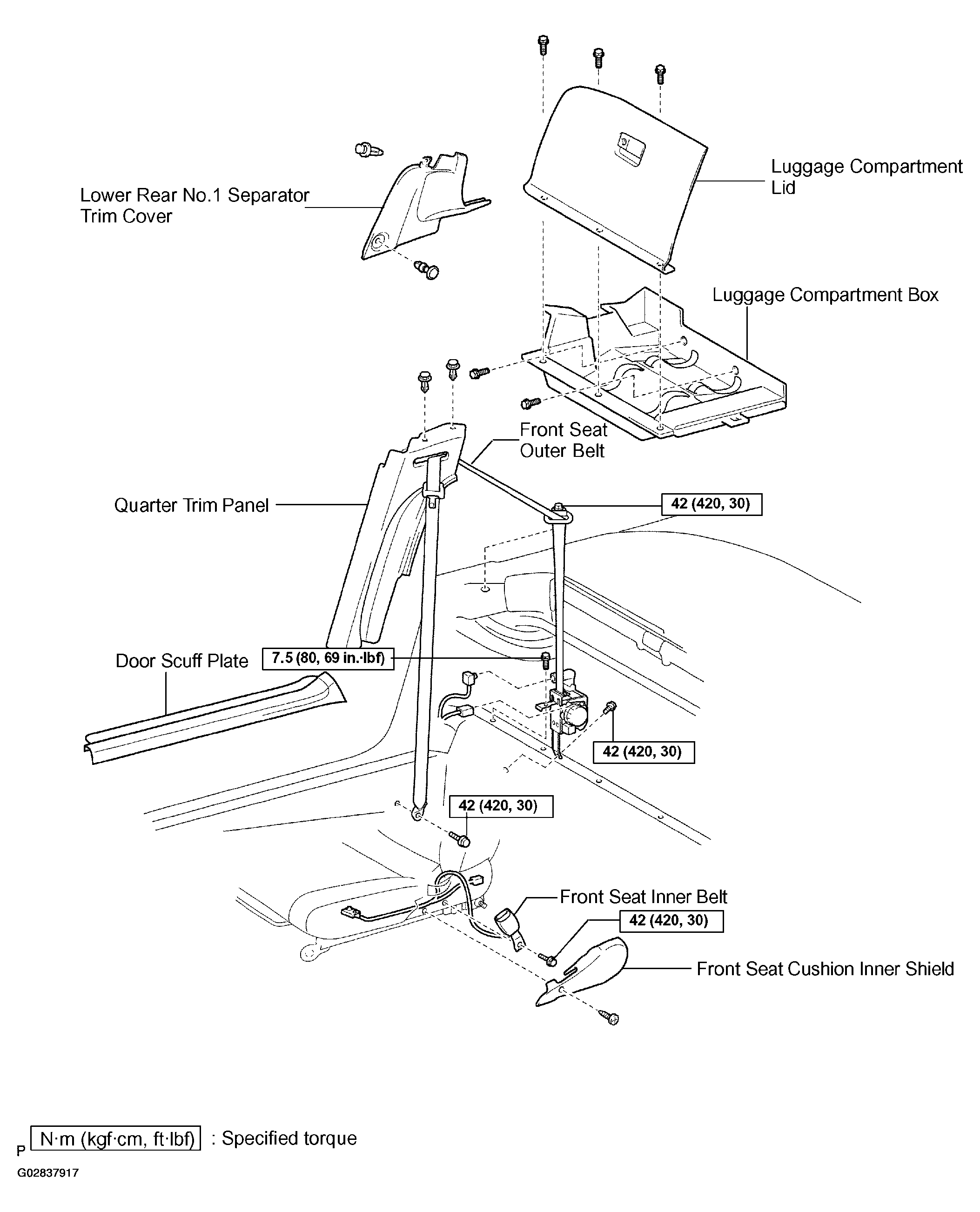

Fig 1: Component Location And Torque Specification Of Seat Belt
G02837917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
