Voltage Inverter Assembly: Replacement

NOTE: COMPONENTS: See COMPONENTS
  1. DISCONNECT BATTERY NEGATIVE TERMINAL (See  OVERHAUL  )
  2. REMOVE FRONT SEAT (DRIVER SEAT POSITION) (See  OVERHAUL  )
  3. REMOVE VOLTAGE INVERTER ASSY
    1. Remove the 2 bolts.
    2. Fold the floor carpet to the inside.
    3. Disconnect the connector.
    4. Remove the voltage inverter assy.

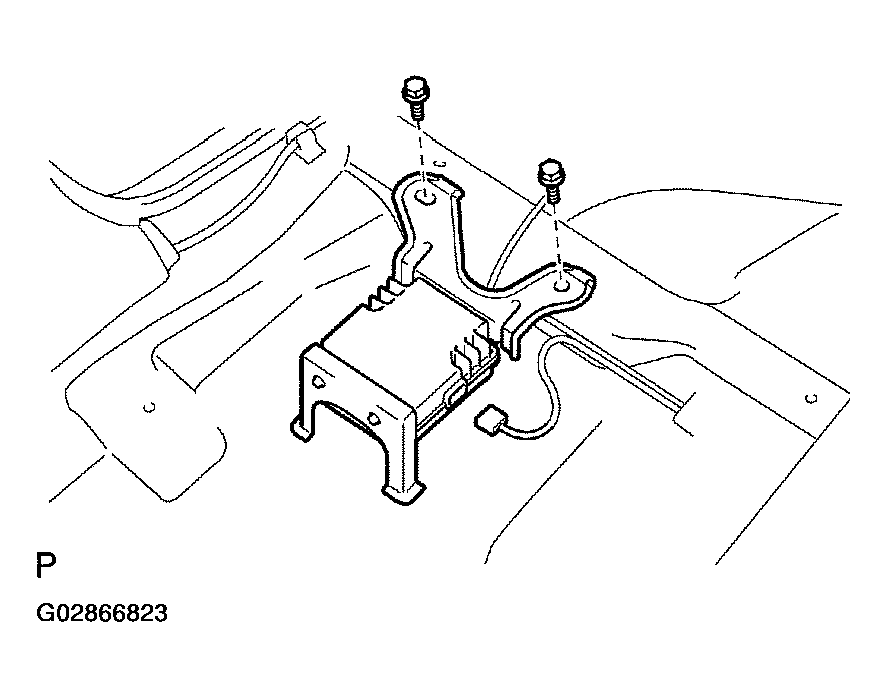

    Fig 1: Removing Voltage Inverter Assy
    G02866823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL VOLTAGE INVERTER ASSY
    1. Install the voltage inverter assy.

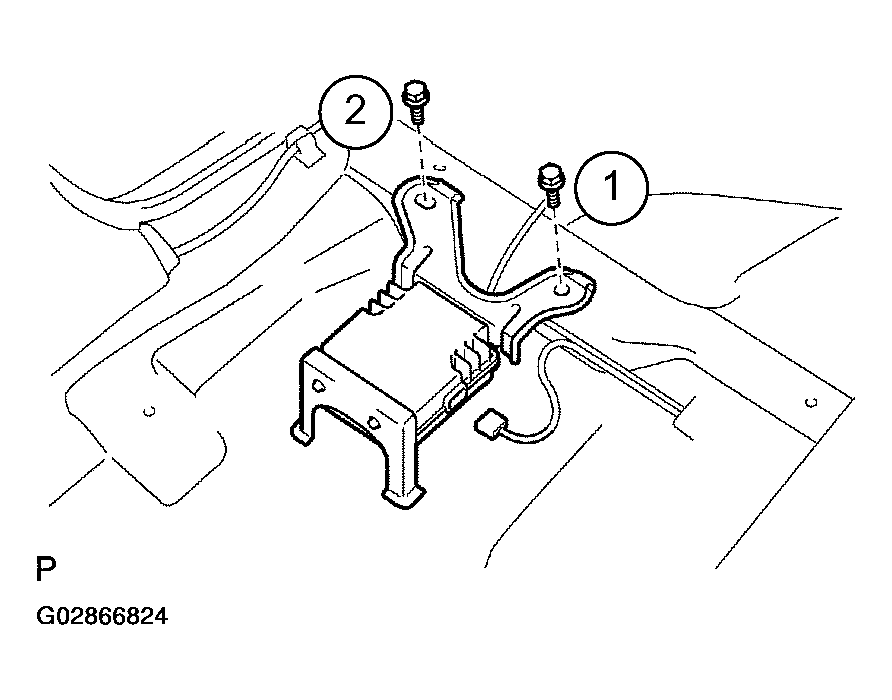

      2. Fig 2: Installing Voltage Inverter Assy
      G02866824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
    3. Fold the floor carpet to the inside.
    4. Tighten the 2 bolts.

      Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)

      NOTE: Tighten the bolts in following order shown in the illustration to install the voltage inverter assy.
  5. INSTALL FRONT SEAT (DRIVER SEAT POSITION) (See  OVERHAUL  )
