Home >> Toyota >> 2003 >> Matrix Base, FWD, Automatic >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Front Door >> Components

Front Door: Components

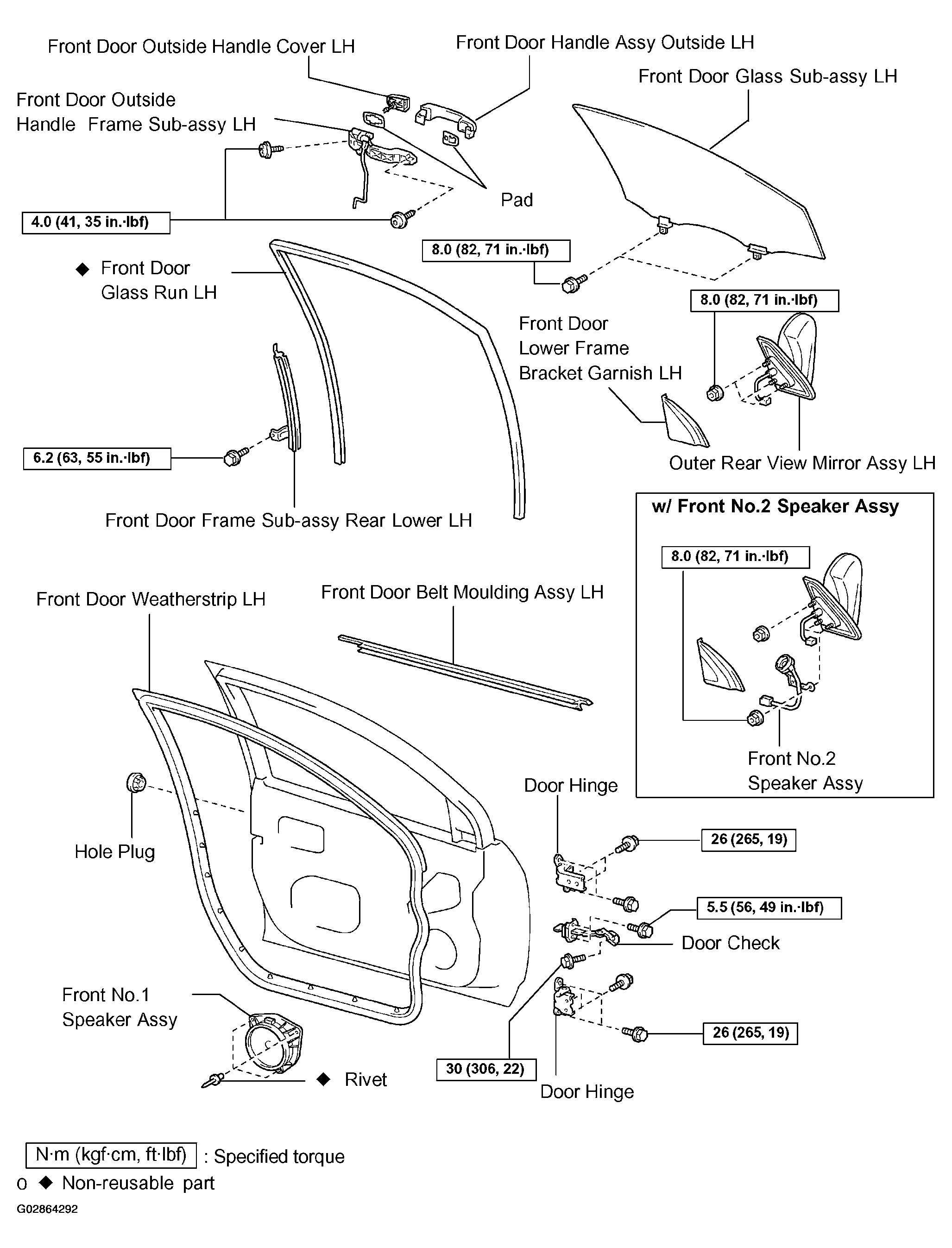

Fig 1: Identifying Front Door Components (1 Of 2)
G02864292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

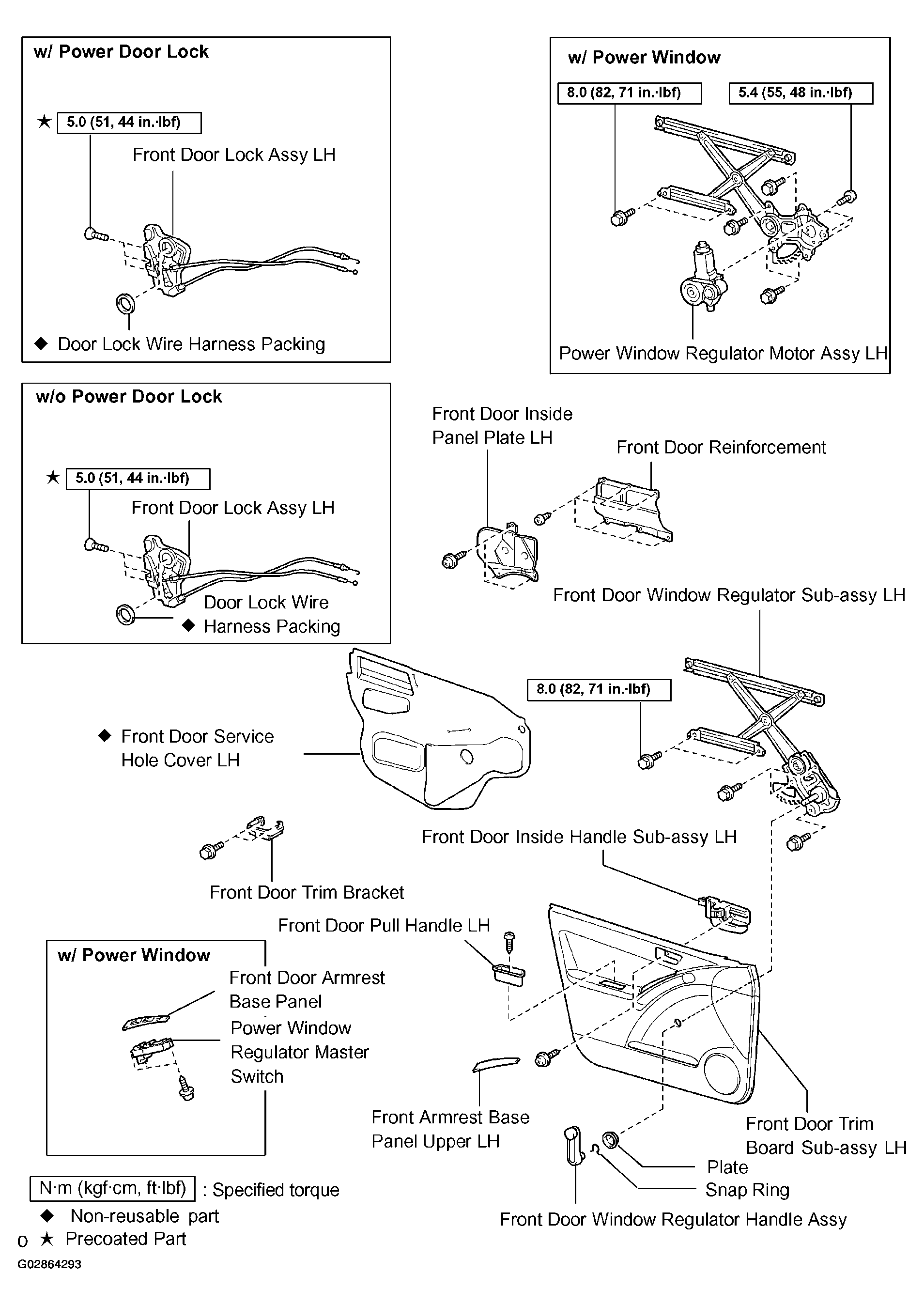

Fig 2: Identifying Front Door Components (2 Of 2)
G02864293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
