Home >> Toyota >> 2003 >> Matrix Base, FWD, Automatic >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Location

Seat Belt: Location

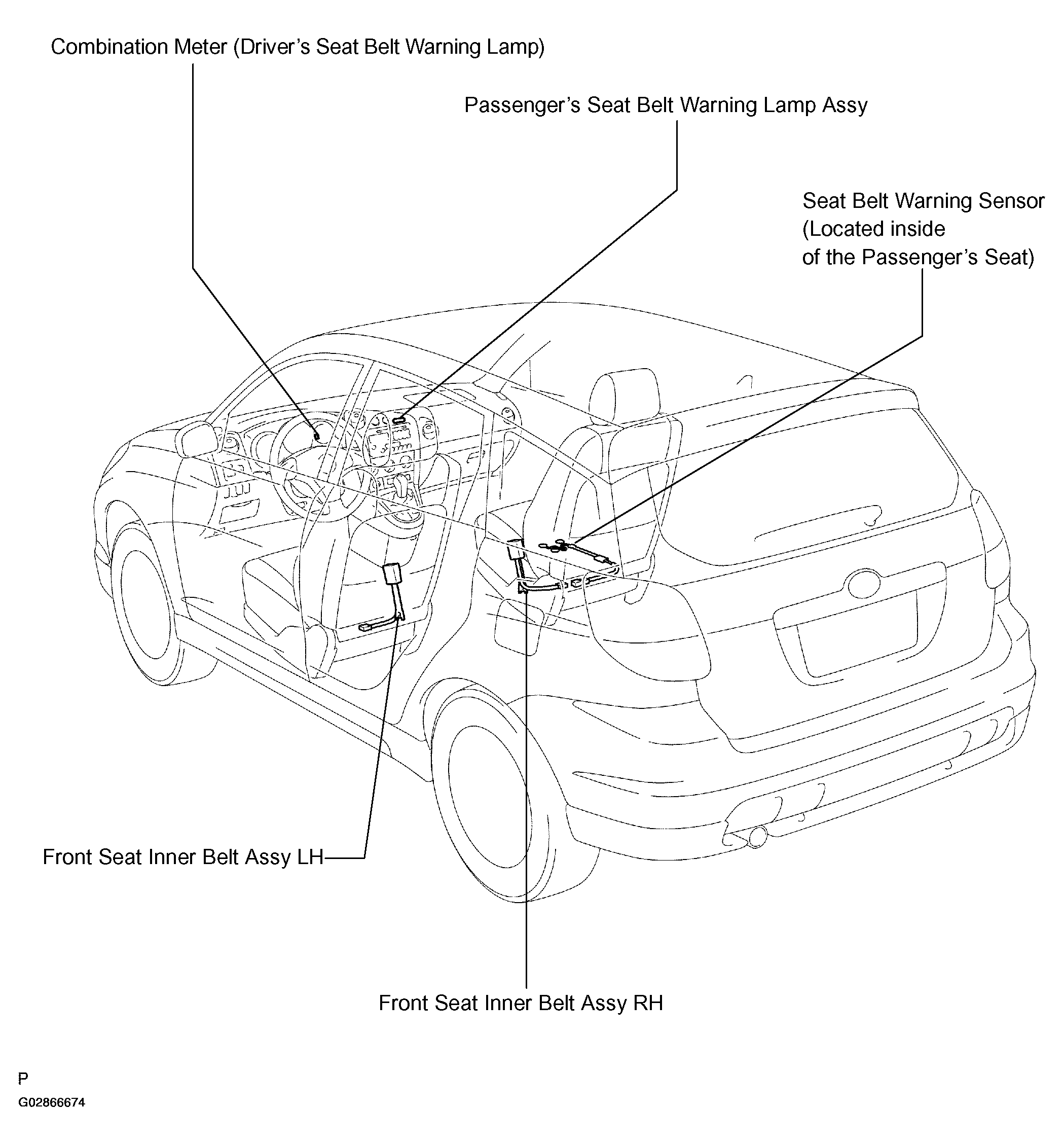

Fig 1: Locating Seat Belt Warning System Components

G02866674

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
