Power Door Lock Control System: Inspection

INSPECT DOOR LOCK CONTROL SWITCH CONTINUITY

Fig 1: Inspecting Door Lock Control Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DOOR LOCK CONTROL SWITCH CONTINUITY REFERENCE

Switch position	Tester connection	Specified condition
LOCK	3 - 6	Continuity
OFF	-	No continuity
UNLOCK	3 - 5	Continuity

If continuity is not as specified, replace the switch.

Driver's door: INSPECT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY

Fig 2: Inspecting Door Key Lock And Unlock Switch Continuity (Driver's Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY REFERENCE (DRIVER'S DOOR)

Switch position	Tester connection	Specified condition
LOCK	3 - 5	Continuity
OFF	-	No continuity
UNLOCK	3 - 6	Continuity

If continuity is not as specified, replace the switch.

Passenger's door: INSPECT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY

Fig 3: Inspecting Door Key Lock And Unlock Switch Continuity (Passenger's Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY REFERENCE (PASSENGER'S DOOR)

Switch position	Tester connection	Specified condition
LOCK	2 - 4	Continuity
OFF	-	No continuity
UNLOCK	1 - 4	Continuity

If continuity is not as specified, replace the switch.

Driver's door: INSPECT DOOR UNLOCK DETECTION SWITCH CONTINUITY

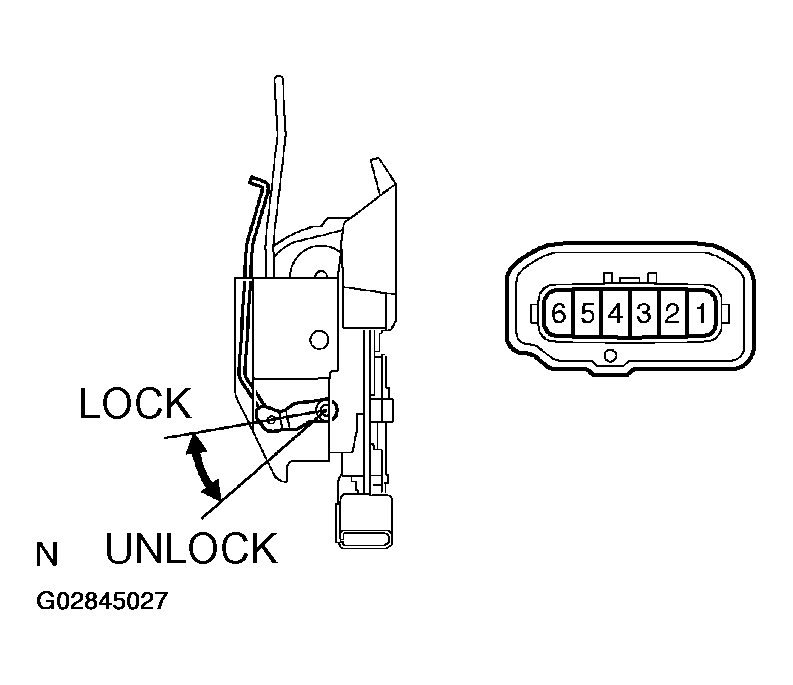

Fig 4: Inspecting Door Unlock Detection Switch Continuity (Driver'S Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DOOR UNLOCK DETECTION SWITCH CONTINUITY (DRIVER'S DOOR)

Switch position	Tester connection	Specified condition
OFF (Door Lock set to LOCK)	-	No continuity
ON (Door Lock set to UNLOCK)	3 - 4	Continuity

If continuity is not as specified, replace the switch.

Passenger's door: INSPECT DOOR UNLOCK DETECTION SWITCH CONTINUITY

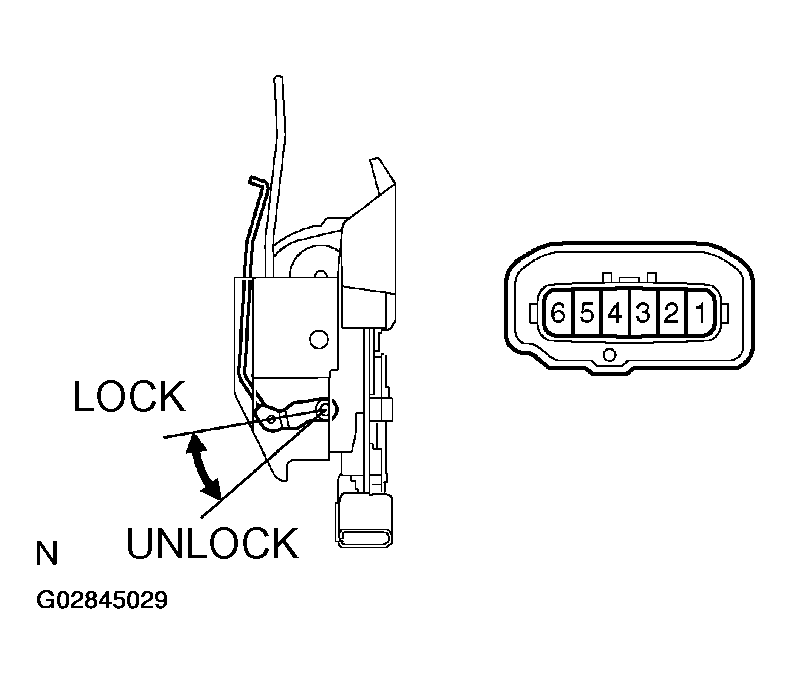

Fig 5: Inspecting Door Unlock Detection Switch Continuity (Passenger's Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DOOR UNLOCK DETECTION SWITCH CONTINUITY (PASSENGER'S DOOR)

Switch position	Tester connection	Specified condition
OFF (Door Lock set to LOCK)	-	No continuity
ON (Door Lock set to UNLOCK)	3 - 4	Continuity

If continuity is not as specified, replace the switch.

Rear left door: INSPECT DOOR UNLOCK DETECTION SWITCH CONTINUITY

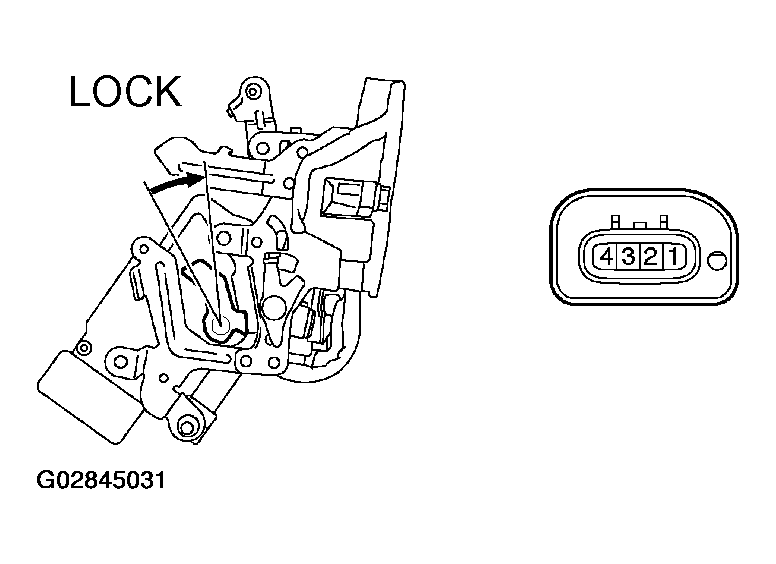

Fig 6: Inspecting Door Unlock Detection Switch Continuity (Rear Left Door)

DOOR UNLOCK DETECTION SWITCH CONTINUITY (REAR LEFT DOOR)

Switch position	Tester connection	Specified condition
OFF	-	No continuity
ON	1 - 2	Continuity

If continuity is not as specified, replace the switch.

Rear right door: INSPECT DOOR UNLOCK DETECTION SWITCH CONTINUITY

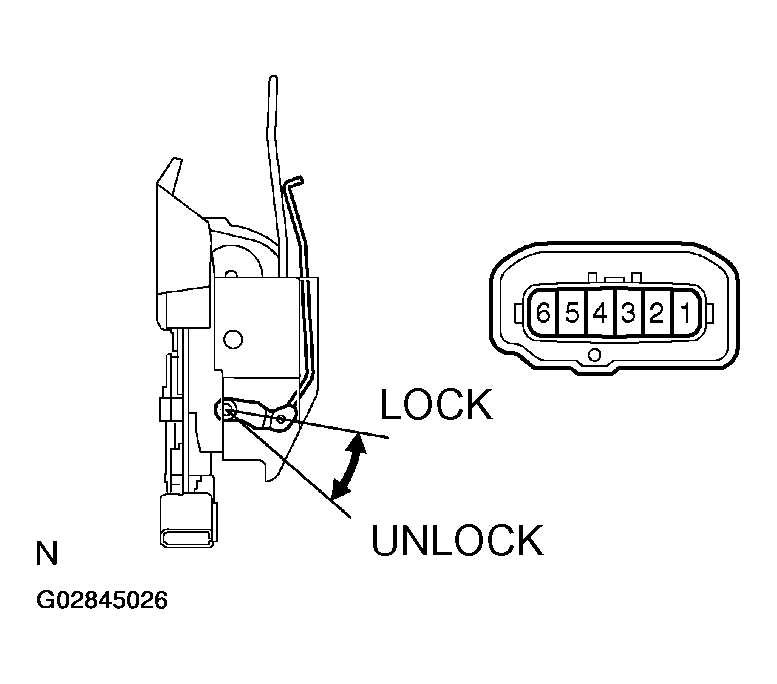

Fig 7: Inspecting Door Unlock Detection Switch Continuity (Rear Right Door)

DOOR UNLOCK DETECTION SWITCH CONTINUITY (REAR RIGHT DOOR)

Switch position	Tester connection	Specified condition
OFF	-	No continuity
ON	3 - 4	Continuity

If continuity is not as specified, replace the switch.

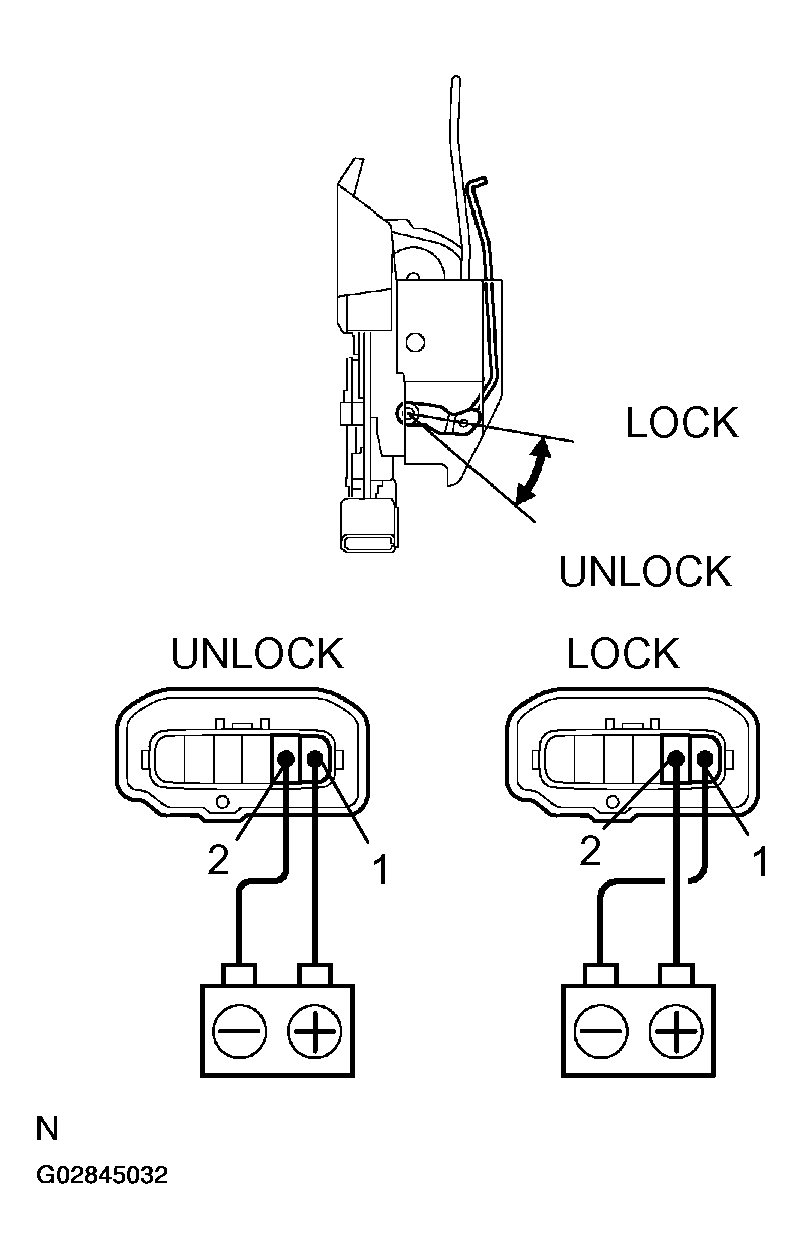

Driver's door: INSPECT DOOR LOCK MOTOR OPERATION

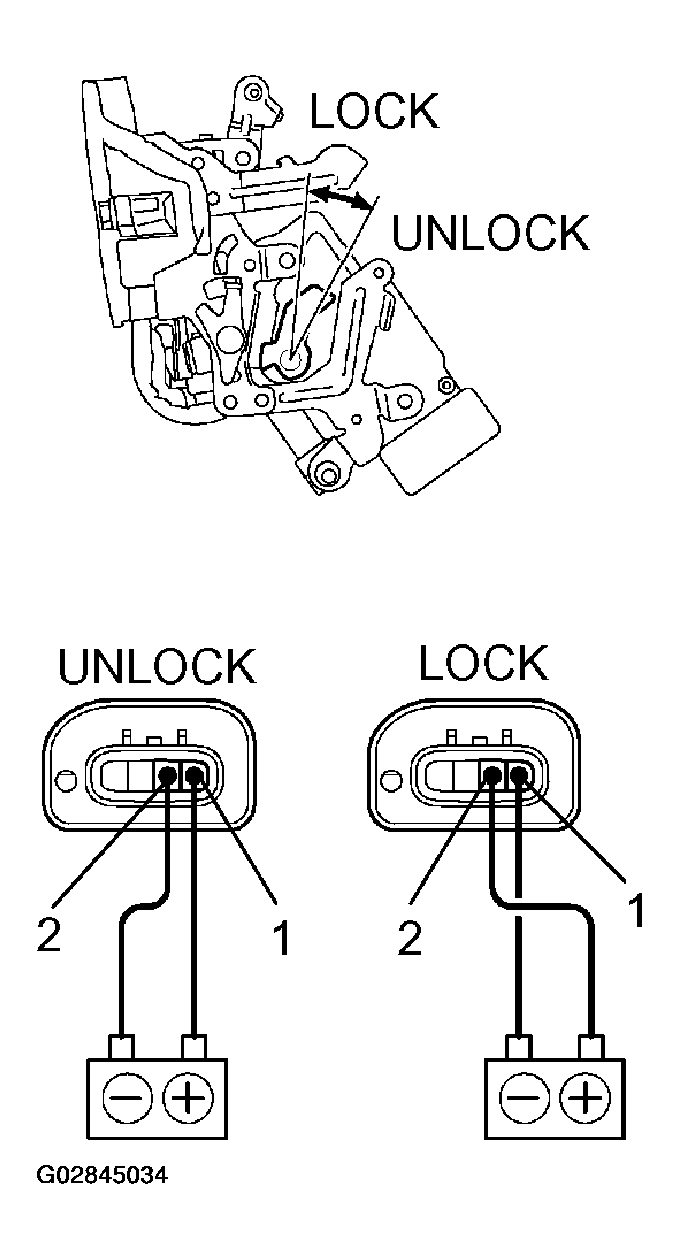

1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the door lock link moves to UNLOCK position.

  Fig 8: Inspecting Door Lock Motor Operation (Driver's Door)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity and check that the door lock link moves to LOCK position.
  If operation is not as specified, replace the door lock assembly.

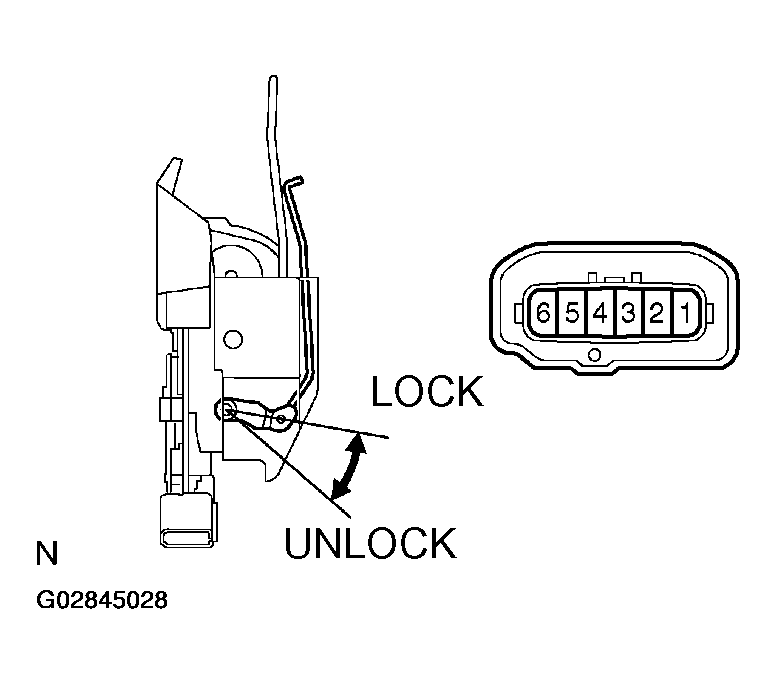

Passenger's door: INSPECT DOOR LOCK MOTOR OPERATION

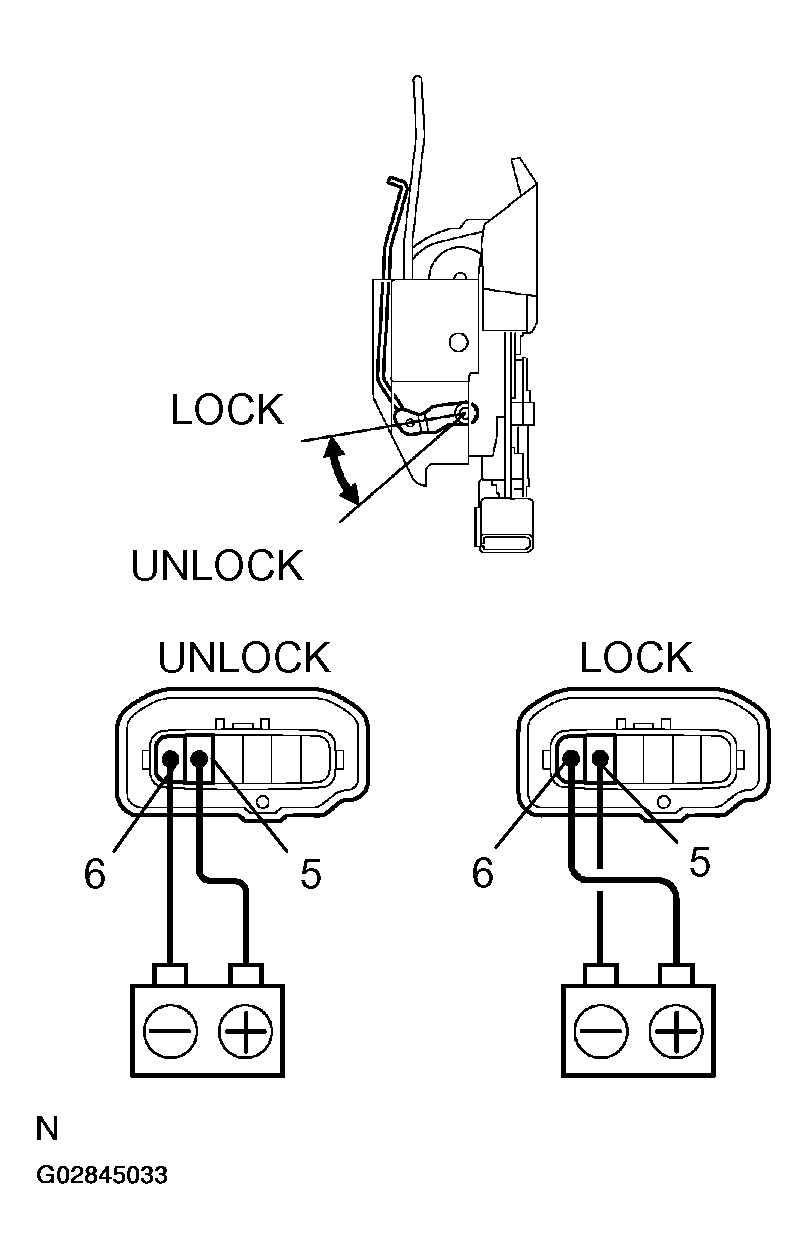

1. Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 6, and check that the door lock link moves to UNLOCK position.

  Fig 9: Inspecting Door Lock Motor Operation (Passenger's Door)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity and check that the door lock link moves to LOCK position.
  If operation is not as specified, replace the door lock assembly.
Rear left door: INSPECT DOOR LOCK MOTOR OPERATION

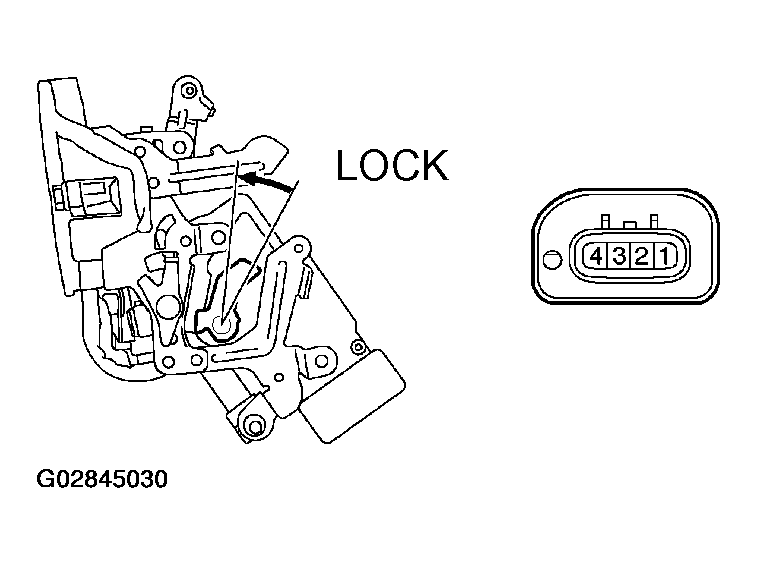

1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the door lock link moves to UNLOCK position.

  Fig 10: Inspecting Door Lock Motor Operation (Rear Left Door)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity and check that the door lock link moves to LOCK position.
  If operation is not as specified, replace the door lock assembly.
Rear right door: INSPECT DOOR LOCK MOTOR OPERATION

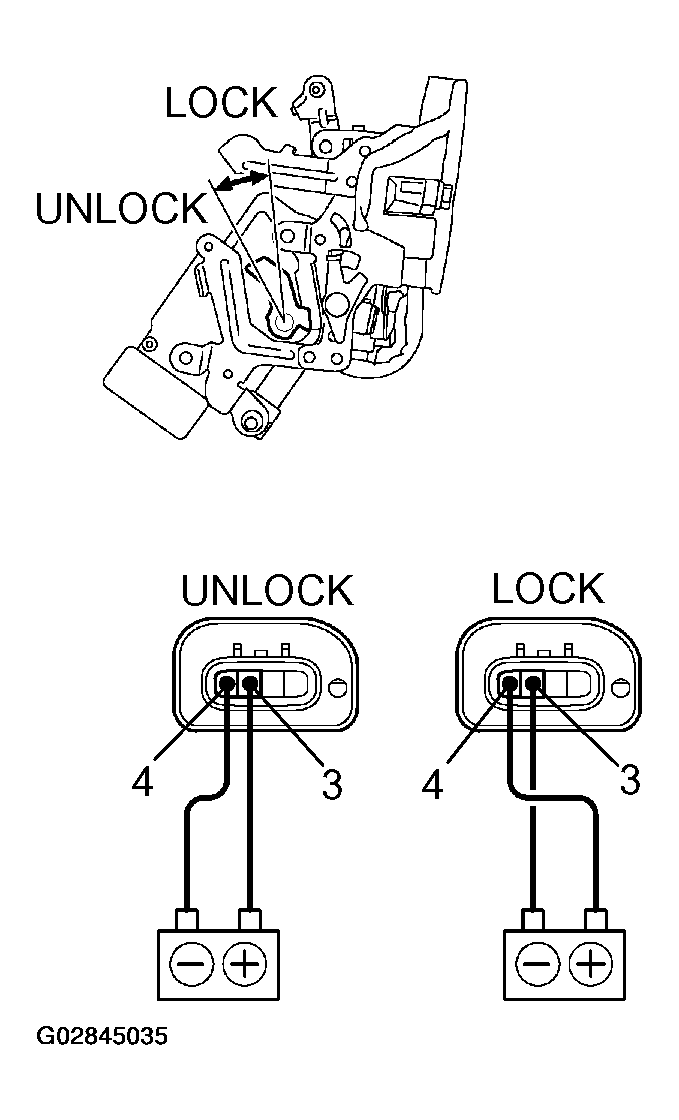

1. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 4, and check that the door lock link moves to UNLOCK position.

  Fig 11: Inspecting Door Lock Motor Operation (Rear Right Door)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity and check that the door lock link moves to LOCK position.
  If operation is not as specified, replace the door lock assembly.
