Body Clips: Replacement

NOTE:

If the clip is damaged during the operation, always replace it with a new clip.

The removal and installation methods of typical clips used in body parts are shown in Fig 1 and Fig 2.

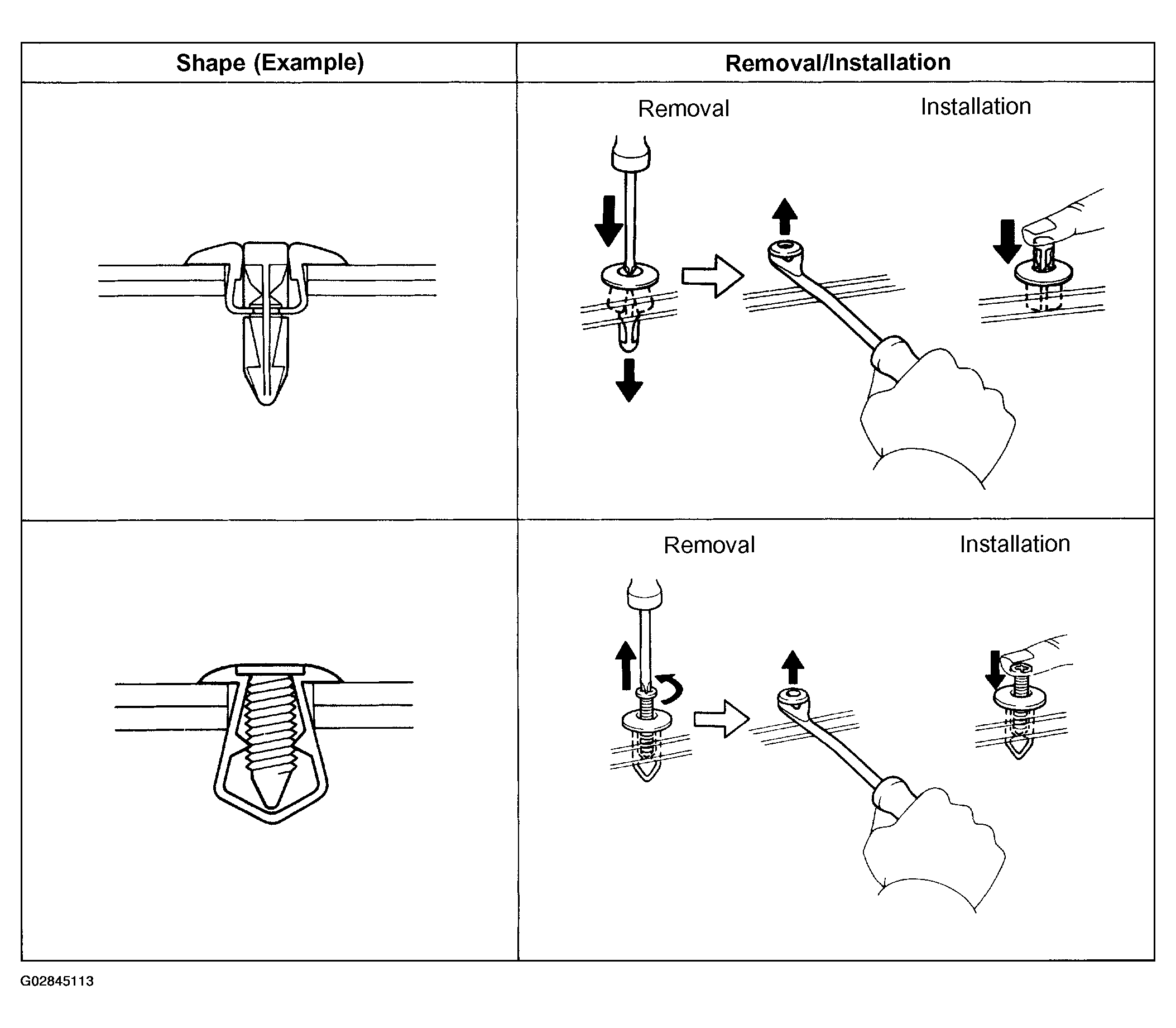

Fig 1: Removing/Installing Clip (1 Of 2)

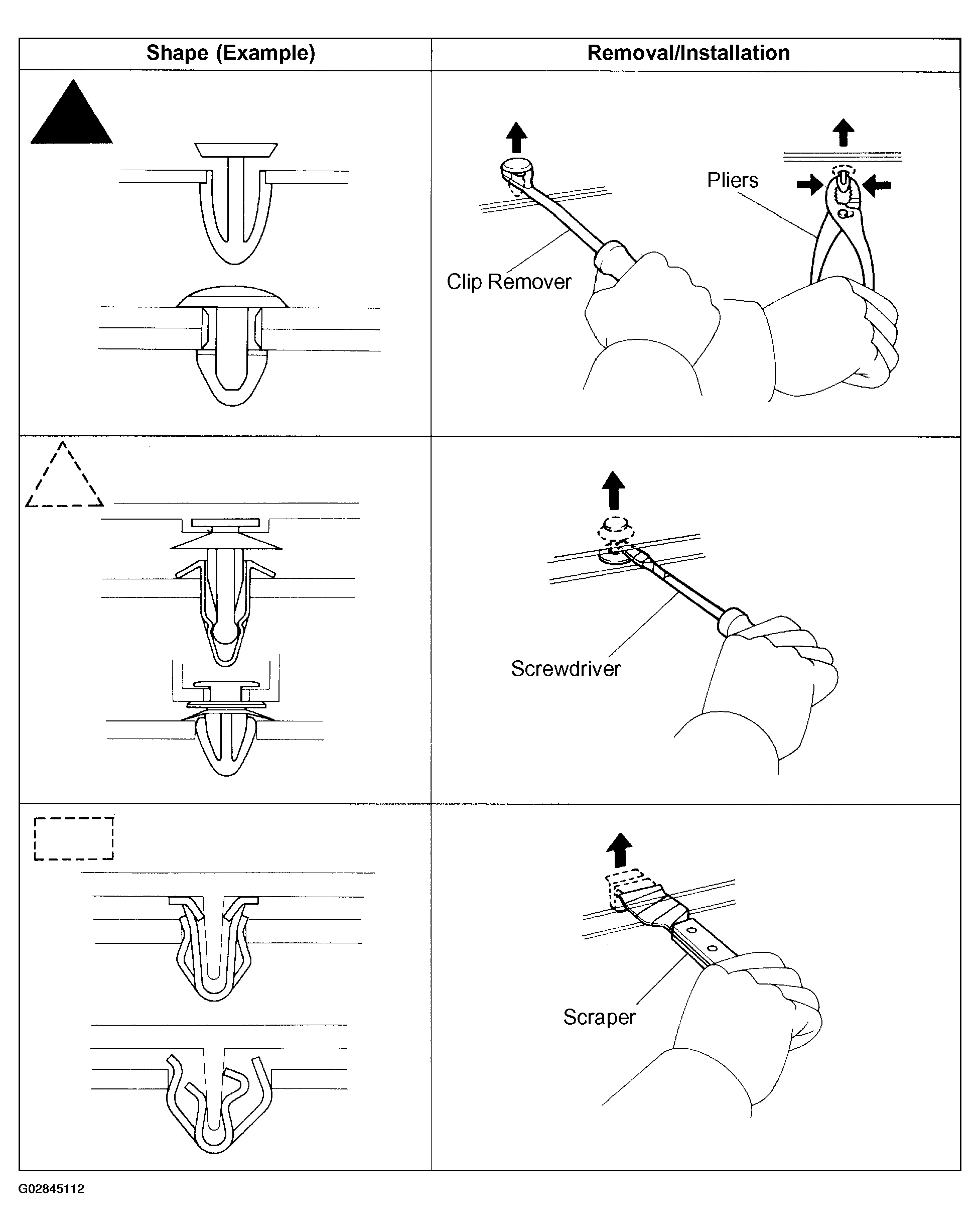

Fig 2: Removing/Installing Clip (2 Of 2)
