Reset Inclination Sensor

Setting procedure

1. Park vehicle on a level surface.
2. Turn the ignition switch to the ON position.
3. Place the odometer display into the "ODO" mode.
4. Turn OFF the ignition switch.
5. Depress and hold the ODO/TRIP button while pressing the ignition switch to the ON position.
6. Depress and hold the ODO/TRIP button 3 times within 5 seconds:

   Release - Press - Release - Press - Release - Press and Hold. Continue to hold the ODO/TRIP button for at least 5 seconds until the Setting Mode (Inclination Sensor Information) is displayed on the Odometer.

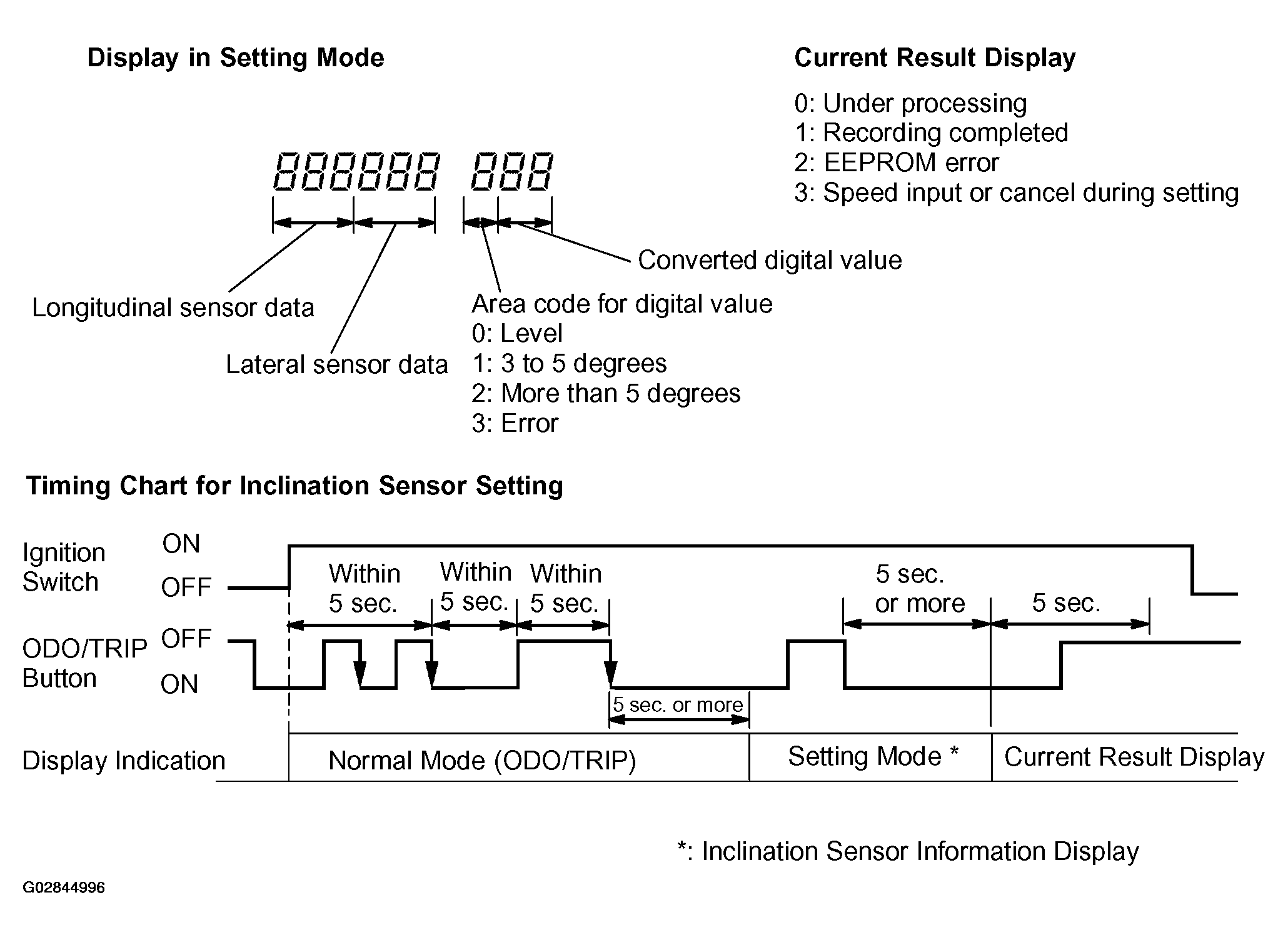

   Fig 1: Setting Mode Display And Inclination Sensor Setting Timing Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Release the ODO/TRIP button.
8. Depress and hold the ODO/TRIP button for at least 5 seconds to update the centered value. The third digit will indicate the status. The value of "1" indicates a successful reset.
   NOTE:

   If "0", "2", or "3" is displayed, perform the procedure from step (2) again.

9. Release the ODO/TRIP button. (Once the reset is complete, the odometer will returns to normal.)
10. Turn OFF the ignition switch.
