Combination Meter: Circuit

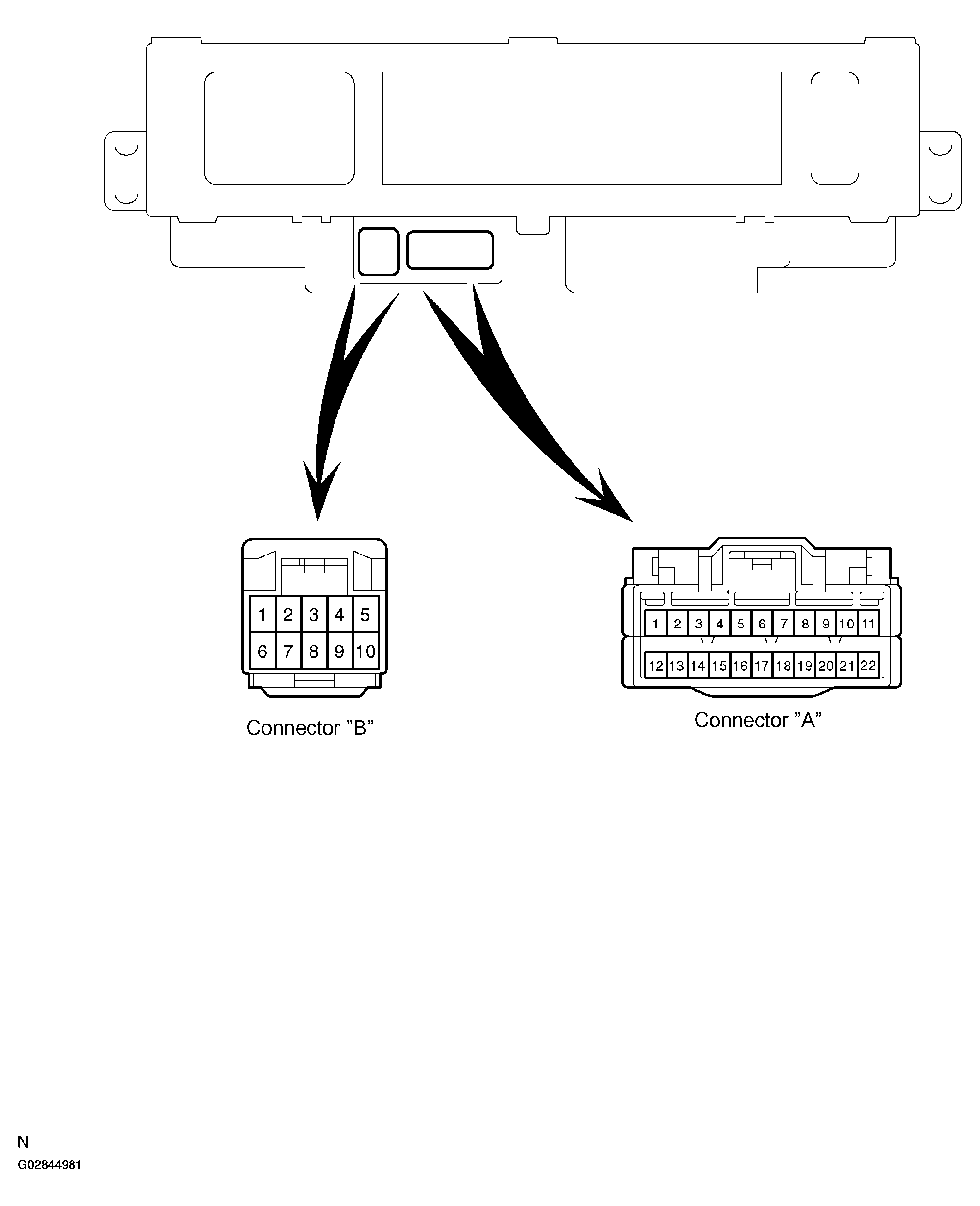

Fig 1: Identifying Combination Meter Connector Terminals
G02844981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

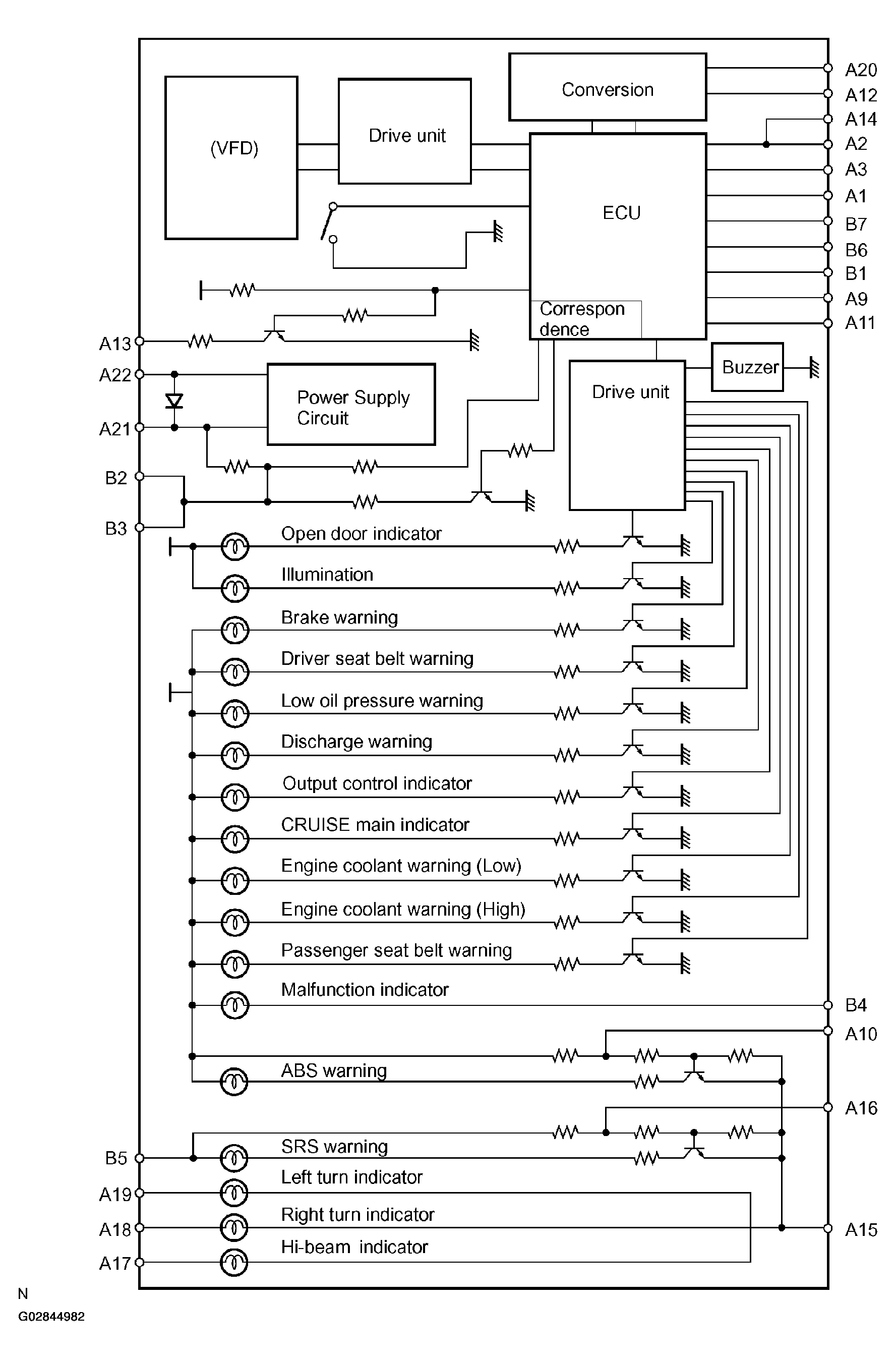

Fig 2: Combination Meter Circuit Diagram
G02844982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

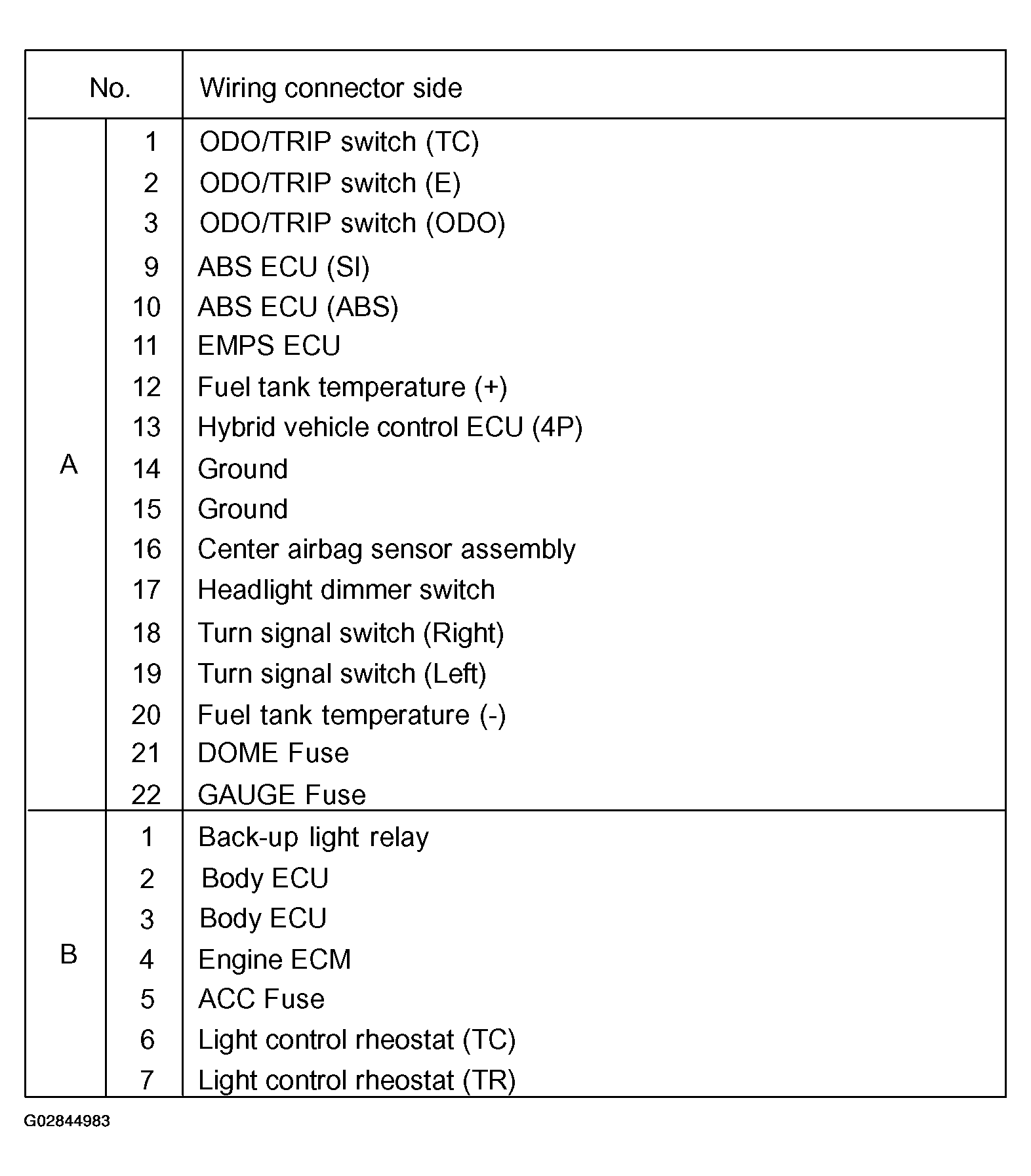

Fig 3: Combination Meter Circuit Identification
G02844983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
