Combination Meter: Location

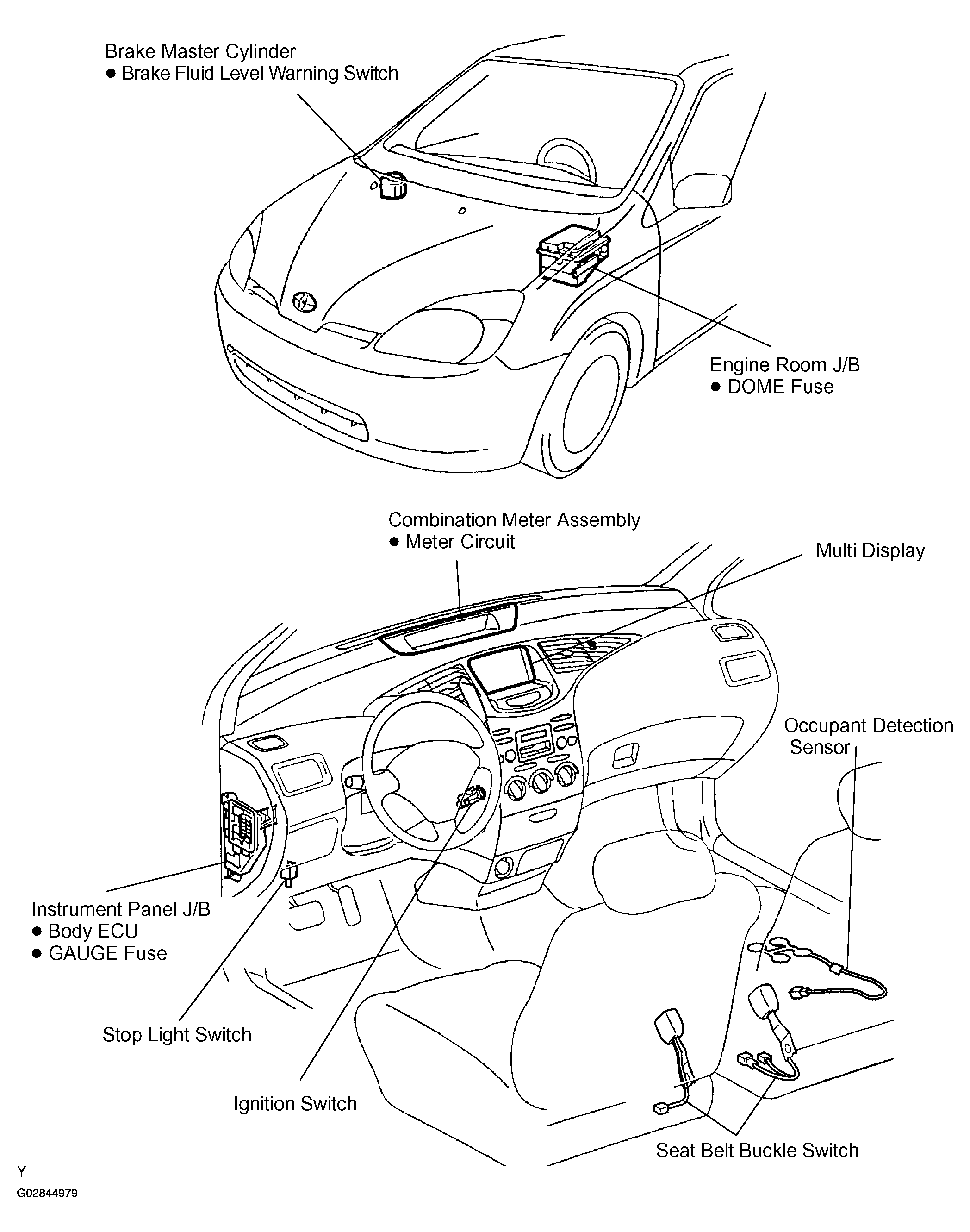

Fig 1: Identifying Combination Meter Related Component Locations (1 Of 2)
G02844979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

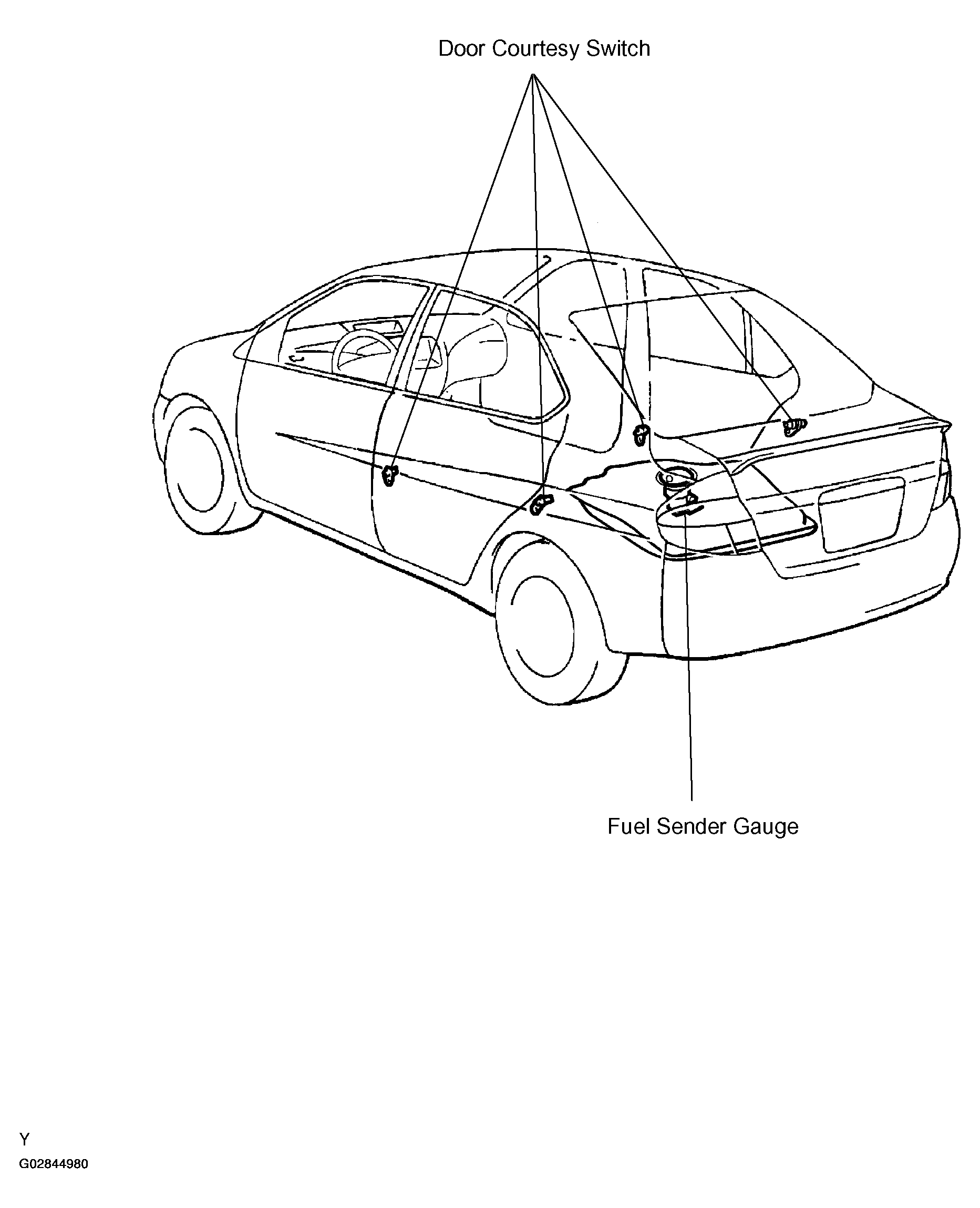

Fig 2: Identifying Combination Meter Related Component Locations (2 Of 2)
G02844980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
