Instrument Panel: Components

NOTE:

Screw shapes and sizes are indicated in Fig 1. The codes ("A" - "O") correspond to those indicated in Fig 2 and Fig 3.

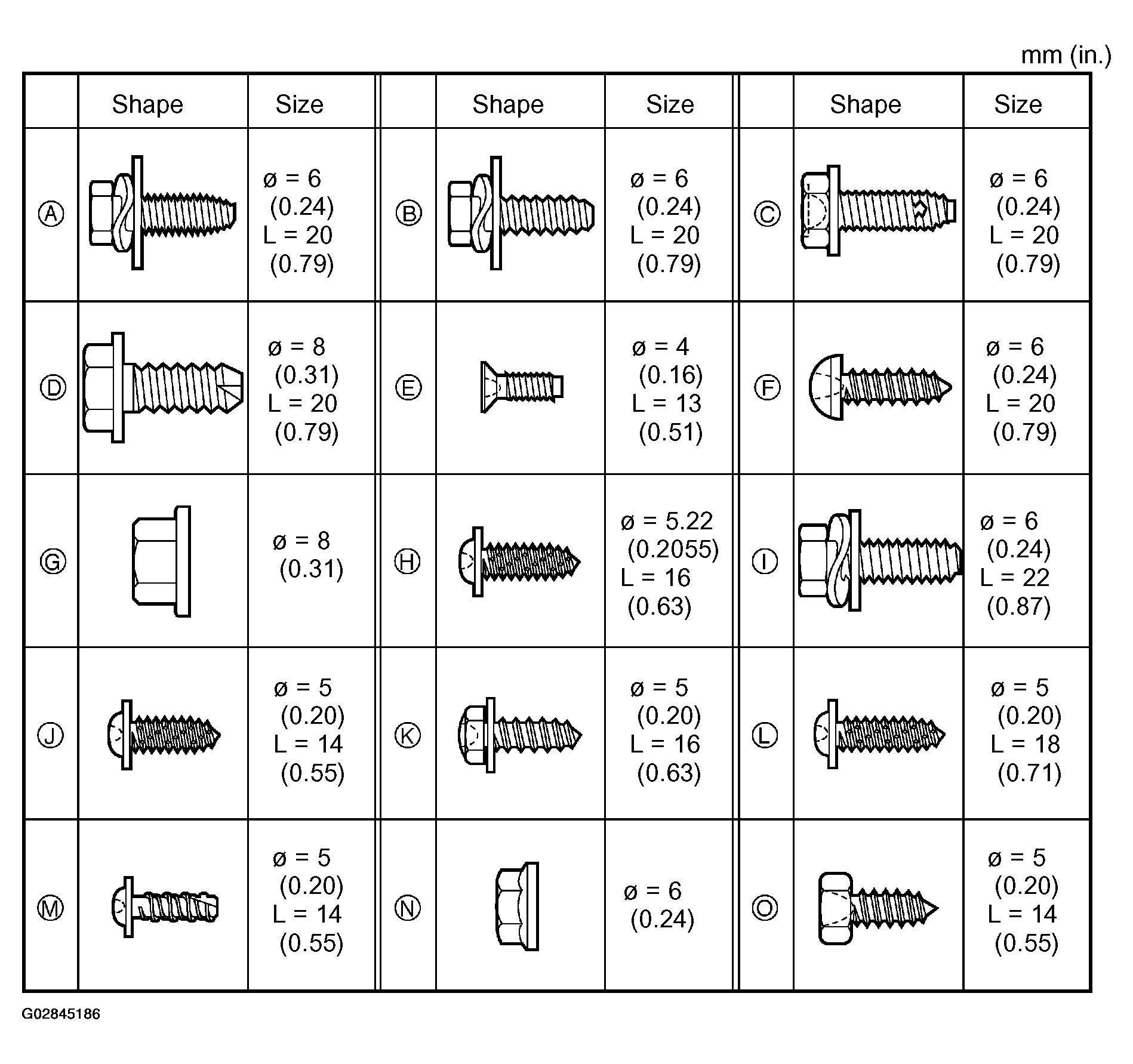

Fig 1: Screw Shapes And Sizes Indicated In Table From Instrument Panel

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

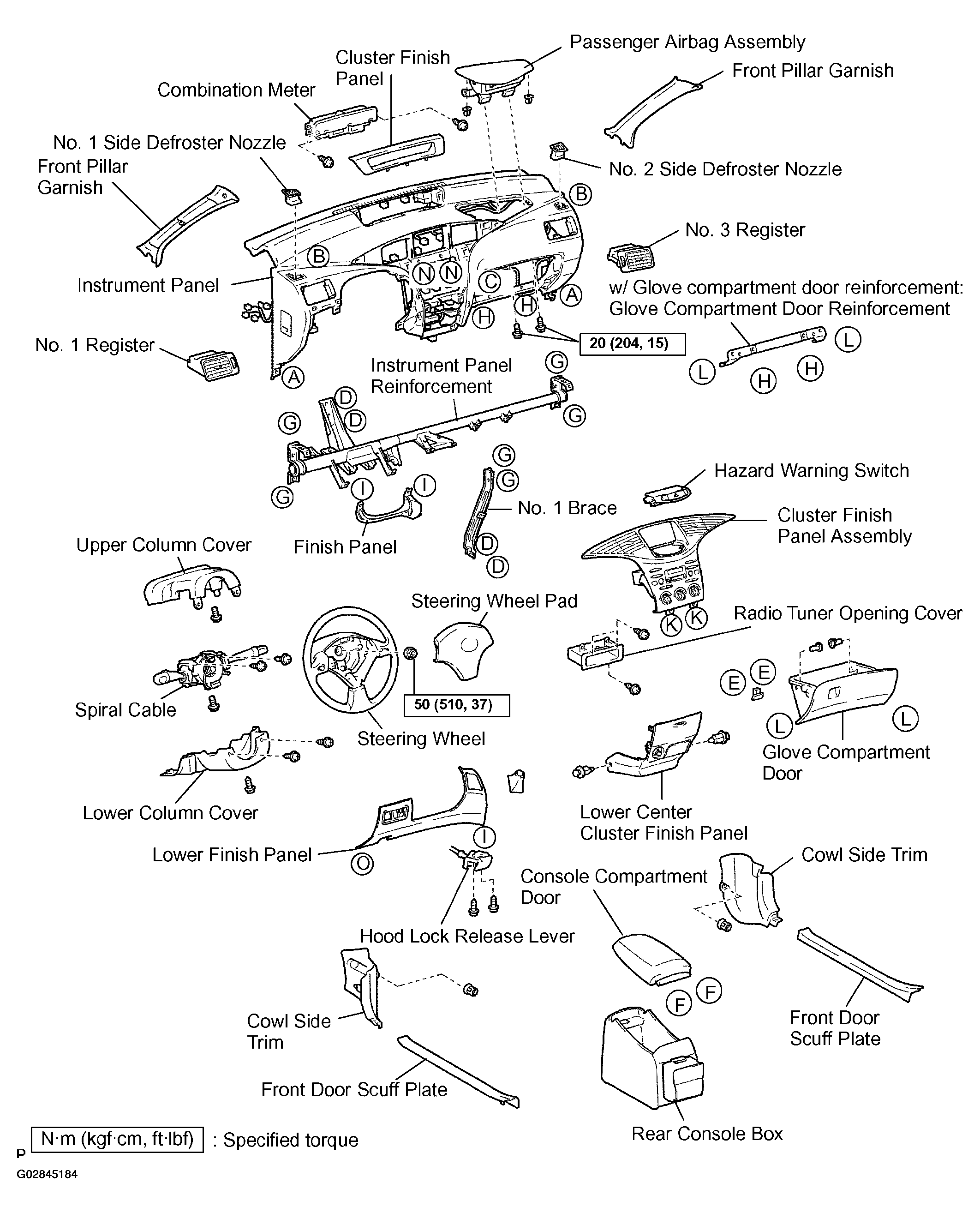

Fig 2: Exploded View Of Instrument Panel (1 Of 2)

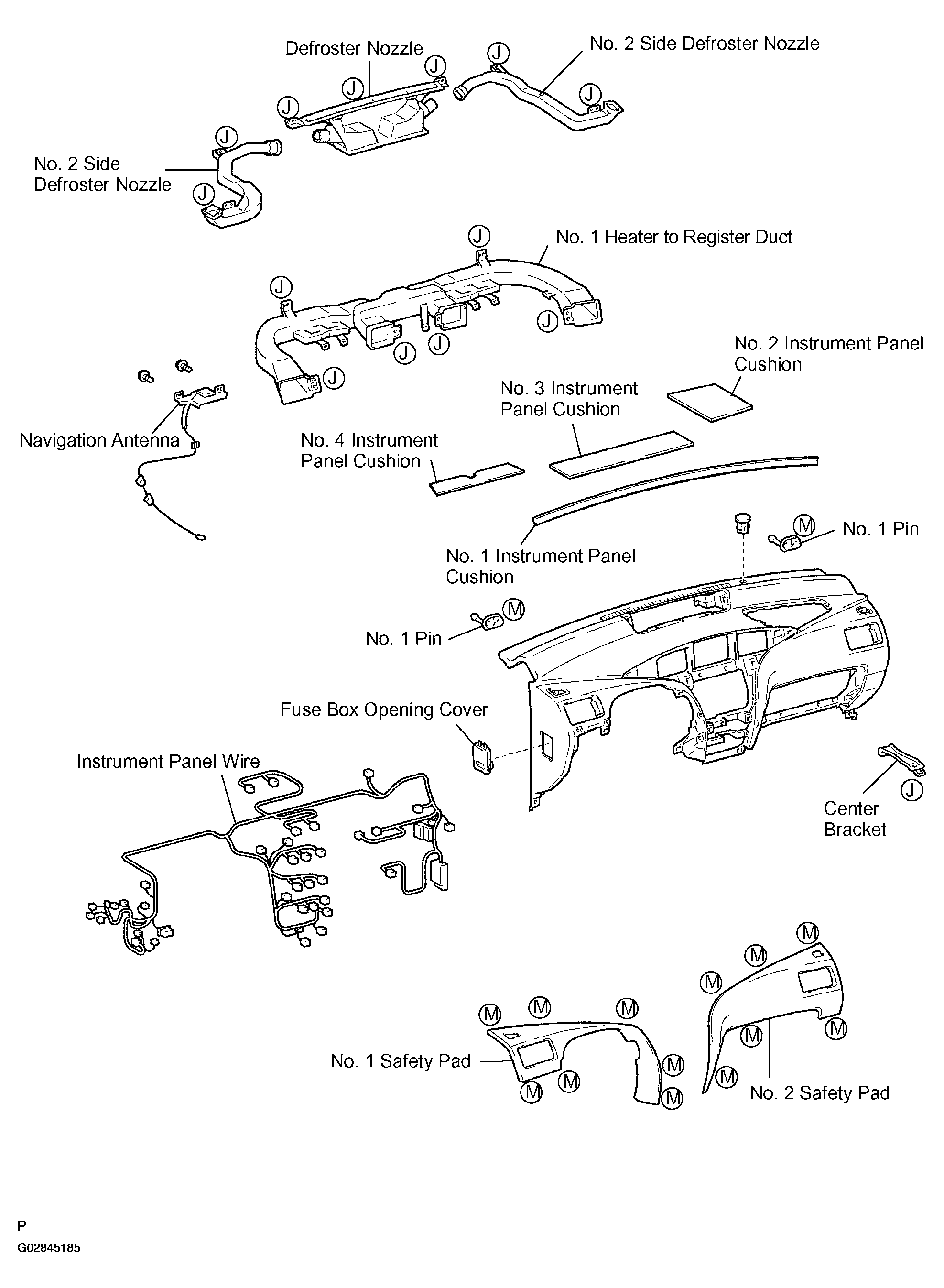

Fig 3: Exploded View Of Instrument Panel (2 Of 2)
