Instrument Panel: Removal

  1. REMOVE STEERING WHEEL PAD AND STEERING WHEEL (See  TILT STEERING COLUMN  )  .
  2. REMOVE FRONT DOOR SCUFF PLATES
  3. REMOVE COWL SIDE TRIMS
  4. REMOVE FRONT PILLAR GARNISHES
  5. REMOVE LOWER FINISH PANEL
    1. Remove the 2 screws and hood lock release lever.

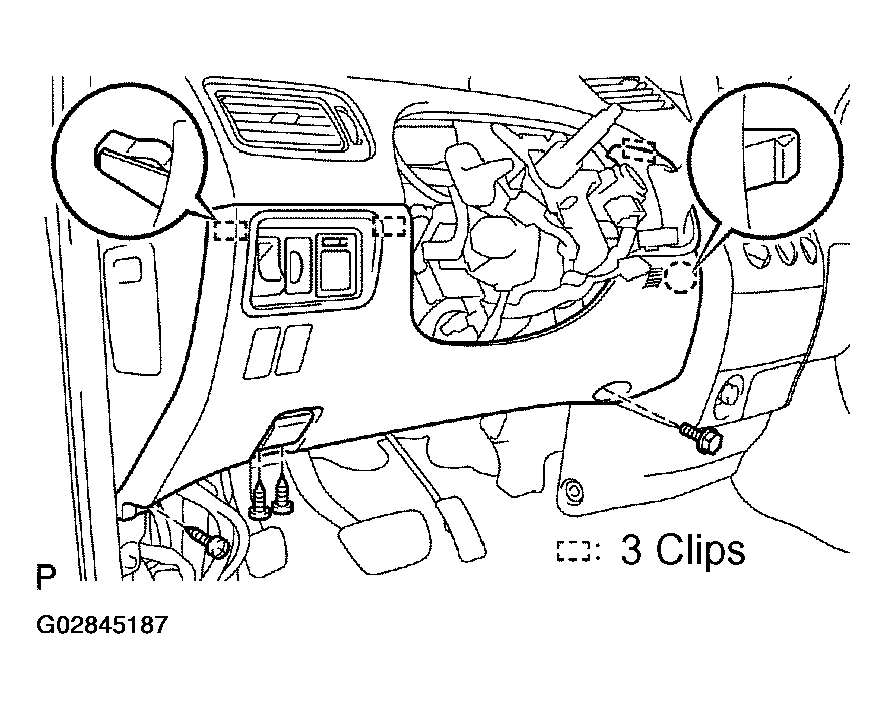

      Fig 1: Removing Lower Instrument Panel
      G02845187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Zip the shifting hole cover open.
    3. Remove the bolt and screw.
    4. Using a screwdriver, remove the lower finish panel, then disconnect the connectors and DLC3.
    5. Remove the shifting hole cover from the lower finish panel.
  6. REMOVE FINISH PANEL
  7. REMOVE COLUMN COVERS (See  TILT STEERING COLUMN  )
  8. REMOVE SPIRAL CABLE (See  TILT STEERING COLUMN  )
  9. REMOVE GLOVE COMPARTMENT DOOR
    1. Rotate the stoppers of the glove compartment door to 90° and pull them out inward.
    2. Remove the 2 screws and glove compartment door.
    3. Remove the 2 screws and glove compartment door lock from the glove compartment door.
  10. REMOVE LOWER CENTER CLUSTER FINISH PANEL
    1. Remove the 2 clips.

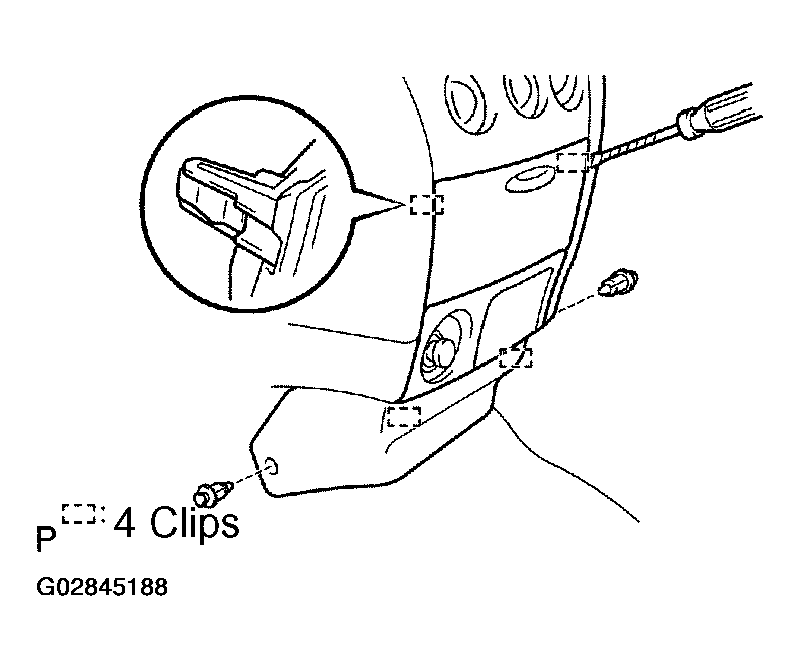

      Fig 2: Removing 2 Clips From Lower Center Cluster Finish Panel
      G02845188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. NOTE:

      Tape the screwdriver tip before use.

    2. Using a screwdriver, remove the lower center cluster finish panel.
    3. Disconnect the connector.
  11. w/ Glove compartment door reinforcement:

    REMOVE GLOVE COMPARTMENT DOOR REINFORCEMENT

  12. DISCONNECT PASSENGER AIRBAG CONNECTOR
      NOTE: When disconnecting the airbag connector, take care not to damage the airbag wire harness.

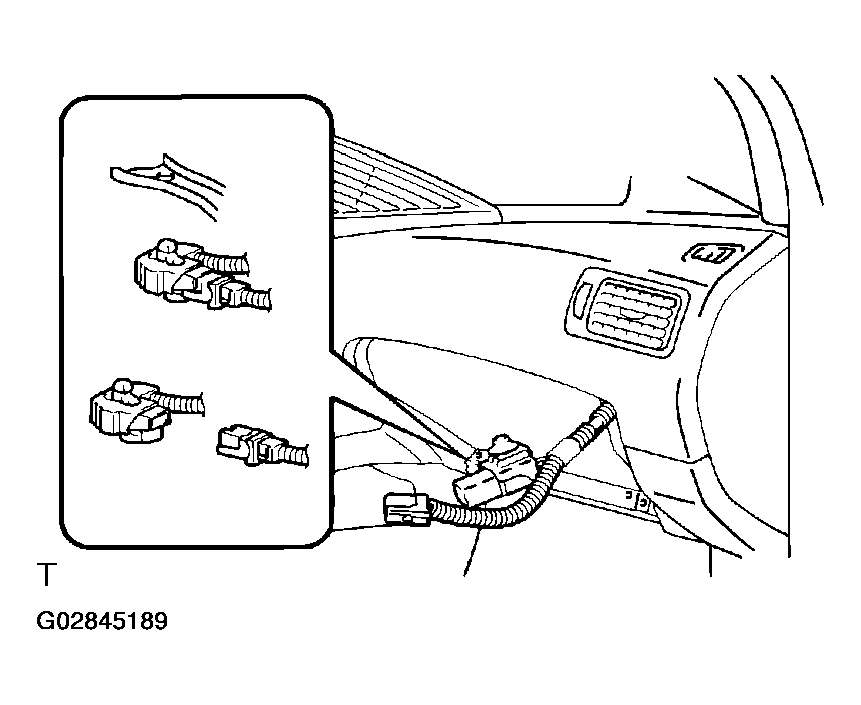

      Fig 3: Removing Glove Compartment Door Reinforcement
      G02845189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the passenger airbag connector.
    2. Disengage the airbag connector clamp from the center bracket.
  13. REMOVE PASSENGER AIRBAG ASSEMBLY
    1. Remove the 2 bolts.

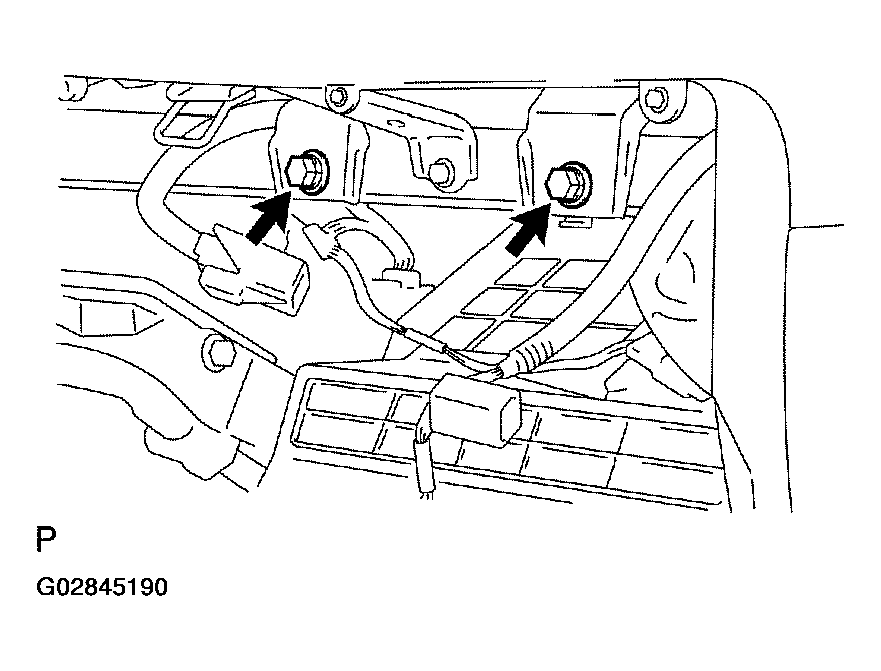

      Fig 4: Removing Passenger Airbag Assembly Bolts
      G02845190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)

      2. WARNING:
      • Do not store the passenger airbag assembly with the airbag deployment side facing down.
      • Never disassemble the passenger airbag assembly.
      CAUTION: When removing the passenger airbag assembly, take care not to damage the wire harness.

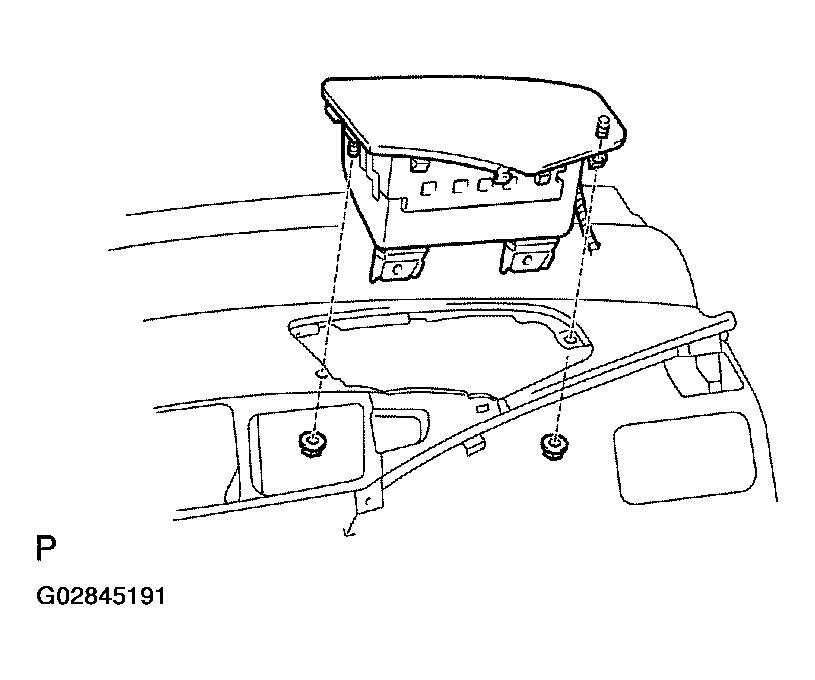

      Fig 5: Removing Passenger Airbag Assembly
      G02845191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and passenger airbag assembly.
  14. REMOVE HAZARD WARNING SWITCH
      NOTE:

      Tape the screwdriver tip before use.

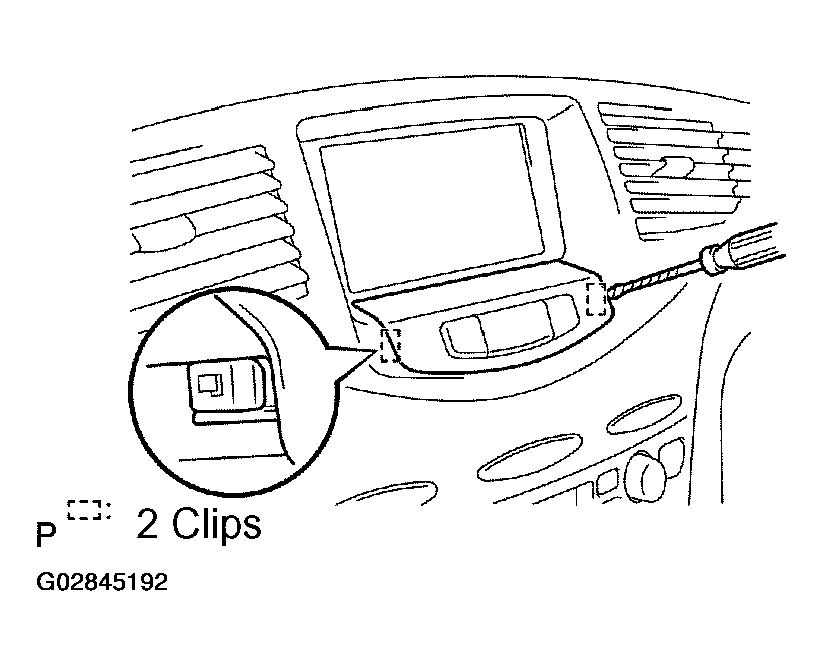

      Fig 6: Removing Hazard Warning Switch
      G02845192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver, remove the hazard warning switch.
    2. Disconnect the connectors.
  15. REMOVE CLUSTER FINISH PANEL ASSEMBLY
    1. Remove the 2 screws.
    2. Using a screwdriver, remove the cluster finish panel assembly.

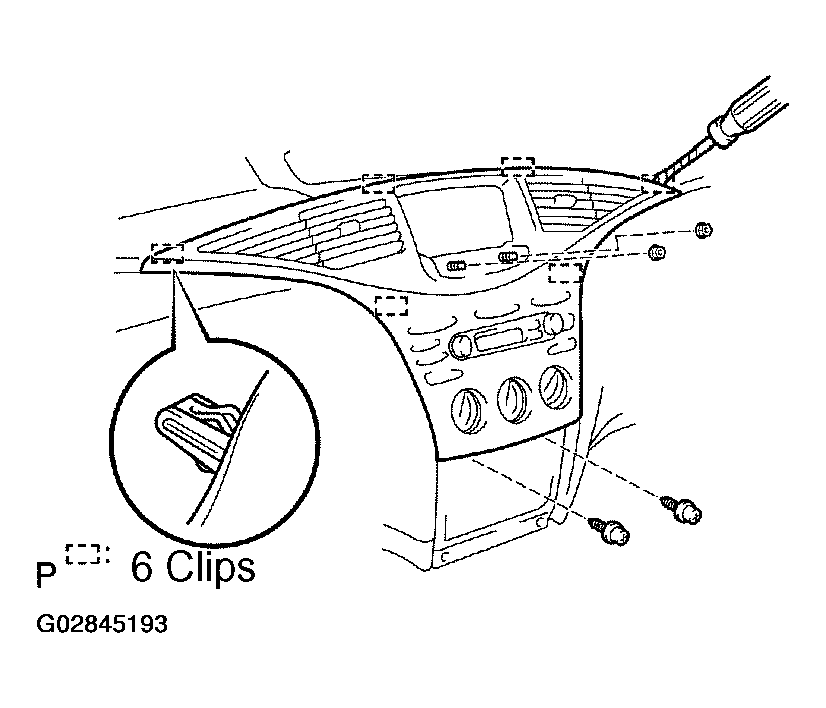

      Fig 7: Removing Cluster Finish Panel Assembly
      G02845193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connectors.
  16. REMOVE RADIO OR RADIO TUNER OPENING COVER
  17. REMOVE COMBINATION METER
      NOTE:

      Tape the screwdriver tip before use.

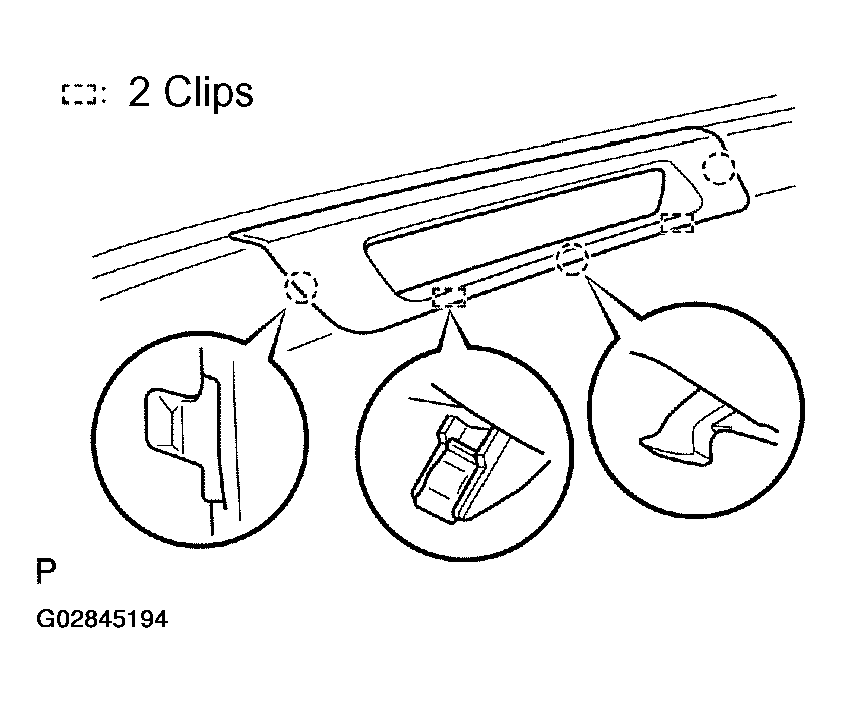

      Fig 8: Removing Cluster Finish Panel
      G02845194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver, remove the cluster finish panel.
    2. Remove the 3 screws and combination meter.
    3. Disconnect the connector.
  18. REMOVE NO. 1 AND NO. 2 SIDE DEFROSTER NOZZLES
    NOTE:

    Tape the screwdriver tip before use.

    Using a screwdriver, remove the No. 1 and No. 2 side defroster nozzles.

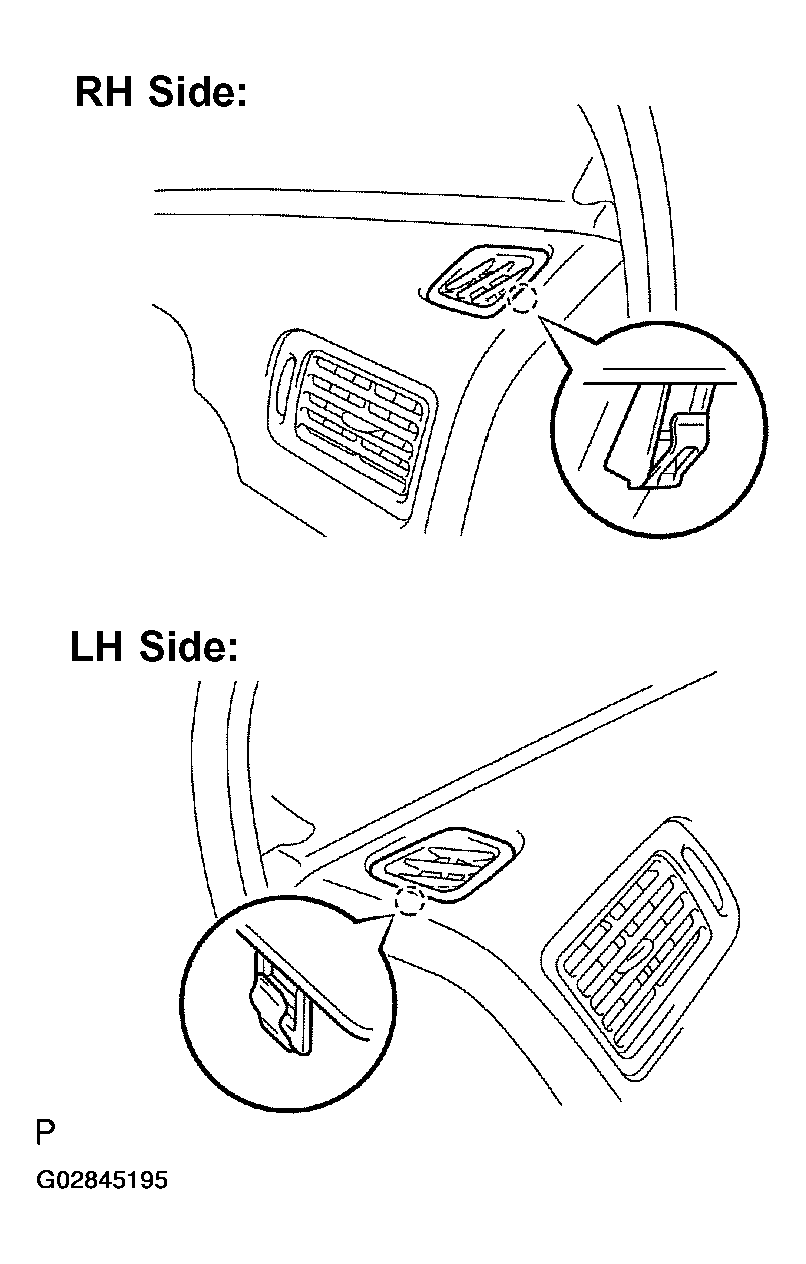

    Fig 9: Removing No. 1 And No. 2 Side Defroster Nozzles
    G02845195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE NO. 1 AND NO. 3 REGISTERS
    NOTE:

    Tape the screwdriver tip before use.

    Using a screwdriver, remove the No. 1 and No. 3 registers as shown in Fig 10.

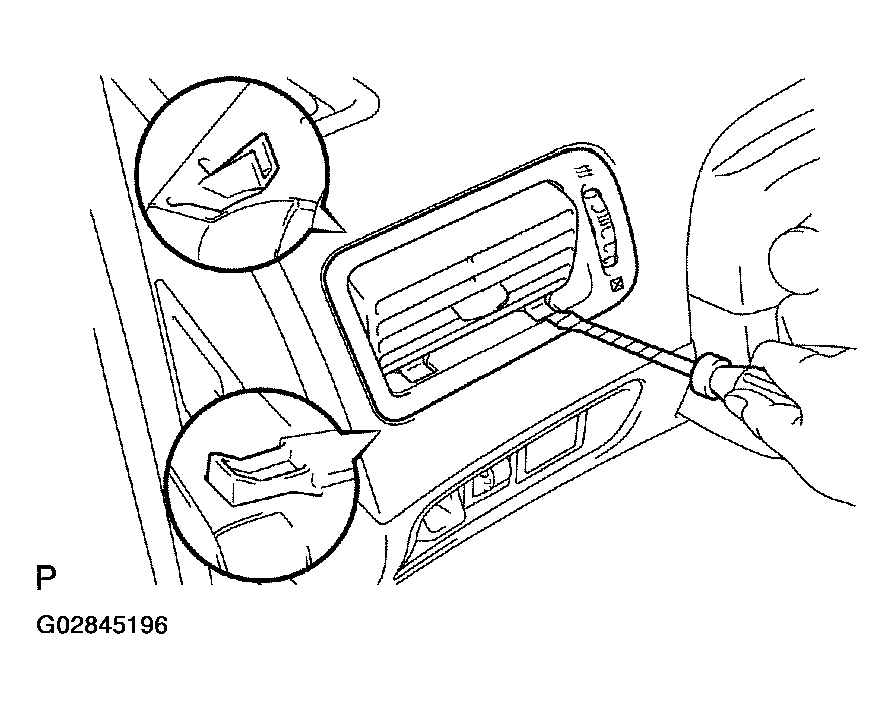

    Fig 10: Identifying Blower Grill
    G02845196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE STEERING COLUMN (See  TILT STEERING COLUMN  )
  21. REMOVE INSTRUMENT PANEL
    1. Disconnect the connectors.
    2. Disengage the wire harness clamps.
    3. Remove the 4 bolts, 3 screws and instrument panel.

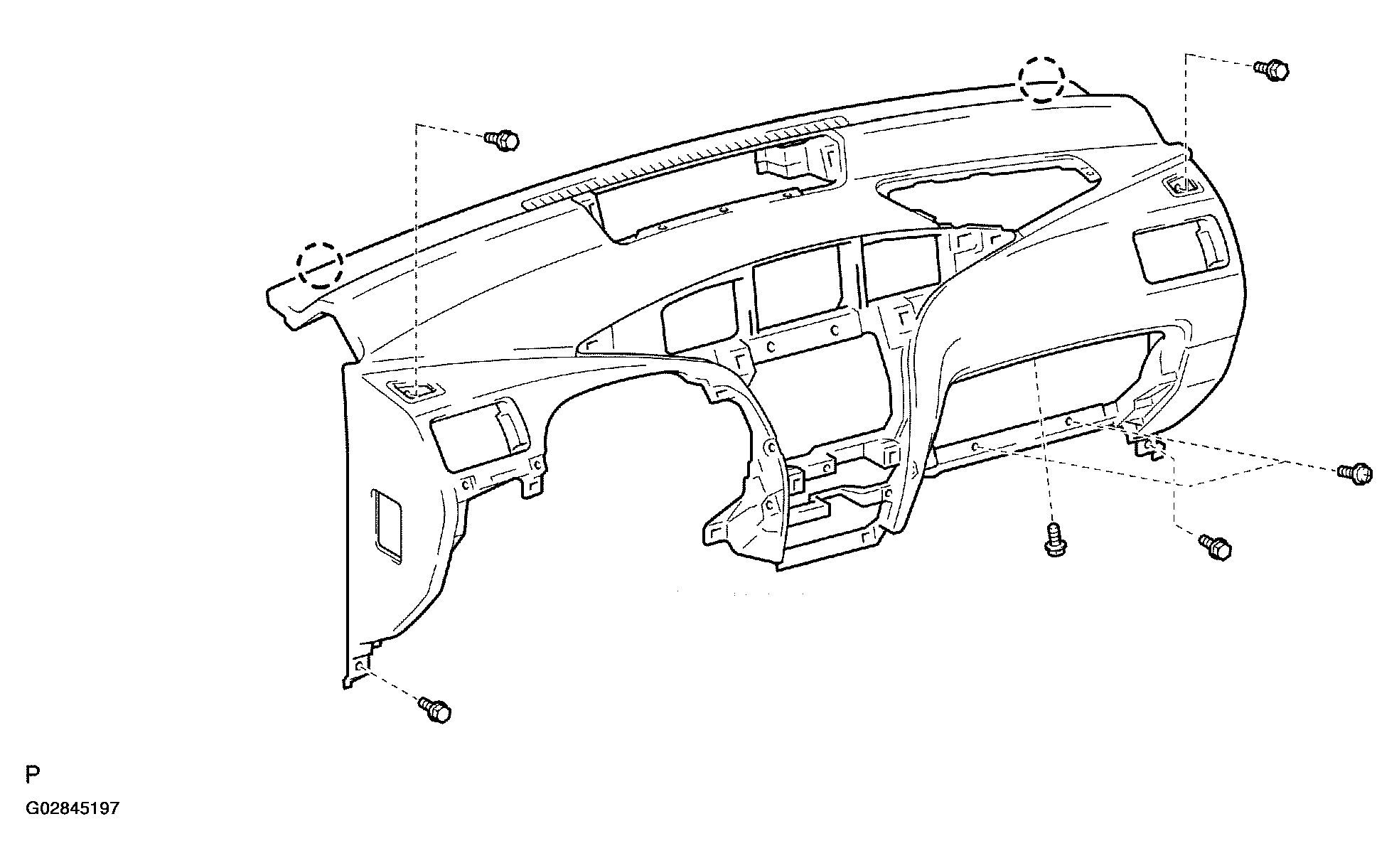

      Fig 11: Removing 4 Bolts, 3 Screws And Instrument Panel
      G02845197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE NO. 1 BRACE
  23. REMOVE INSTRUMENT PANEL REINFORCEMENT

    Remove the 2 bolts, 4 nuts and instrument panel reinforcement.

  24. REMOVE REAR CONSOLE BOX
    1. Remove the 3 bolts and rear console box.
    2. Remove the 2 screws and console compartment door from the rear console box.
