Check HV Water Pump Operation

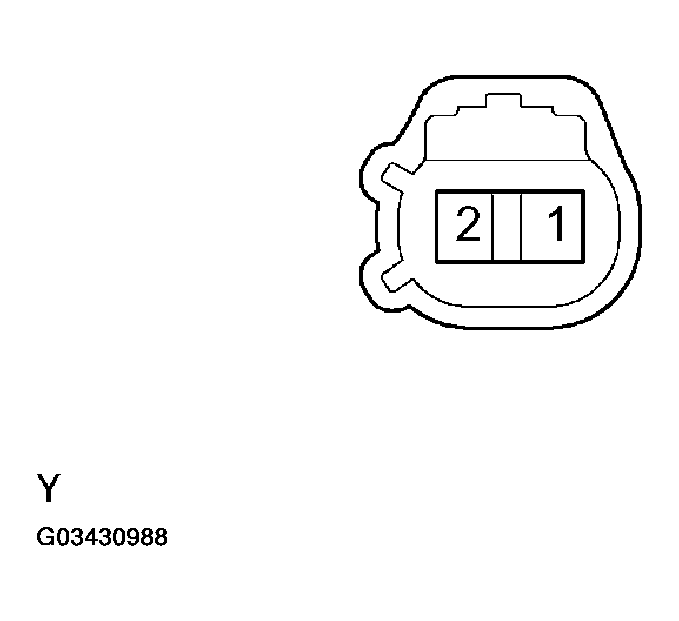

Apply battery voltage to the HV water pump setting terminal 1 as negative pole and terminal 2 as positive and check that the pump operates.
NOTE:
- Pay special attention to the poles and never make a mistake.
- This check should be done for a short time (10 second or less).
