Inspect Water Temperature Switch

Using a ohmmeter and thermometer, check continuity between terminals.

Standard:

• No continuity at 48°C (118.4°F) or less
• Continuity at more than 55°C (131°F)

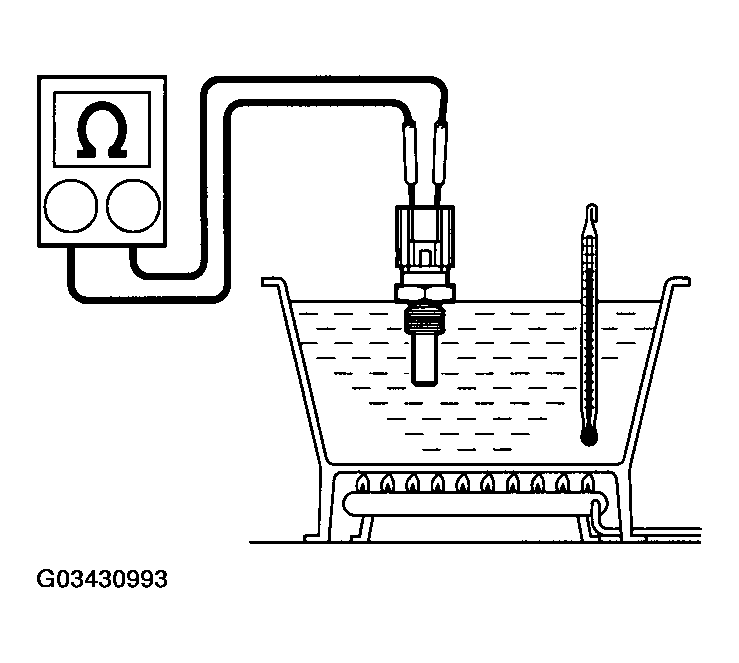

Fig 1: Checking Continuity Between Terminals Using Ohmmeter & Thermometer
