Tilt Steering Column: Components

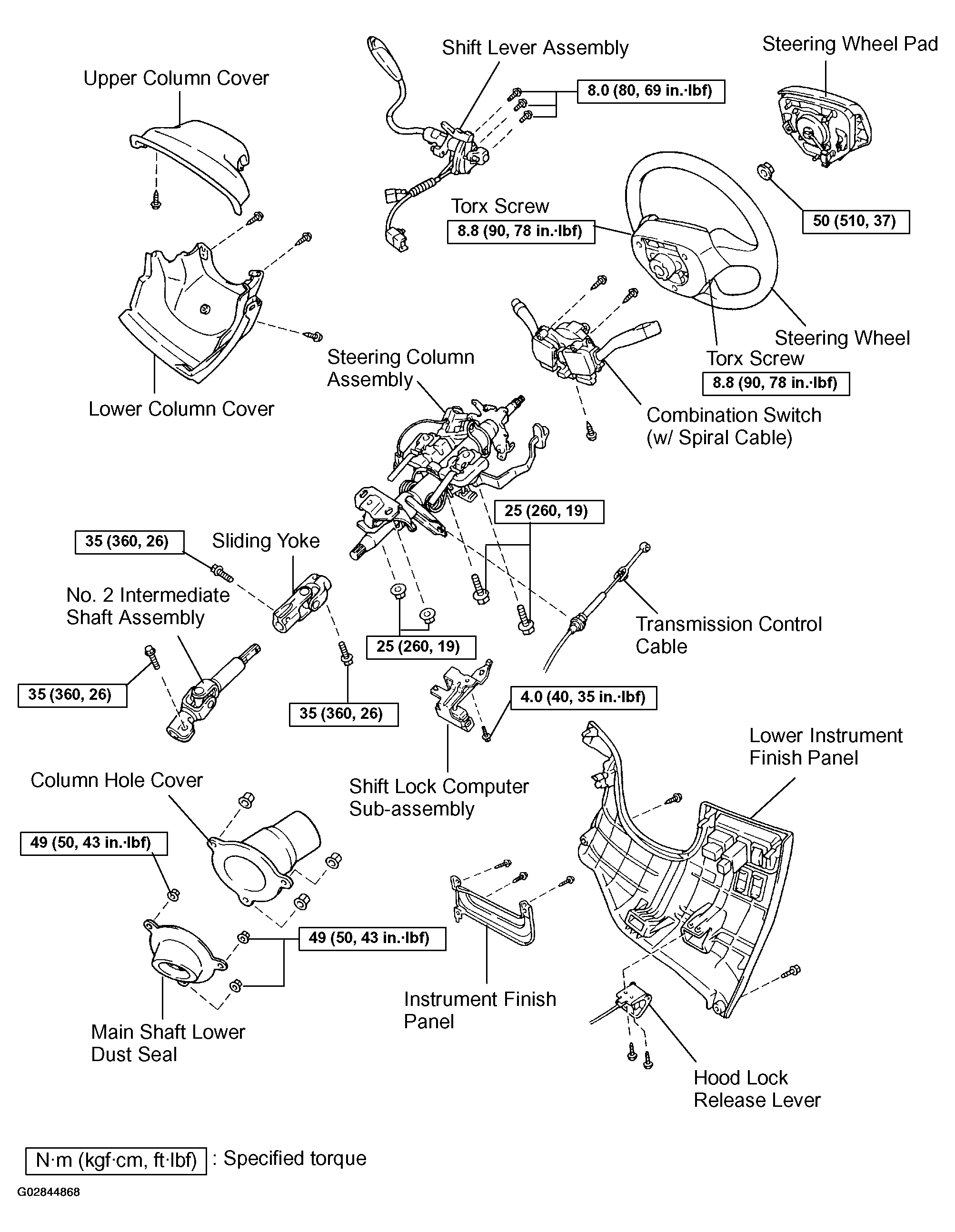

Fig 1: Identifying Tilt Steering Column Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

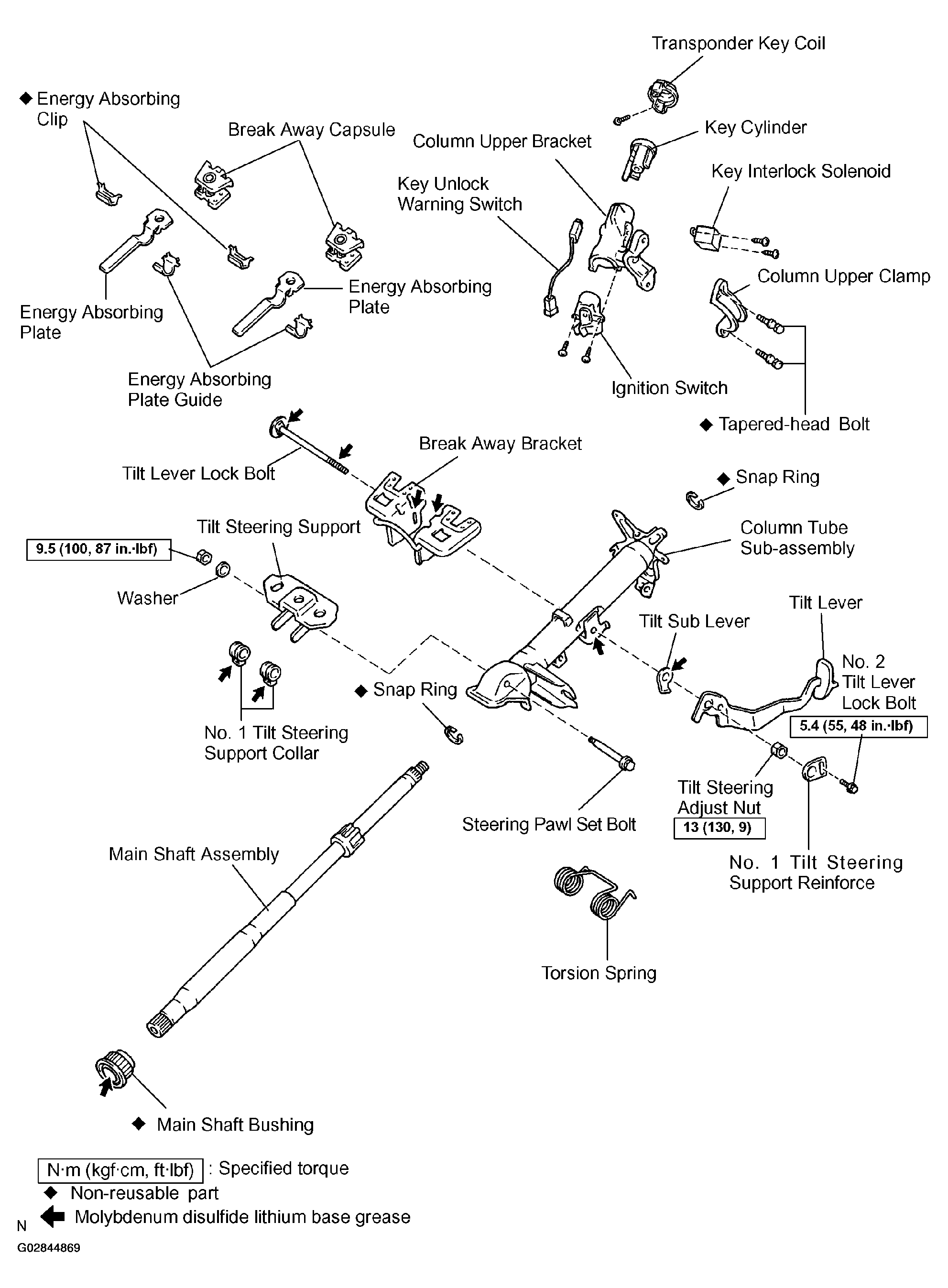

Fig 2: Identifying Tilt Steering Column Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
