Tilt Steering Column: Removal
- REMOVE STEERING WHEEL PAD NOTE: If the airbag connector is disconnected with the ignition switch at ON, DTCs will be recorded.
- Place the front wheels facing straight ahead.

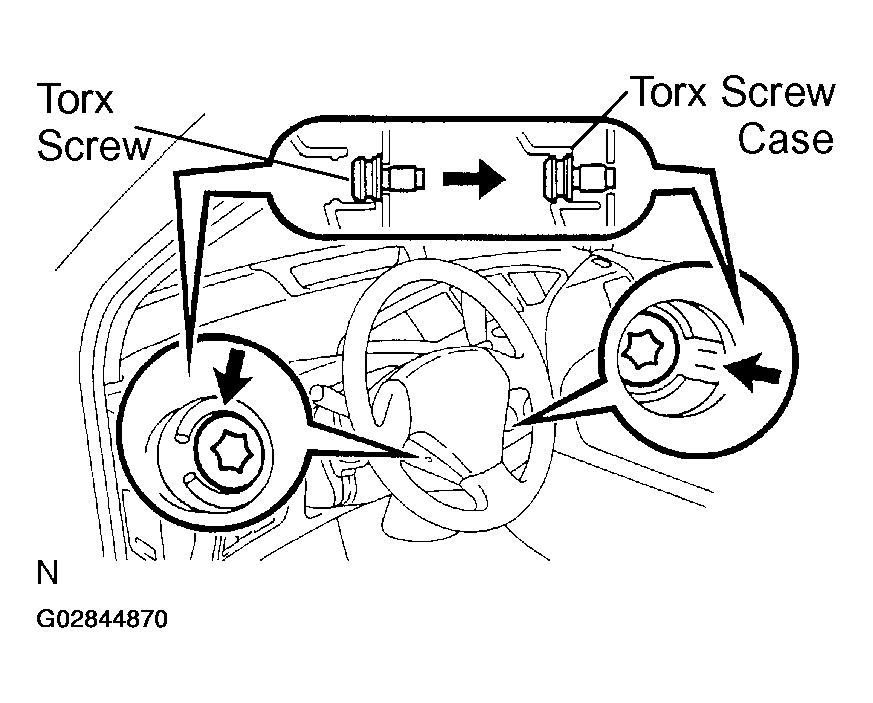

- Using a torx socket wrench, loosen the 2 torx screws until the groove along the screw circumference catches on the screw case.

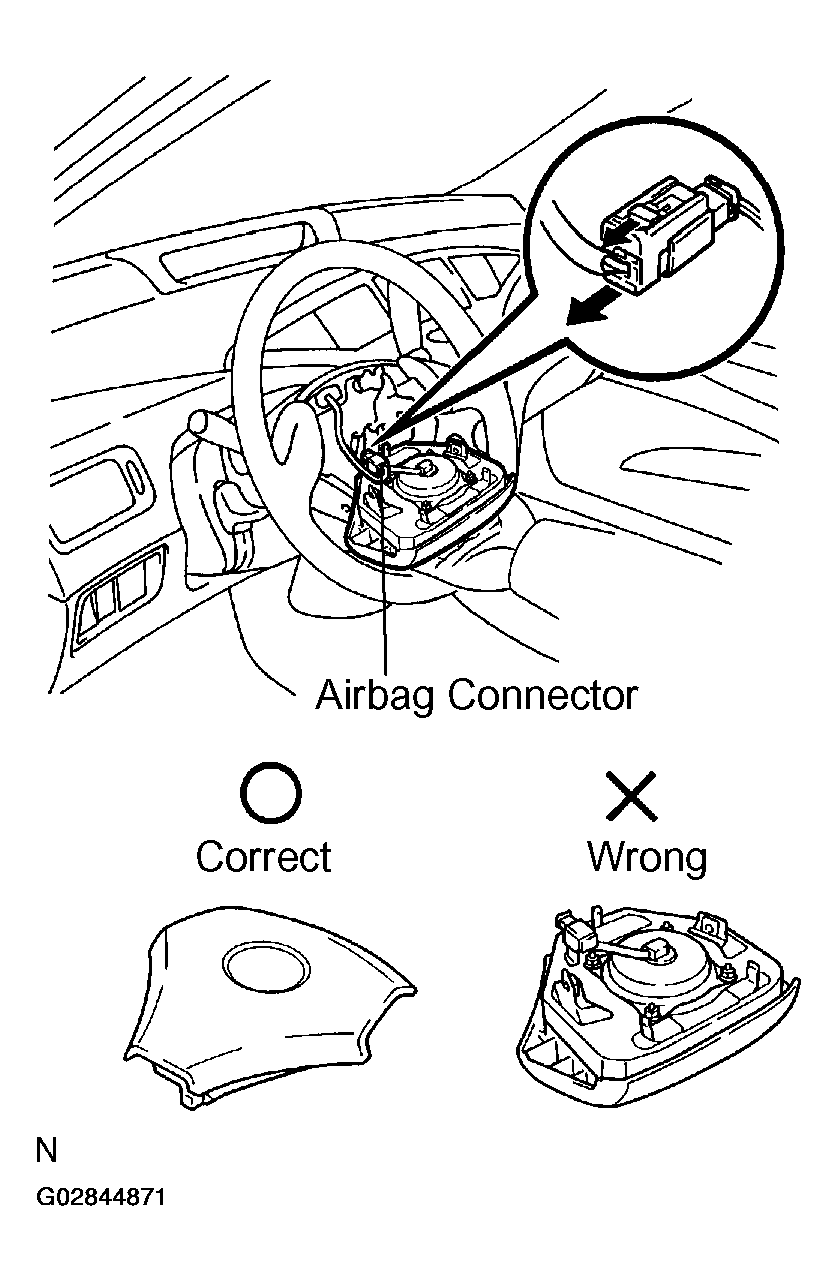

- Pull out the wheel pad from the steering wheel and disconnect the airbag connector.
- Disconnect the connector.WARNING:
- When storing the wheel pad, keep the upper surface of the pad facing upward.
- Never disassemble the wheel pad.
CAUTION: When removing the wheel pad, take care not to pull the air-bag wire harness. - REMOVE STEERING WHEEL
- Remove the steering wheel set nut.

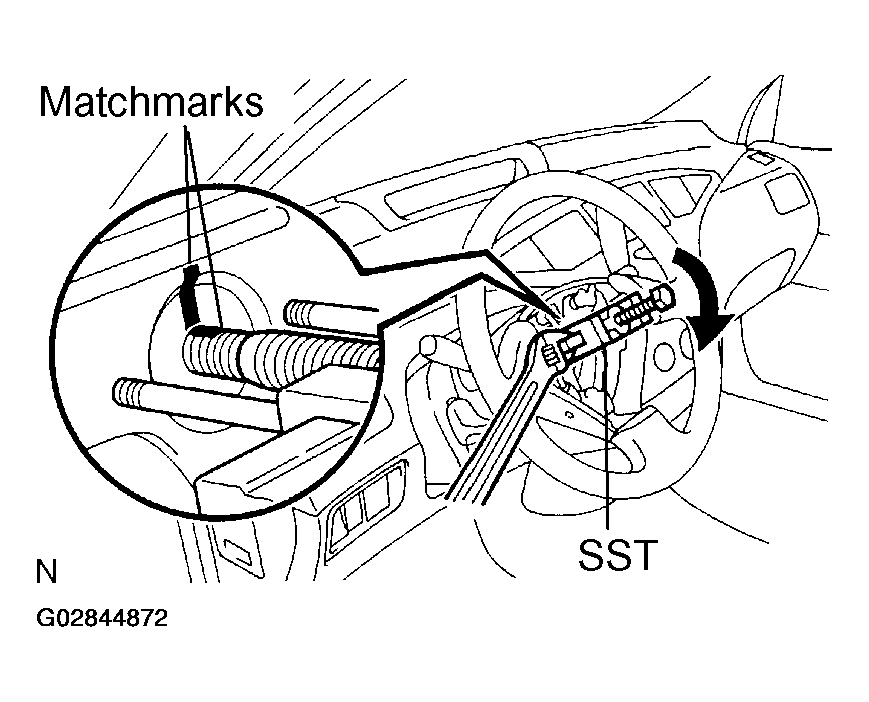

- Place matchmarks on the steering wheel and main shaft assembly.
- Using SST, remove the steering wheel.
SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)
- REMOVE LOWER INSTRUMENT FINISH PANEL
- Remove the 2 screws and disconnect hood lock release lever.
- Remove the screw and bolt.
- Disconnect the connectors and DLC3, and remove the lower instrument finish panel.
- REMOVE UPPER AND LOWER COLUMN COVERS
- Remove the 3 screws and lower column cover
- Remove the screw and upper column cover.
- REMOVE COMBINATION SWITCH WITH SPIRAL CABLE
- Disconnect the connectors.
- Disconnect the airbag connector.
- Remove the 3 screws and combination switch with spiral cable.
- REMOVE SPIRAL CABLE (See
COMPONENTS
)
.CAUTION: Do not disassemble the spiral cable or apply oil to it.

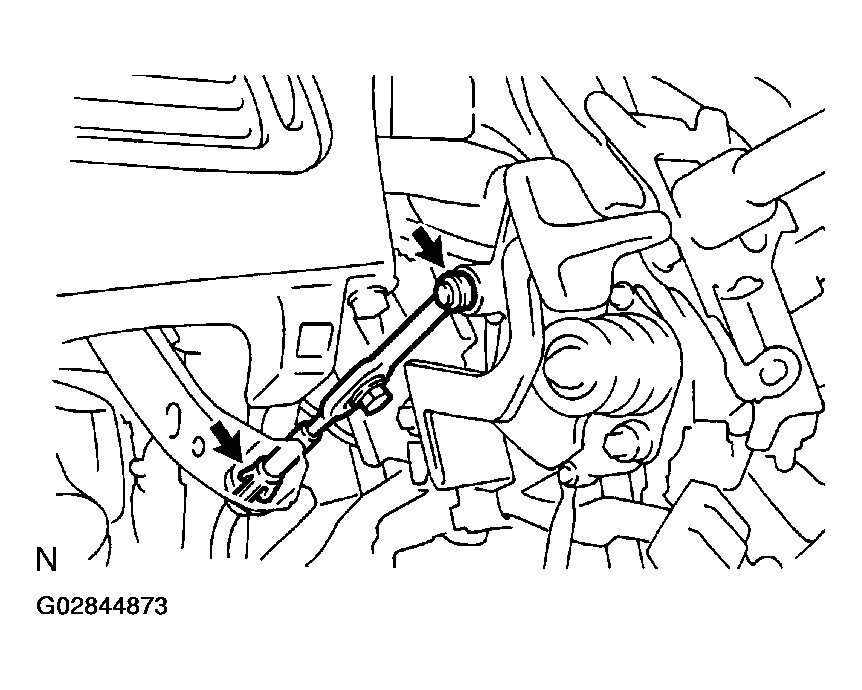

- DISCONNECT TRANSMISSION CONTROL CABLE
- REMOVE SHIFT LEVER ASSEMBLY (See removal under COLUMN SHIFT ASSEMBLY )
- DISCONNECT COLUMN HOLE COVER
Remove the 3 clips and disconnect the column hole cover.
- REMOVE SHIFT LOCK COMPUTER SUB-ASSEMBLY
Remove the screw and shift lock computer sub-assembly.
- DISCONNECT NO. 2 INTERMEDIATE SHAFT ASSEMBLY

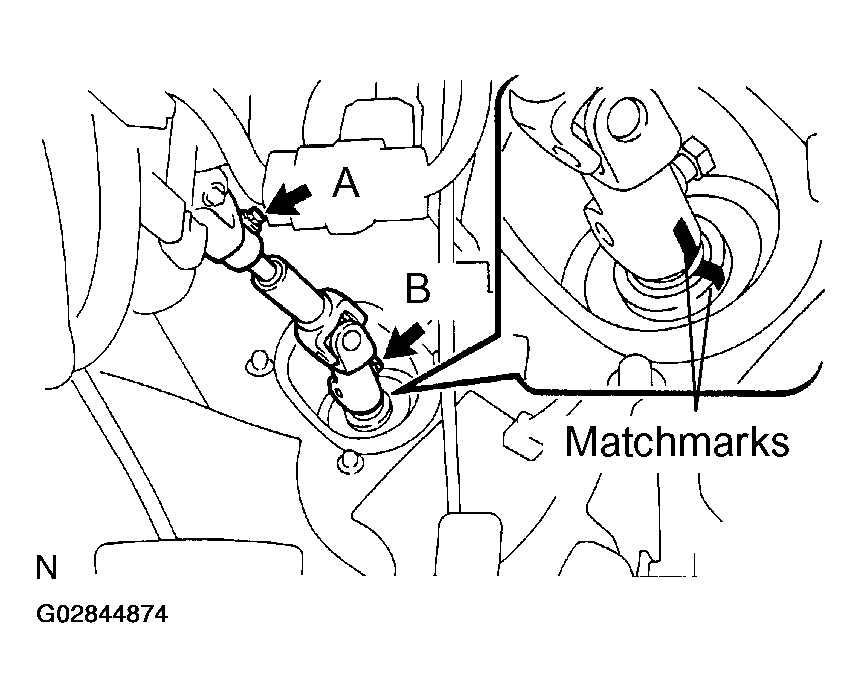

- Place matchmarks on the No. 2 intermediate shaft assembly and control valve shaft.
- Loosen the bolt "A" and remove the bolt "B", then disconnect the No. 2 intermediate shaft assembly from the control valve shaft.
- REMOVE INSTRUMENT FINISH PANEL
Remove the 3 screws and instrument finish panel.
- REMOVE STEERING COLUMN ASSEMBLY
- Disconnect the connectors.
- Remove the 2 bolts, 2 nuts and steering column assembly.
- REMOVE NO. 2 INTERMEDIATE SHAFT ASSEMBLY
Remove the bolt and No. 2 intermediate shaft assembly from the sliding yoke.
- REMOVE SLIDING YOKE
Remove the bolt and sliding yoke from the main shaft assembly.
- REMOVE COLUMN HOLE COVER
- REMOVE MAIN SHAFT LOWER DUST SEAL

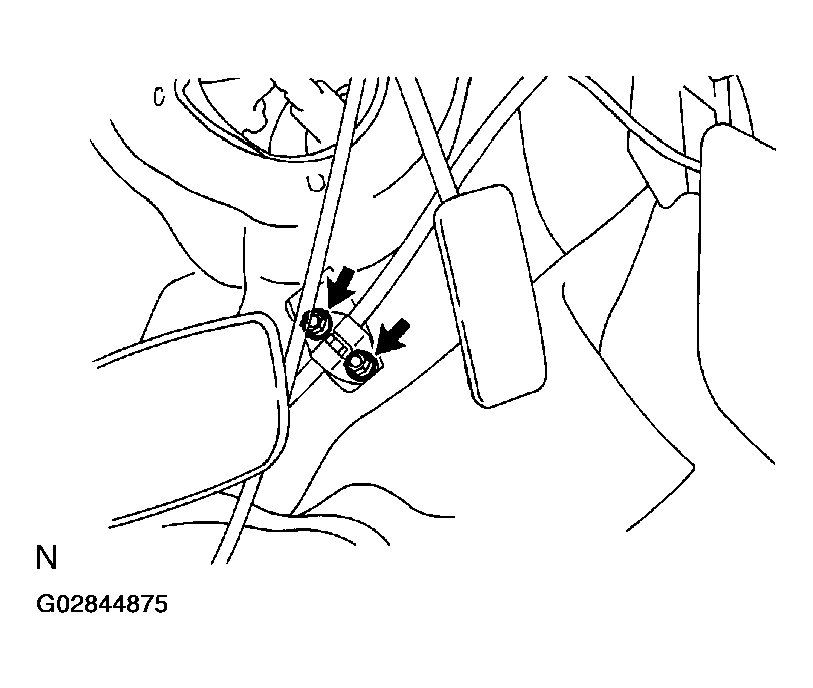

- Remove the 2 nuts and parking brake cable bracket.
- Remove the 2 bolts and disconnect the accelerator pedal.
- Remove the 3 nuts and main shaft lower dust seal.
