Remove Needle Bearing

  1. Using a screwdriver, remove the snap ring.

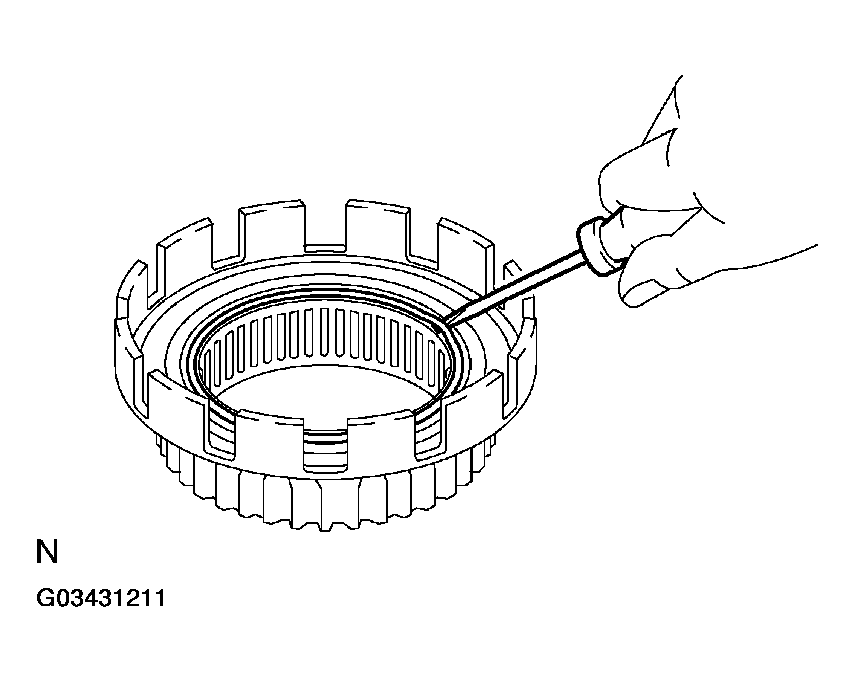

    Fig 1: Removing Snap Ring Using Screwdriver
    G03431211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove the needle bearing and spacer.

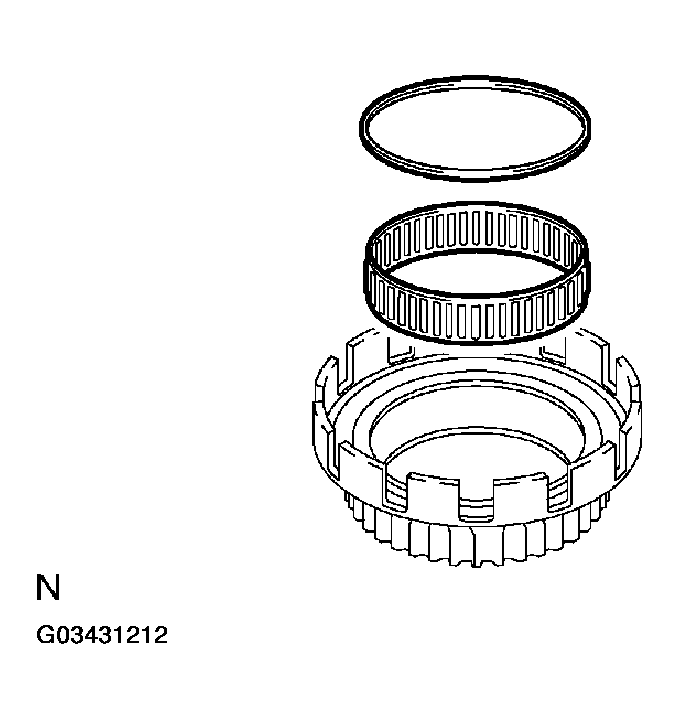

    Fig 2: Removing Needle Bearing & Spacer
    G03431212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
