Input Shaft: Reassembly

  1. INSTALL NEEDLE ROLLER BEARING AND BEARING RACE

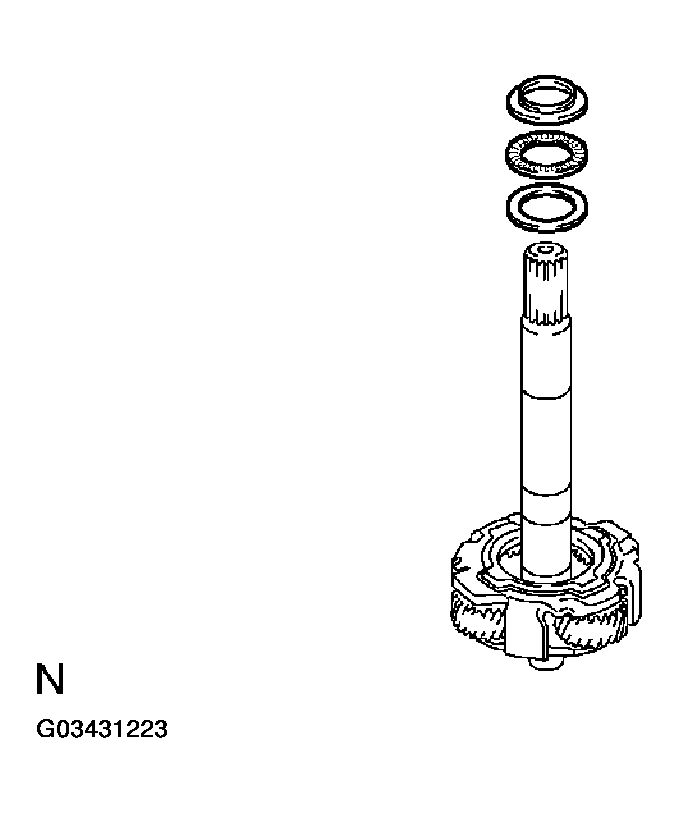

    Fig 1: Installing Needle Roller Bearing & Bearing Race
    G03431223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL PLANETARY SUN GEAR TO INPUT SHAFT

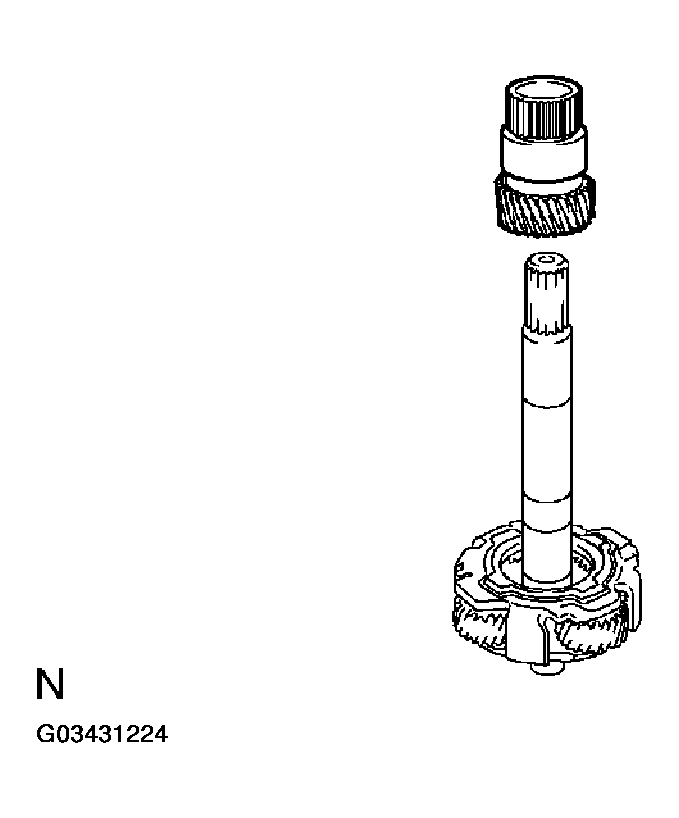

    Fig 2: Installing Planetary Sun Gear To Input Shaft
    G03431224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
