Home >> Toyota >> 2003 >> RAV4 Base, FWD, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System >> Location

Power Window Control System: Location

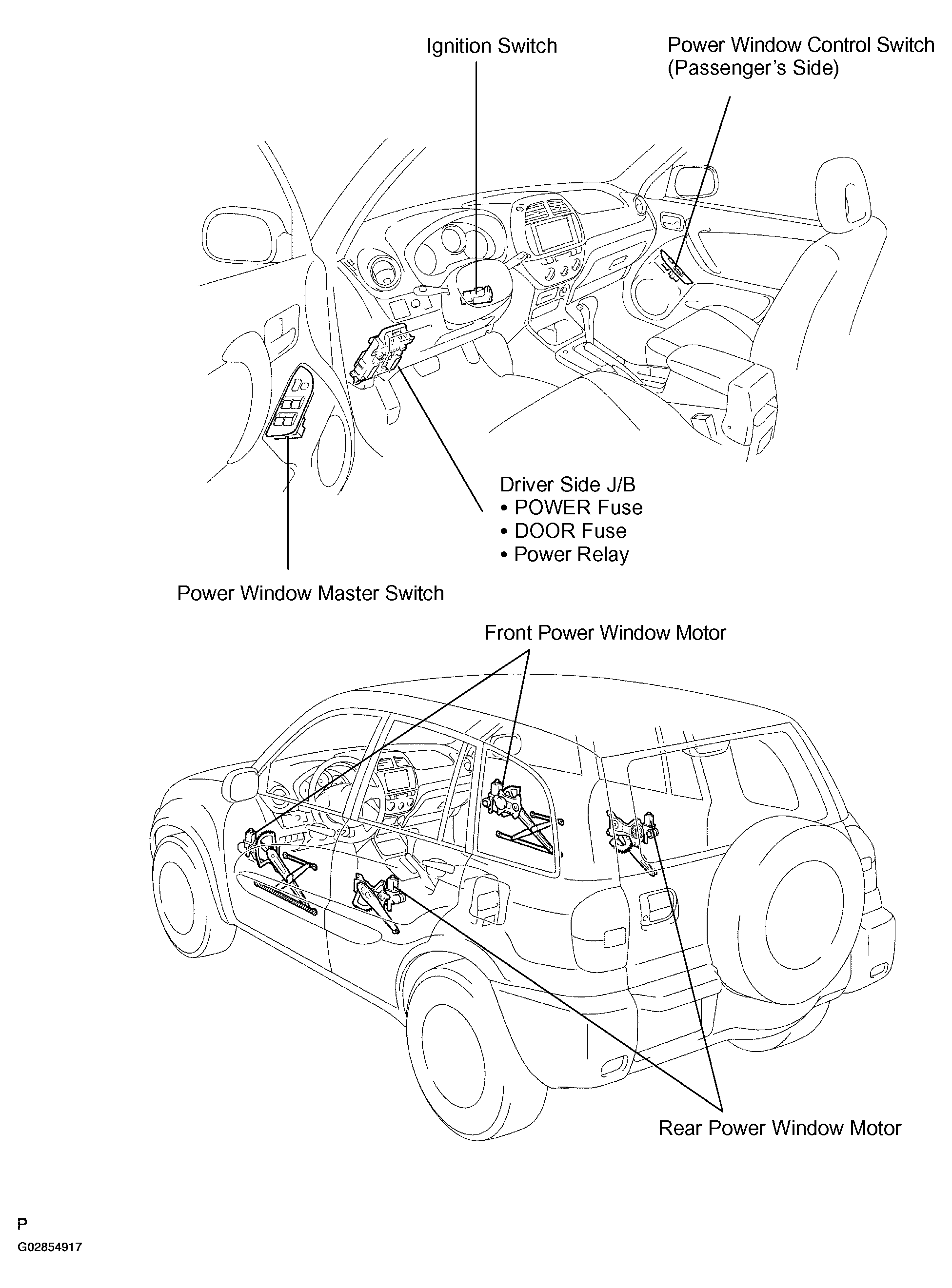

Fig 1: Locating Components
G02854917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
